Pull Ring Locking Plungers
Jergens Pull Ring Locking Plungers are designed for use in applications with limited space.
Features, Benefits, & Product Specifications:
- Body Material: Steel or Stainless Steel
- Nose Material: Steel, Stainless Steel, or Delrin
- Turn the ring to lock and extend the plunger
- Slight taper on the end of the plunger for easy alignment

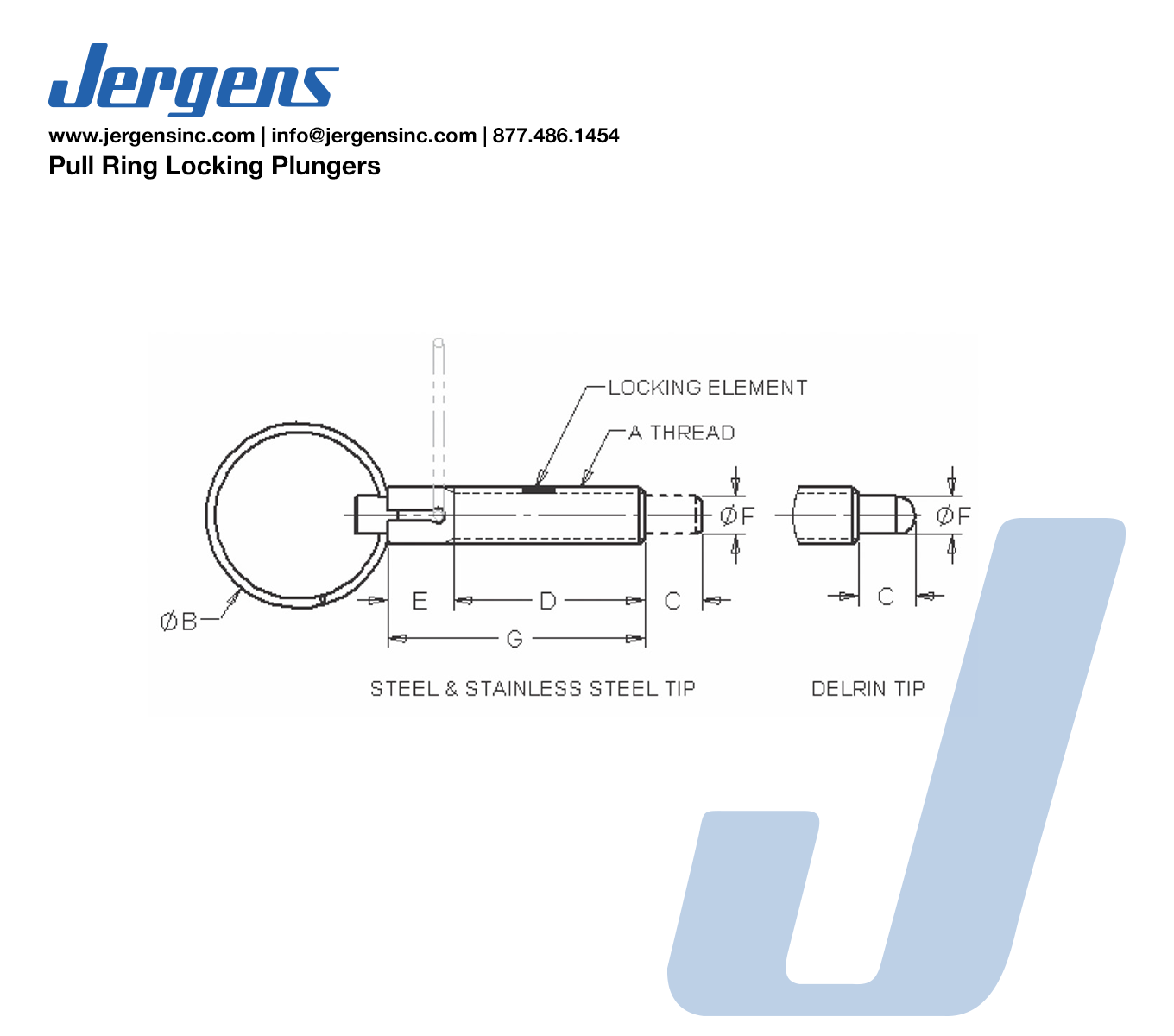

Pull Ring Locking Plunger_LineArt
Pull Ring Locking Plungers
| Part Number | CAD | Unit | Body Material | Nose Material | Initial Force (lbs) | Final Force (lbs) | A | B (In) | C (In) | D +0.001/-0.002 (in) | E (in) | F (in) | G (in) | Net Weight 10 Pieces (lbs) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 27447 |
|
Inch | Steel | Steel | 2.0 | 4.0 | 3/8-16 | 1 | 3/8 | 1 1/4 | 7/16 | 0.233 | 1 11/16 | 0.43 | |
| 27448 |
|
Inch | Steel | Steel | 2.5 | 5.0 | 1/2-13 | 1 1/4 | 1/2 | 1 7/16 | 9/16 | 0.312 | 2 | 0.90 | |
| 27569 | Inch | Steel | Delrin | 2.0 | 4.0 | 3/8-16 | 1 | 3/8 | 1-1/4 | 7/16 | 0.233 | 1-11/16 | 0.43 | ||
| 27570 | Inch | Steel | Delrin | 2.5 | 5.0 | 1/2-13 | 1-1/4 | 1/2 | 1-7/16 | 9/16 | 0.312 | 2 | 0.90 | ||
| 27571 | Inch | Stainless Steel | Delrin | 1.0 | 2.5 | 1/4-20 | 5/8 | 1/4 | 13/16 | 5/16 | 0.156 | 1-1/8 | 0.15 | ||
| 27572 | Inch | Stainless Steel | Delrin | 2.0 | 4.0 | 3/8-16 | 1 | 3/8 | 1-1/4 | 7/16 | 0.233 | 1-11/16 | 0.43 | ||
| 27573 | Inch | Stainless Steel | Delrin | 2.5 | 5.0 | 1/2-13 | 1-1/4 | 1/2 | 1-7/16 | 9/16 | 0.312 | 2 | 0.90 | ||
| 27812 |
|
Inch | Stainless Steel | Stainless Steel | 1.0 | 2.5 | 1/4-20 | 1 | 1/4 | 13/16 | 5/16 | 0.156 | 1 1/8 | 0.15 | |
| 27813 |
|
Inch | Stainless Steel | Stainless Steel | 2.0 | 4.0 | 3/8-16 | 1 1/4 | 3/8 | 1 1/4 | 7/16 | 0.233 | 1 11/16 | 0.43 | |
| 27814 |
|
Inch | Stainless Steel | Stainless Steel | 2.5 | 5.0 | 1/2-13 | 1 3/8 | 1/2 | 1 7/16 | 9/16 | 0.312 | 2 | 0.90 |
