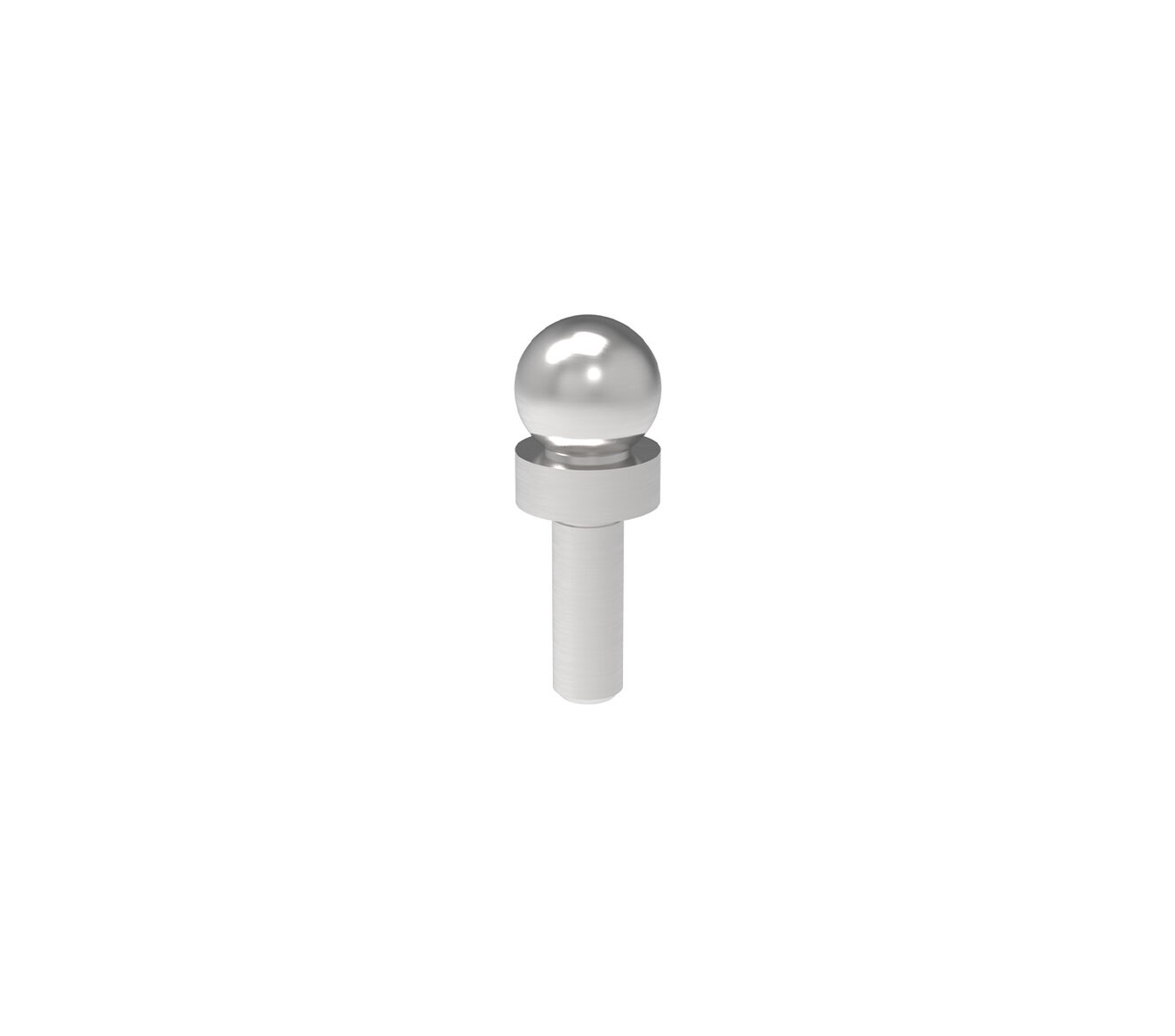

Precision Slip Fit Inspection Balls
Jergens Precision Slip Fit Inspection Balls are used as reference points for inspection applications in conjunction with Coordinate Measuring Machines to accurately measure the workpiece.
Features, Benefits, & Product Specifications:
-
Material: Hardened and ground steel (440 Stainless)
-
Concentricity of Ball to Shank: 0.0002" TIR
-
Two-piece construction
Precision Slip Fit Inspection Balls
Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | A +/-0.0005 (In) | B +0.000/-0.0002 (In) | C +/- .0002 (In) | D (In) | Diameter F (In) | Weight 10 Pieces (lbs) |
|---|---|---|---|---|---|---|---|---|
| 29075 |
|
Inch | 0.2500 | 0.1247 | 0.2000 | 9/16 | 1/4 | 0.10 |
| 29076 |
|
Inch | 0.3750 | 0.1872 | 0.3000 | 3/4 | 3/8 | 0.10 |
| 29077 |
|
Inch | 0.5000 | 0.2497 | 0.4000 | 15/16 | 1/2 | 0.30 |
| 29078 |
|
Inch | 0.6250 | 0.3122 | 0.4500 | 1 1/16 | 5/8 | 0.60 |
| 29079 |
|
Inch | 0.7500 | 0.3747 | 0.5000 | 1 1/4 | 3/4 | 1.0 |
| 29080 |
|
Inch | 0.8750 | 0.4372 | 0.6000 | 1 7/16 | 3/4 | 0.70 |
| 29081 |
|
Inch | 1.0000 | 0.4997 | 0.7000 | 1 5/8 | 1 | 2.4 |
