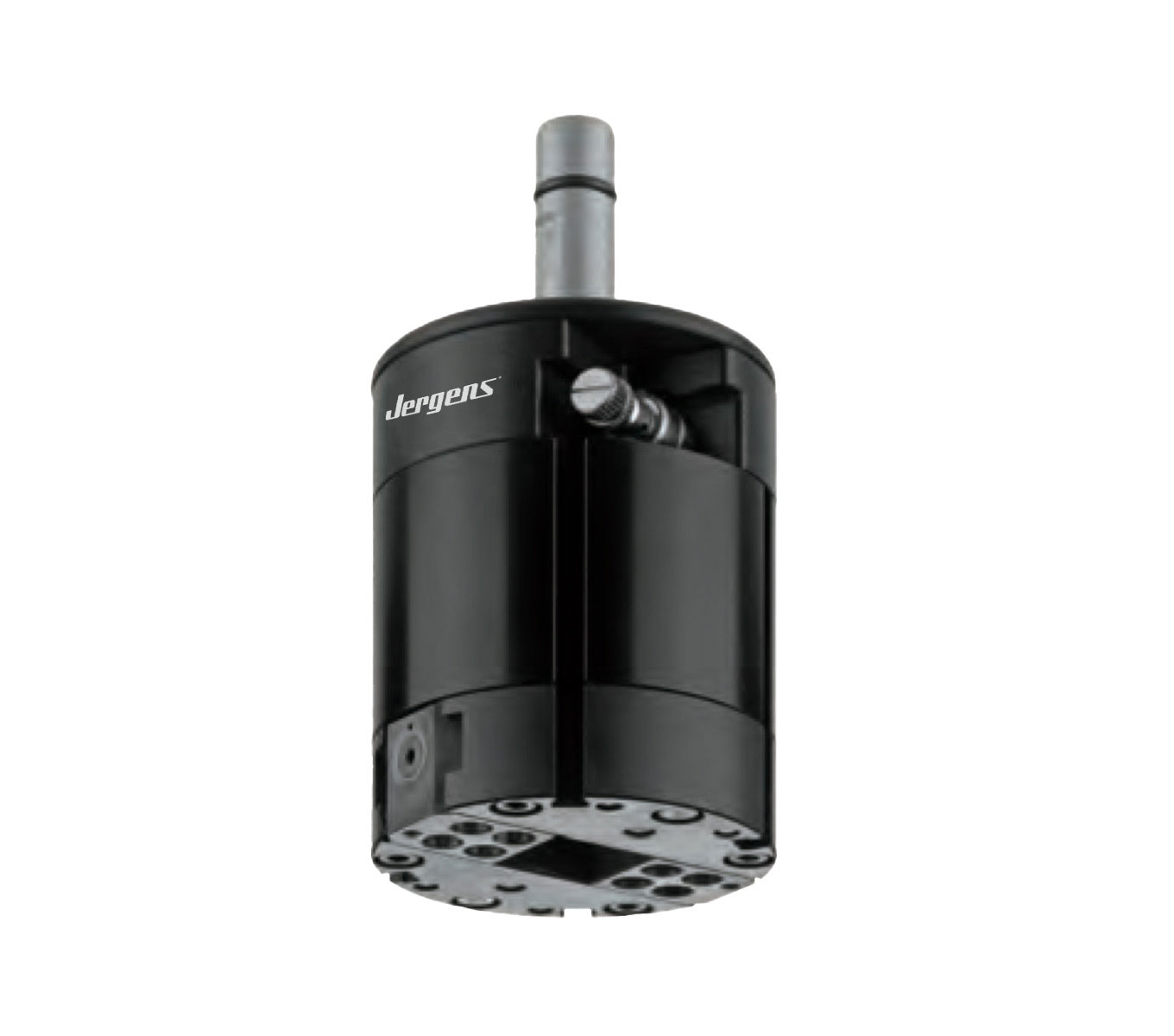

Pneumatic MT-S without Compensation Unit
The MT-S achieves a fully automatic workpiece change during the machining process on a machine tool. It is changed from the tool magazine of the milling machine and enables workpiece handling between the part storage and the clamping device. It is actuated by means of cooling lubricant, which is routed through the machine spindle. The gripper closes hydraulically and opening takes place by means of spring force.
- The gripping force can easily be adjusted by means of throttles and thereby adapted to the relevant requirements of the workpieces
- Easily exchangeable gripper inserts for handling various workpiece geometries
- Easy implementation of unmanned shifts, which means greater machine utilization and more flexibility
- Tremendous reduction of set-up times for smaller to medium-sizes batches
Notes
- Max permitted speed: 20 rpm
- Suitable for weldon holders and hydraulic expansion chucks
- Designed for ambient temperatures from 32ºF to 140ºF
- Transportation of workpieces up to a max of 8 kg (17.6 lb)
Documents
MT-S_Brochure_WEB
Pneumatic MT-S without Compensation Unit

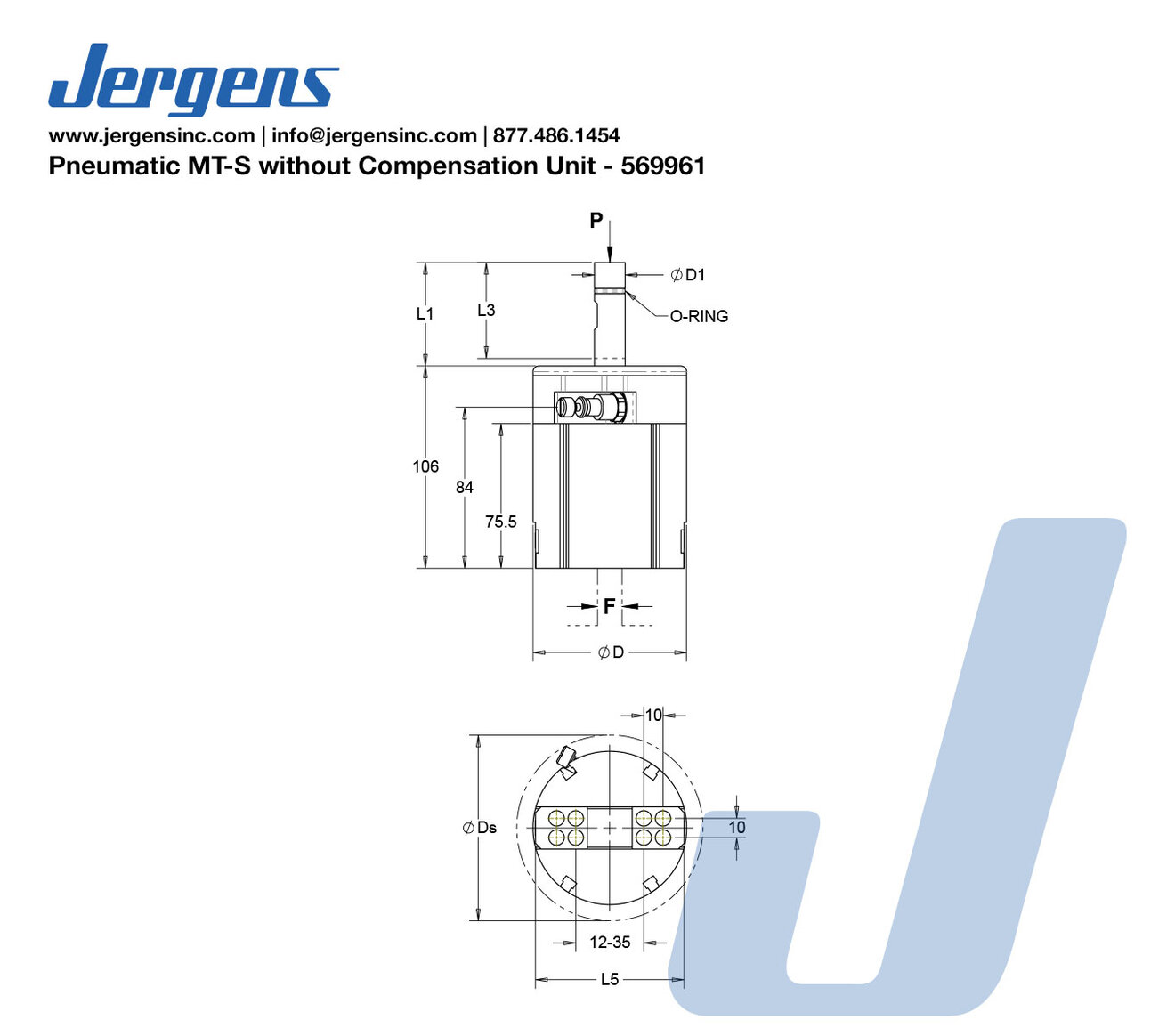

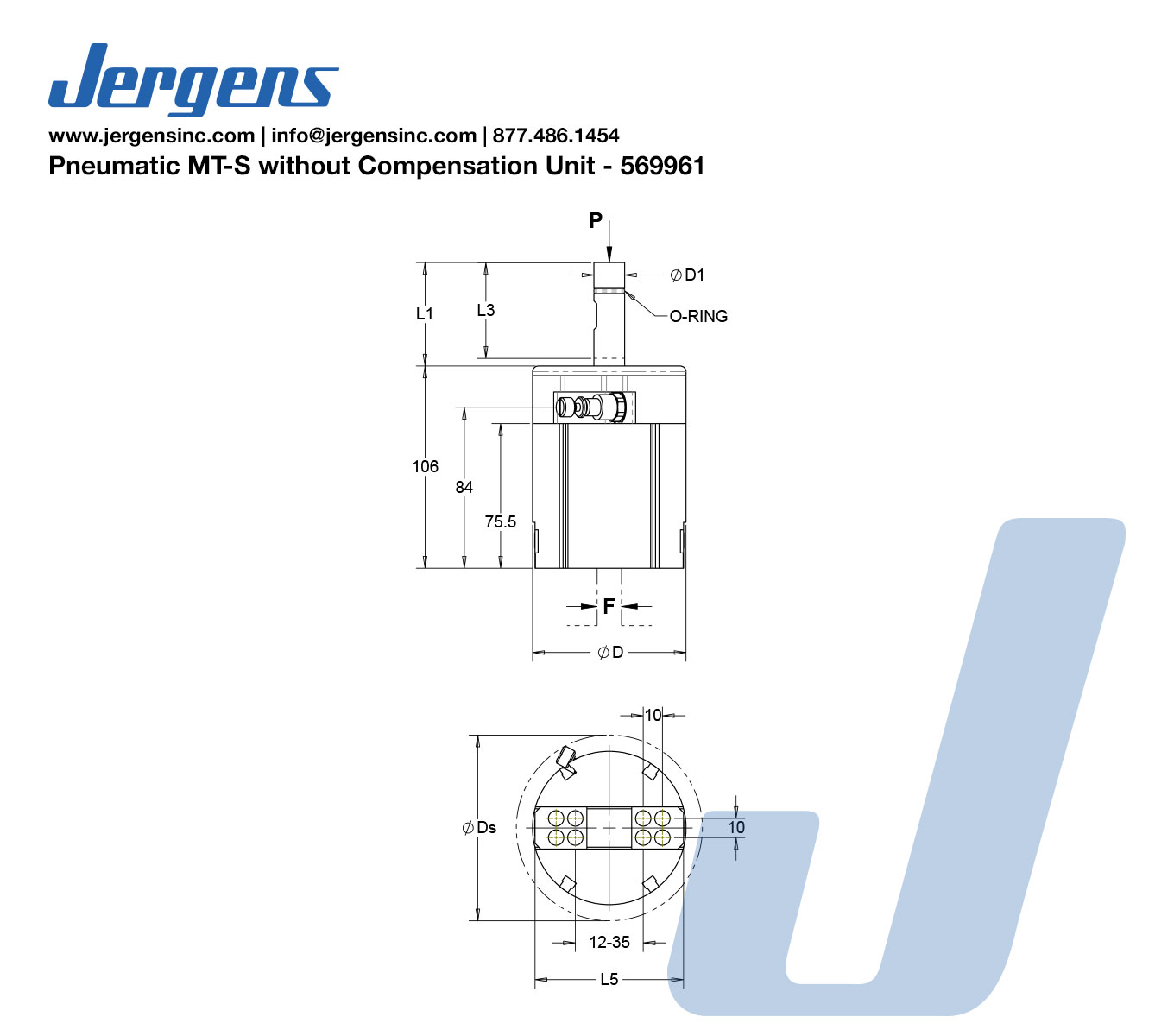

| Part Number | CAD | Unit | Minimum Operating Pressure (psi) | Minimum Operating Pressure (bars) | Maximum Operating Pressure (psi) | Maximum Operating Pressure (bars) | Gripping Force (N) | Gripping Force (lbs) | Stroke (mm) | D (mm) | D1 (mm) | Interference Zone Ds (mm) | L1 (mm) | L3 (mm) | Gripper Extension L5 (mm) | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 569961 |
|
Metric | 29 | 2 | 116 | 8 | 200-700 | 45-157 | 23 | 80 | 16 | 95 | 53 | 50 | 80 | 1.72 |
