Plastic Two Spoked Handwheels with Revolving Fold-Away Handle by ELESA®
Jergens Plastic Two Spoked Handwheels with Revolving Fold by ELESA® are ideal for adjusting machinery settings quickly and are especially useful for adjustments where heavy torque and clamping are required. They are used in a variety of applications such as valve operation, cutter adjustment, drive presses, etc.
Features, Benefits, & Product Specifications:
-
Handwheel Material: High-Resilience Polypropylene-Based (PP) Technopolymer
-
Handwheel Finish & Color: Matte, Black
-
Hub: Black Oxide Steel, H7 reamed hole
-
Cap Material & Color: Technopolymer, Light Gray
-
Resistant to solvents, oils, greases, and other chemical agents
Plastic Two Spoked Handwheels with Revolving Fold-Away Handle by ELESA®

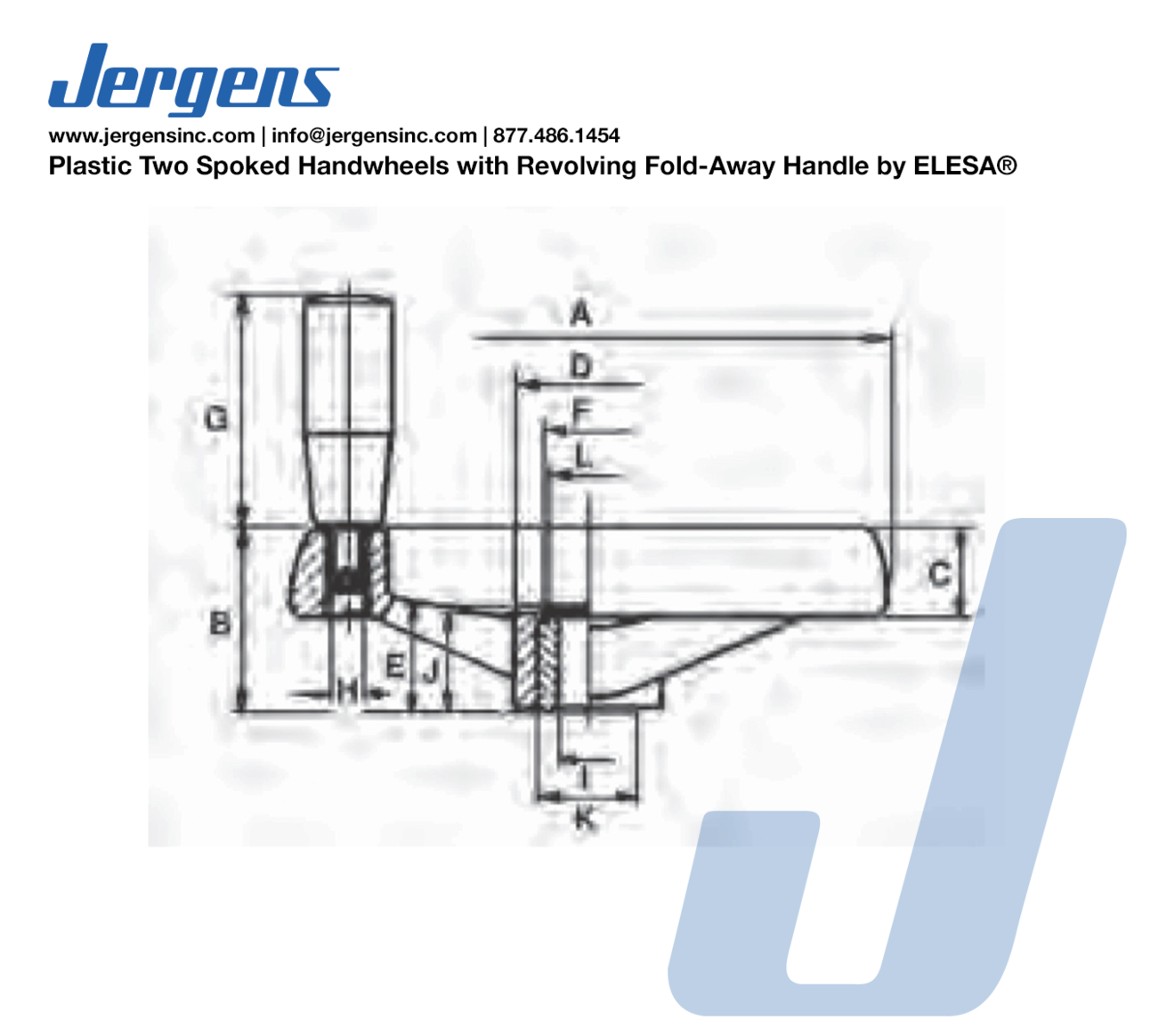

Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | A (In) | B (In) | C (In) | D (In) | E (In) | F (In) | G (In) | H (In) | I (In) | J (In) | K (In) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 22621 | Inch | 3.15 | 1.38 | 0.71 | 0.91 | 0.75 | 0.67 | 1.96 | 0.312 | 0.67 | 0.71 | 0.62 | |
| 22622 |
|
Inch | 3.90 | 1.46 | 0.79 | 0.98 | 0.75 | 0.67 | 2.20 | 0.375 | 0.67 | 0.71 | 0.63 |
| 22623 | Inch | 4.92 | 1.73 | 0.87 | 1.22 | 0.98 | 0.83 | 2.56 | 0.375 | 0.87 | 0.87 | 0.79 | |
| 22624 | Inch | 6.30 | 2.01 | 0.98 | 1.57 | 1.14 | 0.98 | 2.56 | 0.50 | 1.06 | 1.02 | 0.94 | |
| 22625 | Inch | 7.87 | 2.40 | 1.10 | 1.97 | 1.42 | 1.22 | 3.15 | 0.625 | 1.34 | 1.18 | 1.10 | |
| 22626 | Inch | 9.84 | 2.76 | 1.26 | 2.32 | 1.57 | 1.34 | 3.54 | 0.625 | 1.50 | 1.38 | 1.30 |
