Plastic Two Spoked Handwheels by ELESA®
Jergens Plastic Two Spoked Handwheels by ELESA® are ideal for adjusting machinery settings quickly and are especially useful for adjustments where heavy torque and clamping are required. They are used in a variety of applications such as valve operation, cutter adjustment, drive presses, etc.
Features, Benefits, & Product Specifications:
-
Handwheel Material: High-Resilience Polypropylene-Based (PP) Technopolymer
-
Handwheel Finish & Color: Matte, Black
-
Hub: Black Oxide Steel, H7 reamed hole
-
Cap Material & Color: Technopolymer, Light Gray
-
Special bores and keyways quoted upon request
-
Resistant to solvents, oils, greases, and other chemical agents
Plastic Two Spoked Handwheels by ELESA®
Select a part number for CAD drawings, price and stock availability.

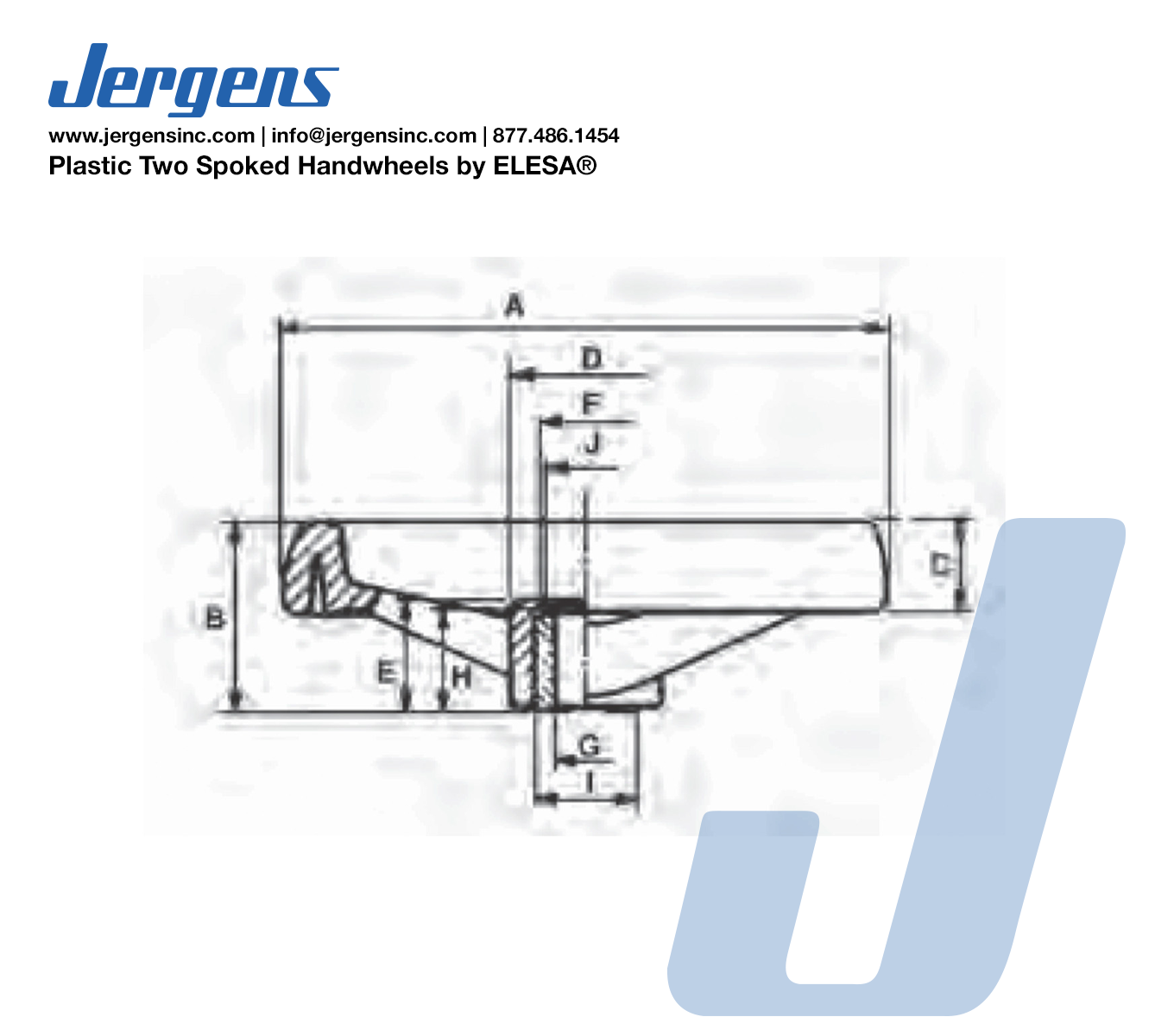

| Part Number | CAD | Unit | A (In) | B (In) | C (In) | D (In) | E (In) | F (In) | G | H (In) | I (In) | J (In) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 22601 |
|
Inch | 3.15 | 1.38 | 0.71 | 0.91 | 0.75 | 0.67 | 5/16 | 0.67 | 0.71 | 0.62 |
| 22602 |
|
Inch | 3.90 | 1.46 | 0.79 | 0.98 | 0.75 | 0.67 | 3/8 | 0.67 | 0.71 | 0.63 |
| 22603 |
|
Inch | 4.92 | 1.73 | 0.87 | 1.22 | 0.98 | 0.83 | 3/8 | 0.87 | 0.87 | 0.79 |
| 22604 |
|
Inch | 6.30 | 2.01 | 0.98 | 1.57 | 1.14 | 0.98 | 1/2 | 1.06 | 1.02 | 0.94 |
| 22605 |
|
Inch | 7.87 | 2.40 | 1.10 | 1.97 | 1.42 | 1.22 | 5/8 | 1.34 | 1.18 | 1.10 |
| 22606 |
|
Inch | 9.84 | 2.76 | 1.26 | 2.32 | 1.57 | 1.34 | 5/8 | 1.50 | 1.38 | 1.30 |
| 22607 |
|
Inch | 11.81 | 3.07 | 1.42 | 2.60 | 1.81 | 1.65 | 3/4 | 1.69 | 1.57 | 1.46 |
| 22608 |
|
Inch | 14.76 | 3.23 | 1.50 | 2.72 | 1.81 | 1.65 | 3/4 | 1.69 | 1.57 | 1.46 |
