Plastic Three Spoked Handwheels by ELESA®
Jergens Plastic Three Spoked Handwheels by ELESA® are ideal for adjusting machinery settings quickly and are especially useful for adjustments where heavy torque and clamping are required. They are used in a variety of applications such as valve operation, cutter adjustment, drive presses, etc.
Features, Benefits, & Product Specifications:
-
Handhweel Material: High-Strength, Reinforced Phenolic-Based (PF) Duroplast
-
Handwheel Finish & Color: Glossy, Black
-
Hub: Black Oxide Steel, not drilled, uncovered front end in order to make holes different from the standard
-
Special bores and keyways quoted upon request
-
Resistant to solvents, oils, greases, and other chemical agents
Plastic Three Spoked Handwheels by ELESA®
Select a part number for CAD drawings, price and stock availability.

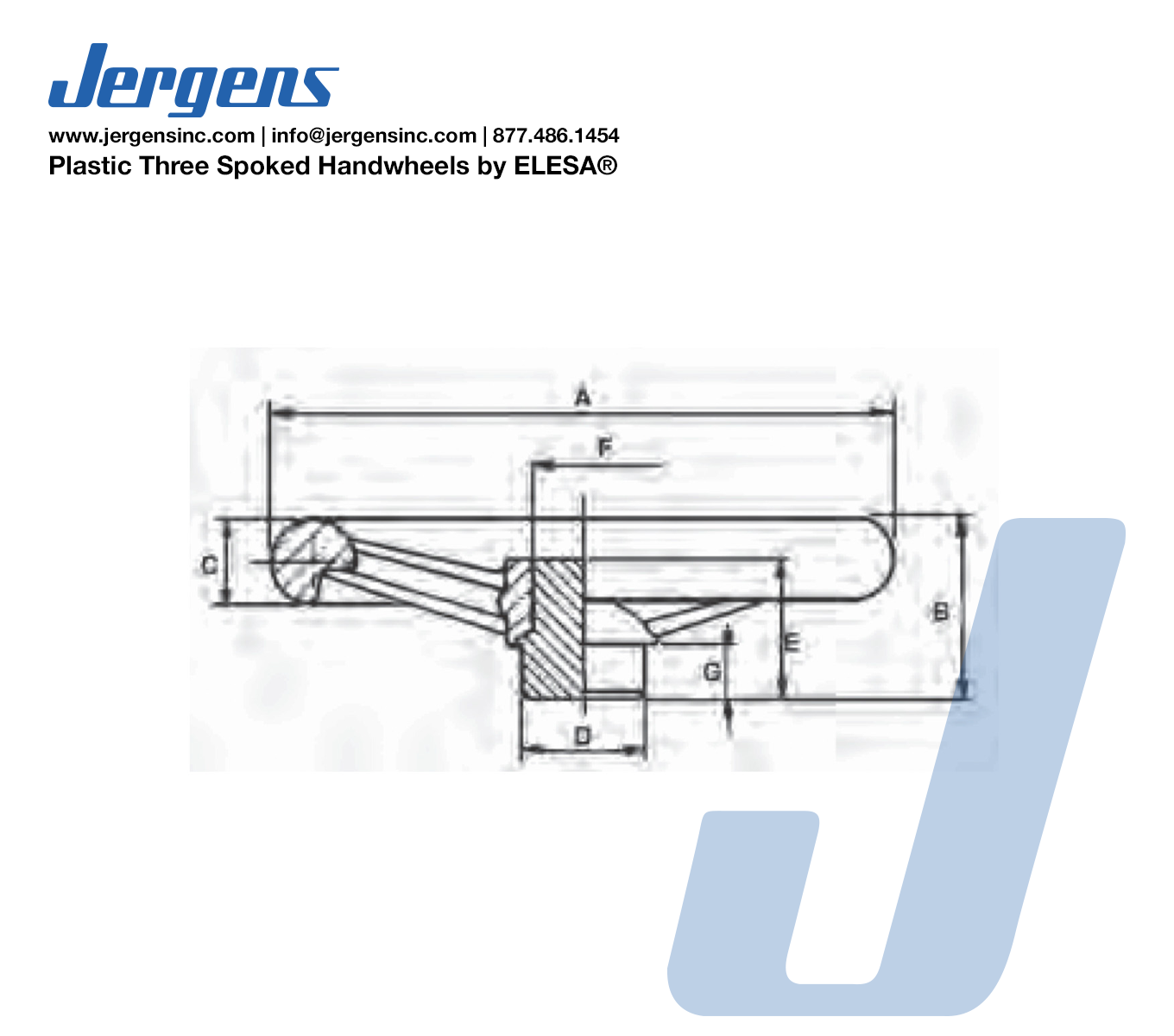

| Part Number | CAD | Unit | A (In) | B (In) | C (In) | D (In) | E (In) | F (In) | G (In) |
|---|---|---|---|---|---|---|---|---|---|
| 22631 |
|
Inch | 3.86 | 1.57 | 0.55 | 0.94 | 1.42 | 0.79 | 0.47 |
| 22632 |
|
Inch | 4.88 | 1.77 | 0.71 | 0.94 | 1.42 | 0.79 | 0.47 |
| 22633 |
|
Inch | 6.18 | 1.97 | 0.87 | 1.26 | 1.50 | 0.94 | 0.59 |
| 22634 |
|
Inch | 7.09 | 2.20 | 0.94 | 1.57 | 1.69 | 1.22 | 0.59 |
| 22635 |
|
Inch | 7.80 | 2.20 | 0.94 | 1.57 | 1.69 | 1.22 | 0.59 |
| 22636 |
|
Inch | 9.72 | 2.60 | 1.18 | 1.93 | 1.73 | 1.50 | 0.59 |
| 22637 |
|
Inch | 11.34 | 3.07 | 1.26 | 2.28 | 2.20 | 1.85 | 0.71 |
| 22638 |
|
Inch | 14.76 | 4.25 | 1.57 | 2.28 | 3.03 | 2.28 | 1.02 |
Documents and Videos
Operating Manual- Operating Manual - 81600 ONLY
- Jergens Production Vise System
- Jergens Production Vises Features and Benefits
- Vertical Machine Solutions
- Horizontal Machine Solutions
- Hydraulic Production Vises
- Production Vises
Related Products
-
Plastic Three Spoked Handwheels with Revolving Handle by ELESA®
