Plastic Tapped Button Head Adjustable Handles with Stainless Steel Insert by ELESA®
Jergens Plastic Tapped Button Head Adjustable Handles with Stainless Steel Insert are ideal for adjustable clamping or tightening controls when the operating angle is limited.
Features, Benefits, & Product Specifications:
-
Materials:
-
Lever Body: Glass-Fibre Reinforced Polyamide-Based (PA) Technopolymer
-
Push Button: Technopolymer
-
Locking Element: Glass-Fibre Reinforced Technopolymer
-
Insert: Stainless Steel, threaded blind hole
-
Return Spring: Stainless Steel
-
-
Finishes & Colors:
-
Lever Body: Matte, Black
-
Push Button: Matte, Black
-
Locking Element: Black Color
-
-
Absolute electric insulation for the operator
-
More comfortable lever release
- The locking element with a retaining pin has knurling on the protruding part to make initial tightening easier
-
Resistant to solvents, oils, greases, and other chemical agents
Instructions of Use:
For clamping, lift the lever to disengage the clamping device teeth and bring it back to the start position. By releasing the lever, the return spring automatically engages the teeth.
Plastic Tapped Button Head Adjustable Handles with Stainless Steel Insert by ELESA®

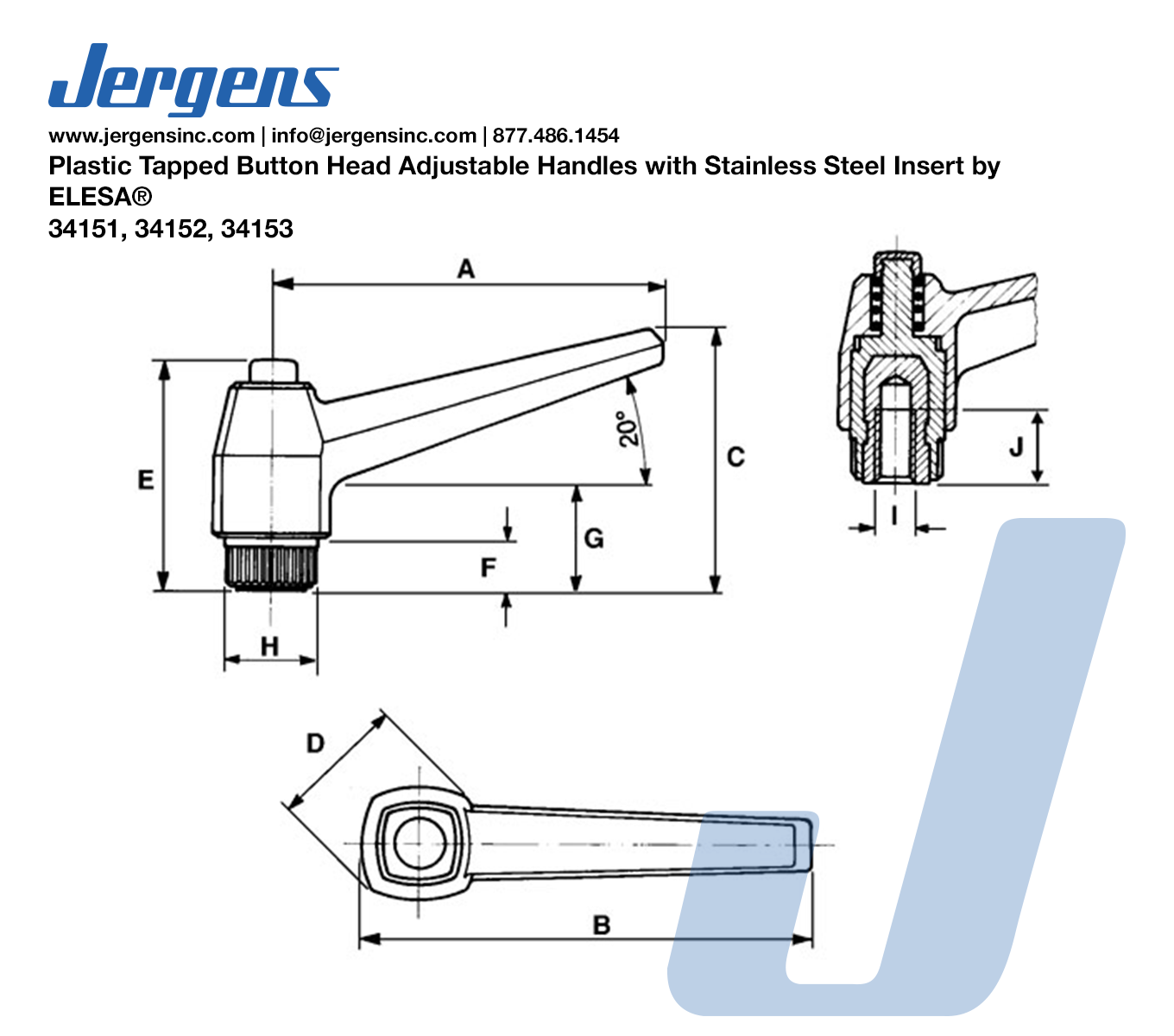

Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | I | J (mm) | Stud/Insert Material | Insert/Stud |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 34151 |
|
Metric | 42 | 50 | 32 | 18 | 29 | 6 | 14 | 12 | M6 | 10 | Stainless | Insert |
| 34152 |
|
Metric | 63 | 73 | 43 | 23 | 37 | 8 | 17 | 15 | M8 | 13 | Stainless | Insert |
| 34153 |
|
Metric | 80 | 92 | 54 | 28 | 47 | 10 | 22 | 19 | M10 | 17 | Stainless | Insert |
