Plastic Tapped Button Head Adjustable Handles with Brass Insert by ELESA®

Jergens Plastic Tapped Button Head Adjustable Handles by ELESA® are ideal for adjustable clamping or tightening controls when the operating angle is limited.
Features, Benefits, & Product Specifications:
  • Materials:
    • Lever Body: Glass-Fibre Reinforced Polyamide-Based (PA) Technopolymer
    • Push Button: Technopolymer
    • Locking Element: Glass-Fibre Reinforced Technopolymer
    • Insert: Brass, threaded blind hole
    • Return Spring: Stainless Steel
  • Finishes & Colors:
    • Lever Body: Matte, Black
    • Push Button: Matte, Black
    • Locking Element: Black Color
  • Absolute electric insulation for the operator
  • More comfortable lever release
  • The locking element with a retaining pin has knurling on the protruding part to make initial tightening easier
  • Resistant to solvents, oils, greases, and other chemical agents
Instructions of Use:
For clamping, lift the lever to disengage the clamping device teeth and bring it back to the start position. By releasing the lever, the return spring automatically engages the teeth.

Documents

Plastic Tapped Button Head Adjustable Handles with Brass Insert by ELESA®

Select a part number for CAD drawings, price and stock availability.

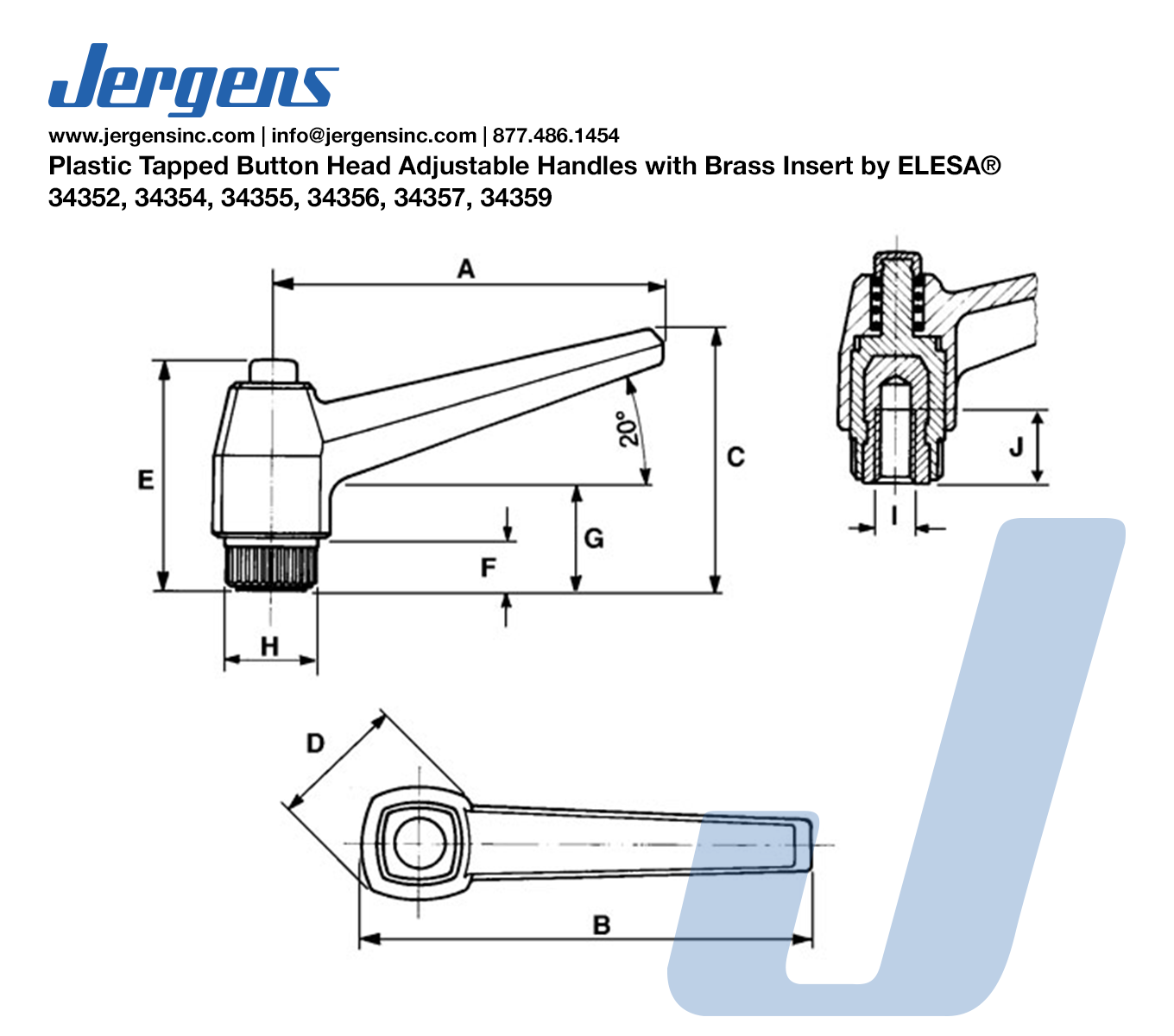

Part Number CAD Unit A (In) B (In) C (In) D (In) E (In) F (In) G (In) H (In) I J (In) Stud/Insert Material Insert/Stud
34301 icon_cad Inch 1.65 1.96 1.25 0.7 1.14 0.23 0.55 0.47 10-24 0.39 Brass Insert
34302 icon_cad Inch 1.65 1.96 1.25 0.7 1.14 0.23 0.55 0.47 1/4-20 0.39 Brass Insert
34303 icon_cad Inch 2.48 2.87 1.69 0.9 1.45 0.31 0.66 0.60 1/4-20 0.47 Brass Insert
34304 icon_cad Inch 2.48 2.87 1.69 0.9 1.45 0.31 0.66 0.60 5/16-18 0.51 Brass Insert
34305 icon_cad Inch 3.14 3.62 2.12 1.1 1.85 0.39 0.86 0.74 5/16-18 0.71 Brass Insert
34306 icon_cad Inch 3.14 3.62 2.12 1.1 1.85 0.39 0.86 0.74 3/8-16 0.67 Brass Insert
34307 icon_cad Inch 3.14 3.62 2.12 1.1 1.85 0.39 0.86 0.74 1/2-13 0.67 Brass Insert
34308 icon_cad Inch 3.93 4.48 2.55 1.3 2.12 0.47 0.98 0.98 3/8-16 0.79 Brass Insert
34309 icon_cad Inch 3.93 4.48 2.55 1.3 2.12 0.47 0.98 0.98 1/2-13 0.79 Brass Insert
Part Number CAD Unit A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) H (mm) I J (mm) Stud/Insert Material Insert/Stud
34352 icon_cad Metric 42 50 32 18 29 6 14 12 M6 10 Brass Insert
34354 icon_cad Metric 63 73 43 23 37 8 17 15 M8 13 Brass Insert
34355 icon_cad Metric 80 92 54 28 47 10 22 19 M8 20 Brass Insert
34356 icon_cad Metric 80 92 54 28 47 10 22 19 M10 18 Brass Insert
34357 icon_cad Metric 80 92 54 28 47 10 22 19 M12 17 Brass Insert
34359 icon_cad Metric 100 114 65 33 54 12 25 25 M12 20 Brass Insert
