Plastic Solid Handwheels with Revolving Handle by ELESA®
Jergens Plastic Solid Handwheels with Revolving Handle by ELESA® are ideal for making adjustments and clamping via rotating mechanisms in a variety of applications in industries such as metalworking, industrial, and packaging equipment.
Features, Benefits, & Product Specifications:
-
Handwheel Material: High-Resilience Polypropylene-Based (PP) Technopolymer
-
Handwheel Finish & Color: Matte, Black
-
Hub: Black Oxide Steel, H7 reamed hole
-
Cap Material & Color: Acetal Resin-Based (POM) Technopolymer, Light Gray
-
Resistant to solvents, oils, greases, and other chemical agents

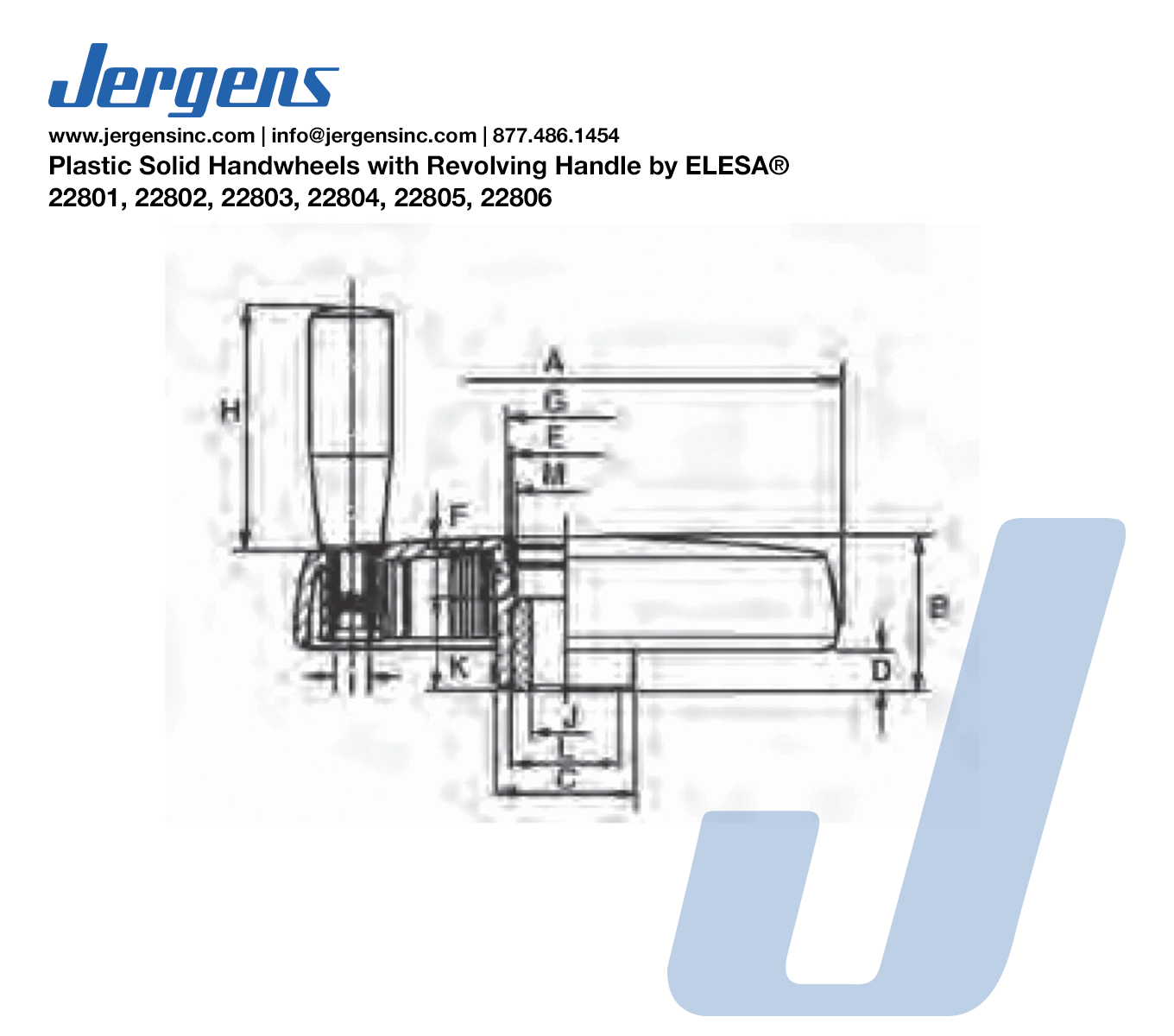

Plastic Solid Handwheel with Revolving Handle_LineArt
Plastic Solid Handwheels with Revolving Handle by ELESA®
| Part Number | CAD | Unit | A (In) | B (In) | C (In) | D (in) | E (in) | F (in) | G (in) | H (in) | I | J (in) | K (in) | L (in) | M (in) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 22802 |
|
Inch | 4.02 | 1.34 | 1.18 | 0.39 | 0.98 | 0.35 | 1.06 | 1.97 | M6 | 0.375 | 0.87 | 0.87 | 0.79 | |
| 22803 |
|
Inch | 4.92 | 1.54 | 1.38 | 0.43 | 1.10 | 0.31 | 1.22 | 2.20 | M6 | 0.375 | 1.06 | 1.02 | 0.94 | |
| 22805 |
|
Inch | 6.93 | 1.93 | 1.73 | 0.51 | 1.38 | 0.63 | 1.54 | 3.15 | M10 | 0.500 | 1.10 | 1.38 | 1.30 | |
| 22806 |
|
Inch | 7.87 | 2.09 | 1.97 | 0.55 | 1.57 | 0.51 | 1.73 | 3.54 | M10 | 0.625 | 1.42 | 1.57 | 1.50 |
