Plastic Solid Handwheels with Finger Grips by ELESA®
Jergens Plastic Solid Handwheels with Finger Grips by ELESA® are ideal for making adjustments and clamping via rotating mechanisms in a variety of applications in industries such as metalworking, industrial, and packaging equipment. The rim with internal rear scallops makes the grip and the manoeuvre of the handwheel easier.
Features, Benefits, & Product Specifications:
-
Handwheel Material: High-Strength, Reinforced Phenolic-Based (PF) Duroplast
-
Handwheel Finish & Color: Glossy, Black
-
Ring Material & Finish: Matte Anodised Aluminium
-
Hub: Black Oxide Steel, not drilled in order to make holes different from the standard
-
Resistant to solvents, oils, greases, and other chemical agents
Plastic Solid Handwheels with Finger Grips by ELESA®

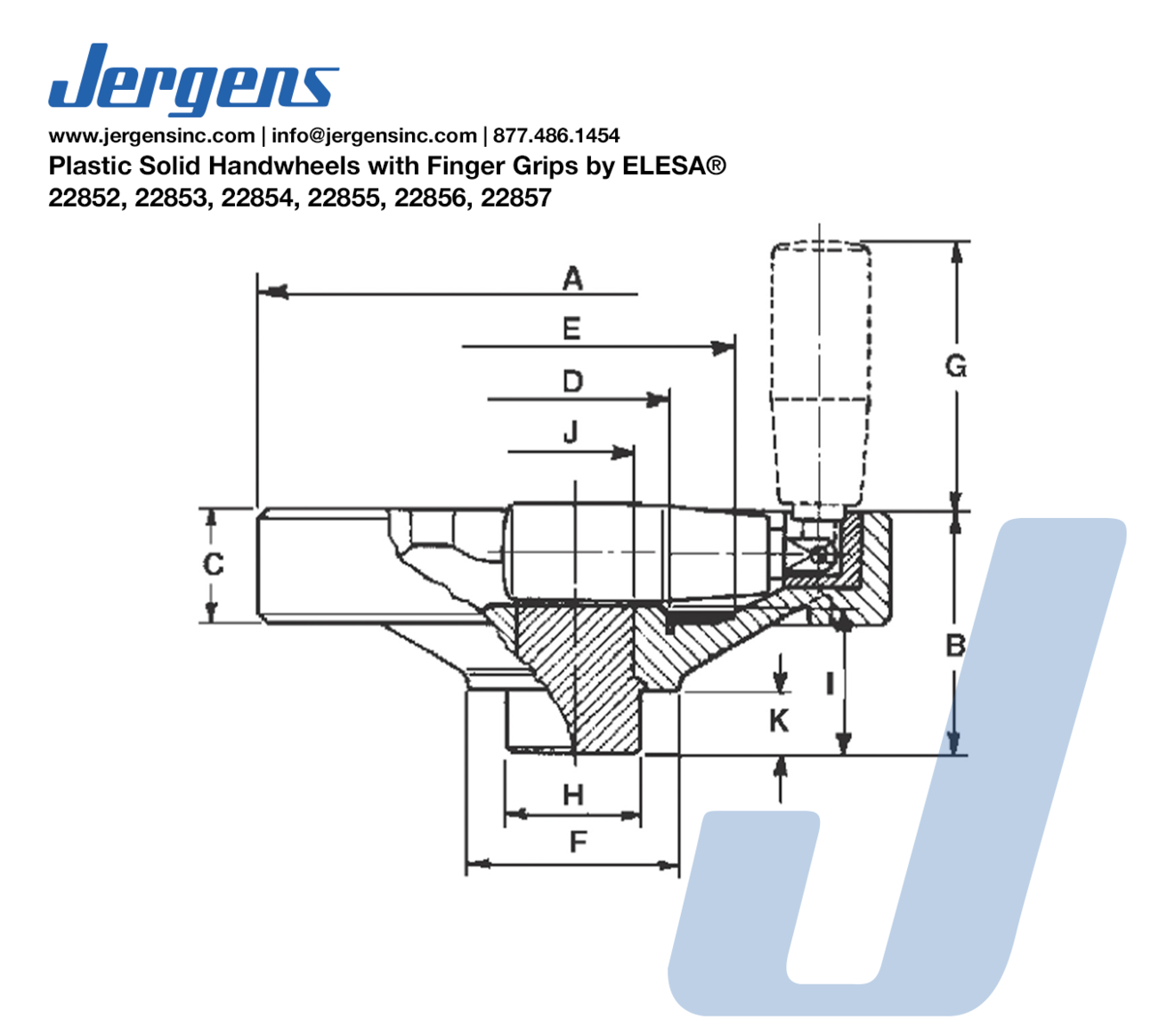

Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | A (In) | B (In) | C (In) | D (In) | E (In) | F (In) | G (In) | H (In) | I (In) | J (In) | K (In) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 22852 |
|
Inch | 3.94 | 2.01 | 1.02 | 1.38 | 2.13 | 1.54 | 2.20 | 0.94 | 1.32 | 0.79 | 0.47 |
| 22853 |
|
Inch | 4.92 | 2.24 | 1.10 | 1.73 | 2.76 | 1.81 | 2.56 | 1.26 | 1.50 | 1.00 | 0.59 |
| 22854 |
|
Inch | 5.91 | 2.36 | 1.18 | 1.97 | 3.15 | 1.89 | 2.56 | 1.26 | 1.50 | 0.96 | 0.59 |
| 22855 |
|
Inch | 6.89 | 2.60 | 1.26 | 2.17 | 3.54 | 2.20 | 3.15 | 1.57 | 1.69 | 1.22 | 0.59 |
| 22856 |
|
Inch | 7.87 | 2.68 | 1.26 | 2.17 | 3.54 | 2.36 | 3.54 | 1.57 | 1.69 | 1.22 | 0.59 |
| 22857 |
|
Inch | 9.80 | 2.95 | 1.42 | 2.60 | 4.33 | 2.76 | 3.54 | 1.93 | 1.73 | 1.50 | 0.59 |
