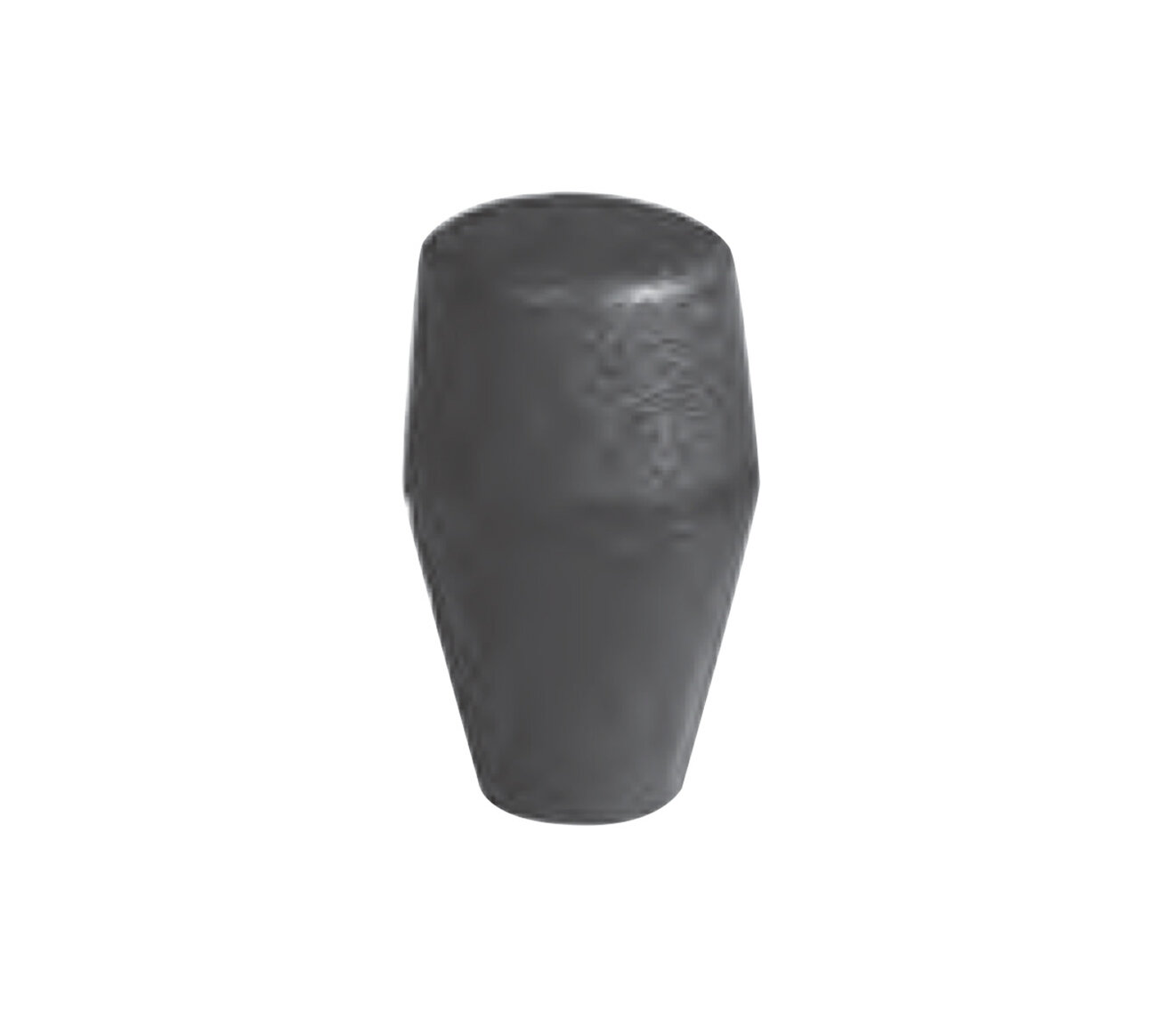

Plastic Soft Touch Tapered Knobs
Jergens Plastic Soft Touch Tapered Knobs have the original soft touch material that helps in gripping. They are designed with an enlarged head and tapered shaft for maximum push, pull and turning.
Features, Benefits, & Product Specifications:
-
Material: Soft Touch Plastic
-
Finish: Black Matte
-
Insert: Brass
-
Cushioned vinyl covering helps to dampen vibrations
-
Also available in red, blue, yellow, and green (250 piece minimum)
-
A standard 1" stud is available, other lengths available upon request
Note(s):
- Part No.'s 32181, 32183, 32184, 32172, & 32174 have a cored hole.
- ⚠ WARNING - Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Plastic Soft Touch Tapered Knobs
Select a part number for CAD drawings, price and stock availability.

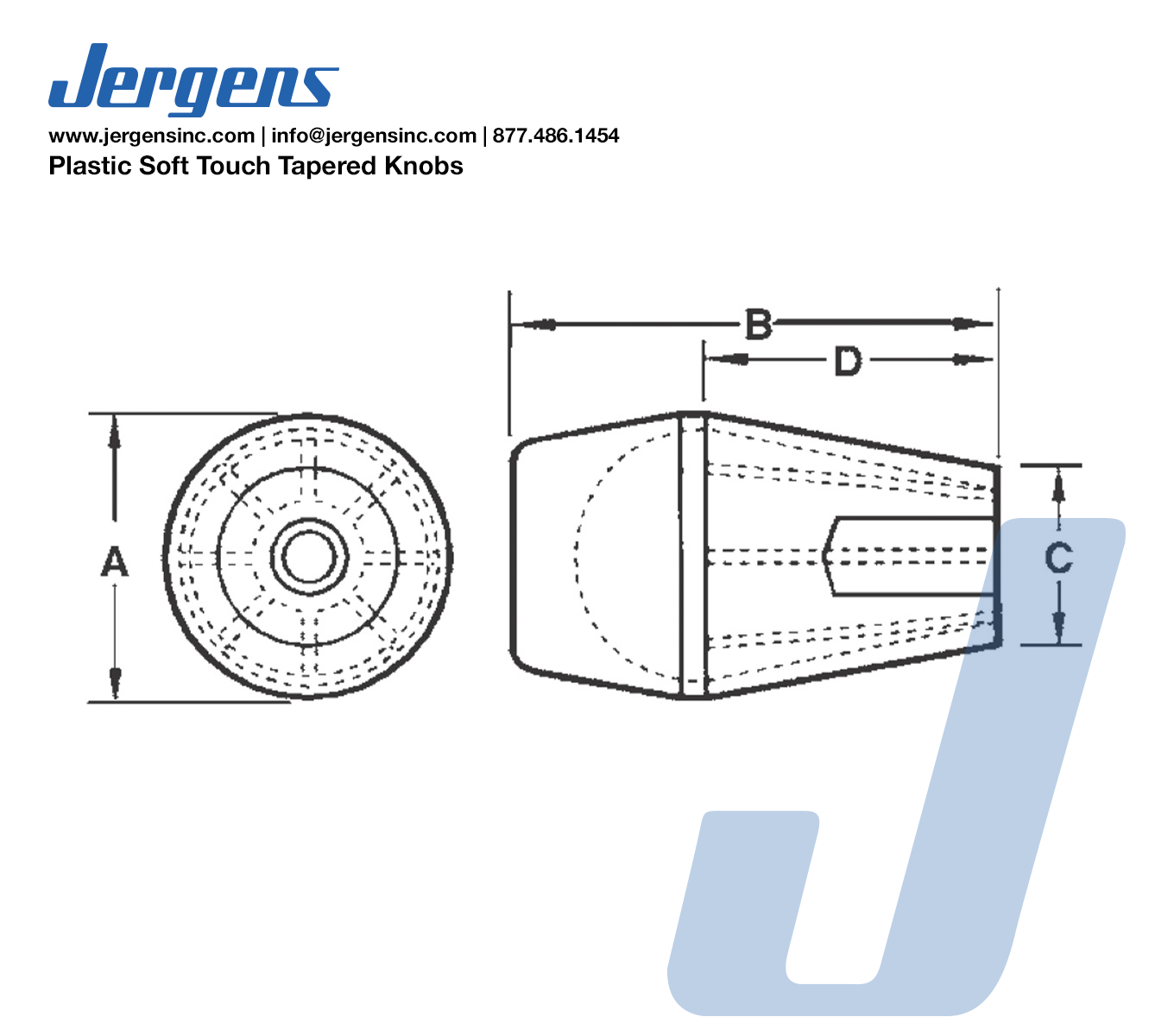

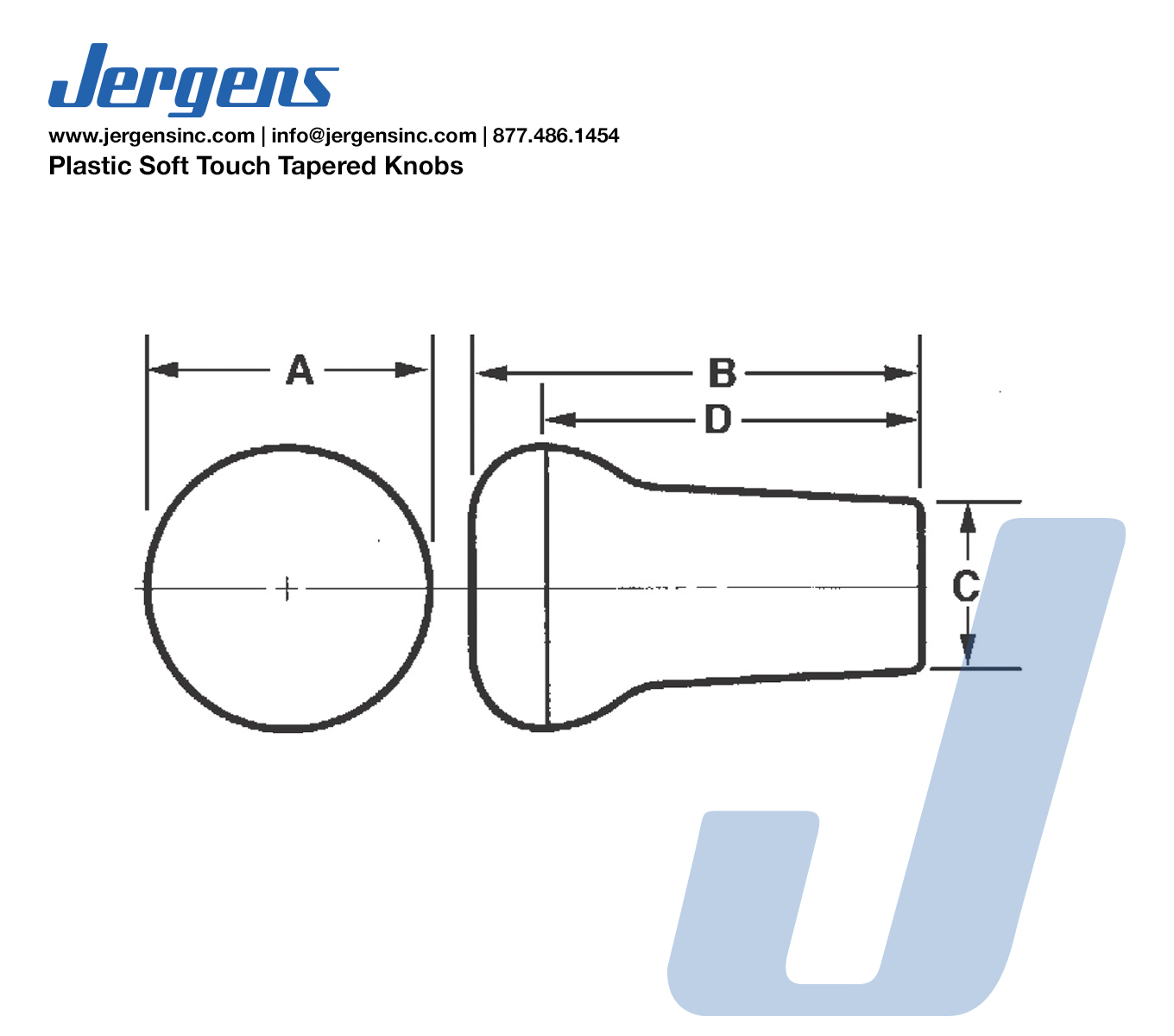

| Part Number | CAD | Unit | A (In) | B (In) | C (In) | D (In) | Hole Diameter |
|---|---|---|---|---|---|---|---|
| 32160 |
|
Inch | 1 1/2 | 2 1/2 | 15/16 | 1 1/2 | 1/4-20 x 5/8 |
| 32161 |
|
Inch | 1 1/2 | 2 1/2 | 15/16 | 1 1/2 | 5/16-18 x 3/4 |
| 32170 |
|
Inch | 1 3/8 | 2 1/8 | 13/16 | 1 3/4 | 5/16-18 x 5/8 |
| 32171 |
|
Inch | 1 3/8 | 2 1/8 | 13/16 | 1 3/4 | 3/8-16 x 5/8 |
| 32173 |
|
Inch | 1 3/8 | 2 1/8 | 13/16 | 1 3/4 | 1/2-13 x 5/8 |
| 32174 |
|
Inch | 1 3/8 | 2 1/8 | 13/16 | 1 3/4 | 1/2 x 1 |
| 32180 |
|
Inch | 1 5/8 | 2 1/2 | 7/8 | 2 1/8 | 1/4-20 x 5/8 |
| 32182 |
|
Inch | 1 5/8 | 2 1/2 | 7/8 | 2 1/8 | 5/16-18 x 5/8 |
| 32183 |
|
Inch | 1 5/8 | 2 1/2 | 7/8 | 2 1/8 | 5/16 x 1 |
| 32184 |
|
Inch | 1 5/8 | 2 1/2 | 7/8 | 2 1/8 | 3/8 x 1 |
