Plastic Revolving Heavy Duty Handles with Steel Shank by ELESA®
Jergens Plastic Revolving Heavy Duty Handles with Steel Shank by ELESA® feature a central metal mechanism that allows the rotation of the knob on its axis.
Features, Benefits, & Product Specifications:
-
Material: Phenolic-Based (PF) Duroplast
-
Finish & Color: Glossy, Black
-
Shank Materials: Available in Zinc Plated Steel or 303 Stainless Steel
-
Resistant to solvents, oils, greases, and other chemical Agents
Plastic Revolving Heavy Duty Handles with Steel Shank by ELESA®
Select a part number for CAD drawings, price and stock availability.

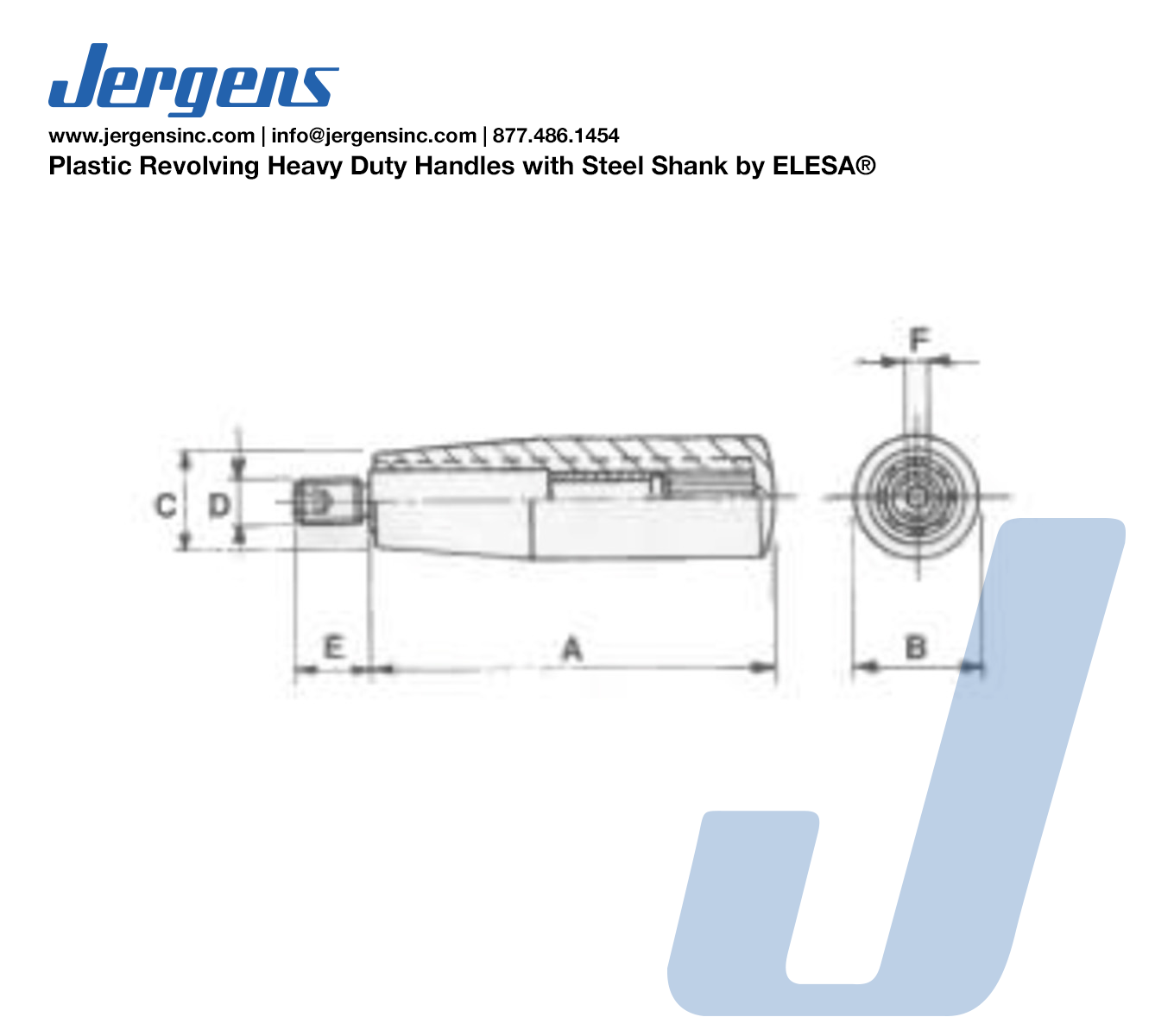

| Part Number | CAD | Unit | Shank Material | A (In) | B (In) | C (In) | D | E (In) | F (In) |
|---|---|---|---|---|---|---|---|---|---|
| 33621 |
|
Inch | Steel | 1.57 | 0.71 | 0.59 | M6 | 0.51 | 0.12 |
| 33622 |
|
Inch | Steel | 1.97 | 0.83 | 0.67 | M6 | 0.51 | 0.12 |
| 33624 |
|
Inch | Steel | 2.56 | 0.91 | 0.75 | M8 | 0.59 | 0.16 |
| 33625 |
|
Inch | Steel | 3.15 | 1.02 | 0.83 | M10 | 0.67 | 0.20 |
| 33626 |
|
Inch | Steel | 3.54 | 1.10 | 0.87 | M10 | 0.67 | 0.20 |
| 34101 |
|
Inch | Stainless | 1.57 | 0.71 | 0.59 | M6 | 0.51 | 0.12 |
| 34102 |
|
Inch | Stainless | 1.97 | 0.83 | 0.67 | M6 | 0.51 | 0.12 |
| 34103 |
|
Inch | Stainless | 2.56 | 0.91 | 0.75 | M8 | 0.59 | 0.16 |
| 34104 |
|
Inch | Stainless | 3.15 | 1.02 | 0.83 | M10 | 0.67 | 0.20 |
| 34105 |
|
Inch | Stainless | 3.54 | 1.10 | 0.87 | M10 | 0.67 | 0.20 |
