Plastic Revolving Fold Away Handles by ELESA®
Jergens Plastic Revolving Fold Away Handles are ideal for use on rods, actuating levers, as handwheels and cranks for rotating or manoeuvring operations, window construction, trailer hitches, and machinery. The handles are characterised by their fold-away mechanism which allows for space-saving as well as performing an important safety function.
Features, Benefits, & Product Specifications:
-
Handle Material: High-Resilience Polypropylene-Based (PP) Technopolymer
-
Handle Finish & Color: Matte, Black
-
Stud: Black-Oxide Steel Double Guide
-
Base: Sintered and oxidised steel flat for embedded mounting
-
Screw: Black-Oxide Steel
-
Handle pivots freely during operation: a system of coaxial bushings compensates return spring load
-
Resistant to solvents, oils, greases, and other chemical agents
Plastic Revolving Fold Away Handles by ELESA®

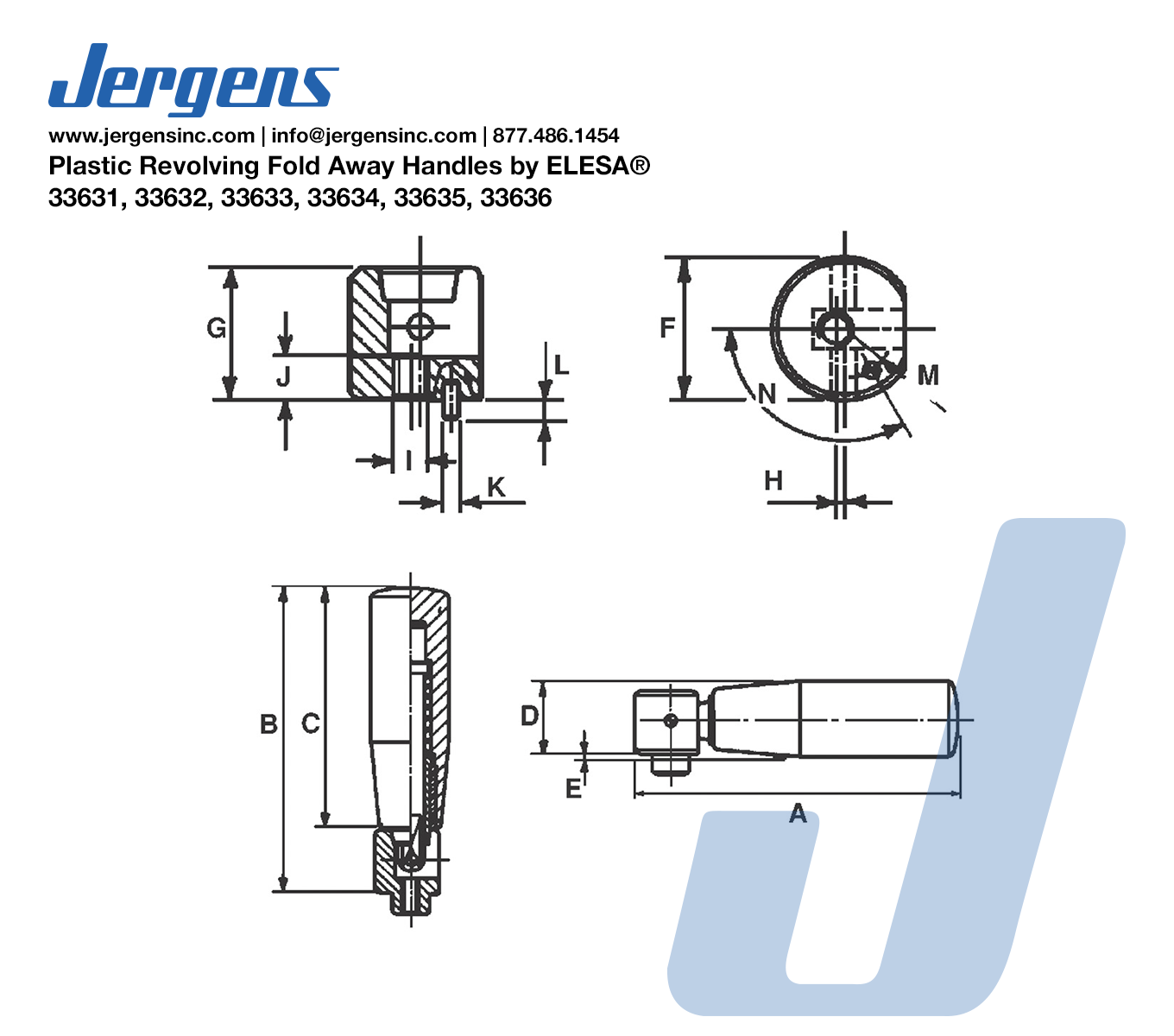

Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | A (In) | B (In) | C (In) | D (In) | E (In) | F (In) | G (In) | H (In) | I | J (In) | K (In) | L (In) | M (In) | N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 33631 | Inch | 2.91 | 2.80 | 2.20 | 0.75 | 0.10 | 0.63 | 0.59 | 0.04 | M4 | 0.20 | 0.12 | 0.12 | 0.22 | 90° | |
| 33632 | Inch | 3.27 | 3.15 | 2.56 | 0.79 | 0.12 | 0.63 | 0.59 | 0.04 | M4 | 0.20 | 0.12 | 0.12 | 0.22 | 90° | |
| 33633 | Inch | 3.50 | 3.35 | 2.56 | 0.87 | 0.04 | 0.79 | 0.77 | 0.02 | M6 | 0.24 | 0.12 | 0.12 | 0.28 | 120° | |
| 33634 | Inch | 4.09 | 3.94 | 3.15 | 0.94 | 0.10 | 0.79 | 0.77 | 0.02 | M6 | 0.24 | 0.12 | 0.12 | 0.28 | 120° | |
| 33635 | Inch | 4.49 | 4.33 | 3.54 | 0.94 | 0.12 | 0.79 | 0.77 | 0.02 | M6 | 0.24 | 0.12 | 0.12 | 0.28 | 120° | |
| 33636 | Inch | 4.65 | 4.45 | 3.54 | 1.06 | 0.04 | 1.02 | 0.91 | 0.06 | M6 | 0.28 | 0.12 | 0.12 | 0.37 | 90° |
