Plastic Push/Pull Knobs
Jergens Specialty Fasteners maintains a large inventory of several varieties of knobs, handles, handwheels, and cranks. Whether you’re looking for prototype or production quantities, we can help!
Features, Benefits, & Product Specifications:
-
Material: Plastic
-
Finish: Tumbled
-
Insert: Brass
Plastic Push/Pull Knobs
Select a part number for CAD drawings, price and stock availability.

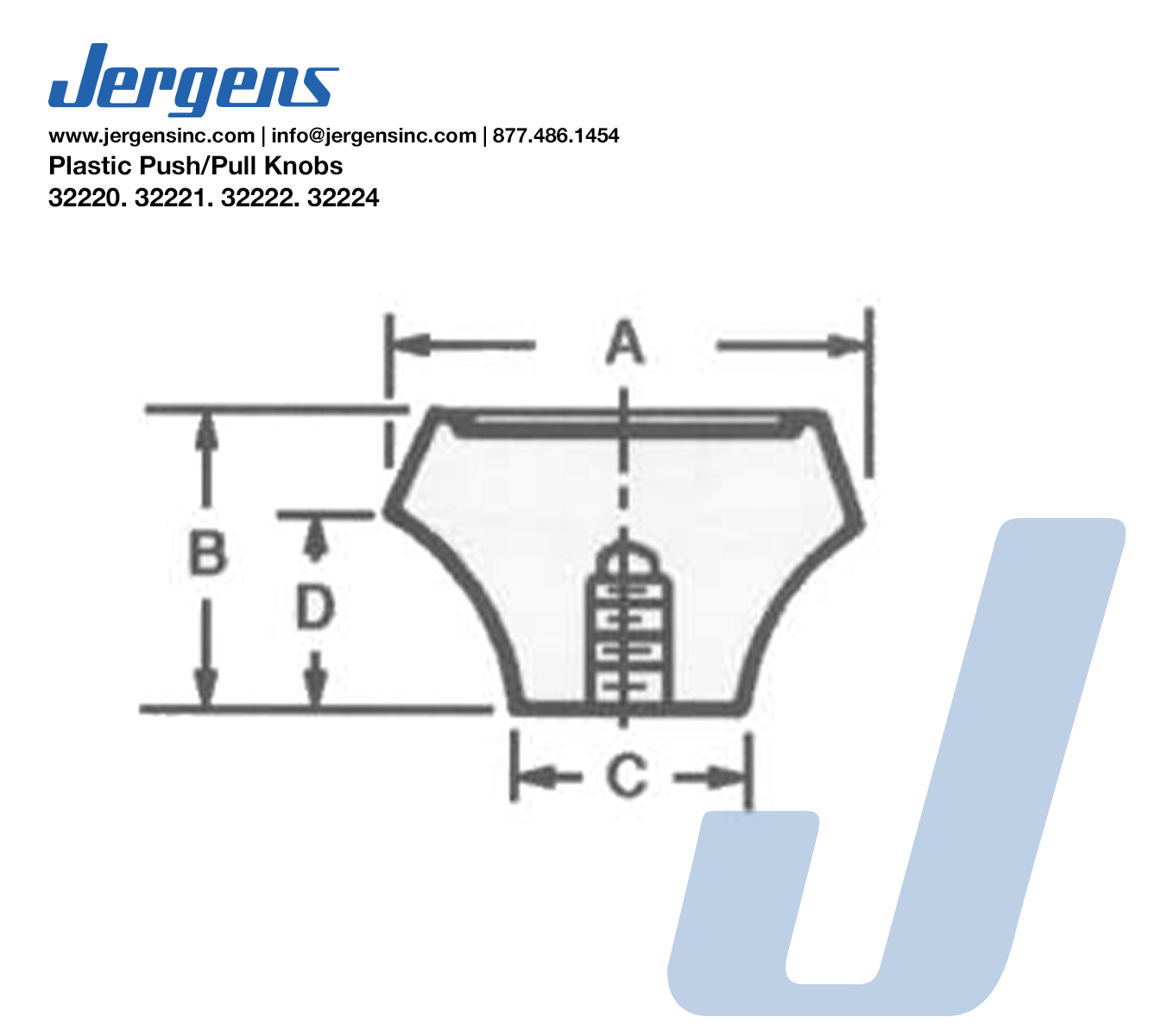

| Part Number | CAD | Unit | A (In) | B (In) | C (In) | D (In) | Thread Length | Insert Depth (In) |
|---|---|---|---|---|---|---|---|---|
| 32220 |
|
Inch | 1 | 11/16 | 1/2 | 7/16 | 8-32 | 5/16 |
| 32221 |
|
Inch | 1 | 11/16 | 1/2 | 7/16 | 10-32 | 5/16 |
| 32222 |
|
Inch | 1 | 11/16 | 1/2 | 7/16 | 1/4-20 | 7/16 |
| 32224 |
|
Inch | 1 | 15/16 | 9/16 | 11/16 | 1/4-20 | 7/16 |
