Plastic Pull/Lift Handles by ELESA®
Jergens Plastic Handles by ELESA® are built durable and comfortable for use as door pull handles for industrial machinery and equipment and in industries such as tooling, construction, food and drink, chemical, and pharmaceutical.
Features, Benefits, & Product Specifications:
-
Handle Material: Glass-Fibre Reinforced Polyamide-Based (PA) Technopolymer
-
Handle Finish & Color: Matte, Black
-
Pass-through holes for cylindrical head screws with hexagon socket
-
Maximum Working Temperature: 210°F
-
Resistant to solvents, oils, greases, and other chemical agents
Plastic Pull/Lift Handles by ELESA®
Select a part number for CAD drawings, price and stock availability.

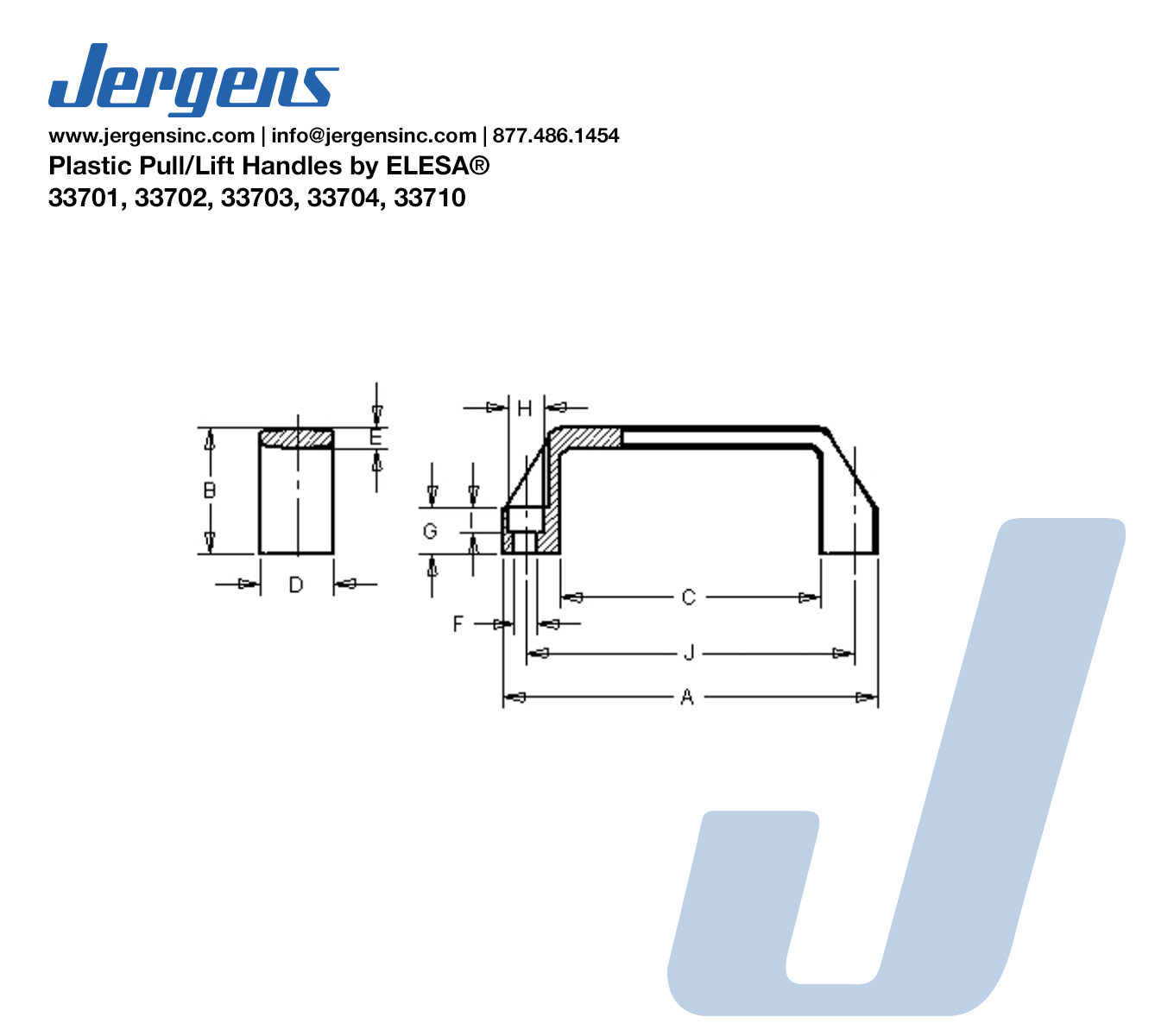

| Part Number | CAD | Unit | A (In) | B (In) | C (In) | D (In) | E (In) | F (In) | G (In) | H (In) | I (In) | J (In) | Tensile Strength (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 33701 |
|
Inch | 4.21 | 1.42 | 2.91 | 0.83 | 0.24 | 0.26 | 0.51 | 0.41 | 0.28 | 3.68 | 560 |
| 33702 |
|
Inch | 5.28 | 1.61 | 3.74 | 1.02 | 0.28 | 0.34 | 0.59 | 0.53 | 0.33 | 4.61 | 560 |
| 33703 |
|
Inch | 5.90 | 1.77 | 4.25 | 1.06 | 0.28 | 0.34 | 0.63 | 0.53 | 0.33 | 5.20 | 560 |
| 33704 |
|
Inch | 7.76 | 1.97 | 6.02 | 1.1 | 0.31 | 0.34 | 0.67 | 0.53 | 0.33 | 7.05 | 605 |
| 33710 |
|
Inch | 10.31 | 2.13 | 7.95 | 1.22 | 0.35 | 0.41 | 0.79 | 0.65 | 0.41 | 9.25 | 784 |
