Plastic Lobe Knobs with Stud by ELESA®
Jergens Plastic Lobe Knobs with Stud by ELESA® are ergonomically-designed to give the user extra grip and control during operation across a wide range of industrial environments.
Features, Benefits, & Product Specifications:
-
Knob Materials:
-
High-Resilience Polypropylene-Based Technopolymer (Part No.'s 33-)
-
Phenolic-Based Duroplast (Part No.'s 34-)
-
-
Knob Styles & Finish:
-
With Cap, Black Matte (Part No.'s 33-)
-
Solid Section, Black Matte (Part No.'s 34-)
-
-
Studs:
-
Zinc-Plated Steel Threaded Stud with Chamfered Flat End (Part No.'s 33-)
-
AISI 303 Stainless Steel Threaded Stud with Chamfered Flat End (Part No.'s 34-)
-
-
Resistant to solvents, oils, greases, and other chemical agents
Plastic Lobe Knobs with Stud by ELESA®

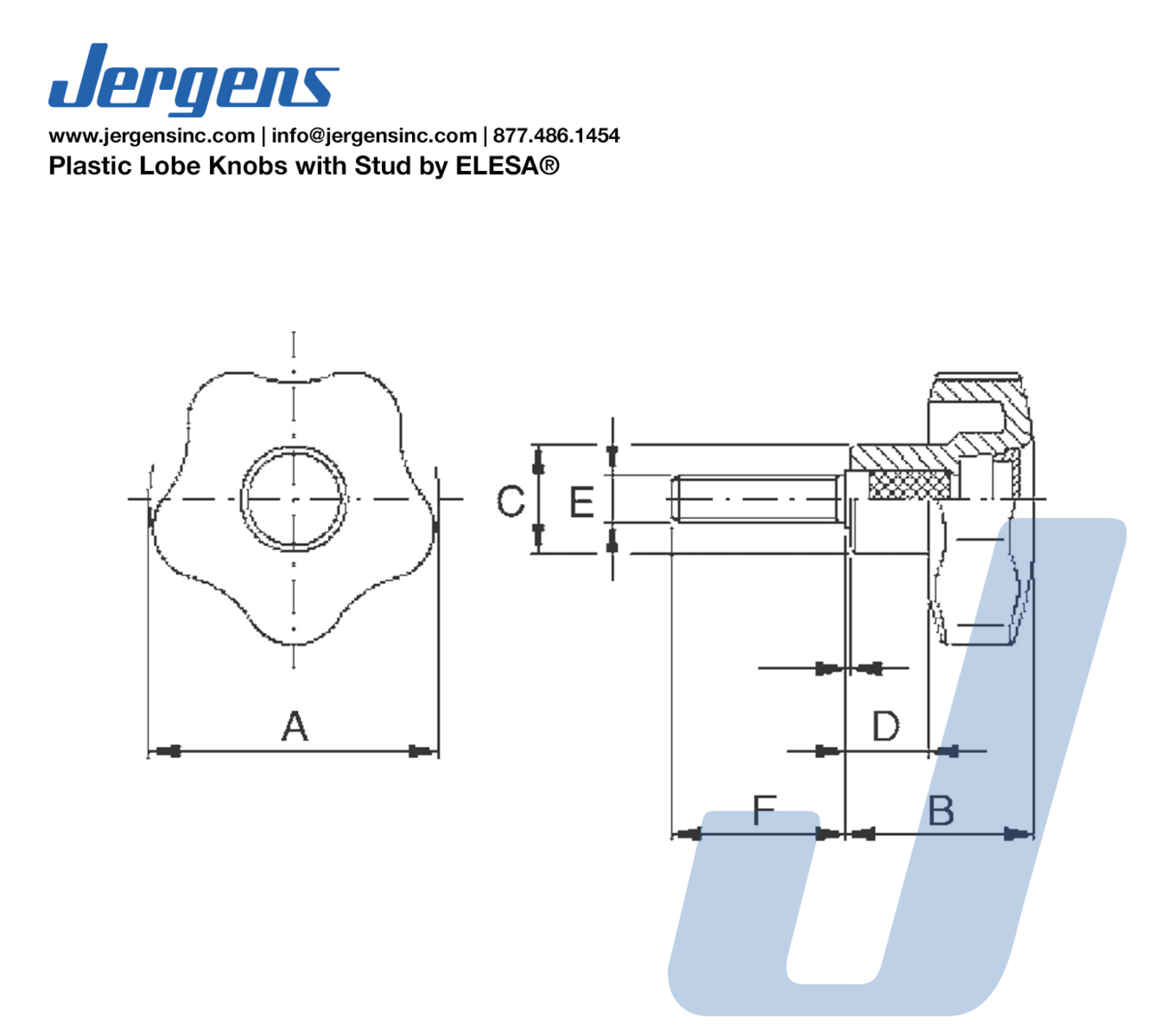

Select a part number for CAD drawings, price and stock availability.

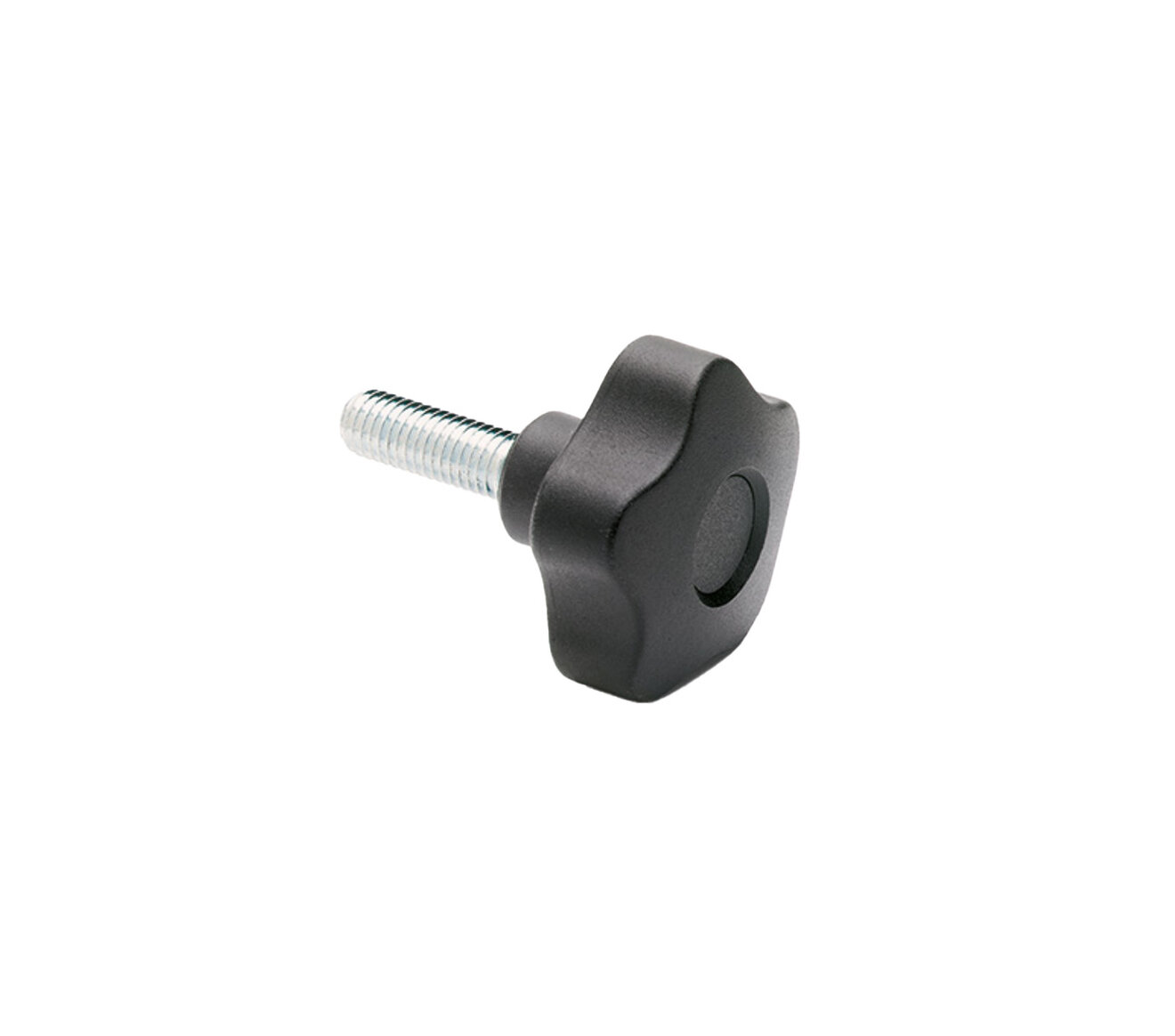

| Part Number | CAD | Unit | A (In) | B (In) | C (In) | D (In) | E | F (In) | Stud Material |
|---|---|---|---|---|---|---|---|---|---|
| 33859 |
|
Inch | 0.98 | 0.75 | 0.51 | 0.31 | 10-32 | 0.50 | Steel |
| 33860 |
|
Inch | 0.98 | 0.75 | 0.51 | 0.31 | 10-32 | 0.75 | Steel |
| 33861 |
|
Inch | 1.26 | 0.91 | 0.59 | 0.39 | 1/4-20 | 0.50 | Steel |
| 33862 |
|
Inch | 1.26 | 0.91 | 0.59 | 0.39 | 1/4-20 | 0.75 | Steel |
| 33863 |
|
Inch | 1.26 | 0.91 | 0.59 | 0.39 | 1/4-20 | 1.00 | Steel |
| 33864 |
|
Inch | 1.57 | 1.06 | 0.67 | 0.47 | 1/4-20 | 0.50 | Steel |
| 33865 |
|
Inch | 1.57 | 1.06 | 0.67 | 0.47 | 1/4-20 | 1.00 | Steel |
| 33866 |
|
Inch | 1.57 | 1.06 | 0.67 | 0.47 | 5/16-18 | 0.75 | Steel |
| 33867 |
|
Inch | 1.57 | 1.06 | 0.67 | 0.47 | 5/16-18 | 1.00 | Steel |
| 33868 |
|
Inch | 1.97 | 1.26 | 0.75 | 0.55 | 5/16-18 | 1.00 | Steel |
| 33869 |
|
Inch | 1.97 | 1.26 | 0.75 | 0.55 | 5/16-18 | 1.50 | Steel |
| 33870 |
|
Inch | 1.97 | 1.26 | 0.75 | 0.55 | 3/8-16 | 1.00 | Steel |
| 33871 |
|
Inch | 1.97 | 1.26 | 0.75 | 0.55 | 3/8-16 | 1.50 | Steel |
| 33872 |
|
Inch | 2.48 | 1.46 | 0.87 | 0.63 | 3/8-16 | 1.25 | Steel |
| 33873 | Inch | 2.48 | 1.46 | 0.87 | 0.63 | 3/8-16 | 2.00 | Steel | |
| 33874 |
|
Inch | 2.48 | 1.46 | 0.87 | 0.63 | 1/2-13 | 1.50 | Steel |
| 33877 | Inch | 2.91 | 1.71 | 1.02 | 0.87 | 1/2-13 | 1.25 | Steel | |
| 33878 |
|
Inch | 2.91 | 1.71 | 1.02 | 0.87 | 1/2-13 | 2.00 | Steel |
| 34181 | Inch | 1.26 | 0.91 | 0.75 | 0.43 | 1/4-20 | 0.50 | Stainless Steel | |
| 34182 |
|
Inch | 1.26 | 0.91 | 0.75 | 0.43 | 1/4-20 | 0.75 | Stainless Steel |
| 34183 |
|
Inch | 1.26 | 0.91 | 0.75 | 0.43 | 1/4-20 | 1.00 | Stainless Steel |
| 34184 |
|
Inch | 1.57 | 1.06 | 0.83 | 0.47 | 5/16-18 | 0.75 | Stainless Steel |
| 34185 |
|
Inch | 1.57 | 1.06 | 0.83 | 0.47 | 5/16-18 | 1.00 | Stainless Steel |
| 34186 |
|
Inch | 1.57 | 1.06 | 0.83 | 0.47 | 5/16-18 | 1.25 | Stainless Steel |
| 34187 |
|
Inch | 1.97 | 1.30 | 0.98 | 0.55 | 3/8-16 | 1.00 | Stainless Steel |
| 34188 |
|
Inch | 1.97 | 1.30 | 0.98 | 0.55 | 3/8-16 | 1.25 | Stainless Steel |
| 34189 |
|
Inch | 1.97 | 1.30 | 0.98 | 0.55 | 3/8-16 | 1.50 | Stainless Steel |
| 34190 |
|
Inch | 1.97 | 1.30 | 0.98 | 0.55 | 3/8-16 | 2.00 | Stainless Steel |
| Part Number | CAD | Unit | A (mm) | B (mm) | C (mm) | D (mm) | E | F (mm) | Stud Material |
|---|---|---|---|---|---|---|---|---|---|
| 34131 |
|
Metric | 32 | 23 | 19 | 11 | M6 | 16 | Stainless Steel |
| 34132 |
|
Metric | 40 | 27 | 21 | 12 | M8 | 20 | Stainless Steel |
| 34133 |
|
Metric | 40 | 27 | 21 | 12 | M8 | 30 | Stainless Steel |
| 34134 |
|
Metric | 50 | 33 | 25 | 14 | M10 | 20 | Stainless Steel |
| 34135 |
|
Metric | 50 | 33 | 25 | 14 | M10 | 40 | Stainless Steel |
| 34136 |
|
Metric | 60 | 37 | 27 | 17 | M12 | 30 | Stainless Steel |
