Plastic Light Duty Tapered Handles
Jergens Plastic Light Duty Tapered Handles are ideal for use as grasp handles on small tools, utensils, and gauges.
Features, Benefits, & Product Specifications:
-
Insert Material: Brass
-
Through hole style available for use with a socket head cap screw
Plastic Light Duty Tapered Handles
Select a part number for CAD drawings, price and stock availability.

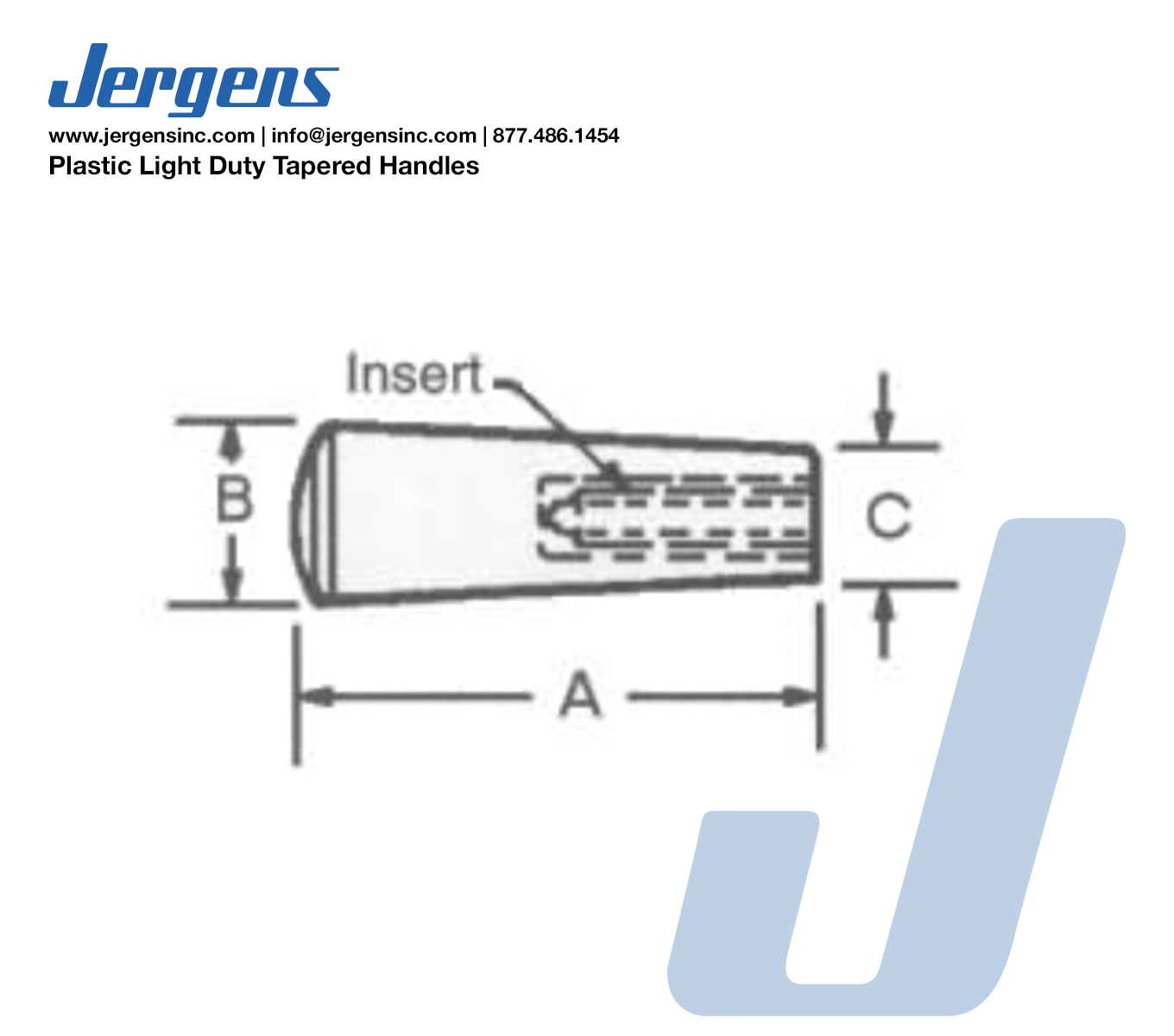

| Part Number | CAD | Unit | A (In) | B (In) | C (In) | D (In) | E (In) | Through Hole | Insert Size (In) | Insert Depth (In) |
|---|---|---|---|---|---|---|---|---|---|---|
| 32102 |
|
Inch | 3 7/8 | 1 1/8 | 3/4 | - | - | No | 3/8-16 | 2 |
| 32109 |
|
Inch | 3 7/8 | 1 1/8 | 3/4 | - | - | No | 3/8-16 | 5/8 |
| 32110 |
|
Inch | 3 7/8 | 1 1/8 | 3/4 | - | - | Cored Hole | 0.500/0.510 | 2 |

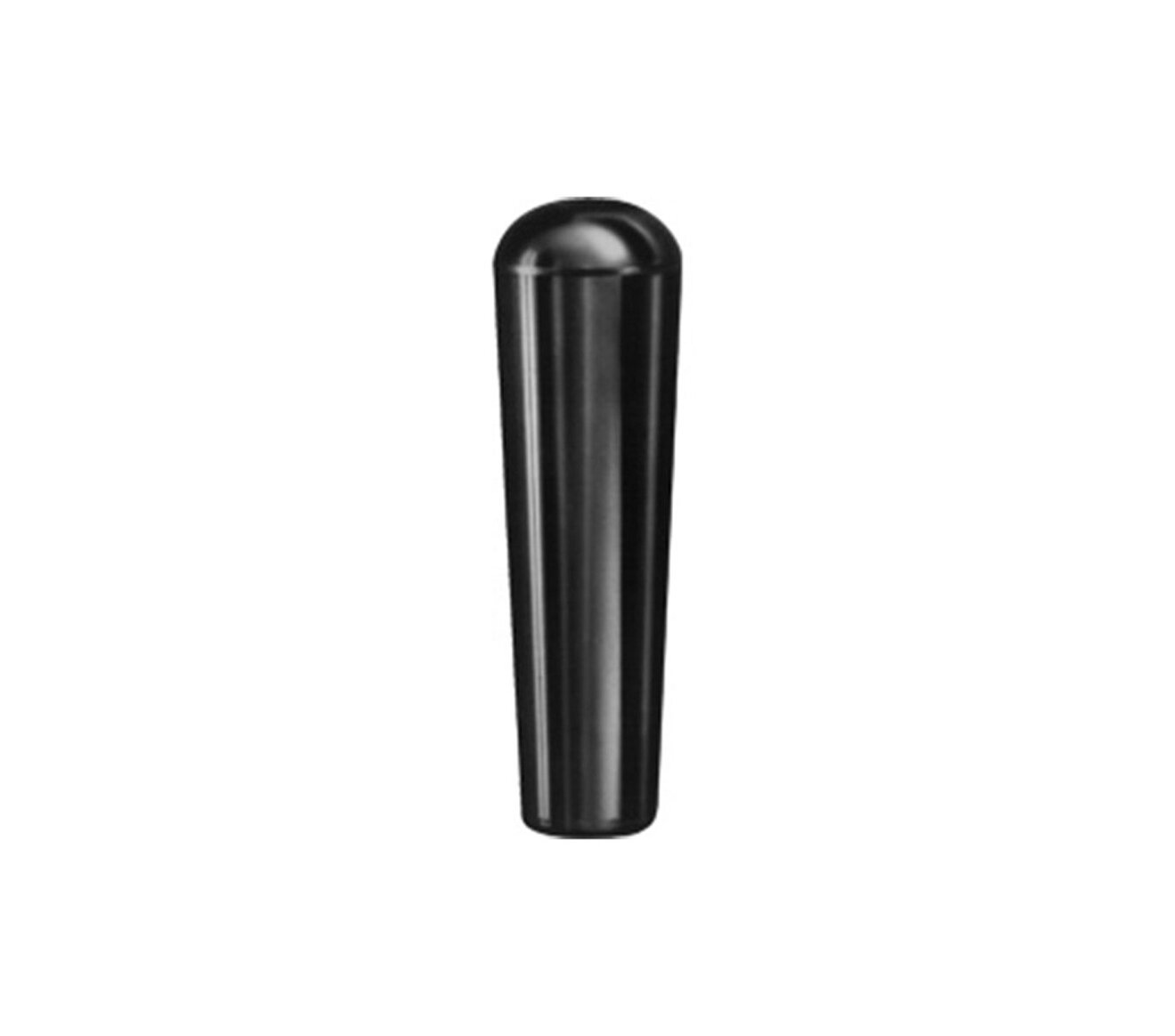

| 32111 |
|
Inch | 2 5/8 | 1 | 5/8 | - | - | No | 1/4-20 | 7/16 |
| 32112 |
|
Inch | 2 5/8 | 1 | 5/8 | - | - | No | 5/16-18 | 7/16 |
| 32113 |
|

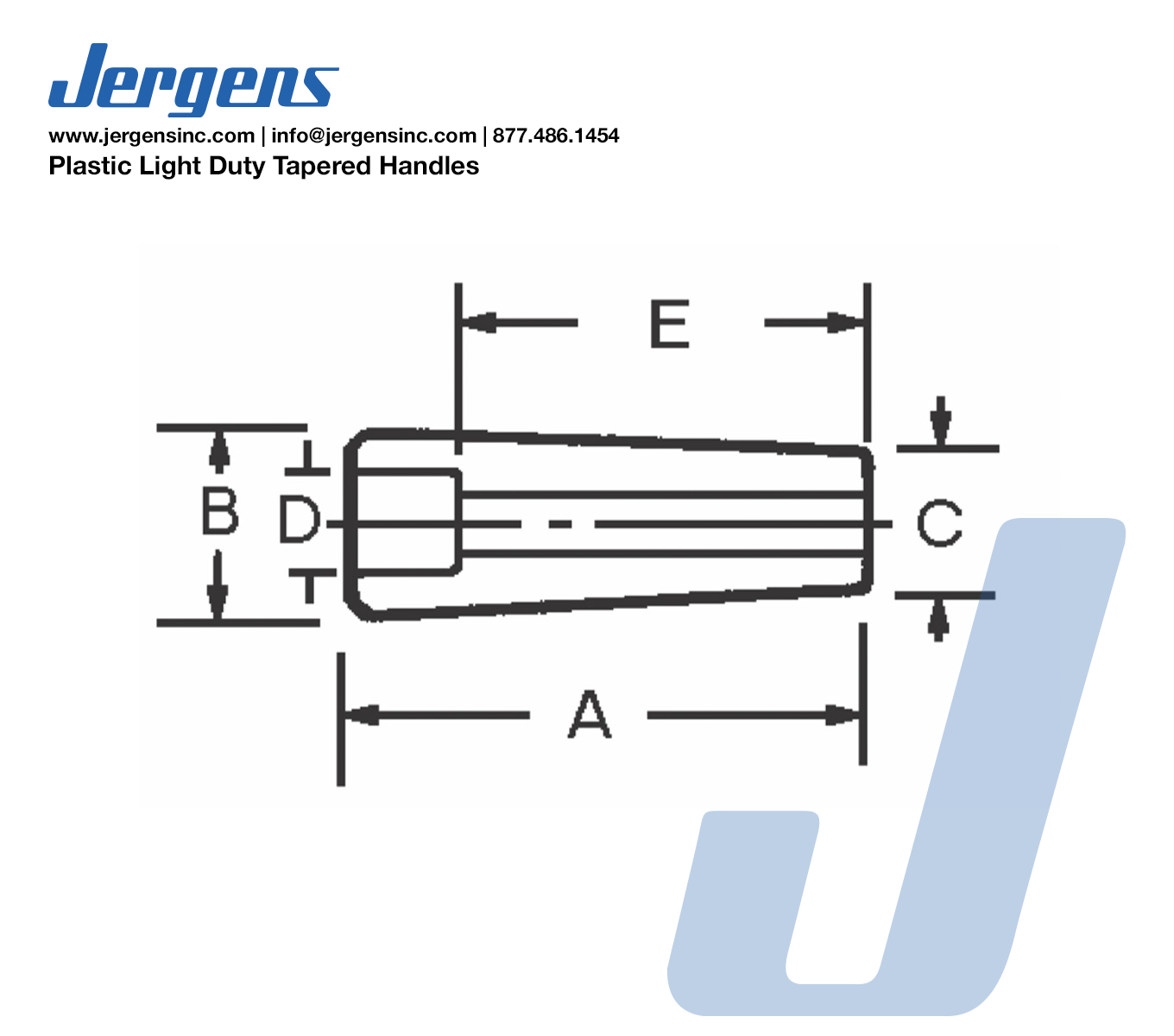

Inch | 2 9/16 | 1 | 5/8 | 1/2 | 5/8 | Yes | 0.251/0.256 | - |
| 32114 |
|
Inch | 3 11/16 | 1 1/8 | 3/4 | 3/4 | 2 5/8 | Yes | 0.380/0.385 | - |
| 32117 |
|
Inch | 2 5/8 | 1 | 5/8 | - | - | No | 3/8-16 | 1/2 |
| 32118 |
|
Inch | 3 7/8 | 1 1/8 | 3/4 | - | - | No | 1/4-20 | 1/2 |
| 32119 |
|
Inch | 3 7/8 | 1 1/8 | 3/4 | - | - | No | 5/16-18 | 7/16 |
