Plastic Knurled Torque Knobs with Stud
Jergens Specialty Fasteners maintains a large inventory of several varieties of knobs, handles, handwheels, and cranks. Whether you’re looking for prototype or production quantities, we can help!
Features, Benefits, & Product Specifications:
-
Material: Plastic
-
Finish: Tumble
-
Stud Threads: Zinc Plated Steel
-
Insert Threads: Brass
-
Knurled edge for non-slip grip

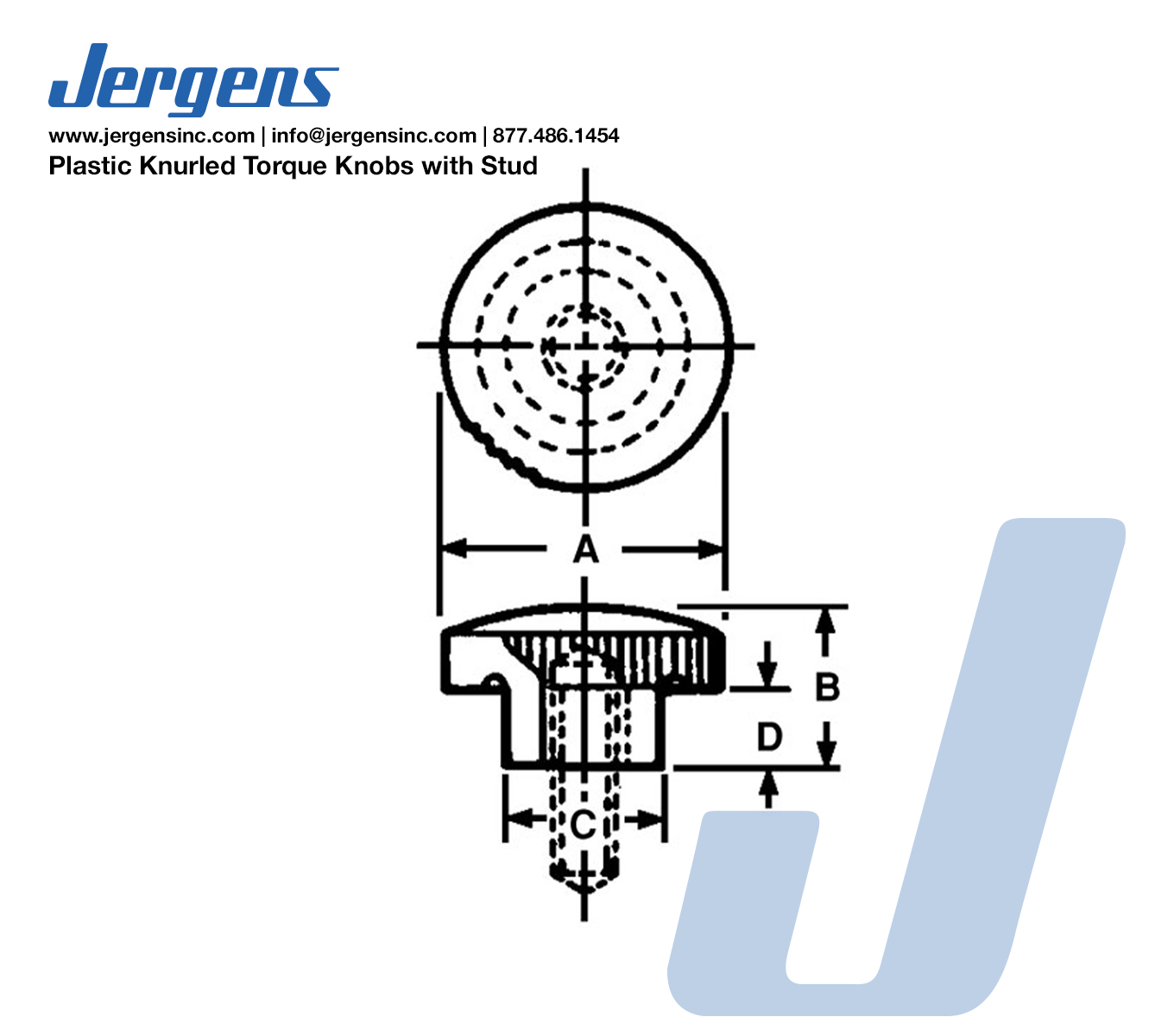

Plastic Knurled Torque Knob with Stud_LineArt
Plastic Knurled Torque Knobs with Stud
| Part Number | CAD | Unit | A (In) | B (In) | C (In) | D (in) | Insert Thread | Insert Depth (in) | |
|---|---|---|---|---|---|---|---|---|---|
| 32302 |
|
Inch | 1 | 21/32 | 5/8 | 5/16 | 10-32 | 1 | |
| 32304 |
|
Inch | 1 | 21/32 | 5/8 | 5/16 | 1/4-20 | 1 | |
| 32306 |
|
Inch | 1 3/8 | 25/32 | 3/4 | 3/8 | 1/4-20 | 1 | |
| 32307 |
|
Inch | 1 3/8 | 25/32 | 3/4 | 3/8 | 1/4-20 | 2 | |
| 32309 |
|
Inch | 1 3/8 | 25/32 | 3/4 | 3/8 | 5/16-18 | 2 | |
| 32313 |
|
Inch | 1 7/8 | 1 | 1 | 1/2 | 3/8-16 | 1 | |
| 32326 |
|
Inch | 3/4 | 9/16 | 5/8 | - | 10-32 | 1/2 | |
| 32327 |
|
Inch | 3/4 | 9/16 | 5/8 | - | 10-32 | 1 | |
| 32329 |
|
Inch | 3/4 | 9/16 | 5/8 | - | 1/4-20 | 1/2 | |
| 32330 |
|
Inch | 3/4 | 9/16 | 5/8 | - | 1/4-20 | 1 | |
| 32331 |
|
Inch | 1 3/8 | 25/32 | 3/4 | 3/8 | 5/16-18 | 1 | |
| 32332 |
|
Inch | 1 3/8 | 25/32 | 3/4 | 3/8 | 3/8-16 | 1 | |
| 32333 |
|
Inch | 1 7/8 | 1 | 1 | 1/2 | 5/16-18 | 1 | |
| 32334 |
|
Inch | 1 | 21/32 | 5/8 | 5/16 | 5/16-18 | 1 |
