Plastic Knurled Knobs with Stud by ELESA®
Jergens Plastic Knurled Knobs by ELESA® have fine pitch knurling on the outside rim of the knob, allowing a safe and comfortable grip. This gives users the ability to operate under the most different working conditions sensitively and ergonomically and simplifies the adjustment of the knob during rapid rotation (or screwing) without any unpleasant angular work for the hand and wrist. Their threaded stud allows them to be mounted in threaded holes.
Features, Benefits, & Product Specifications:
-
Material: High-Resilience Polypropylene Based (PP) Technopolymer
-
Finish: Black Matte
-
Stud: Zinc-Plated Steel Threaded Stud with a Chamfered Flat End
-
Resistant to solvents, oils, greases, and other chemical agents
Plastic Knurled Knobs with Stud by ELESA®
Select a part number for CAD drawings, price and stock availability.

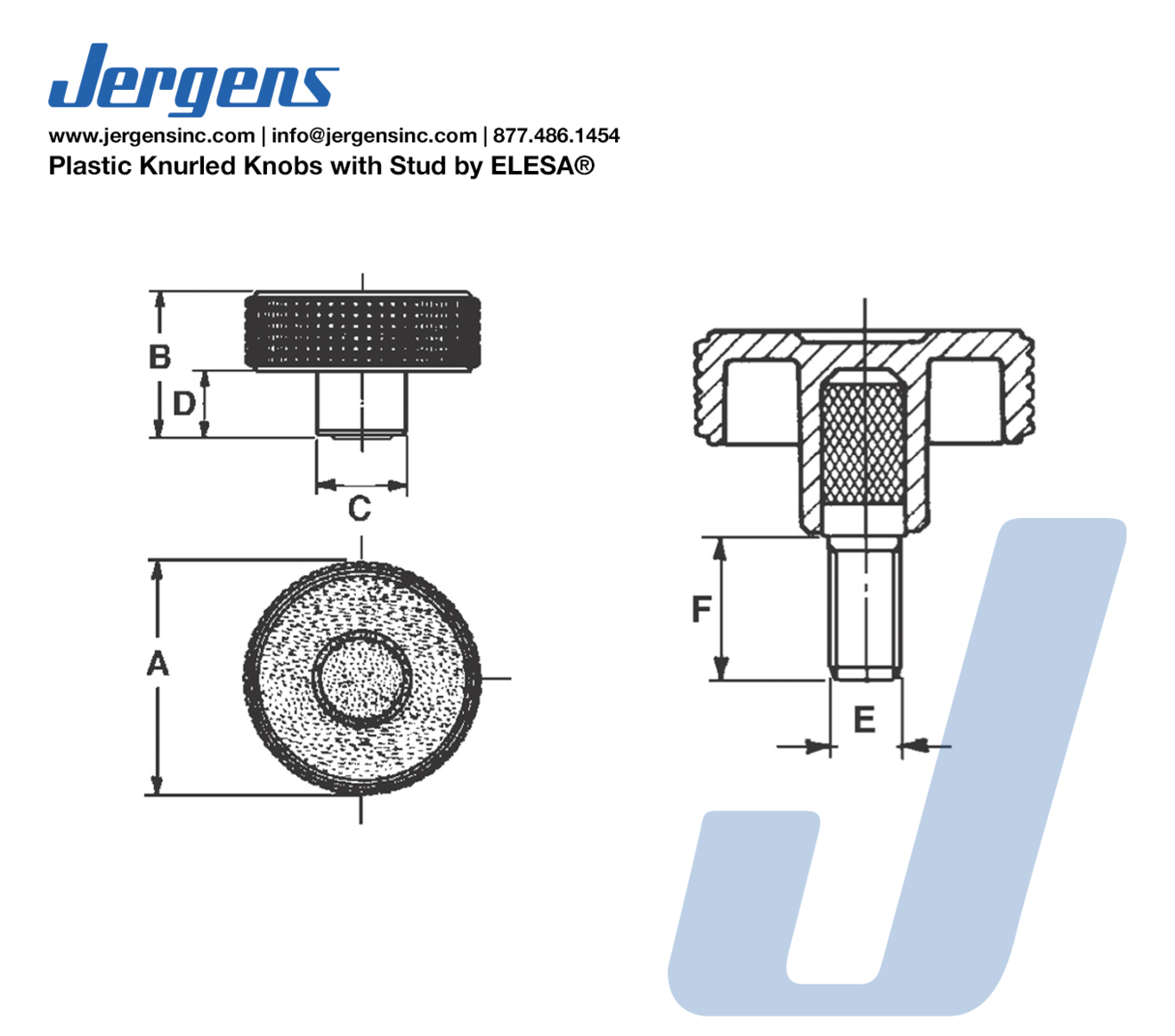

| Part Number | CAD | Unit | A (In) | B (In) | C (In) | D (In) | Stud Thread | F (In) |
|---|---|---|---|---|---|---|---|---|
| 33811 |
|
Inch | 1.22 | 0.87 | 0.59 | 0.35 | 1/4-20 | 0.50 |
| 33812 |
|
Inch | 1.22 | 0.87 | 0.59 | 0.35 | 1/4-20 | 0.75 |
| 33813 |
|
Inch | 1.57 | 0.94 | 0.67 | 0.43 | 1/4-20 | 0.75 |
| 33814 |
|
Inch | 1.57 | 0.94 | 0.67 | 0.43 | 1/4-20 | 1.00 |
| 33815 |
|
Inch | 1.57 | 0.94 | 0.67 | 0.43 | 5/16-18 | 0.75 |
| 33816 |
|
Inch | 1.57 | 0.94 | 0.67 | 0.43 | 5/16-18 | 1.00 |
| 33817 |
|
Inch | 1.97 | 1.18 | 0.79 | 0.53 | 3/8-16 | 1.00 |
| 33818 |
|
Inch | 1.97 | 1.18 | 0.79 | 0.53 | 3/8-16 | 1.25 |
| 33819 |
|
Inch | 2.36 | 1.38 | 0.91 | 0.59 | 3/8-16 | 1.00 |
| 33820 |
|
Inch | 2.36 | 1.38 | 0.91 | 0.59 | 3/8-16 | 1.25 |
