Plastic Fluted Grip Knobs with Stud by ELESA®
Jergens Plastic Fluted Grip Knobs with Stud by ELESA® provide a comfortable ergonomic grip for controlling, positioning, and tightening your application. Their threaded stud allows them to be mounted in threaded holes.
Features, Benefits, & Product Specifications:
- Material: Polyamide-Based (PA) Technopolymer
- Finish: Black Matte
- Stud: Zinc-Plated Steel Threaded Stud with a Chamfered Flat End
- Resistant to solvents, oils, greases, and other chemical agents
Plastic Fluted Grip Knobs with Stud by ELESA®

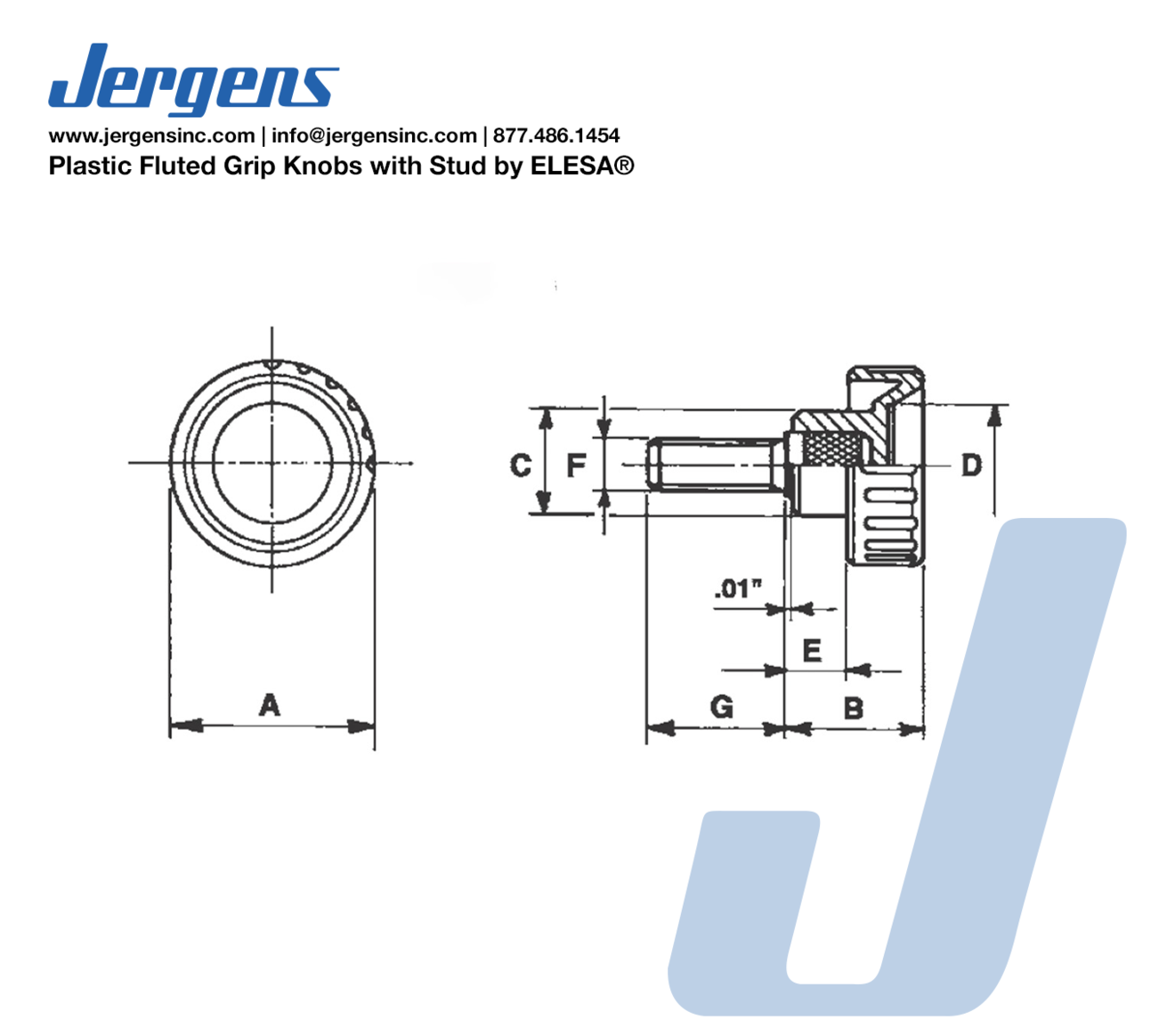

Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | A (In) | B (In) | C (In) | D (In) | E (In) | F | G (In) |
|---|---|---|---|---|---|---|---|---|---|
| 34210 |
|
Inch | 0.63 | 0.51 | 0.43 | 0.35 | 0.20 | 8-32 | 0.375 |
| 34211 |
|
Inch | 0.63 | 0.51 | 0.43 | 0.35 | 0.20 | 8-32 | 0.500 |
| 34213 |
|
Inch | 0.79 | 0.63 | 0.47 | 0.43 | 0.24 | 8-32 | 0.750 |
| 34214 |
|
Inch | 0.79 | 0.63 | 0.47 | 0.43 | 0.24 | 10-32 | 0.500 |
| 34215 |
|
Inch | 0.79 | 0.63 | 0.47 | 0.43 | 0.24 | 10-32 | 0.750 |
| 34216 |
|
Inch | 0.98 | 0.75 | 0.63 | 0.59 | 0.31 | 1/4-20 | 0.500 |
| 34217 |
|
Inch | 0.98 | 0.75 | 0.63 | 0.59 | 0.31 | 1/4-20 | 0.750 |
| 34218 |
|
Inch | 0.98 | 0.75 | 0.63 | 0.59 | 0.31 | 1/4-20 | 1.000 |
| 34219 |
|
Inch | 1.26 | 0.87 | 0.67 | 0.63 | 0.35 | 5/16-18 | 0.750 |
| 34220 |
|
Inch | 1.26 | 0.87 | 0.67 | 0.63 | 0.35 | 5/16-18 | 1.000 |
| 34221 |
|
Inch | 1.57 | 1.06 | 0.75 | 0.98 | 0.51 | 3/8-16 | 1.000 |
| 34222 |
|
Inch | 1.97 | 1.12 | 0.87 | 1.22 | 0.53 | 3/8-16 | 1.000 |
| Part Number | CAD | Unit | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F | G (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 34250 |
|
Metric | 16 | 13 | 11 | 9 | 5 | M4 | 10 |
| 34251 |
|
Metric | 16 | 13 | 11 | 9 | 5 | M5 | 10 |
| 34252 |
|
Metric | 20 | 16 | 12 | 11 | 6 | M5 | 16 |
| 34253 |
|
Metric | 20 | 16 | 12 | 11 | 6 | M6 | 16 |
| 34254 |
|
Metric | 25 | 19 | 16 | 15 | 8 | M6 | 16 |
| 34255 |
|
Metric | 25 | 19 | 16 | 15 | 8 | M8 | 16 |
| 34256 |
|
Metric | 32 | 22 | 17 | 21 | 9 | M8 | 16 |
| 34257 |
|
Metric | 32 | 22 | 17 | 21 | 9 | M10 | 20 |
