Plastic Ergostyle® Knurled Knobs with Stud by ELESA®
Jergens Plastic Ergostyle® Knurled Knobs with Stud by ELESA® provide a positive ergonomic grip for quick finger tightening in light clamping applications. Jergens Plastic Fluted Grip Knobs with Stud by ELESA® provide a comfortable ergonomic grip for controlling, positioning, and tightening your application. Their threaded stud allows them to be mounted in threaded holes.
Features, Benefits, & Product Specifications:
-
Material: Glass-Fibre Reinforced Polyamide-Based (PA) Technopolymer
-
Finish: Gray/Black Matte
-
Stud: Zinc-Plated Steel Threaded Stud with a Chamfered Flat End
-
Resistant to solvents, oils, greases, and other chemical agents
-
Concave surface makes gripping easier
Plastic Ergostyle® Knurled Knobs with Stud by ELESA®
Select a part number for CAD drawings, price and stock availability.

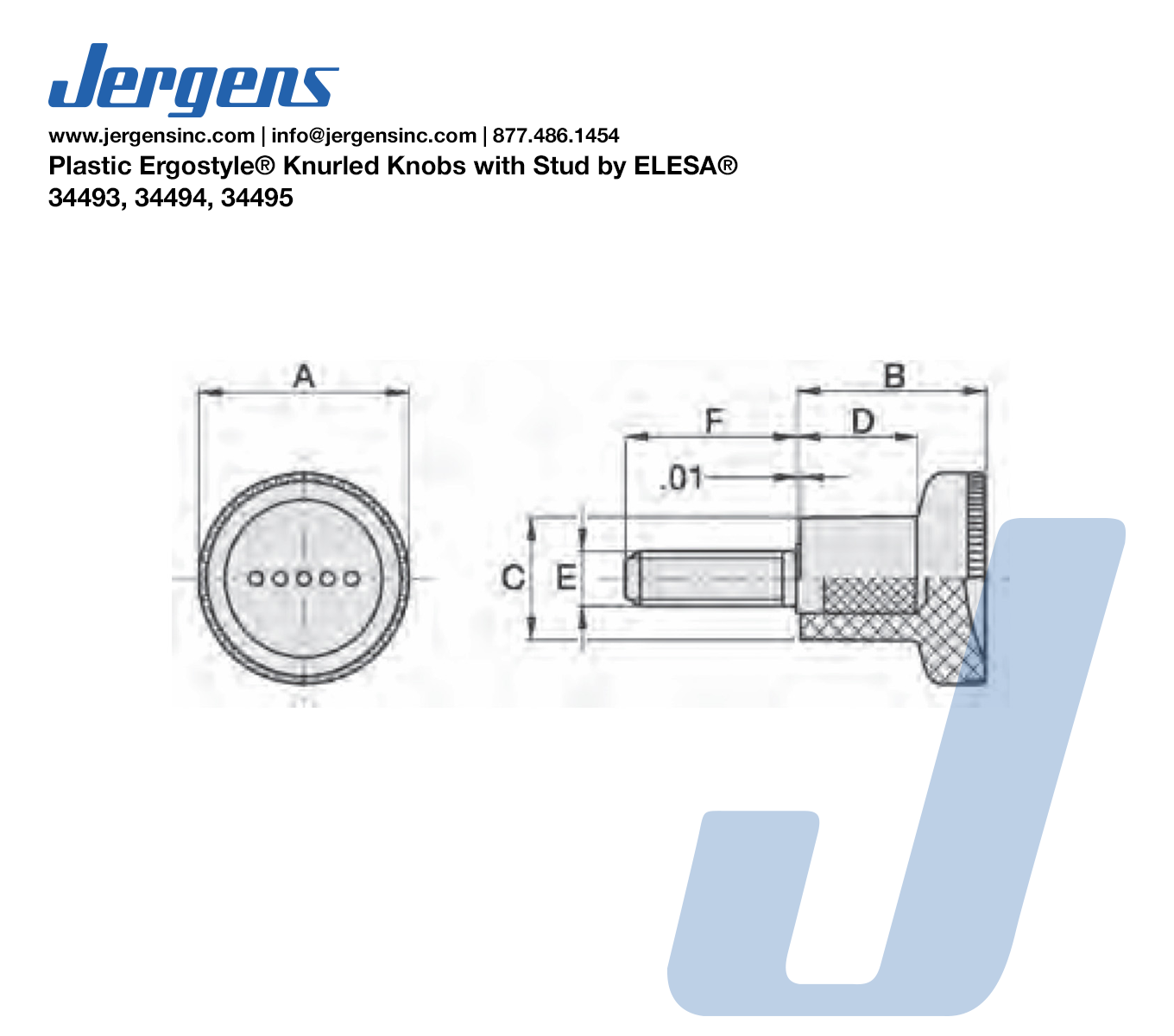

| Part Number | CAD | Unit | A (In) | B (In) | C (In) | D (In) | E | F (In) |
|---|---|---|---|---|---|---|---|---|
| 34493 |
|
Inch | 0.83 | 0.71 | 0.49 | 0.41 | 10-32 | 0.750 |
| 34494 |
|
Inch | 0.98 | 0.89 | 0.57 | 0.55 | 1/4-20 | 0.750 |
| 34495 |
|
Inch | 1.22 | 1.06 | 0.73 | 0.67 | 5/16-18 | 0.750 |
