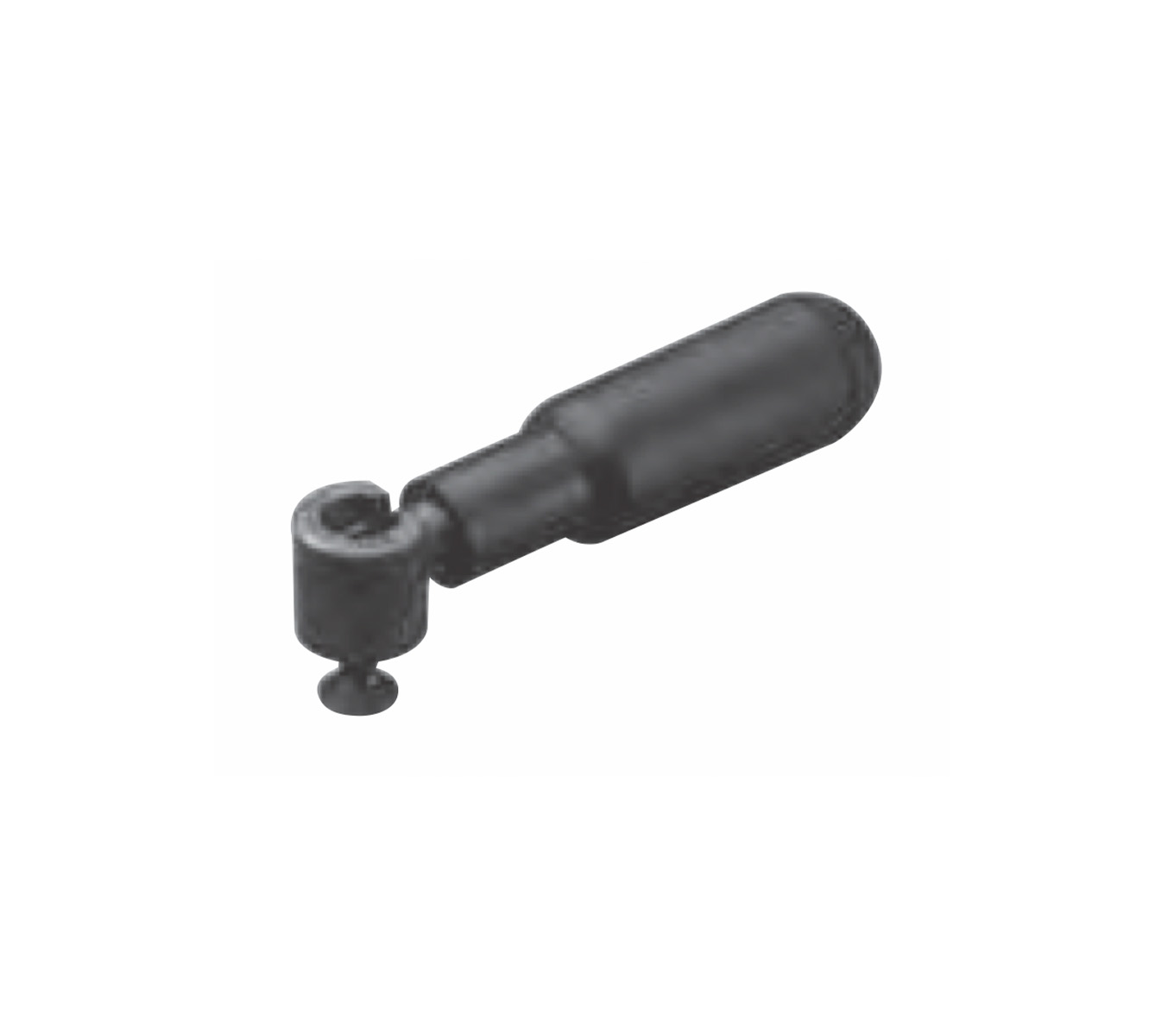

Plastic Ergostyle® Fold Away Handles by ELESA®
Jergens Plastic Ergostyle® Fold Away Handles by ELESA® are ideal for use on rods, actuating levers, as handwheels and cranks for rotating or manoeuvring operations, window construction, trailer hitches, and machinery. The handles are characterised by their fold-away mechanism which allows for space-saving as well as performing an important safety function.
Features, Benefits, & Product Specifications:
-
Handle Material: Polyamide-Based (PA) Technopolymer
-
Handle Finish & Color: Matte, Grey/Black
-
Base: Sintered and oxidised steel flat base for embedded mounting
-
Screw: Black-Oxide Steel
-
Handle pivots freely during operation: a system of coaxial bushings compensates return spring load
-
Resistant to solvents, oils, greases, and other chemical agents
Plastic Ergostyle® Fold Away Handles by ELESA®

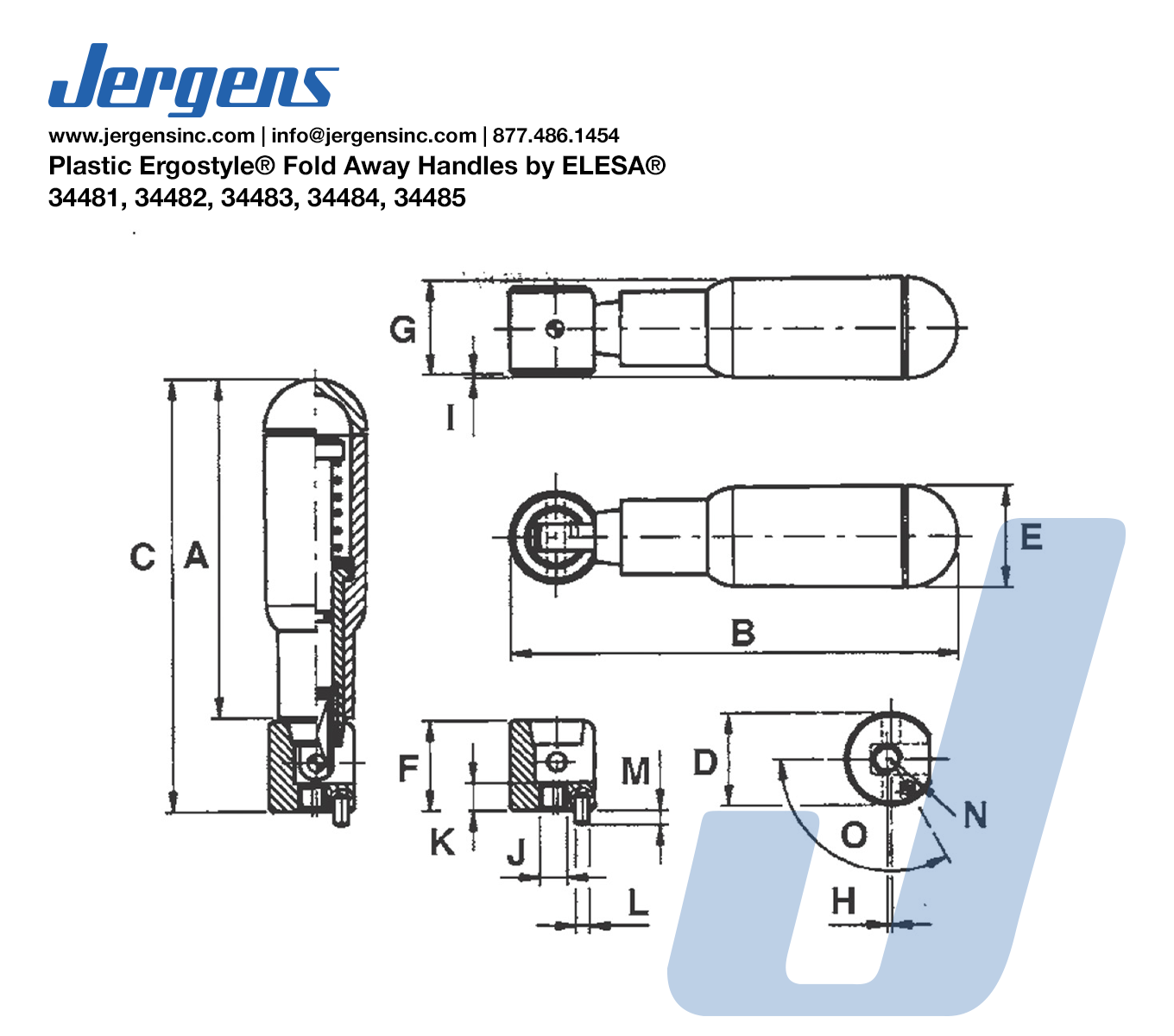

Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | A (In) | B (In) | C (In) | D (In) | E (In) | F (In) | G (In) | H (In) | I (In) | J | K (In) | L (In) | M (In) | N (In) | Degrees O |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 34481 | Inch | 2.36 | 3.07 | 2.99 | 0.63 | 0.71 | 0.59 | 0.69 | 0.04 | 0.04 | M4 | 0.20 | 0.12 | 0.12 | 0.22 | 90° | |
| 34482 | Inch | 2.56 | 3.29 | 3.19 | 0.63 | 0.87 | 0.59 | 0.77 | 0.04 | 0.08 | M4 | 0.20 | 0.12 | 0.12 | 0.22 | 90° | |
| 34483 | Inch | 2.56 | 3.56 | 3.39 | 0.79 | 0.87 | 0.77 | 0.85 | 0.02 | 0.02 | M6 | 0.24 | 0.12 | 0.12 | 0.22 | 120° | |
| 34484 | Inch | 3.15 | 4.13 | 3.98 | 0.79 | 0.94 | 0.77 | 0.89 | 0.02 | 0.06 | M6 | 0.24 | 0.12 | 0.12 | 0.28 | 120° | |
| 34485 | Inch | 3.54 | 4.53 | 4.37 | 0.79 | 0.98 | 0.77 | 0.91 | 0.02 | 0.08 | M6 | 0.24 | 0.12 | 0.12 | 0.28 | 120° |
