Plastic Ergostyle® Adjustable Handles with Stainless Steel Insert by ELESA®
- Material: Glass-Fibre Reinforced Technopolymer Lever Body
- Finish: Black Matte
- Locking Element: Black, Glass-Fibre Reinforced Technopolymer
- Insert: 303 Stainless Steel
Notes:
- Resistant to Solvents, Oils, Greases,and other Chemical Agents
- Unless otherwise stated, English units are inches (in) and pounds (lbs) and Metric units are millimeters (mm) and kilograms (kg).
Documents
Plastic Ergostyle® Adjustable Handles with Stainless Steel Insert by ELESA®
Select a part number for CAD drawings, price and stock availability.

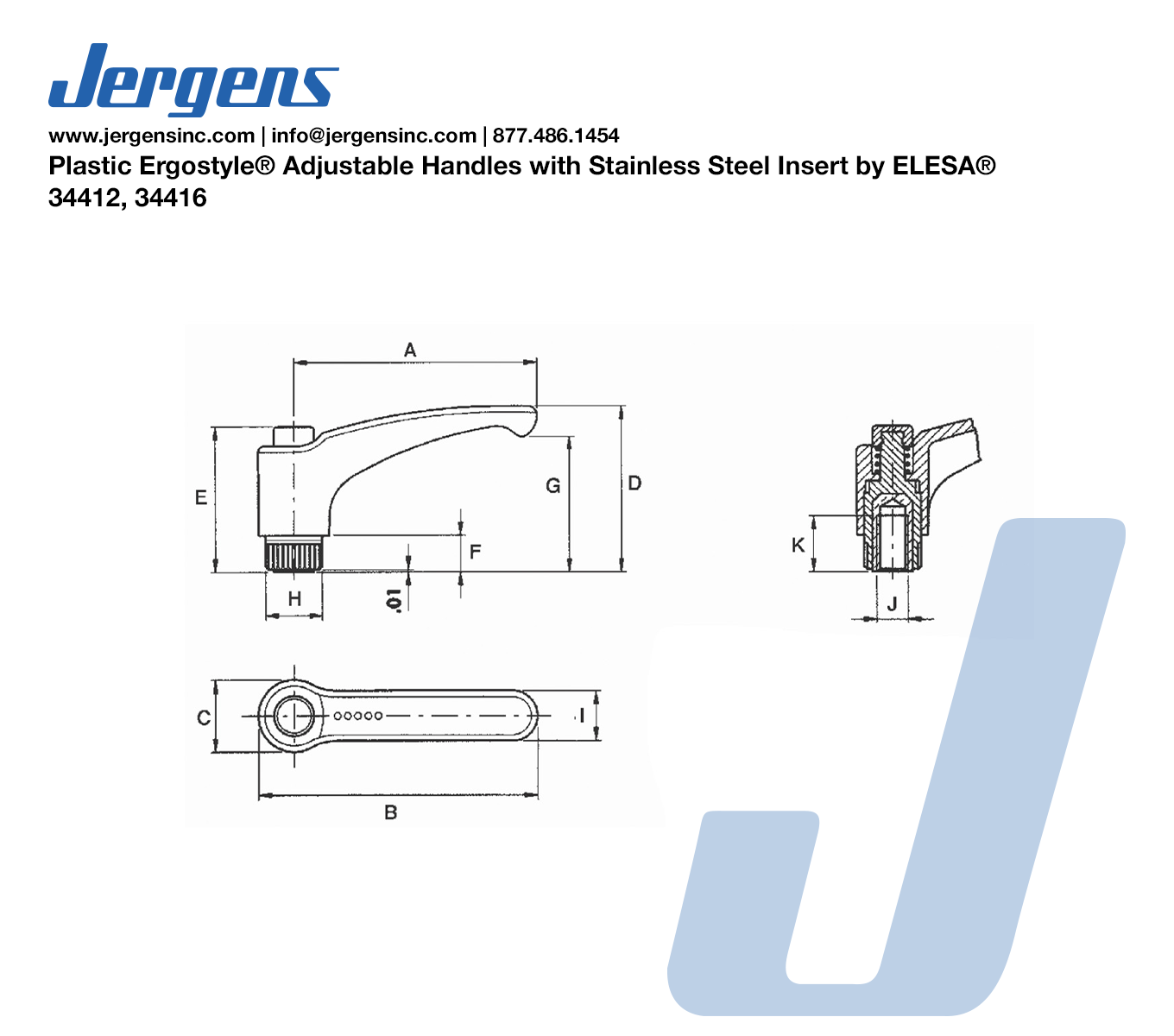

| Part Number | CAD | Unit | A (In) | B (In) | C (In) | D (In) | E (In) | F (In) | G (In) | H (In) | I (In) | J | K (In) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 34412 |
|
Inch | 1.73 | 2.05 | 0.61 | 1.28 | 1.16 | 0.24 | 0.98 | 0.47 | 0.43 | 1/4-20 | 0.39 |
| 34416 |
|
Inch | 3.07 | 3.56 | 0.91 | 2.13 | 1.85 | 0.47 | 1.73 | 0.75 | 0.63 | 3/8-16 | 0.67 |
