Plastic Ergostyle® Adjustable Handles by ELESA®
- Material: Glass Fibre Reinforced Technopolymer
- Finish: Body - Gray/Black Matte - Push Button - Orange
- Insert: Brass With Tapped Blind Hole
Note:
- Optional button colors available upon request(Black, Grey, Yellow, Blue & Red)
- Resistant to Solvents, Oils, Greases, and other Chemical Agents
Plastic Ergostyle® Adjustable Handles by ELESA®

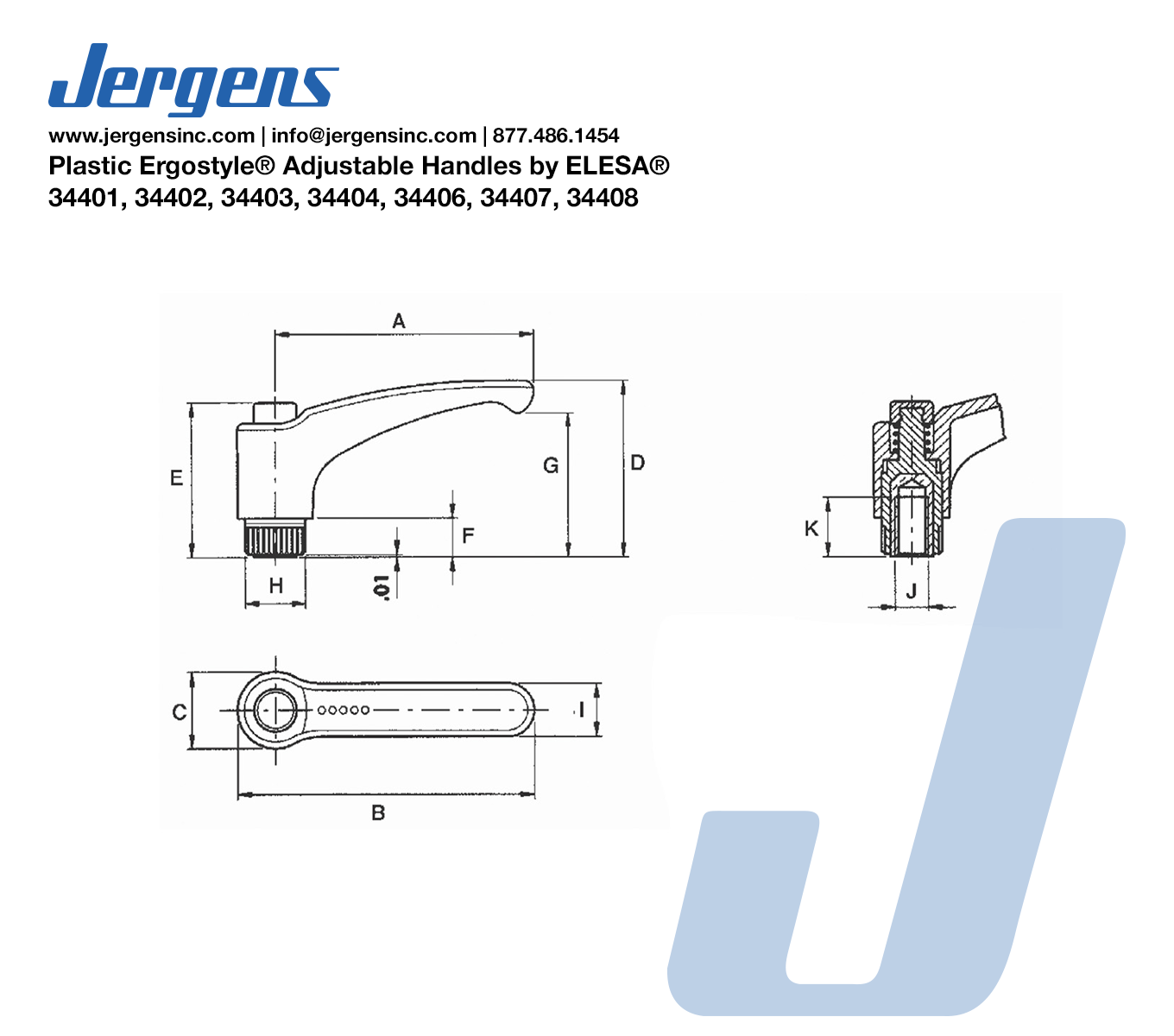

Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | A (In) | B (In) | C (In) | D (In) | E (In) | F (In) | G (In) | H (In) | I (In) | J | K (In) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 34401 |
|
Inch | 1.73 | 2.05 | 0.61 | 1.28 | 1.16 | 0.24 | 0.98 | 0.47 | 0.43 | 10-24 | 0.39 |
| 34402 |
|
Inch | 1.73 | 2.05 | 0.61 | 1.28 | 1.16 | 0.24 | 0.98 | 0.47 | 0.43 | 1/4-20 | 0.39 |
| 34403 |
|
Inch | 2.48 | 2.89 | 0.75 | 1.69 | 1.48 | 0.31 | 1.36 | 0.59 | 0.53 | 1/4-20 | 0.47 |
| 34404 |
|
Inch | 2.48 | 2.89 | 0.75 | 1.69 | 1.48 | 0.31 | 1.36 | 0.59 | 0.53 | 5/16-18 | 0.51 |
| 34406 |
|
Inch | 3.07 | 3.56 | 0.91 | 2.13 | 1.85 | 0.47 | 1.73 | 0.75 | 0.63 | 3/8-16 | 0.67 |
| 34407 |
|
Inch | 3.07 | 3.56 | 0.91 | 2.13 | 1.85 | 0.47 | 1.73 | 0.75 | 0.63 | 1/2-13 | 0.67 |
| 34408 |
|
Inch | 3.74 | 4.29 | 1.04 | 2.54 | 2.15 | 0.51 | 2.09 | 0.85 | 0.71 | 3/8-16 | 0.79 |
