Plastic Cranks with Revolving Folding Handle by ELESA®
Jergens Plastic Crank with Revolving Handles by ELESA® allow the handle to be tucked in when not in use making them perfect for smaller spaces. They can increase the force you can apply while protecting you from uncomfortable exertion. They are suitable for use on machines in a variety of different industries.
Features, Benefits, & Product Specifications:
-
Material: Glass-Fibre Reinforced Polyamide-Based (PA) Technopolymer
-
Finish: Black Matte
-
Hub: Black Oxide Steel, blind hole
-
Ribbed structure for heavy-duty applications
-
Resistant to solvents, oils, greases, and other chemical agents

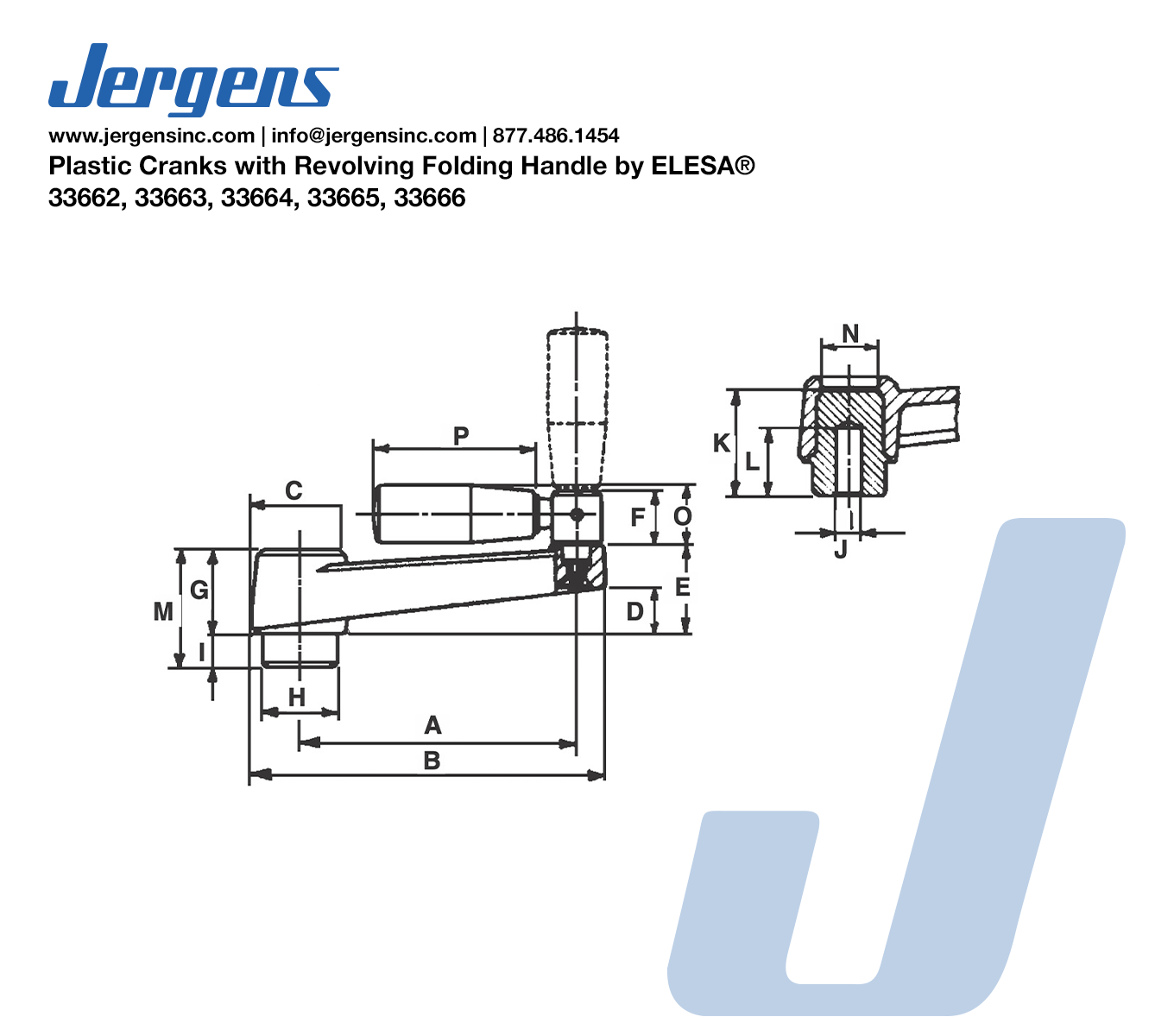

Plastic Crank with Revolving Folding Handle_LineArt
Plastic Cranks with Revolving Folding Handle by ELESA®
| Part Number | CAD | Unit | A (In) | B (In) | C (In) | D (in) | E (in) | F (in) | G (in) | H (in) | I (in) | J (in) | K (in) | L (in) | M (in) | N (in) | O (in) | P (in) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 33662 |
|
Inch | 3.15 | 4.13 | 1.18 | 0.51 | 1.06 | 0.59 | 1.02 | 0.87 | 0.39 | 0.236 | 1.26 | 1.02 | 1.42 | 0.67 | 0.74 | 2.20 | |
| 33663 |
|
Inch | 3.94 | 5.04 | 1.34 | 0.59 | 1.22 | 0.79 | 1.18 | 0.94 | 0.39 | 0.315 | 1.46 | 1.10 | 1.57 | 0.83 | 0.86 | 2.56 | |
| 33664 |
|
Inch | 5.11 | 6.37 | 1.57 | 0.78 | 1.37 | 0.79 | 1.37 | 1.10 | 0.55 | 0.394 | 1.73 | 1.18 | 1.93 | 0.98 | 0.86 | 2.56 | |
| 33665 |
|
Inch | 6.30 | 7.80 | 1.77 | 0.91 | 1.57 | 0.79 | 1.57 | 1.34 | 0.59 | 0.394 | 1.93 | 1.18 | 2.17 | 1.06 | 0.94 | 3.15 | |
| 33666 |
|
Inch | 8.35 | 9.92 | 1.97 | 1.02 | 1.81 | 0.91 | 1.77 | 1.57 | 0.59 | 0.472 | 2.09 | 1.18 | 2.36 | 1.22 | 1.06 | 3.54 |
