Plastic Button Head Adjustable Handles with Stud by ELESA®

Jergens Plastic Button Head Adjustable Handles with Stud by ELESA® are ideal for adjustable clamping or tightening controls when the operating angle is limited.
Features, Benefits, & Product Specifications:
  • Materials:
    • Lever Body: Glass-Fibre Reinforced Polyamide-Based (PA) Technopolymer
    • Push Button: Technopolymer
    • Locking Element: Glass-Fibre Reinforced Technopolymer
    • Stud: Zinc Plated Steel with Chamfered Flat End
    • Return Spring: Stainless Steel
  • Finishes & Colors:
    • Lever Body: Matte, Black
    • Push Button: Matte, Black
    • Locking Element: Black Color
  • Absolute electric insulation for the operator
  • More comfortable lever release
  • The locking element with a retaining pin has knurling on the protruding part to make initial tightening easier
  • Resistant to solvents, oils, greases, and other chemical agents
Instructions of Use:
For clamping, lift the lever to disengage the clamping device teeth and bring it back to the start position. By releasing the lever, the return spring automatically engages the teeth.

Documents

Plastic Button Head Adjustable Handles with Stud by ELESA®

Plastic Ergostyle® Adjustable Handles with Stud by ELESA® part number 34421
  • Plastic Ergostyle® Adjustable Handles with Stud by ELESA® part number 34421

Select a part number for CAD drawings, price and stock availability.

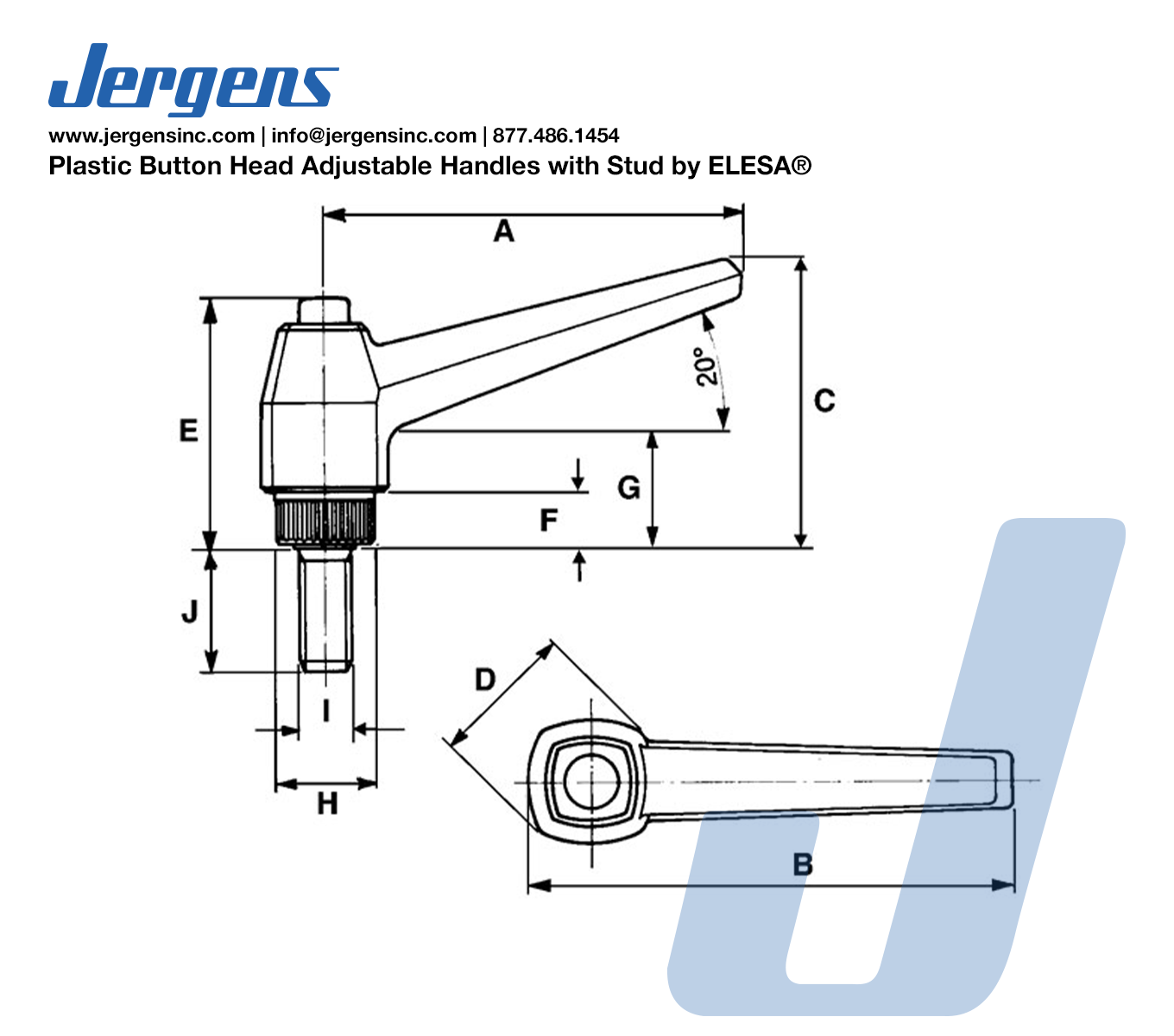

Part Number CAD Unit A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) H (mm) I J (mm) Stud/Insert Material Insert/Stud
34362 icon_cad Metric 42 50 32 18 29 6 14 12 M6 16 Steel Stud
34363 icon_cad Metric 42 50 32 18 29 6 14 12 M6 20 Steel Stud
34364 icon_cad Metric 42 50 32 18 29 6 14 12 M6 30 Steel Stud
34365 icon_cad Metric 42 50 32 18 29 6 14 12 M6 40 Steel Stud
34374 icon_cad Metric 63 73 43 23 37 8 17 15 M8 16 Steel Stud
34375 icon_cad Metric 63 73 43 23 37 8 17 15 M8 20 Steel Stud
34377 icon_cad Metric 63 73 43 23 37 8 17 15 M8 30 Steel Stud
34378 icon_cad Metric 63 73 43 23 37 8 17 15 M8 40 Steel Stud
34379 icon_cad Metric 63 73 43 23 37 8 17 15 M8 50 Steel Stud
34381 icon_cad Metric 80 92 54 28 47 10 22 19 M10 20 Steel Stud
34383 icon_cad Metric 80 92 54 28 47 10 22 19 M10 30 Steel Stud
34385 icon_cad Metric 80 92 54 28 47 10 22 19 M10 50 Steel Stud
34388 icon_cad Metric 80 92 54 28 47 10 22 19 M12 40 Steel Stud
34391 icon_cad Metric 100 114 65 33 54 12 25 25 M12 30 Steel Stud
34393 icon_cad Metric 100 114 65 33 54 12 25 25 M12 50 Steel Stud
