Plastic Button Head Adjustable Handles with Steel Stud by ELESA®

Jergens Plastic Button Head Adjustable Handles with Steel Stud by ELESA® are ideal for adjustable clamping or tightening controls when the operating angle is limited.
Features, Benefits, & Product Specifications:
  • Materials:
    • Lever Body: Glass-Fibre Reinforced Polyamide-Based (PA) Technopolymer
    • Push Button: Technopolymer
    • Locking Element: Glass-Fibre Reinforced Technopolymer
    • Stud: Zinc Plated Steel with Chamfered Flat End
    • Return Spring: Stainless Steel
  • Finishes & Colors:
    • Lever Body: Matte, Black
    • Push Button: Matte, Black
    • Locking Element: Black Color
  • Absolute electric insulation for the operator
  • More comfortable lever release
  • The locking element with a retaining pin has knurling on the protruding part to make initial tightening easier
  • Resistant to solvents, oils, greases, and other chemical agents
Instructions of Use:
For clamping, lift the lever to disengage the clamping device teeth and bring it back to the start position. By releasing the lever, the return spring automatically engages the teeth.

Documents

Plastic Button Head Adjustable Handles with Steel Stud by ELESA®

Plastic Tapped Button Head Adjustable Handles with Brass Insert by ELESA® part number 34301
  • Plastic Tapped Button Head Adjustable Handles with Brass Insert by ELESA® part number 34301

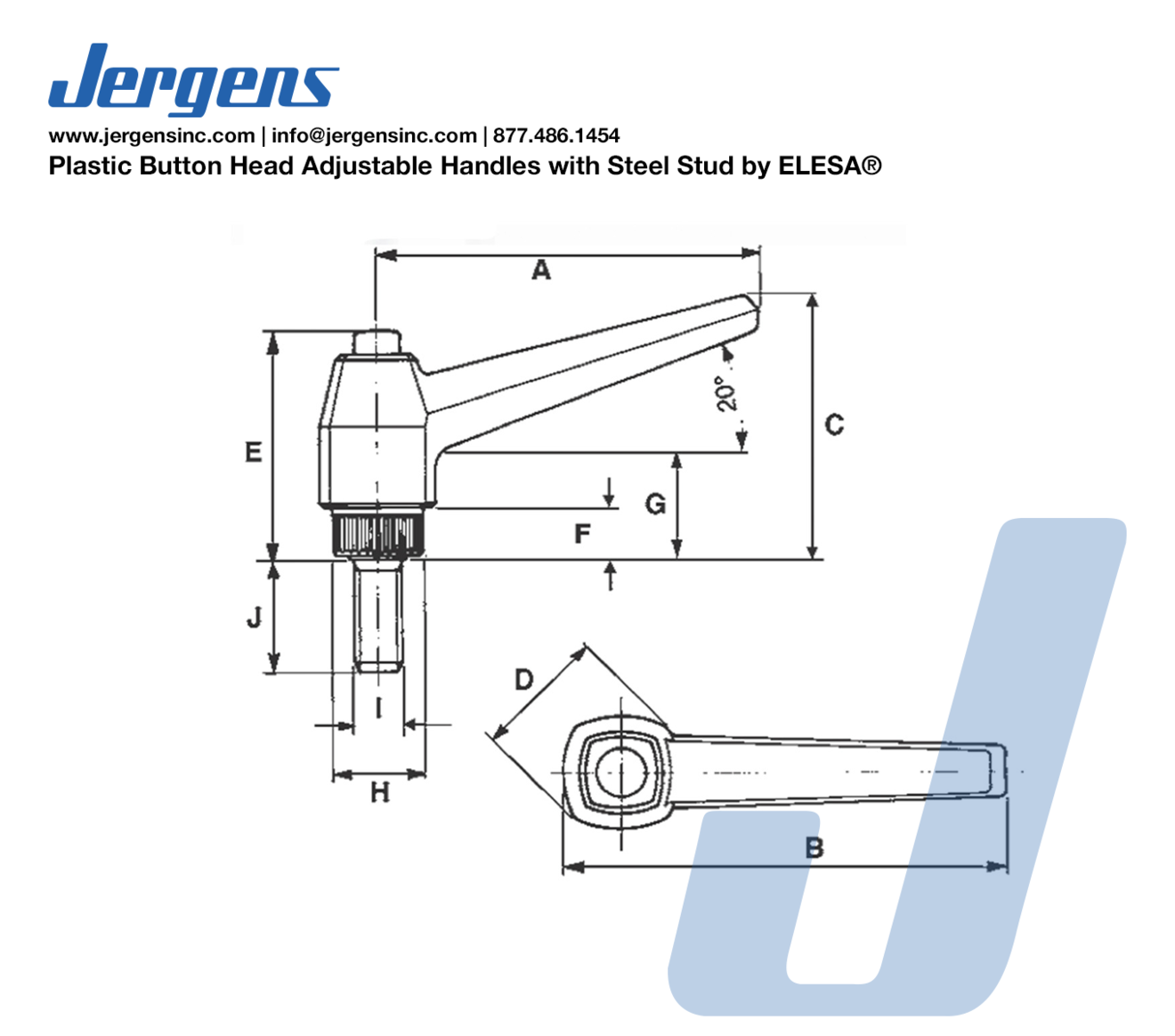

Select a part number for CAD drawings, price and stock availability.

Part Number CAD Unit A (In) B (In) C (In) D (in) E (in) F (in) G (in) H (in) I J (in) Stud/Insert Material Insert/Stud
34312 icon_cad Inch 1.65 1.96 1.25 0.70 1.14 0.23 0.55 0.47 1/4-20 0.500 Steel Stud
34313 icon_cad Inch 1.65 1.96 1.25 0.70 1.14 0.23 0.55 0.47 1/4-20 0.750 Steel Stud
34314 icon_cad Inch 1.65 1.96 1.25 0.70 1.14 0.23 0.55 0.47 1/4-20 1.00 Steel Stud
34315 icon_cad Inch 1.65 1.96 1.25 0.70 1.14 0.23 0.55 0.47 1/4-20 1.50 Steel Stud
34316 Inch 1.65 1.96 1.25 0.70 1.14 0.23 0.55 0.47 1/4-20 1.630 Steel Stud
34321 icon_cad Inch 2.48 2.87 1.69 0.90 1.45 0.31 0.66 0.60 1/4-20 0.750 Steel Stud
34322 icon_cad Inch 2.48 2.87 1.69 0.90 1.45 0.31 0.66 0.60 1/4-20 1.00 Steel Stud
34323 icon_cad Inch 2.48 2.87 1.69 0.90 1.45 0.31 0.66 0.60 1/4-20 1.50 Steel Stud
34324 icon_cad Inch 2.48 2.87 1.69 0.90 1.45 0.31 0.66 0.60 5/16-18 0.500 Steel Stud
34325 icon_cad Inch 2.48 2.87 1.69 0.90 1.45 0.31 0.66 0.60 5/16-18 0.750 Steel Stud
34326 icon_cad Inch 2.48 2.87 1.69 0.90 1.45 0.31 0.66 0.60 5/16-18 1.00 Steel Stud
34327 icon_cad Inch 2.48 2.87 1.69 0.90 1.45 0.31 0.66 0.60 5/16-18 1.25 Steel Stud
34328 icon_cad Inch 2.48 2.87 1.69 0.90 1.45 0.31 0.66 0.60 5/16-18 1.50 Steel Stud
34329 icon_cad Inch 2.48 2.87 1.69 0.90 1.45 0.31 0.66 0.60 5/16-18 2.00 Steel Stud
34331 icon_cad Inch 3.16 3.63 2.13 1.10 1.85 0.39 0.86 0.75 3/8-16 0.750 Steel Stud
34332 icon_cad Inch 3.16 3.63 2.13 1.10 1.85 0.39 0.86 0.75 3/8-16 1.00 Steel Stud
34333 icon_cad Inch 3.16 3.63 2.13 1.10 1.85 0.39 0.86 0.75 3/8-16 1.25 Steel Stud
34334 icon_cad Inch 3.16 3.63 2.13 1.10 1.85 0.39 0.86 0.75 3/8-16 1.50 Steel Stud
34335 icon_cad Inch 3.16 3.63 2.13 1.10 1.85 0.39 0.86 0.75 3/8-16 2.00 Steel Stud
34337 icon_cad Inch 3.16 3.63 2.13 1.10 1.85 0.39 0.86 0.75 1/2-13 1.25 Steel Stud
34338 icon_cad Inch 3.16 3.63 2.13 1.10 1.85 0.39 0.86 0.75 1/2-13 1.50 Steel Stud
34339 icon_cad Inch 3.16 3.63 2.13 1.10 1.85 0.39 0.86 0.75 1/2-13 2.00 Steel Stud
34341 icon_cad Inch 3.93 4.50 2.55 1.30 2.12 0.47 0.98 0.98 1/2-13 1.25 Steel Stud
34342 icon_cad Inch 3.93 4.50 2.55 1.30 2.12 0.47 0.98 0.98 1/2-13 1.50 Steel Stud
34343 icon_cad Inch 3.93 4.50 2.55 1.30 2.12 0.47 0.98 0.98 1/2-13 2.00 Steel Stud
