Plastic Ball Knobs
Jergens Brass Ball Knobs are ideal for control levels, push/pull rods, and many other applications.
Features, Benefits, & Product Specifications:
-
Material: Plastic
-
Colors: Available in Red or Black
-
Insert: Brass
-
Finish: Tumble (Sand and buff finish available upon request)
Plastic Ball Knobs
Select a part number for CAD drawings, price and stock availability.

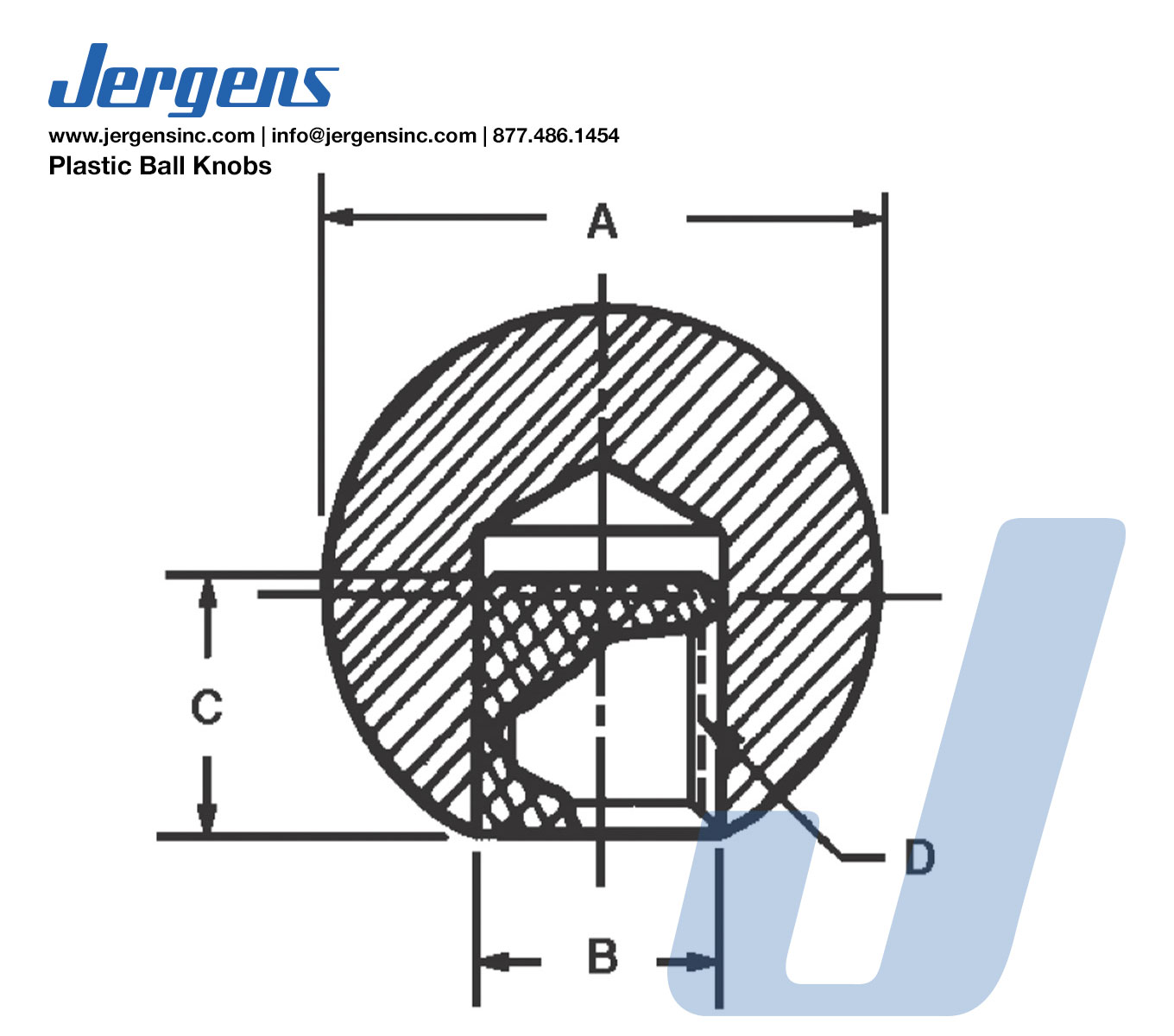

| Part Number | CAD | Unit | A (In) | B (In) | C (In) | D |
|---|---|---|---|---|---|---|
| 31301 |
|
Inch | 3/4 | 1/4 | 5/16 | 10-32 |
| 31302 |
|
Inch | 1 | 1/2 | 7/16 | 1/4-20 |
| 31303 |
|
Inch | 1 | 1/2 | 1/2 | 3/8-16 |
| 31304 |
|
Inch | 1 3/8 | 5/8 | 1/2 | 3/8-16 |
| 31305 |
|
Inch | 1 3/8 | 5/8 | 5/8 | 1/2-13 |
| 31306 |
|
Inch | 1 7/8 | 3/4 | 5/8 | 1/2-13 |
| 31307 |
|
Inch | 1 7/8 | 3/4 | 3/4 | 5/8-18 |
| 31308 |
|
Inch | 1 | 1/2 | 7/16 | 5/16-18 |
| 31309 |
|
Inch | 1 3/8 | 5/8 | 7/16 | 5/16-18 |
| 31311 |
|
Inch | 1 3/8 | 5/8 | 5/8 | 1/2-20 |
| 31312 |
|
Inch | 1 7/8 | 3/4 | 1/2 | 3/8-16 |
| 31313 |
|
Inch | 1 7/8 | 3/4 | 5/8 | 1/2-20 |
| 31314 |
|
Inch | 1 5/8 | 11/16 | 1/2 | 3/8-16 |
| 31315 |
|
Inch | 1 5/8 | 11/16 | 5/8 | 1/2-13 |
| 31316 |
|
Inch | 3/4 | 1/4 | 5/16 | 5/16 |
| 31317 |
|
Inch | 1 | 1/2 | 1/2 | 1/2 |
| 31318 |
|
Inch | 1 3/8 | 5/8 | 5/8 | 1/4-20 |
| 31319 |
|
Inch | 1 5/8 | 11/16 | 5/8 | 5/16-18 |
| 31320 |
|
Inch | 1 7/8 | 3/4 | 7/16 | 5/16-18 |
