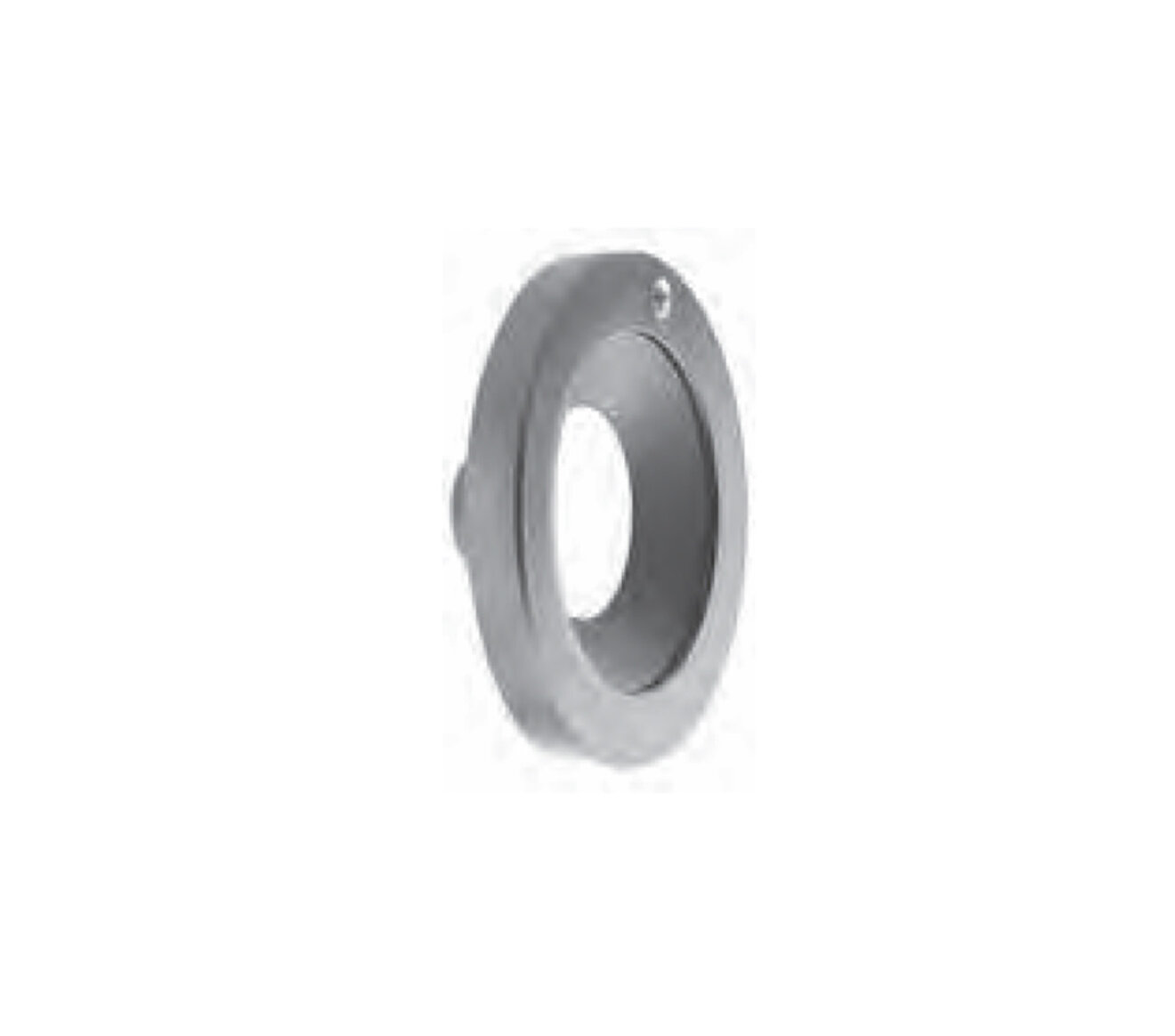

Plastic Angular Solid Handwheels
Jergens Plastic Angular Solid Handwheels are ideal for making adjustments and clamping via rotating mechanisms in a variety of applications in industries such as metalworking, industrial, and packaging equipment.
Features, Benefits, & Product Specifications:
-
Wheel Material & Finish: Acetal Co-Polymer, Black
-
Hub Material & Finish: Cast Iron, Black Oxide
-
Threaded brass inserts have serrated O.D. for rigid union with handwheel
-
Aluminum center plate can be imprinted with your company name, instructions, etc.
Plastic Angular Solid Handwheels

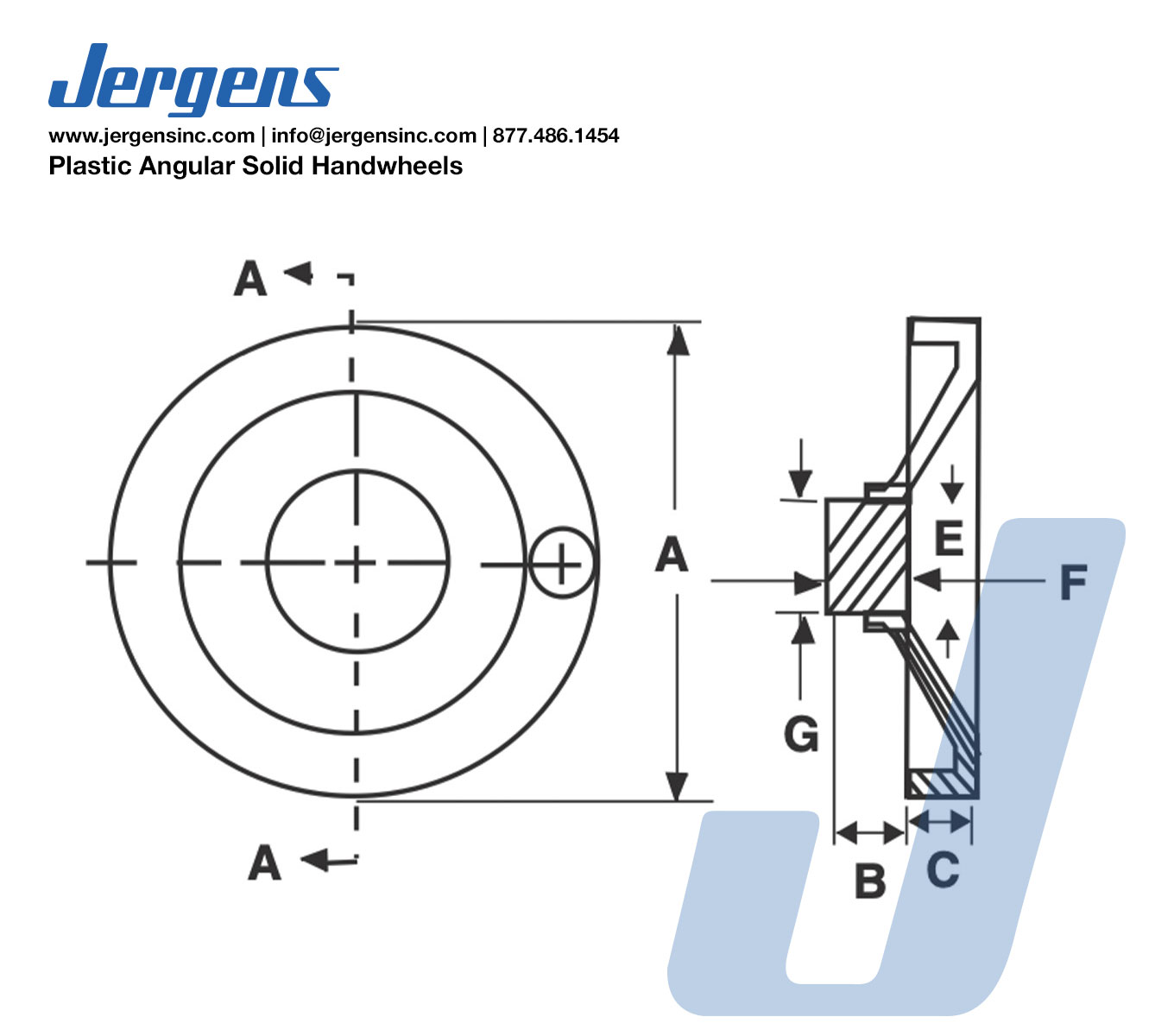

Select a part number for CAD drawings, price and stock availability.
Part Number | CAD | Unit | A (In) | B (In) | C (In) | E (In) | F (In) | G (In) | Thread Size |
---|---|---|---|---|---|---|---|---|---|
34061 | Inch | 5 | 1 1/8 | 5/8 | 1 | 1 1/8 | 1 1/8 | M8 x 1.25 | |
34062 | Inch | 6 | 1 11/32 | 23/32 | 1 3/16 | 1 11/32 | 1 11/32 | M10 x 1.50 |
