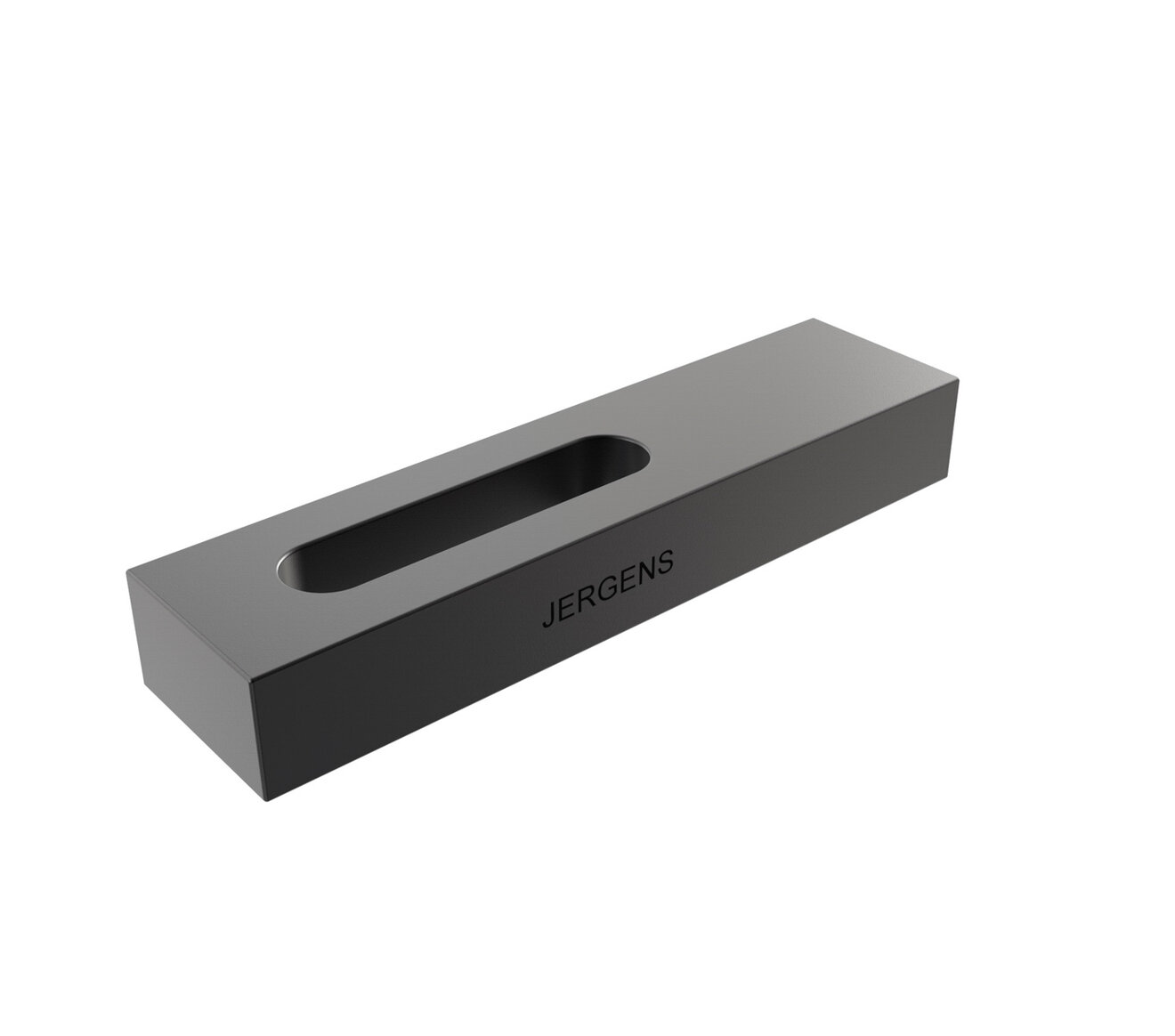

Plain Straps
With one of the largest selections available, Jergens Workholding Components have everything you need to design and build fixtures, jigs, and other workholding devices.
Features, Benefits, & Product Specifications:
-
Material: Available in Low Carbon Steel and 2024 Aluminum
Plain Straps

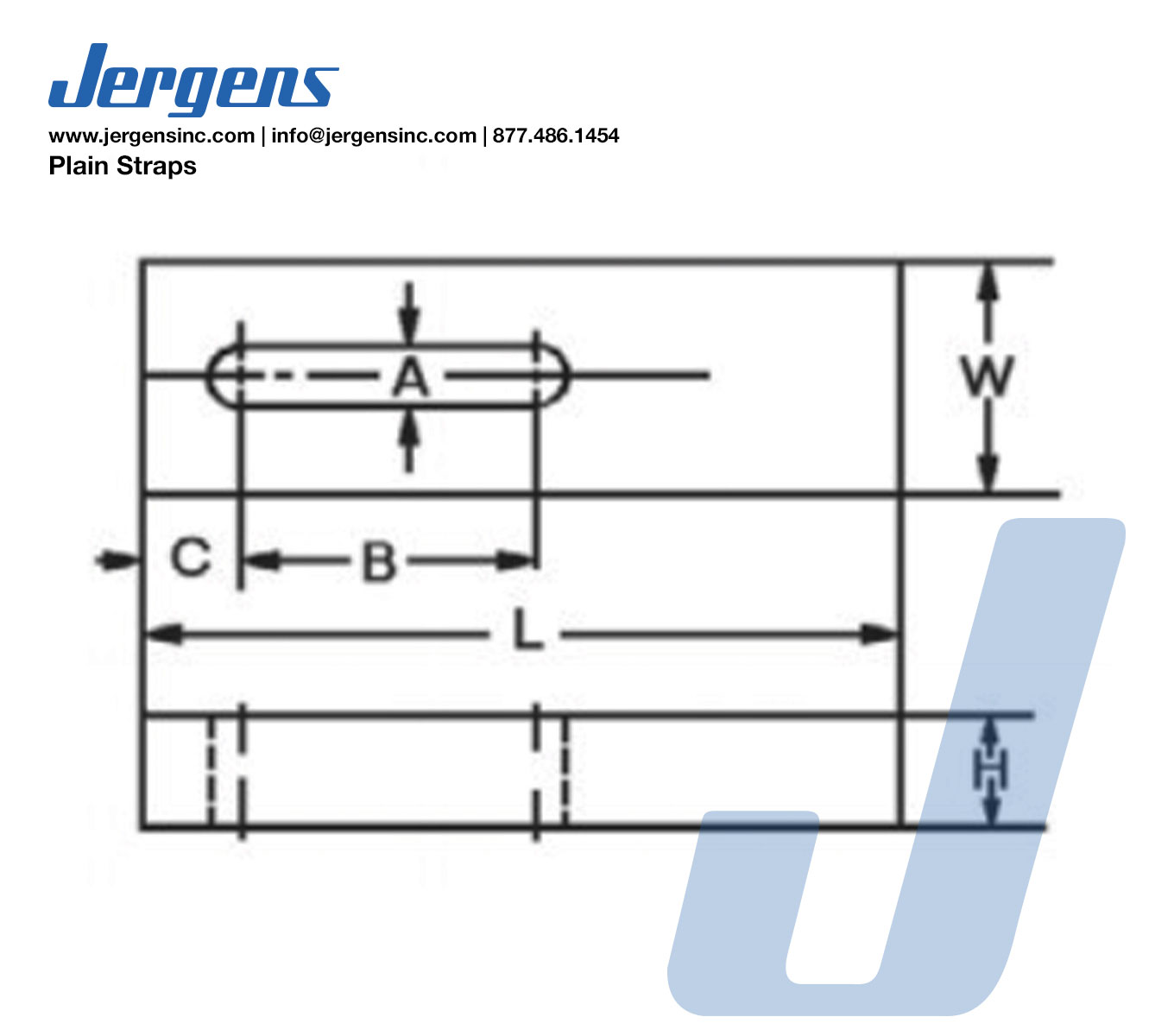

Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Material | Bolt Size | A (In) | B (In) | C (In) | Width (In) | H (In) | L (In) | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 33001 | Inch | Aluminum | 1/4 or M6 | 9/32 | 5/8 | 3/8 | 3/4 | 3/8 | 2 | 0.09 | |
| 33004 | Inch | Aluminum | 5/16 or M8 | 11/32 | 1 1/4 | 9/16 | 1 | 1/2 | 1 | 0.25 | |
| 33006 | Inch | Aluminum | 3/8 or M10 | 13/32 | 1 5/8 | 11/16 | 1 1/2 | 5/8 | 1 1/2 | 0.90 | |
| 33008 | Inch | Aluminum | 1/2 or M12 | 17/32 | 2 | 7/8 | 2 | 3/4 | 2 | 1.60 | |
| 33111 |
|
Inch | Steel | 1/4 or M6 | 9/32 | 5/8 | 3/8 | 5/8 | 3/8 | 2 | 0.09 |
| 33113 |
|
Inch | Steel | 5/16 or M8 | 11/32 | 3/4 | 9/16 | 7/8 | 1/2 | 2 1/2 | 0.18 |
| 33114 |
|
Inch | Steel | 5/16 or M8 | 11/32 | 1 1/4 | 9/16 | 7/8 | 1/2 | 3 1/2 | 0.25 |
| 33115 |
|
Inch | Steel | 3/8 or M10 | 13/32 | 1 1/8 | 11/16 | 1 1/4 | 5/8 | 3 1/2 | 0.61 |
| 33116 |
|
Inch | Steel | 3/8 or M10 | 13/32 | 1 5/8 | 11/16 | 1 1/4 | 5/8 | 4 1/2 | 0.90 |
| 33117 |
|
Inch | Steel | 1/2 or M12 | 17/32 | 1 1/4 | 7/8 | 1 1/2 | 3/4 | 4 1/2 | 1.12 |
| 33118 |
|
Inch | Steel | 1/2 or M12 | 17/32 | 2 | 7/8 | 1 1/2 | 3/4 | 6 | 1.60 |
| 33119 |
|
Inch | Steel | 5/8 or M16 | 21/32 | 1 1/2 | 1 1/16 | 1 3/4 | 7/8 | 7 | 2.60 |
| 33120 |
|
Inch | Steel | 5/8 or M16 | 21/32 | 2 1/2 | 1 1/16 | 1 3/4 | 7/8 | 7 | 2.60 |
| 33121 |
|
Inch | Steel | 3/4 or M19 | 25/32 | 1 1/2 | 1 1/8 | 1 3/4 | 1 | 5 | 2 |
| 33122 |
|
Inch | Steel | 3/4 or M19 | 25/32 | 2 1/2 | 1 1/8 | 1 3/4 | 1 | 7 | 2.90 |
