Padded Straps

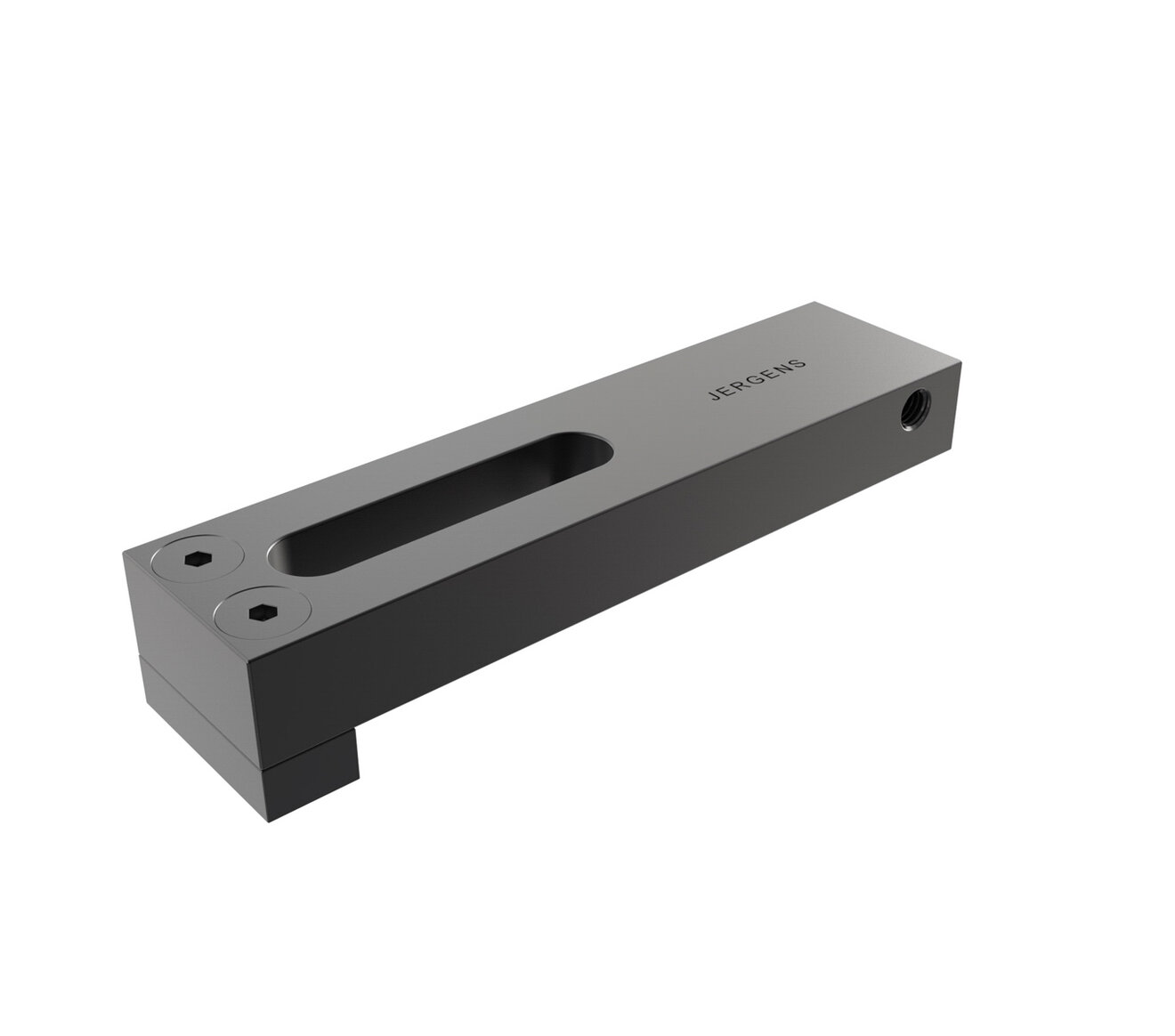

Jergens Padded Strap feature an elongated slot allows for greater clamping force on the part. A steel pad is standard. Plastic or Brass Strap Pads may be ordered separately for both inch and metric straps (see Related Products below).
Features, Benefits, & Product Specifications:
-
Material: Low Carbon Steel
-
Finish: Black Oxide
-
Heat Treat: Case Hardened Rockwell 30N Scale 59-69
Note(s):
Carbide Gripper Kits (Gripper Part No. 23704) are available for Part No.'s 36917 & 36918. See Related Products below. Contact our Technical Sales Department for more details.

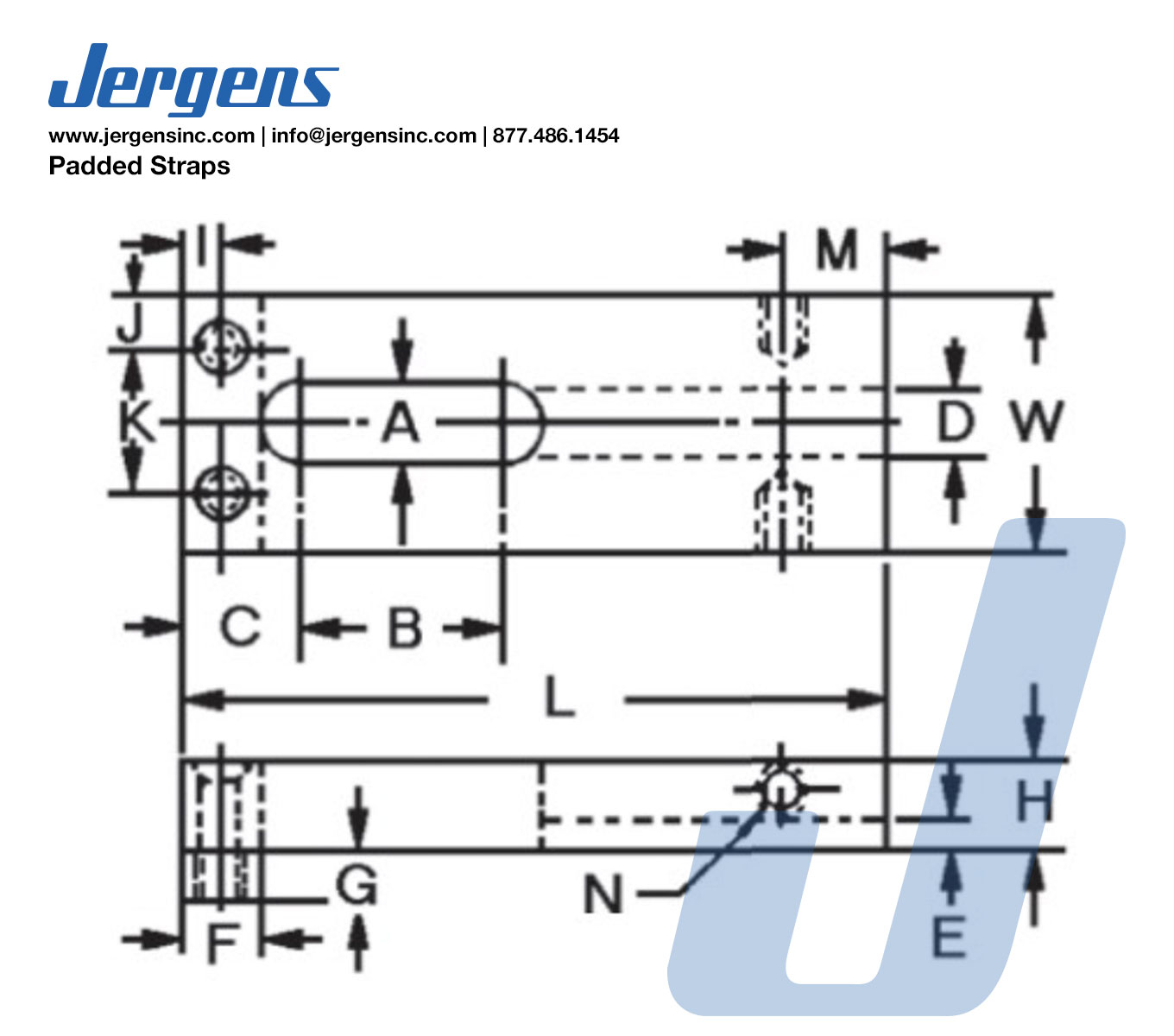

Padded Straps_LineArt
Padded Straps
| Part Number | CAD | Unit | Bolt Size | A (In) | B (In) | C (In) | D (in) | E (in) | F (in) | G (in) | I (in) | J (in) | K (in) | M (in) | N | W (in) | H (in) | L (in) | Weight (lbs) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 37101 |
|
Inch | 1/4 | 9/32 | 5/8 | 3/8 | 1/4 | 1/8 | 1/4 | 1/8 | 9/64 | 9/64 | 11/32 | - | - | 5/8 | 3/8 | 2 | 0.09 | |
| 37103 |
|
Inch | 3/8 | 13/32 | 1 1/8 | 11/16 | 3/8 | 3/16 | 1/2 | 1/4 | 1/4 | 5/16 | 5/8 | 1/2 | 5/16-18 | 1 1/4 | 5/8 | 3 1/2 | 0.65 | |
| 37105 |
|
Inch | 3/8 | 13/32 | 1 5/8 | 11/16 | 3/8 | 3/16 | 1/2 | 1/4 | 1/4 | 5/16 | 5/8 | 1/2 | 5/16-18 | 1 1/4 | 5/8 | 4 1/2 | 0.83 | |
| 37107 |
|
Inch | 1/2 | 17/32 | 1 1/4 | 7/8 | 3/8 | 1/4 | 5/8 | 3/8 | 5/16 | 3/8 | 3/4 | 1/2 | 5/16-8 | 1 1/2 | 3/4 | 4 1/2 | 1.24 | |
| 37110 |
|
Inch | 1/2 | 17/32 | 2 | 7/8 | 3/8 | 1/4 | 5/8 | 3/8 | 5/16 | 3/8 | 3/4 | 1/2 | 5/16-18 | 1 1/2 | 3/4 | 6 | 1.63 | |
| 37111 |
|
Inch | 5/8 | 21/32 | 1 1/2 | 1 1/16 | 3/8 | 1/4 | 3/4 | 1/2 | 3/8 | 1/2 | 3/4 | 3/4 | 5/16-18 | 1 3/4 | 7/8 | 5 | 1.88 | |
| 37113 |
|
Inch | 5/8 | 21/32 | 2 1/2 | 1 1/16 | 3/8 | 1/4 | 3/4 | 1/2 | 3/8 | 1/2 | 3/4 | 3/4 | 5/16-18 | 1 3/4 | 7/8 | 7 | 2.63 | |
| 37114 |
|
Inch | 3/4 | 25/32 | 1 1/2 | 1 1/8 | 3/8 | 1/4 | 3/4 | 1/2 | 3/8 | 1/2 | 3/4 | 3/4 | 5/16-18 | 1 3/4 | 1 | 5 | 2.12 | |
| 37116 |
|
Inch | 3/4 | 25/32 | 2 1/2 | 1 1/8 | 3/8 | 1/4 | 3/4 | 1/2 | 3/8 | 1/2 | 3/4 | 3/4 | 5/16-18 | 1 3/4 | 1 | 7 | 2.88 |
