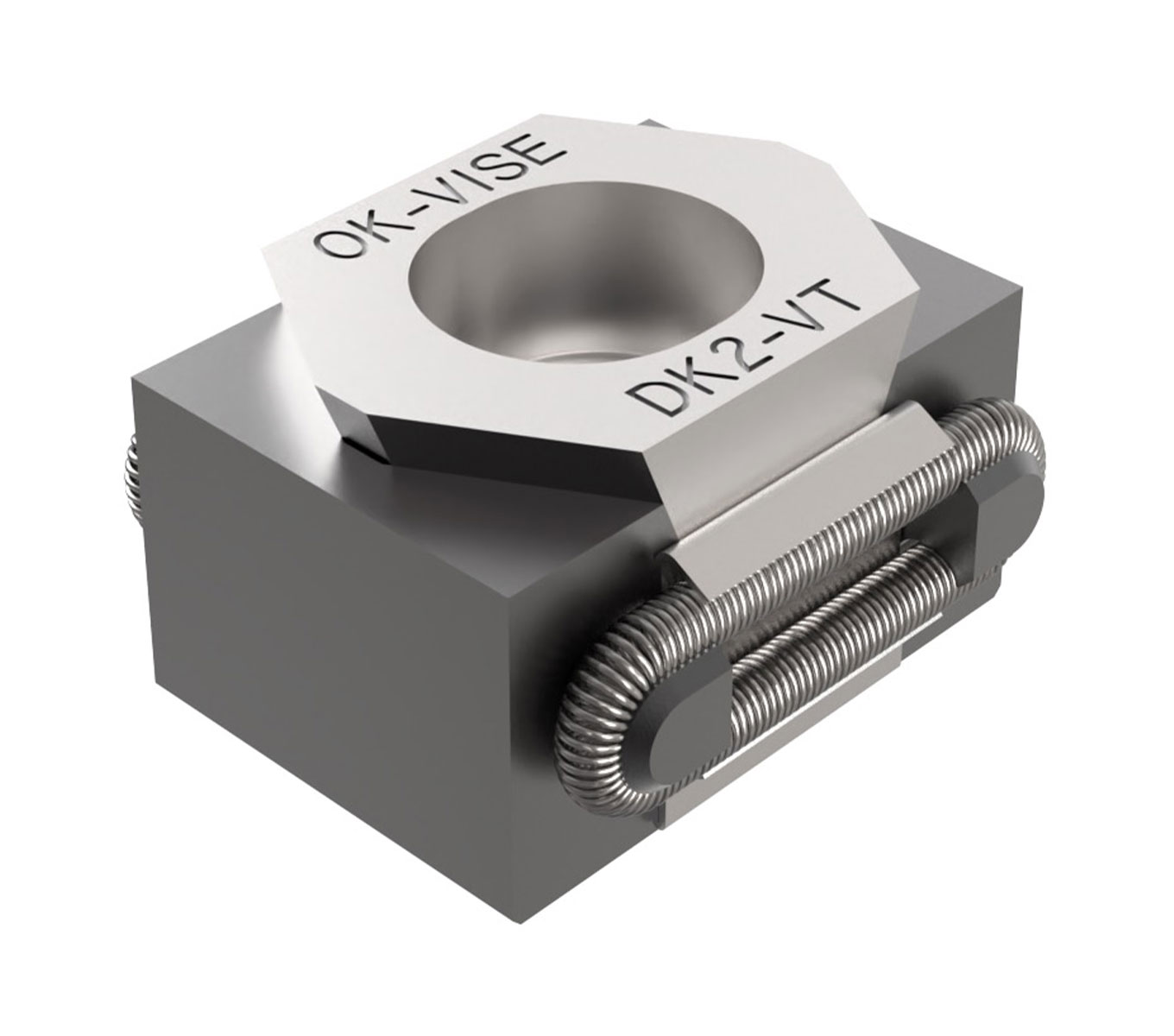

OK-Vise® Smooth Jaw Clamps
Jergens OK-Vise® Smooth Jaw Clamps are used when no marks on the workpieces are allowed.
Features, Benefits, & Product Specifications:
-
More efficient usage of machinable area
-
Reduction in the number of tool changes
-
Extended cycle times
-
Free tool access to the workpiece
-
Less space is required compared to traditional vises
-
Pull-down action: no upward or downward movement is required
-
Machinable jaws, special models, & kits are available
Note(s):
-
Part No. DK2-VTI-S measurements are are given in inches & pounds.
-
Part No. BK2-VT-SS is stainless steel.
OK-Vise® Smooth Jaw Clamps
Select a part number for CAD drawings, price and stock availability.
Part Number | CAD | Unit | A Minimum (mm) | A Optimum (mm) | A Maximum (mm) | B (mm) | C (mm) | D (mm) | E (mm) | Socket Head Screw DIN 912 | Jaw Clamping Force (kN) | Tightening Torque (Nm) | Hardness of Jaws HRC | Weight (kgs) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BK2-VT-S | Metric | 27 | 29 | 31 | 29 | 15 | 21 | 2.5 | M8 X 20 | 25 | 44 | 48-52 | 0.055 | |
BK2-VT-SS | Metric | 27 | 29 | 31 | 29 | 15 | 21 | 2.5 | M8 x 20 | 25 | 44 | 48-52 | 0.055 | |
DK2-VT-S | Metric | 42 | 45 | 49 | 41 | 22 | 30 | 4 | M12 X 30 | 65 | 145 | 48-52 | 0.180 | |
FK2-VT-S | Metric | 57 | 60 | 64 | 56 | 29 | 42 | 5 | M16 X 40 | 110 | 360 | 48-52 | 0.465 |
Part Number | CAD | Unit | A Minimum (In) | A Optimum (In) | A Maximum (In) | B (In) | C (In) | D (In) | E (In) | Socket Head Screw DIN 912 | Clamping Force of Jaws (lbs) | Tightening Torque (ft/lbs) | Hardness of Jaws HRC | Weight (lbs) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BK2-VT-SS | ||||||||||||||
DK2-VTI-S | Inch | 1.65 | 1.77 | 1.92 | 1.61 | 0.86 | 1.18 | 0.15 | 1/2-13 X 1 1/4" | 14612 | 107 | 48-52 | 0.40 |
