OK-Vise® RM Rail System Speed Plates

Jergens OK-Vise® RM Rail System Speed Plates enable users of the Multi-Rail RM to move clamp modules on the rail into a different position in just a few seconds. It also replaces (1) stopper module. Available for D and B-series clamps.
Note(s):
This module holds clamping force in (1) direction only.


Documents

OK-Vise® RM Rail System Speed Plates

OK-Vise® RM Rail System Speed Plates

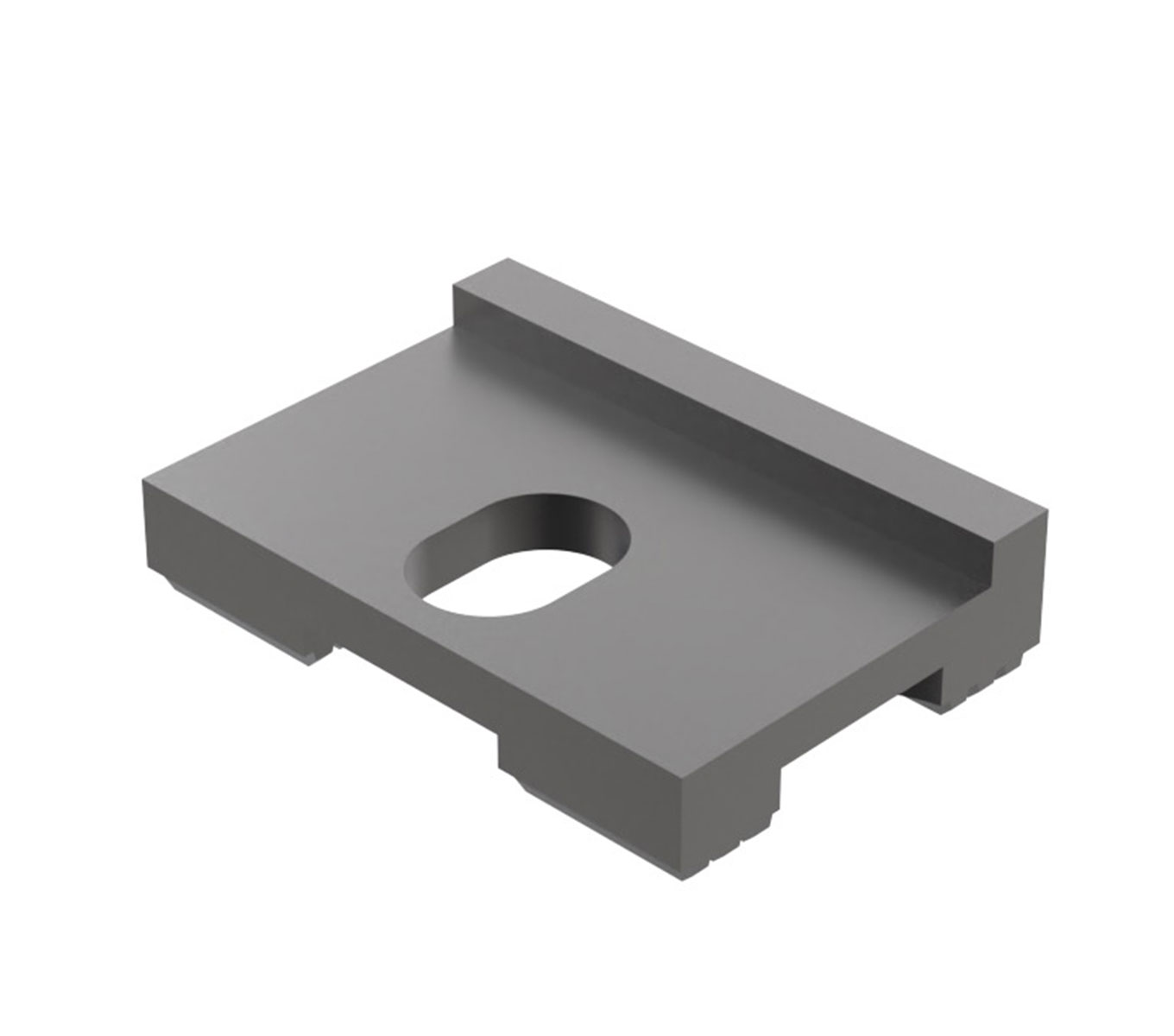

  • OK-Vise® RM Rail System Speed Plates

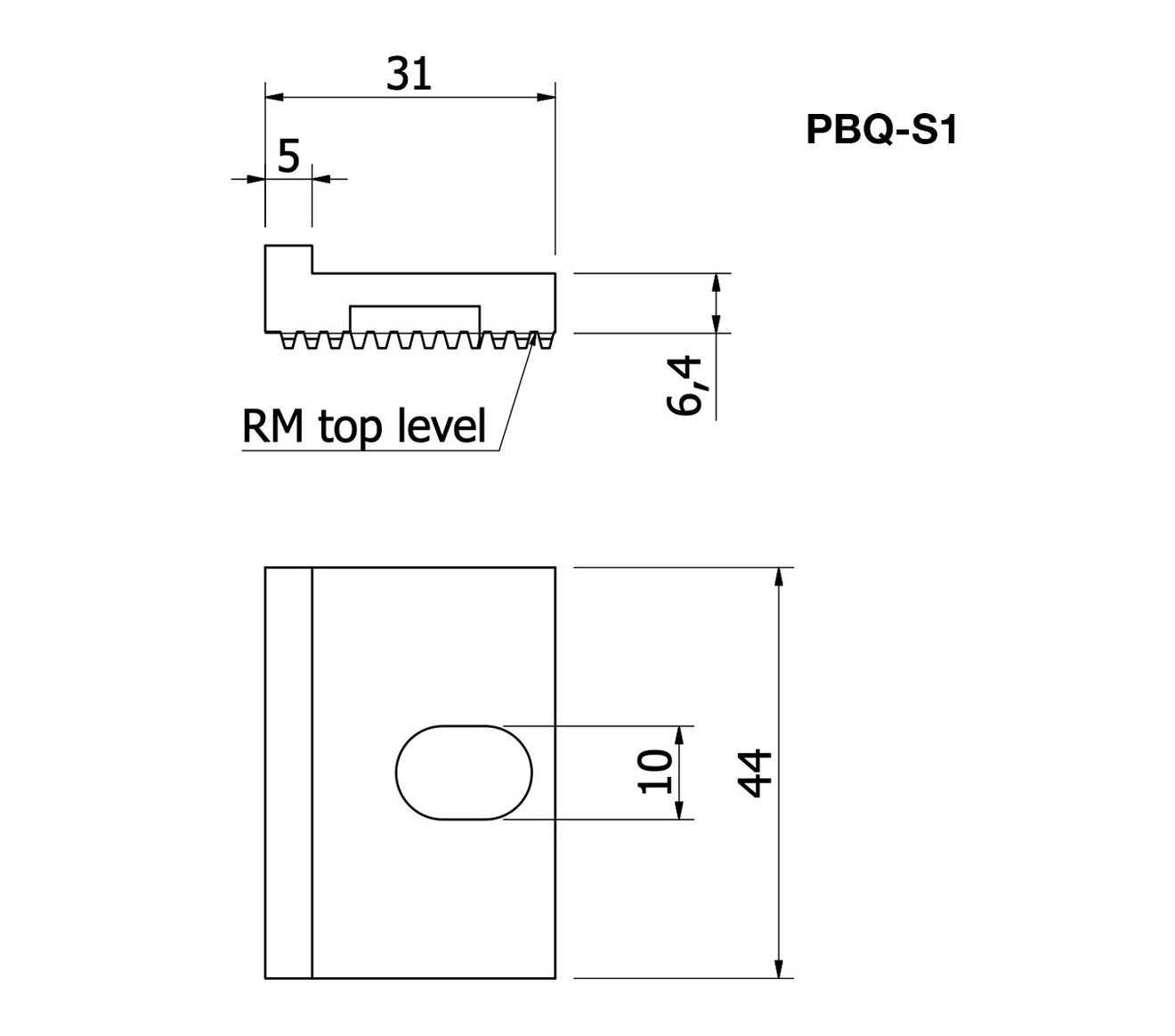

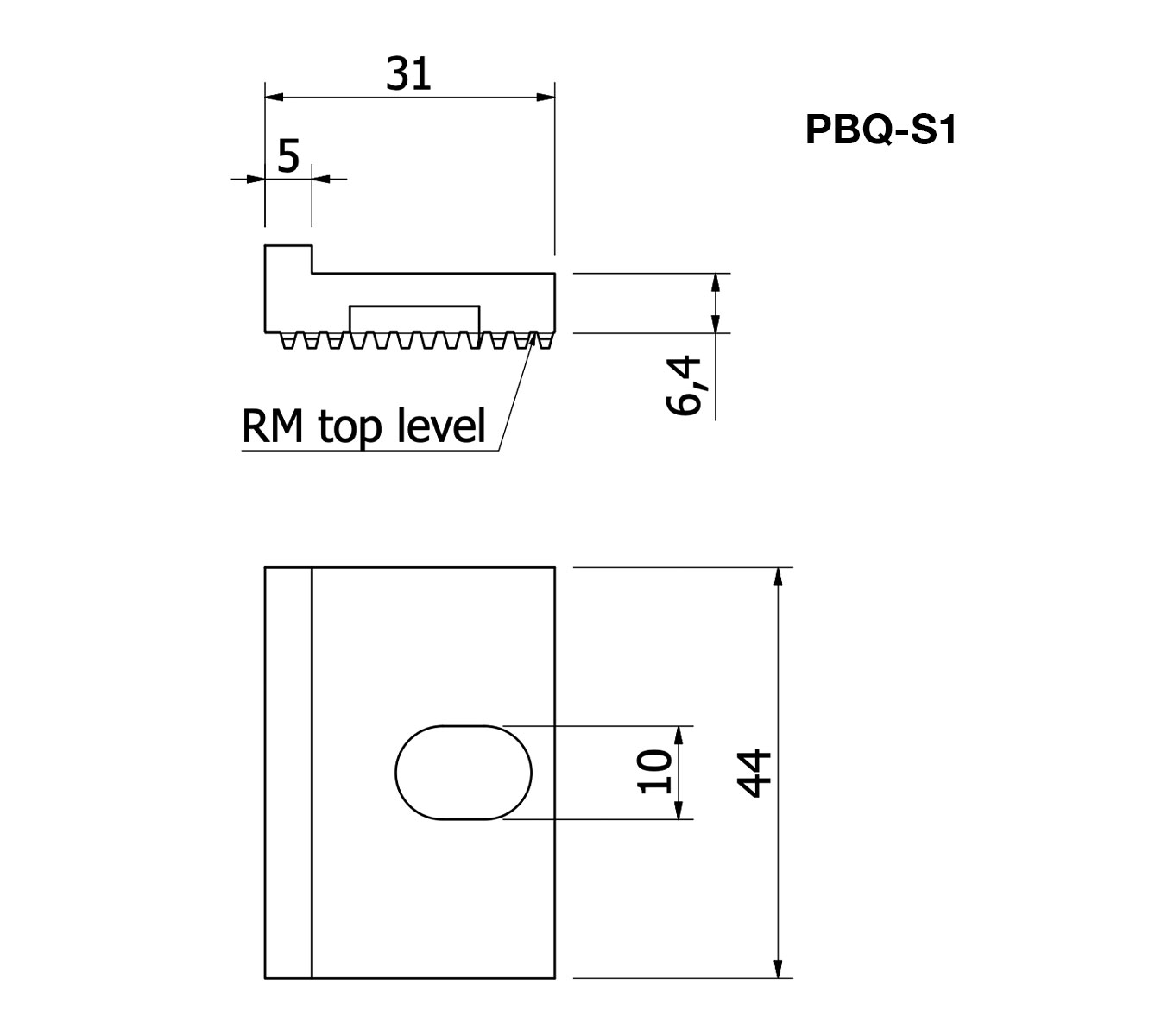

  • Line Art OK-Vise RM Rail System Speed Plates part number PBQ-S1

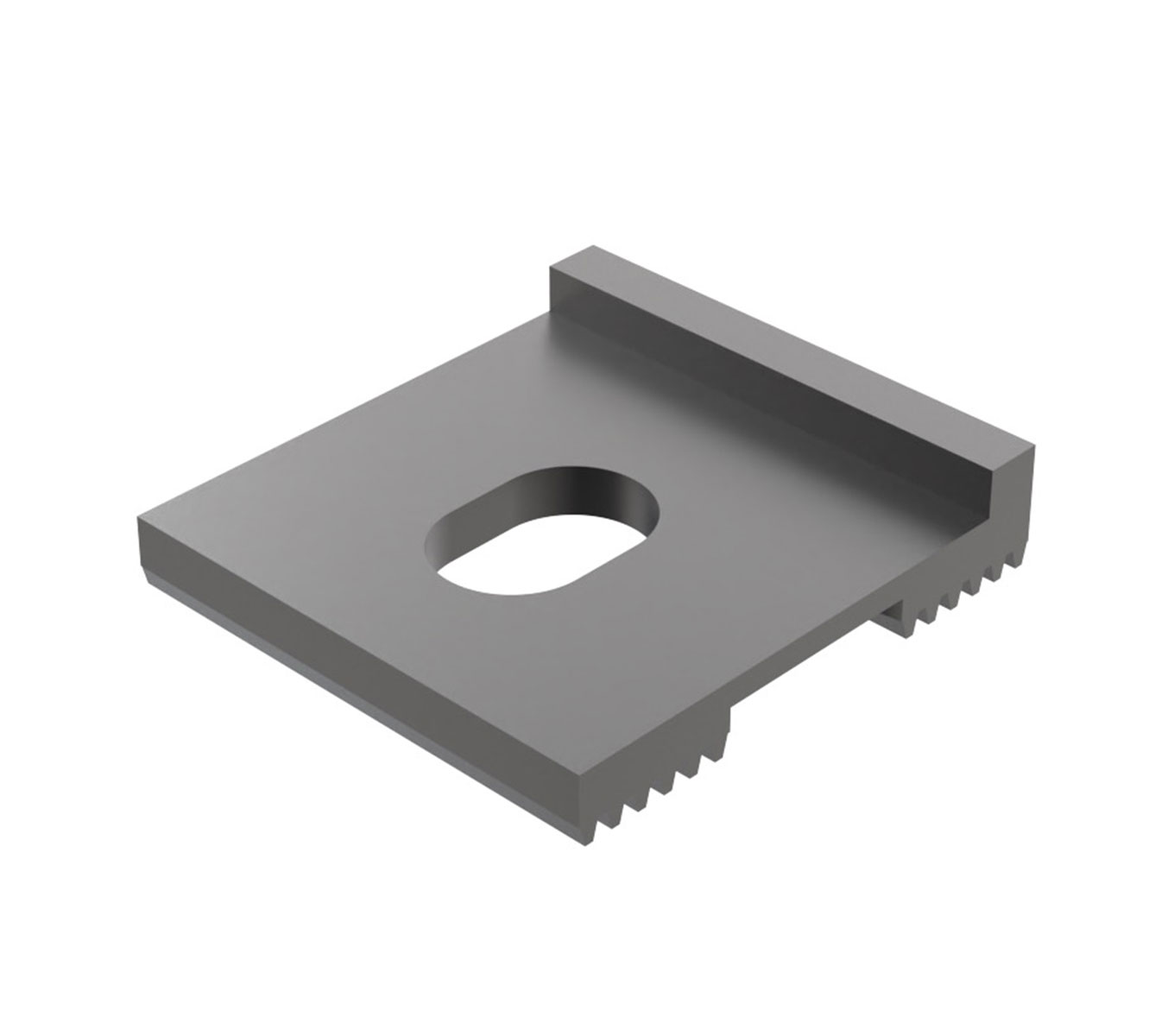

  • OK-Vise® RM Rail System Speed Plates part number PDQ-S1
  • Line Art OK-Vise RM Rail System Speed Plates part number PDQ-S1

Select a part number for CAD drawings, price and stock availability.

Part Number CAD Unit Description Weight (lbs)
PBQ-S1 Inch Speed Plate for B-Series Clamp 0.15
PDQ-S1 Inch Speed Plate for D-Series Clamp 0.15
