OK-Vise® RM Rail System Machinable Stops
Jergens OK-Vise® RM Rail System Machinable Stops are especially suitable machining complex workpieces, or when extreme accuracy is needed and product-specific jaws are used for machining.
Features, Benefits, & Product Specifications:
-
Serrated undersides mesh with Base Rails & resist high clamping forces
-
Adapts to a wide range of workpieces
-
Easily reposition on Base Rails to reduce setup time
-
T-nut and SHCS included
-
Recommend Installation Torque:
- Minimum: 37 ft*lbs (50 Nm)
- Maximum: 74 ft*lbs (100 Nm)
OK-Vise® RM Rail System Machinable Stops

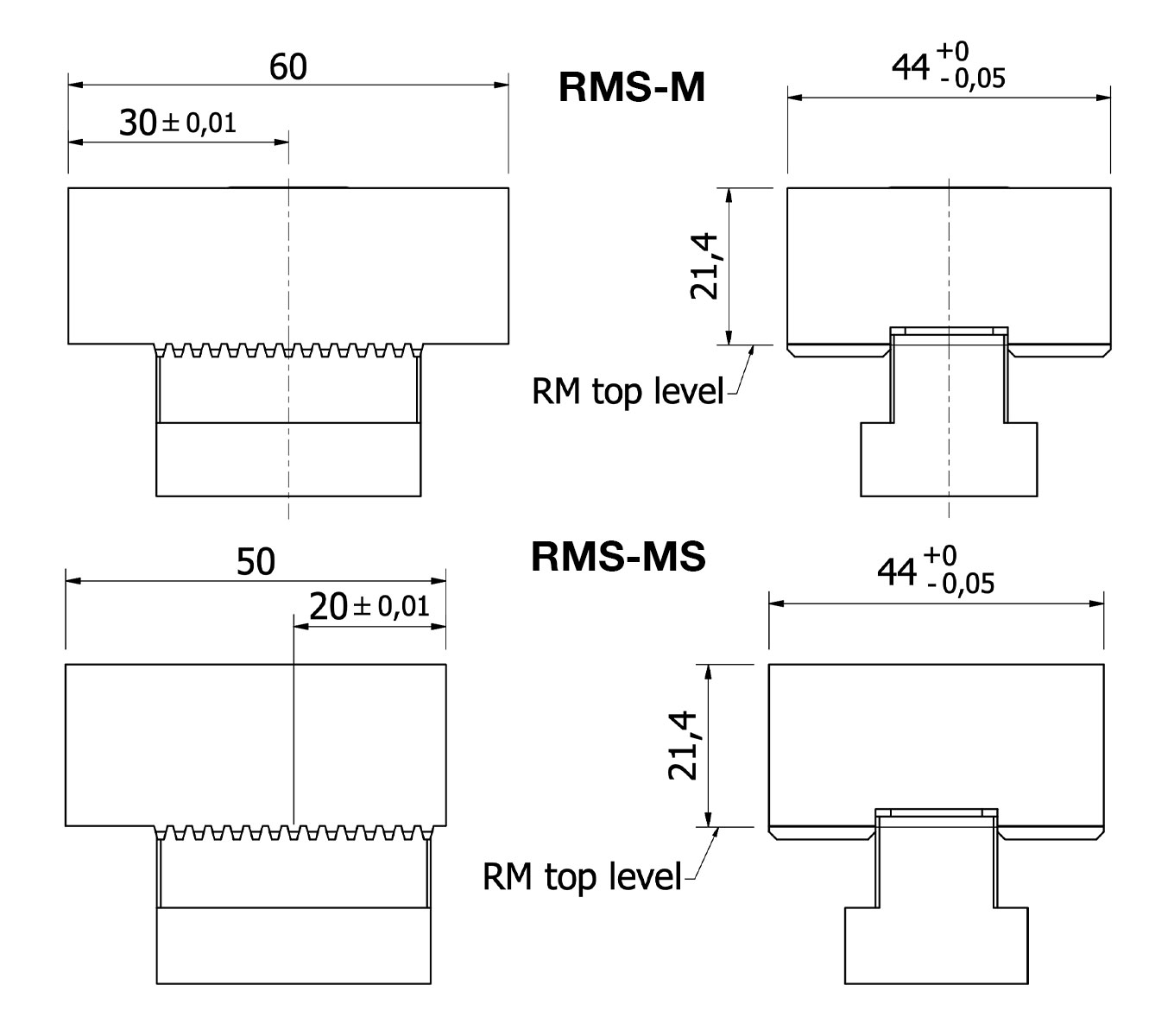

Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Description | Weight |
|---|---|---|---|---|

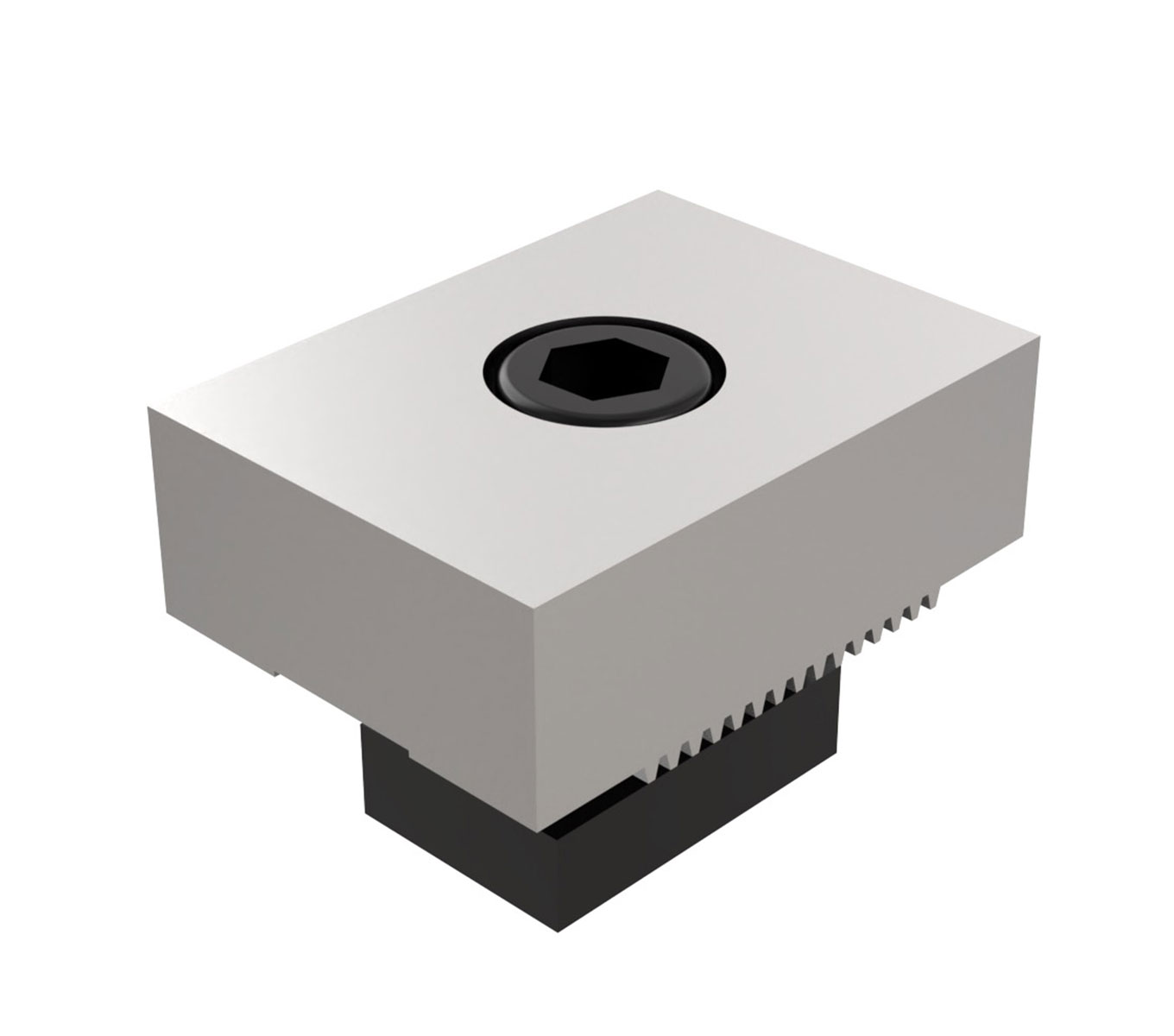

| RMS-M |
|
Inch | Both Faces Machinable | 1.21 lbs |
| RMS-MS |
|
Inch | 1 Machinable Face, 1 Smooth Face | 1.01 lbs |
