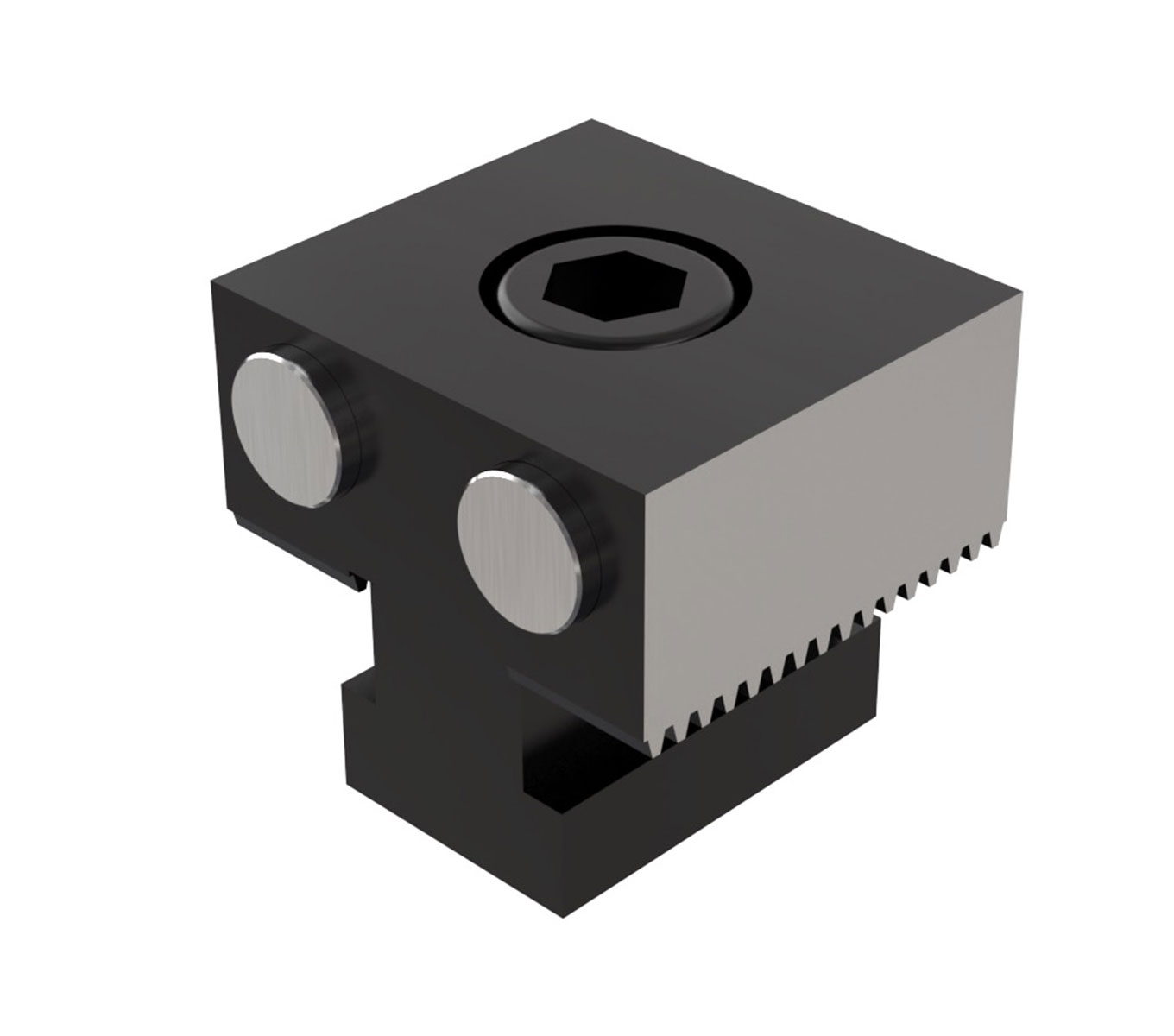

OK-Vise® RM Rail System Diamond Gripper Stops
Jergens Diamond Gripper Stops feature round diamond grippers that hold parts securely in place with additional friction. The accuracy from the rail serrations to the diamond grippers is ±0.25mm.
Features, Benefits, & Product Specifications:
-
Serrated undersides mesh with Base Rails & resist high clamping forces
-
Adapts to a wide range of workpieces
-
Easily reposition on Base Rails to reduce setup time
-
T-nut and SHCS included
-
Recommend Installation Torque:
- Minimum: 37 ft*lbs (50 Nm)
- Maximum: 74 ft*lbs (100 Nm)
OK-Vise® RM Rail System Diamond Gripper Stops
Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Description | Weight |
|---|---|---|---|---|

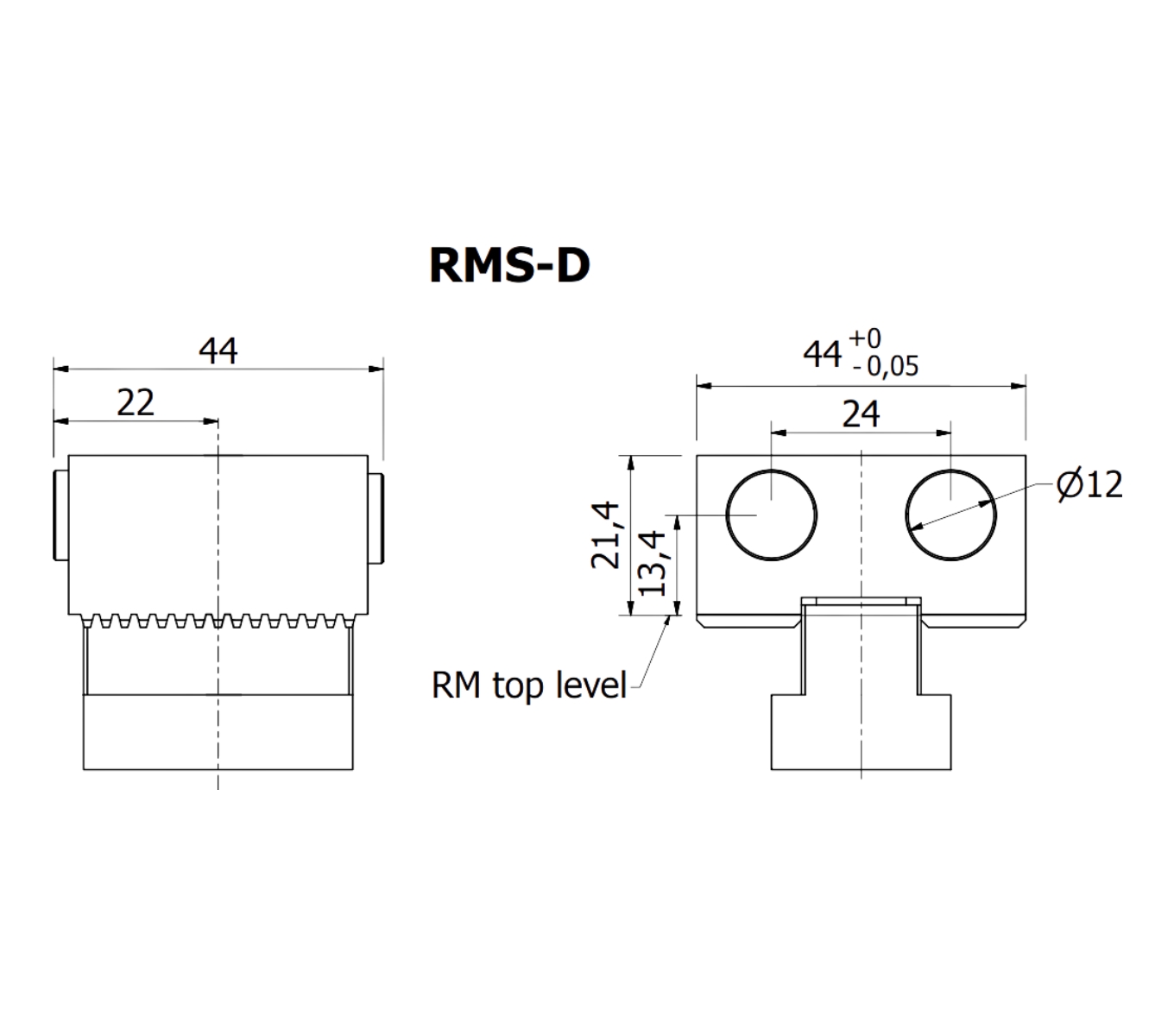

| RMS-D |
|
Inch | Diamond Grippers on Both Faces | 0.86 lbs |

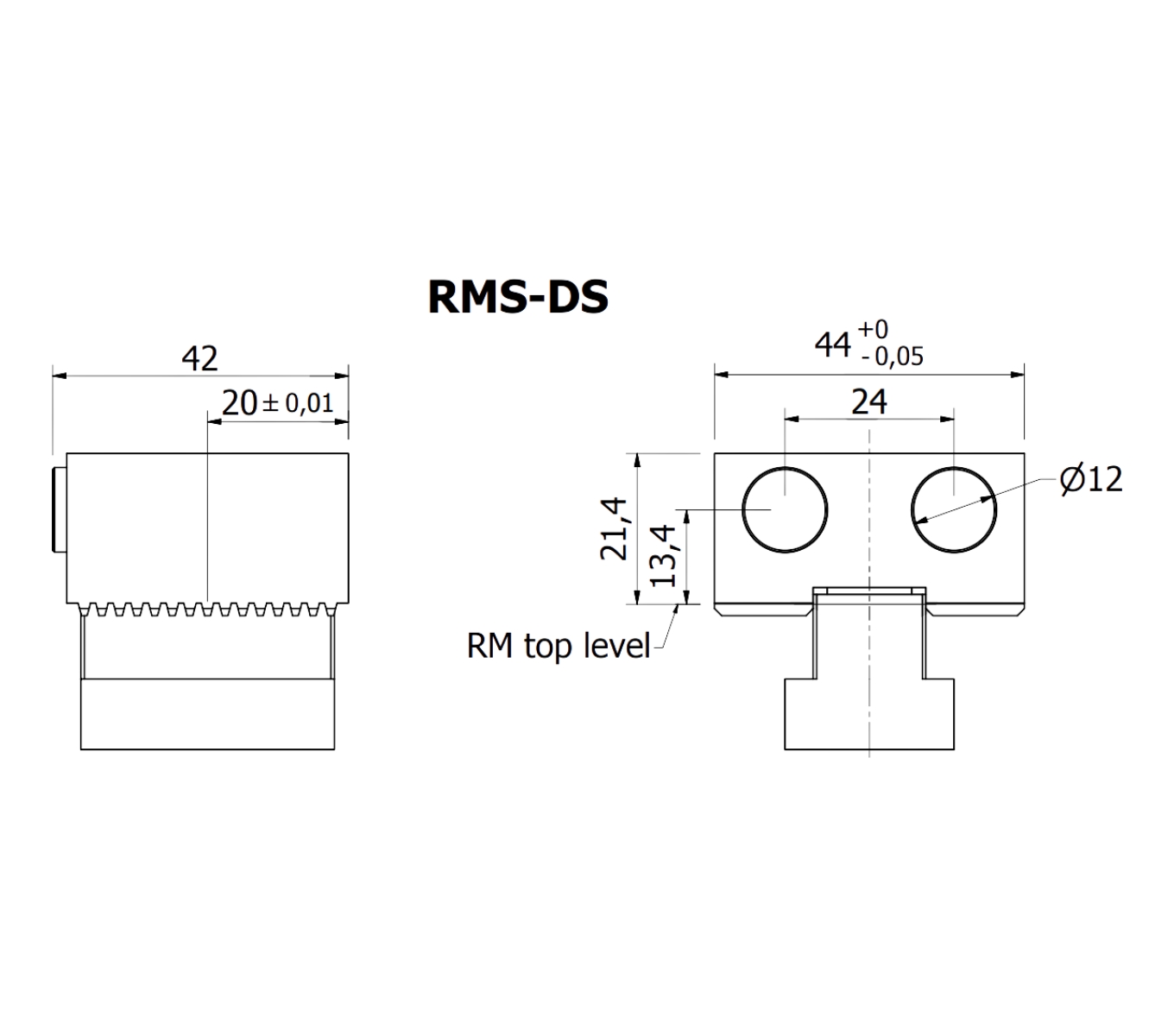

| RMS-DS |
|
Inch | 1 Diamond Gripper Face, 1 Smooth Face | 0.86 lbs |
