OK-Vise® RM Rail System Base Rails

Jergens OK-Vise® RM Rail System Base Rails are the strongest and most accurate on the market due to their steep serration profile.
Features, Benefits, & Product Specifications:
  • Can withstand up to (4) tons clamping force
  • Pitch of the serration is 2.5mm
  • Size of the RM profile is 44mm x 50mm
  • Accuracy from every serration to the positioning hole is ±0.01mm


Documents

OK-Vise® RM Rail System Base Rails

Select a part number for CAD drawings, price and stock availability.

Part Number CAD Unit Size Description Weight (kgs)

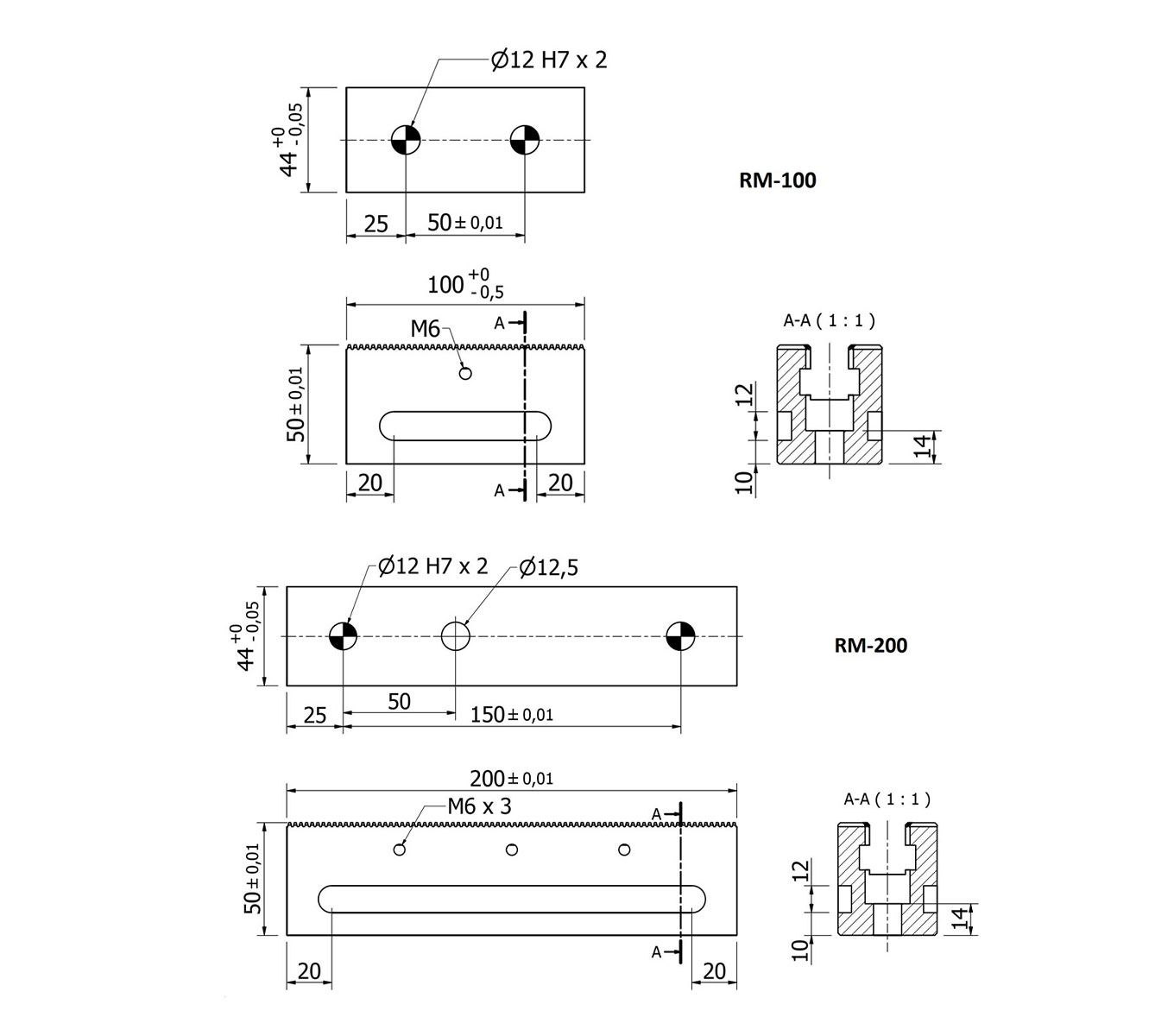

RM-100 Metric 100mm The shortest rail, with two 12 mm H7 positioning holes. 1.16
RM-200 Metric 200mm Provides better adjustability than the shortest RM-100 rail 2.32

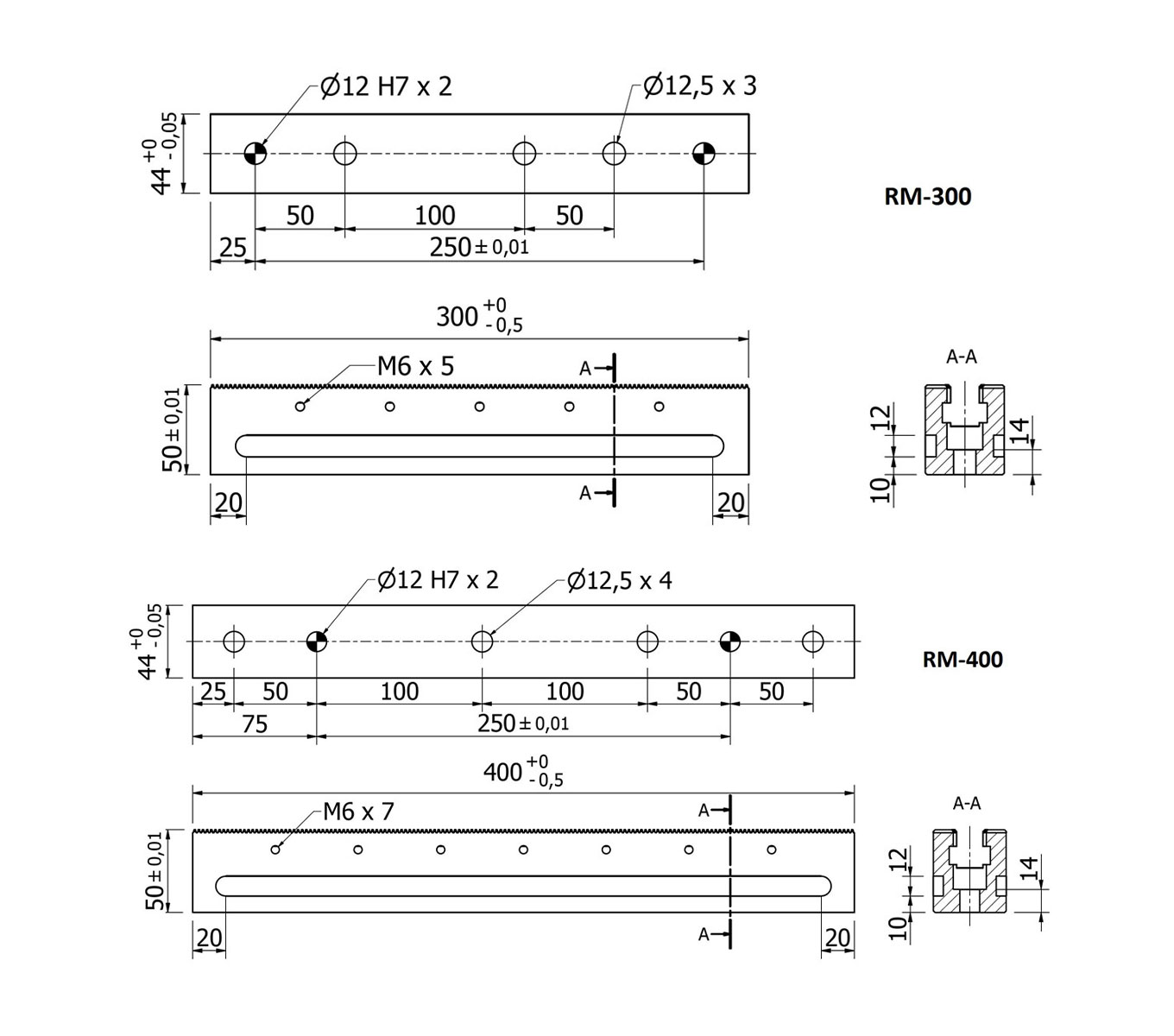

RM-300 Metric 300mm Most commonly used to replace old-fashioned machine vises 3.45
RM-400 Metric 400mm End of rail is different from the start. The numbering of the scale starts from the left. 4.62

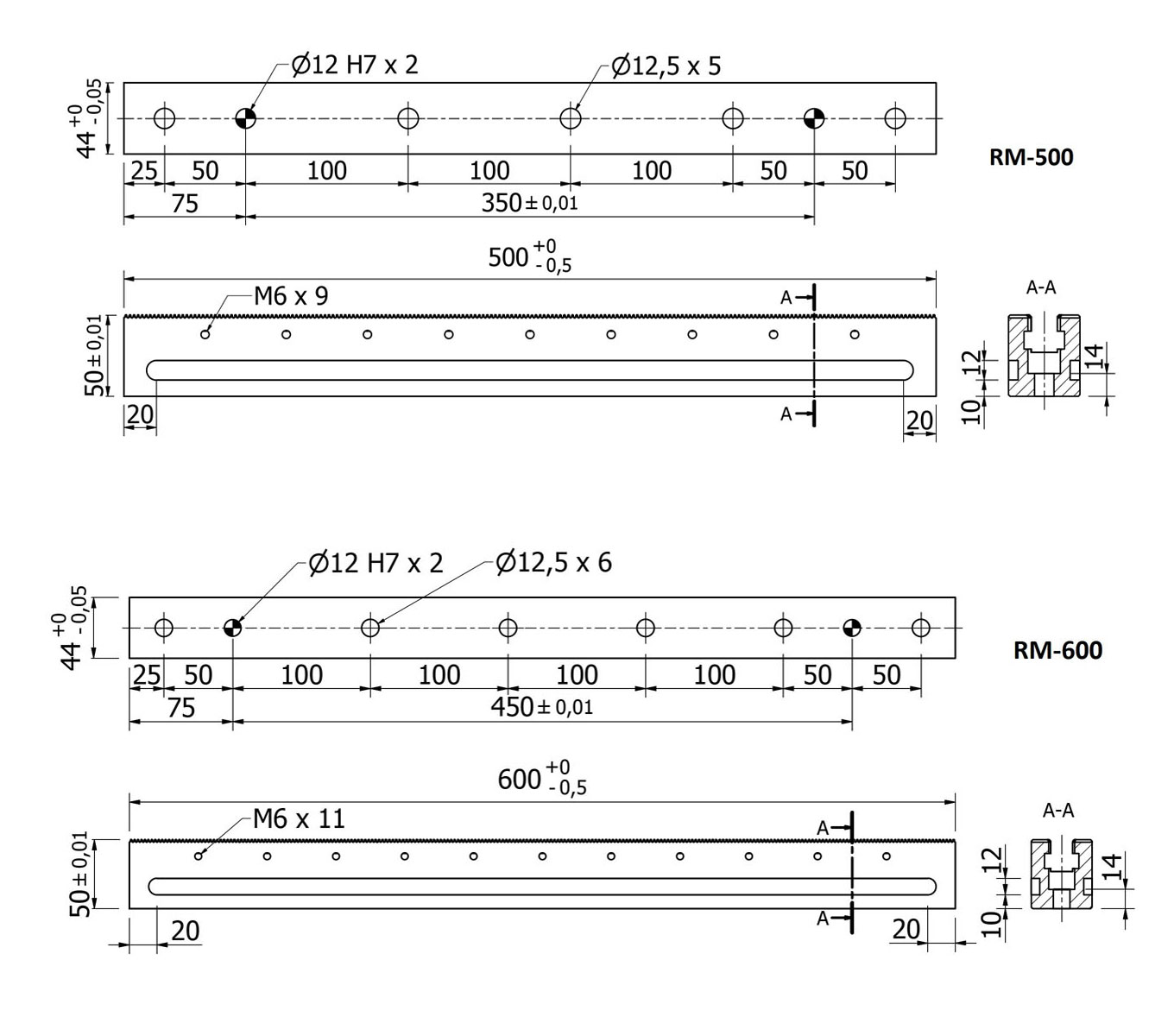

RM-500 Metric 500mm A good universal rail for VMC and HMC machining 5.80
RM-600 Metric 600mm This rail length is very popular on tooling blocks 6.96

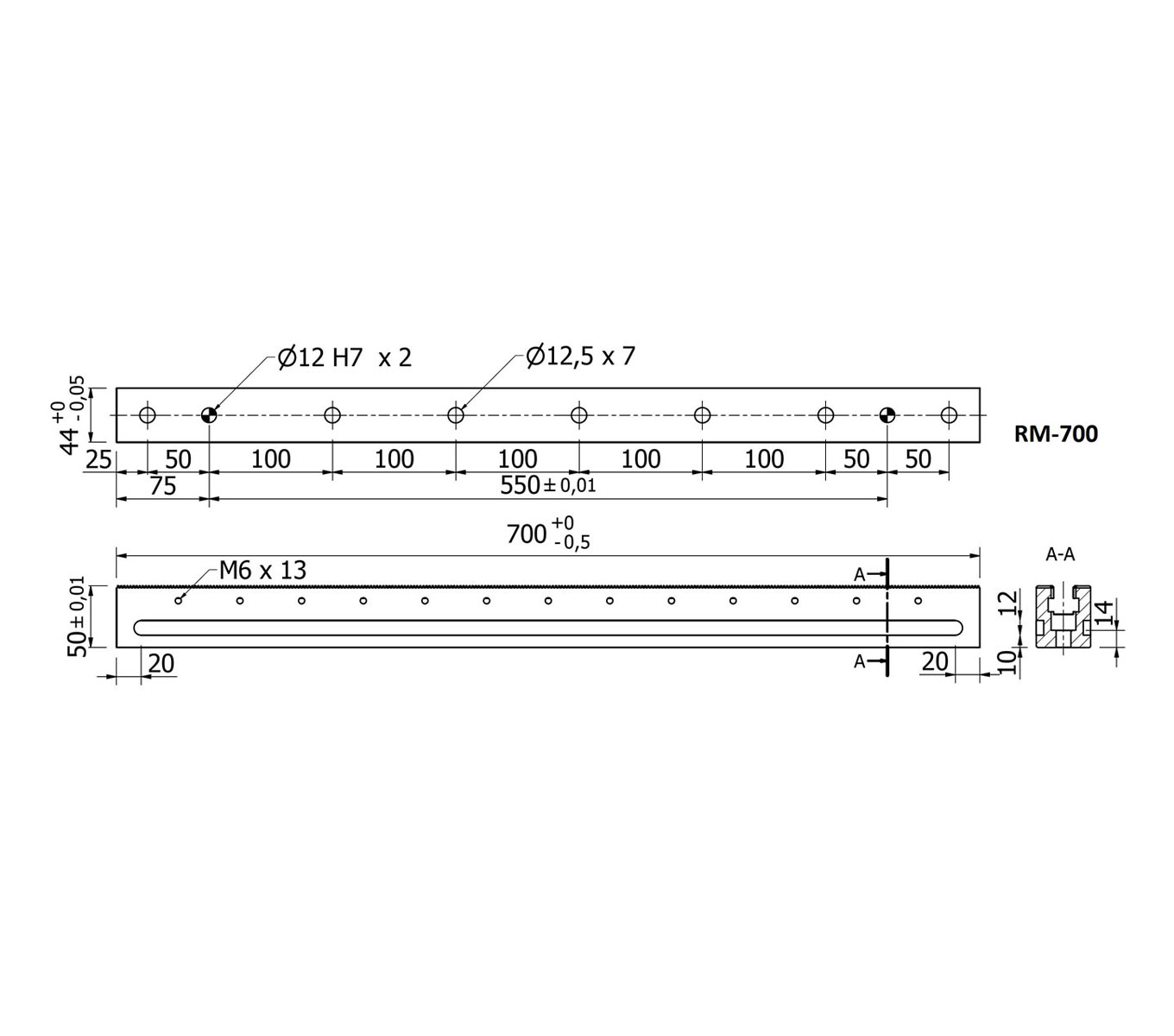

RM-700 Metric 700mm A long rail ideal for clamping large workpieces and blocks 8.16

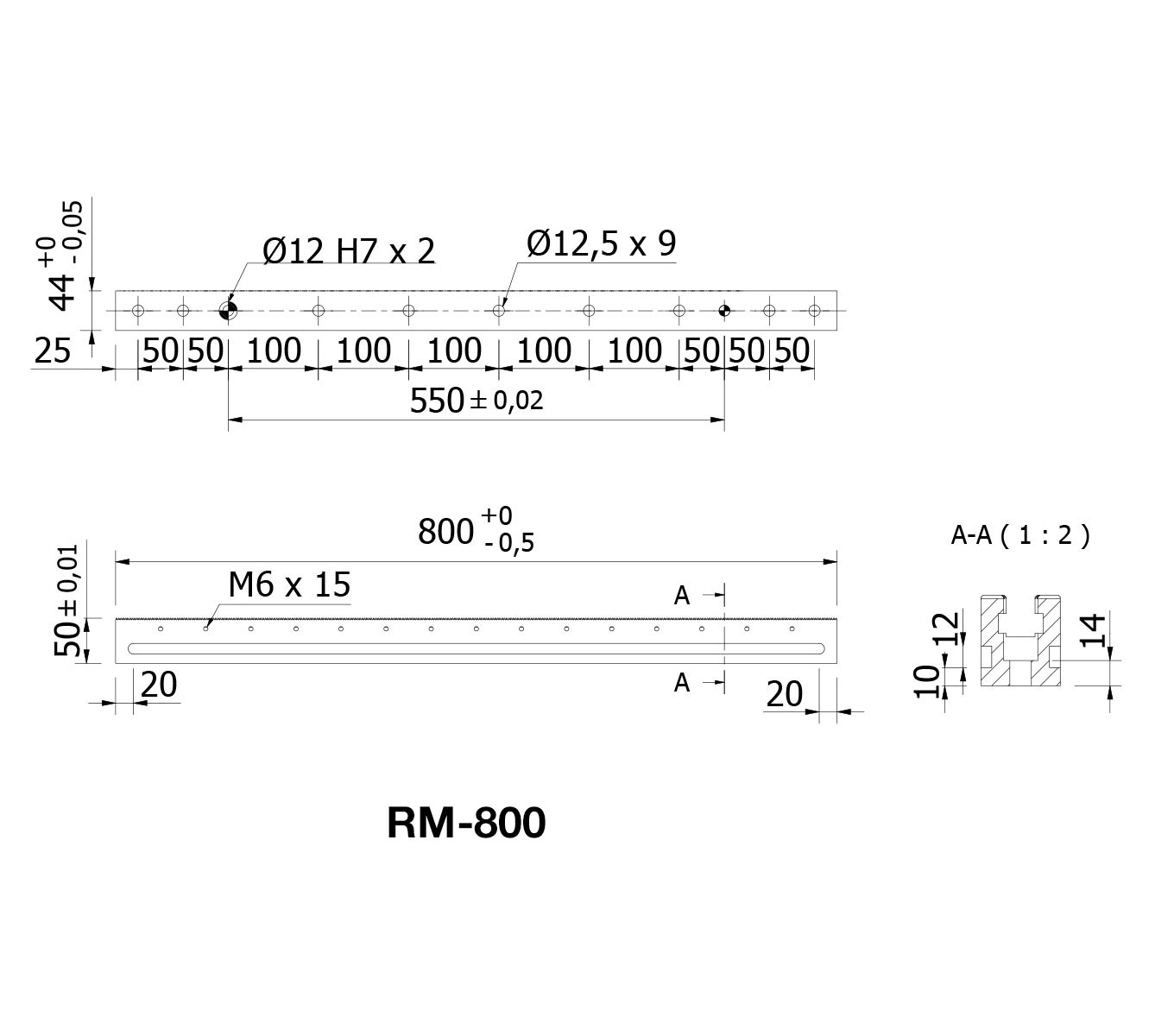

RM-800 Metric 800mm The longest standard rail available 9.30
