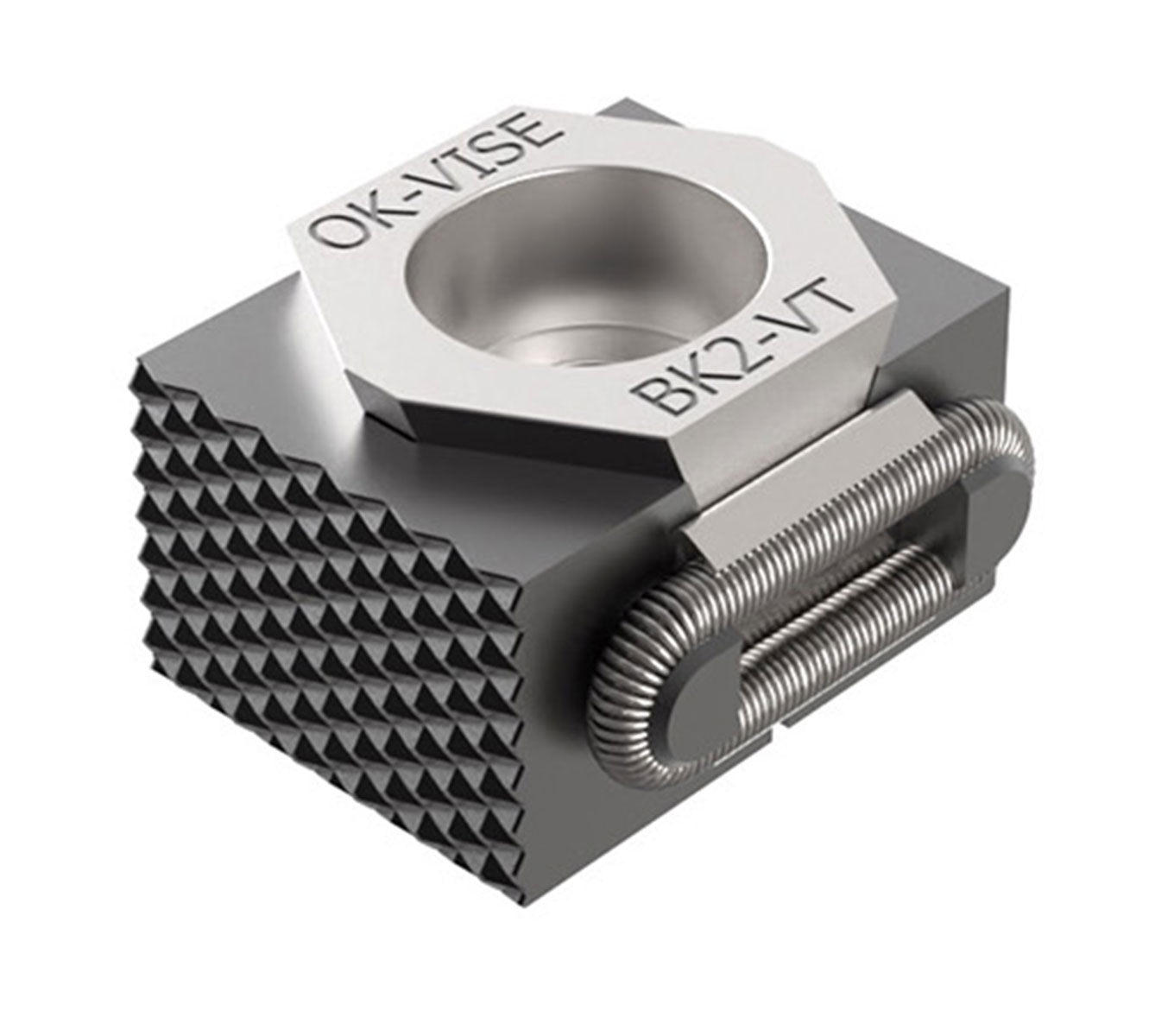

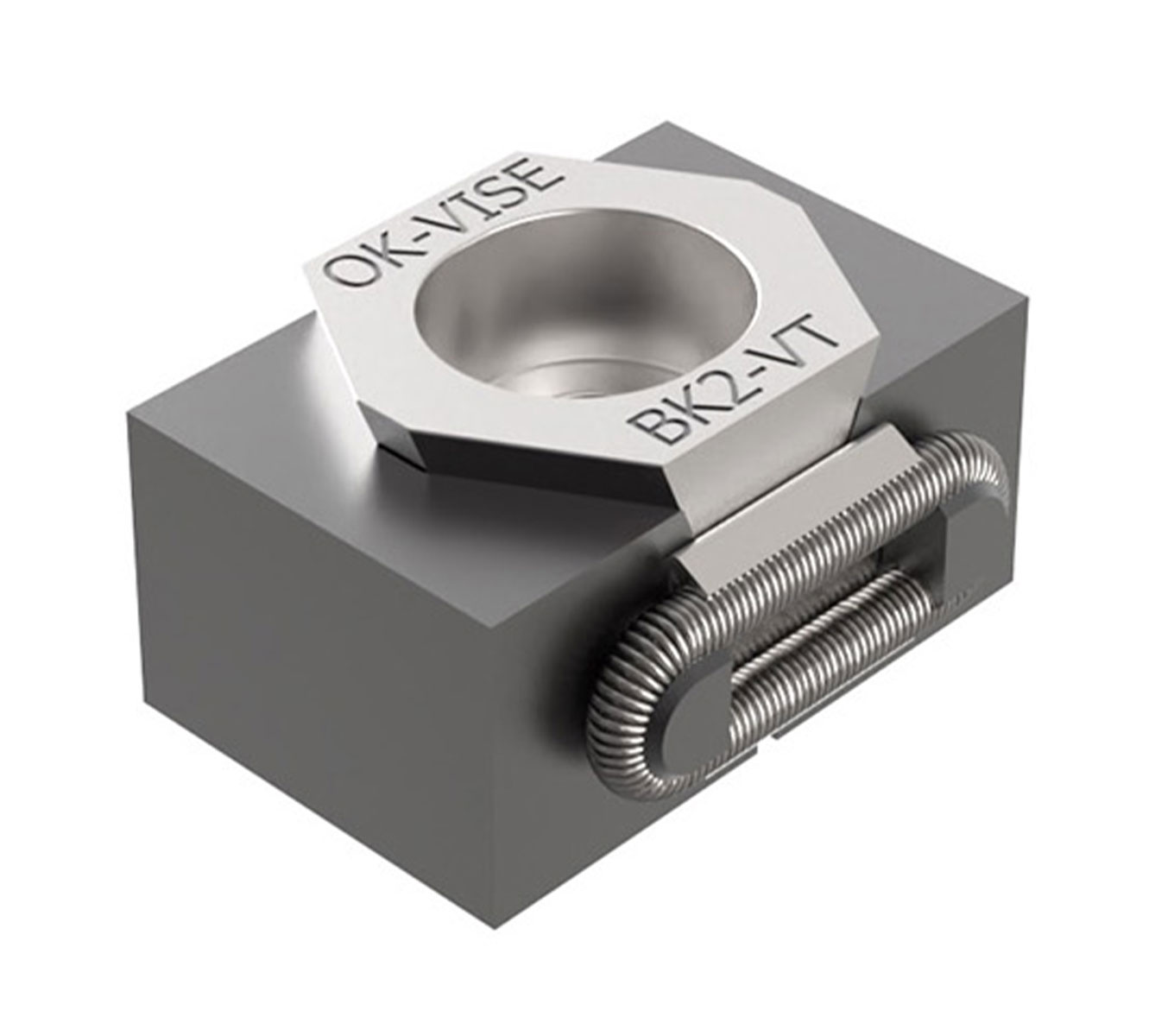

OK-Vise® Machinable Jaw Clamps
Jergens OK-Vise® Machinable Jaw Clamps are also available with extended jaws and can be machined to suit the geometry of the workpiece. The smallest model can be machined up to 3mm, while the larger models can be machined up to 5mm, all without weakening the structure of the jaw itself.
Features, Benefits, & Product Specifications:
-
More efficient usage of machinable area
-
Reduction in the number of tool changes
-
Extended cycle times
-
Free tool access to the workpiece
-
Less space is required compared to traditional vises
-
Pull-down action: no upward or downward movement is required
-
Machinable jaws, special models, & kits are available
Note(s):
Part No. DK2-VTI+5 measurements are given in inches & pounds

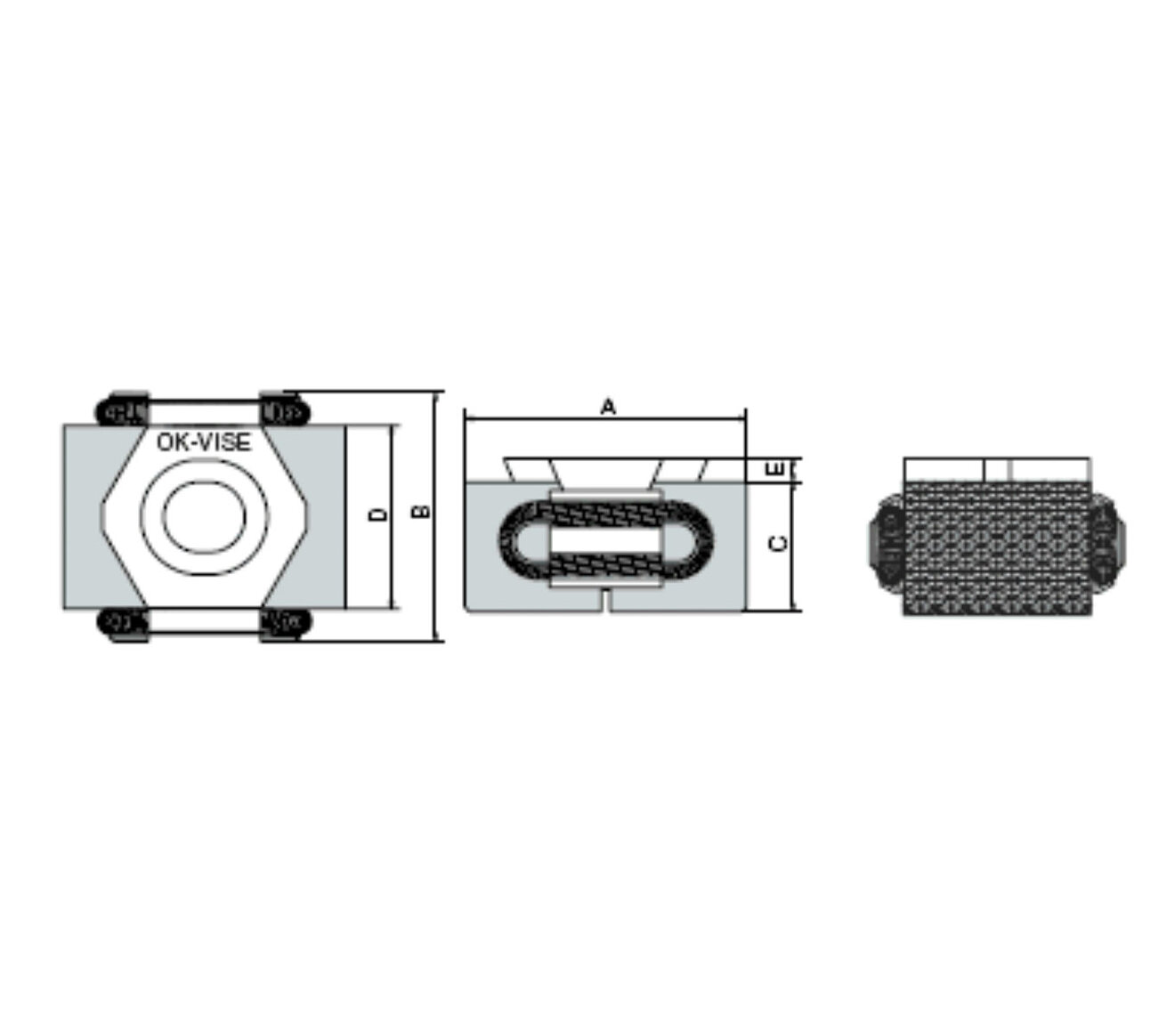

OK-Vise Machinable Jaw Clamp_LineArt

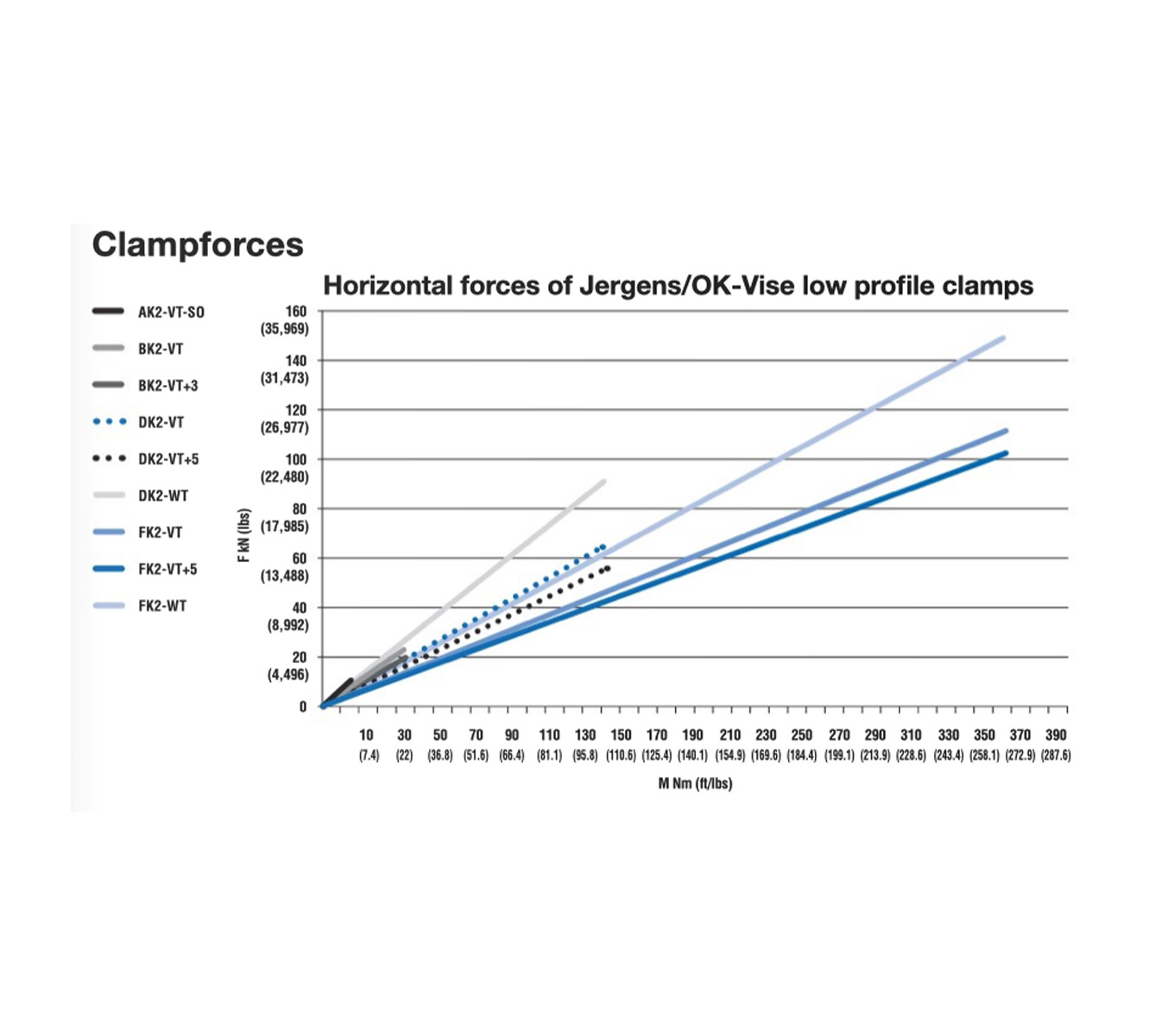

OK-Vise® Machinable Jaw Clamps
| Part Number | CAD | Unit | A Minimum (mm) | A Optimum (mm) | A Maximum (mm) | B (mm) | C (mm) | D (mm) | E (mm) | Socket Head Screw DIN 912 | Jaw Clamping Force (kN) | Tightening Torque (Nm) | Hardness of Jaws HRC | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BK2-VT+3 |
|
Metric | 33 | 35 | 37 | 29 | 15 | 21 | 2.5 | M8X20 | 25 | 43 | 30-34 | 0.070 | |
| DK2-VT+5 |
|
Metric | 52 | 55 | 59 | 41 | 22 | 30 | 4 | M12X30 | 55 | 145 | 30-34 | 0.235 | |
| FK2-VT+5 |
|
Metric | 67 | 70 | 75 | 56 | 29 | 42 | 5 | M16X40 | 100 | 360 | 30-34 | 0.550 |
| Part Number | CAD | Unit | A Minimum (In) | A Optimum (in) | A Maximum (in) | B (In) | C (In) | D (in) | E (in) | Socket Head Screw DIN 912 | Clamping Force of Jaws (lbs) | Tightening Torque (ft/lbs) | Hardness of Jaws HRC | Weight (lbs) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DK2-VTI+5 |
|
Inch | 2.04 | 2.16 | 2.32 | 1.61 | 0.86 | 1.18 | 0.15 | 1/2-13 X 1 1/4" | 12364 | 107 | 30-34 | 0.52 |
