OK-Vise® Grid System Serrated Adjustable Stop Modules

Jergens OK-Vise® Grid System Serrated Adjustable Stop Modules are a component of the OK-Vise® Grid Fixturing System, the new generic-purpose fixturing system. They can be adapted to the grid platforms of leading workholding suppliers. With the Grid Fixturing System, very complex forms of workpieces can be clamped. On a grid platform, you can also combine Jergens OK-Vise® modules with the components of other suppliers.

Features, Benefits, & Product Specifications:

Part No. GS-RA1 is the shortest, with a jaw movement of Max. 60mm
Part No. GS-RA2 possesses a jaw movement of Max. 110mm

Note(s):

Part No.'s GS-RA1 and GS-RA2 modules can be installed in (4) directions on a standard 50x50 M12 platform (0, 90, 180, or 270 degrees).

Documents

OK-Vise® Grid System Serrated Adjustable Stop Modules

OK-Vise® Grid System Serrated Adjustable Stop Modules

Select a part number for CAD drawings, price and stock availability.

Inch Metric

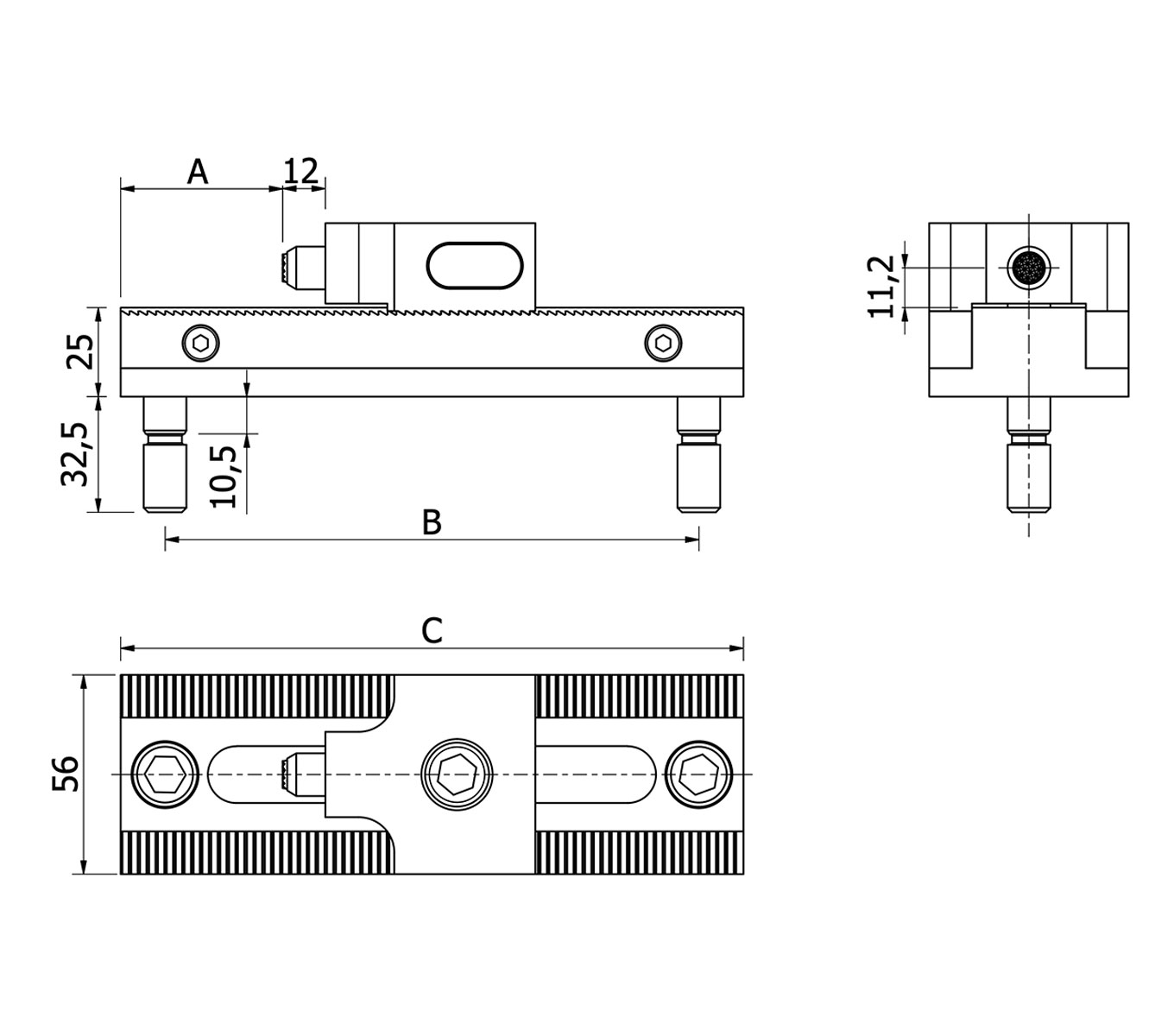

Part Number	CAD	Unit	A	B (mm)	C (mm)
GS-RA1		Metric	0-39	100	125
GS-RA2		Metric	0-87	150	175
