OK-Vise® Economy Clamps
Jergens OK-Vise® Economy Clamps meet the demands of workholding when ultra precision and high clamping force are not necessary. They are made of the same raw material as our other models, and the bottom of the jaws are ground for precise positioning on the fixture base.

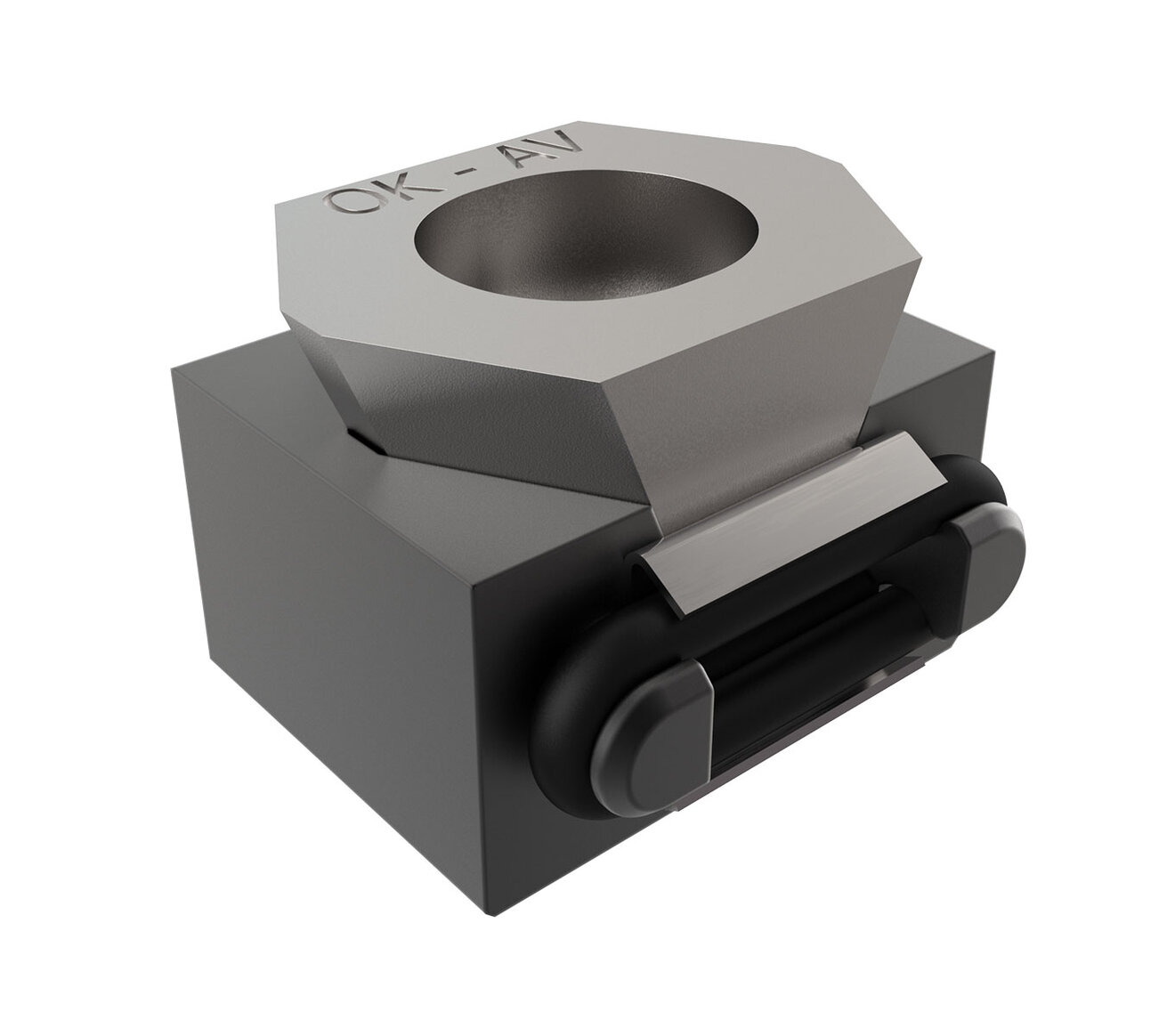

Part Number AK2-VT-SO is designed for a M5 socket head screw and is suitable for clamping of relatively small workpieces. Always comes with smooth jaws and Viton O-rings instead of the regular springs.

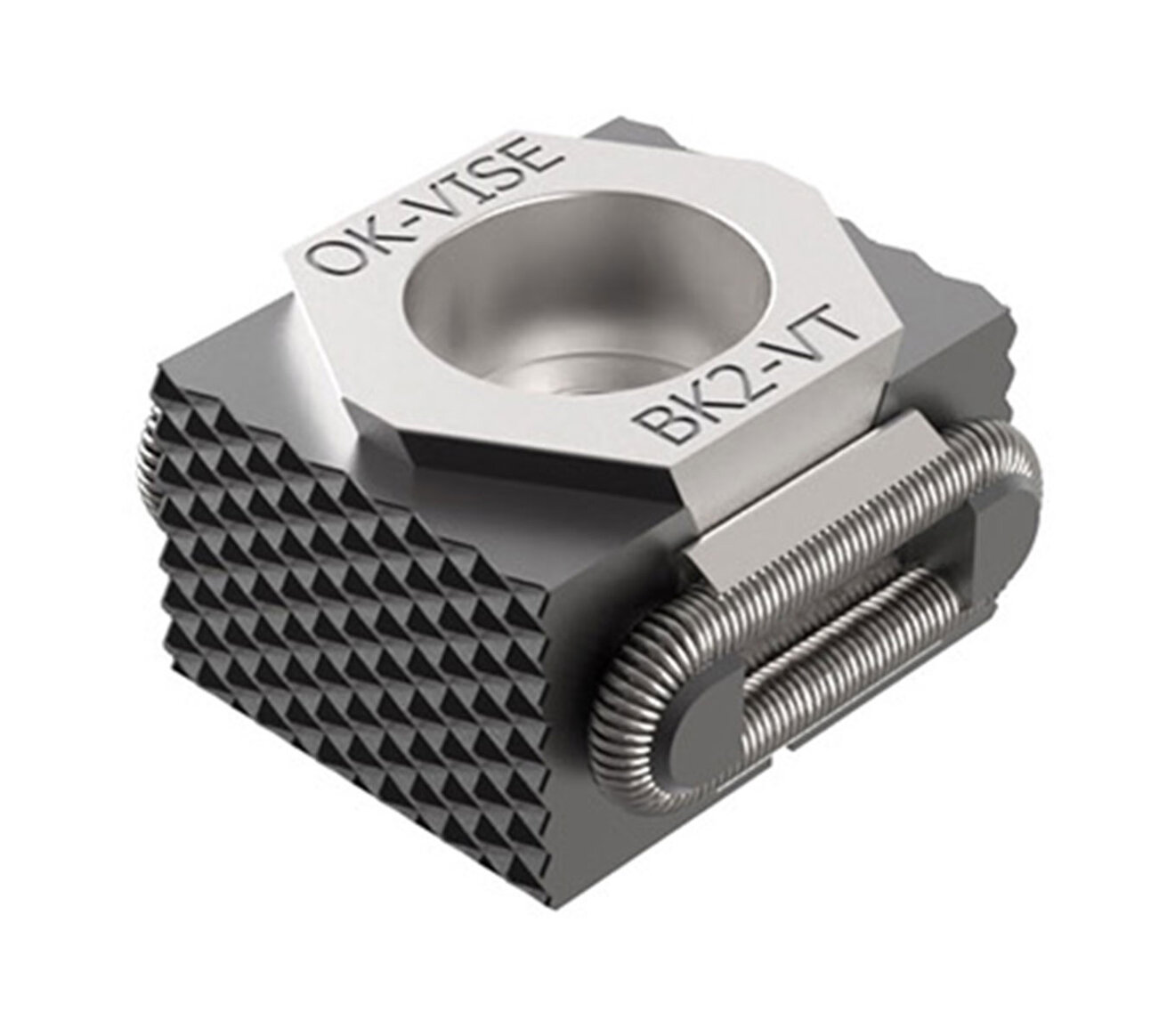

Part Number BK2-VT-O comes with serrated jaws.

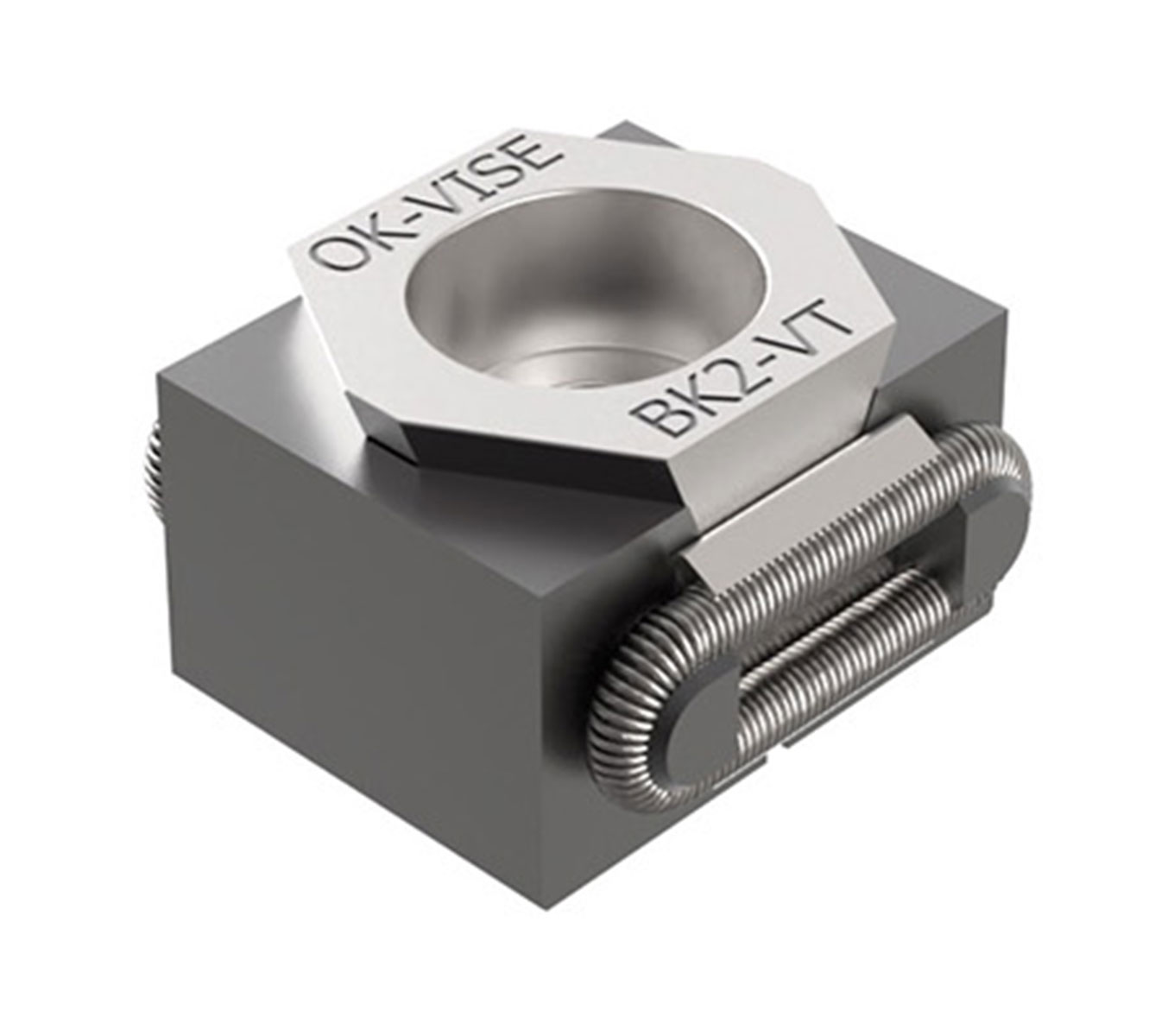

Part Number BK2-VT-SO is an analogue of BK2-VT-O, with the same key features and measurements, except that it comes with the smooth jaws.
OK-Vise® Economy Clamps
Select a part number for CAD drawings, price and stock availability.

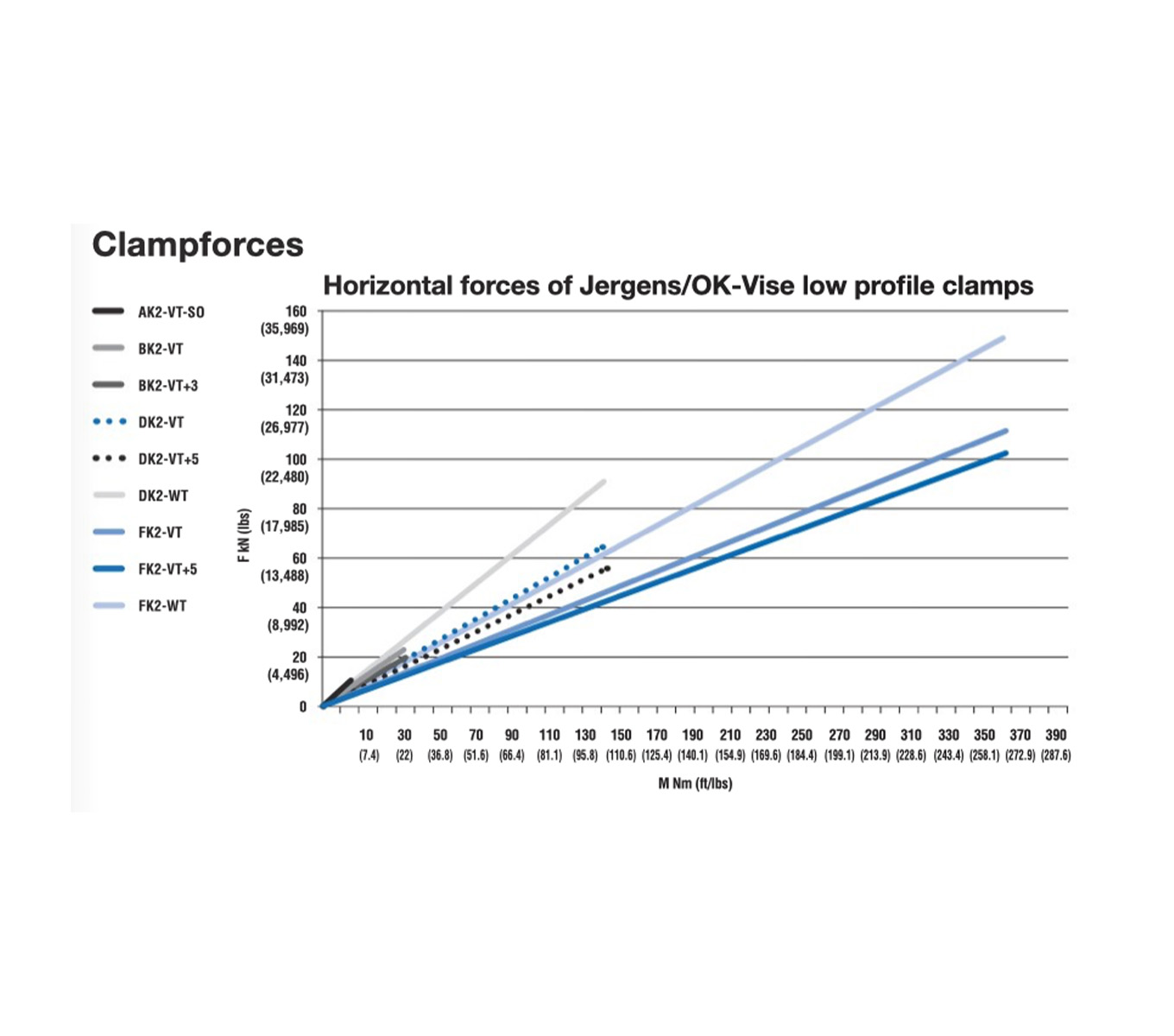

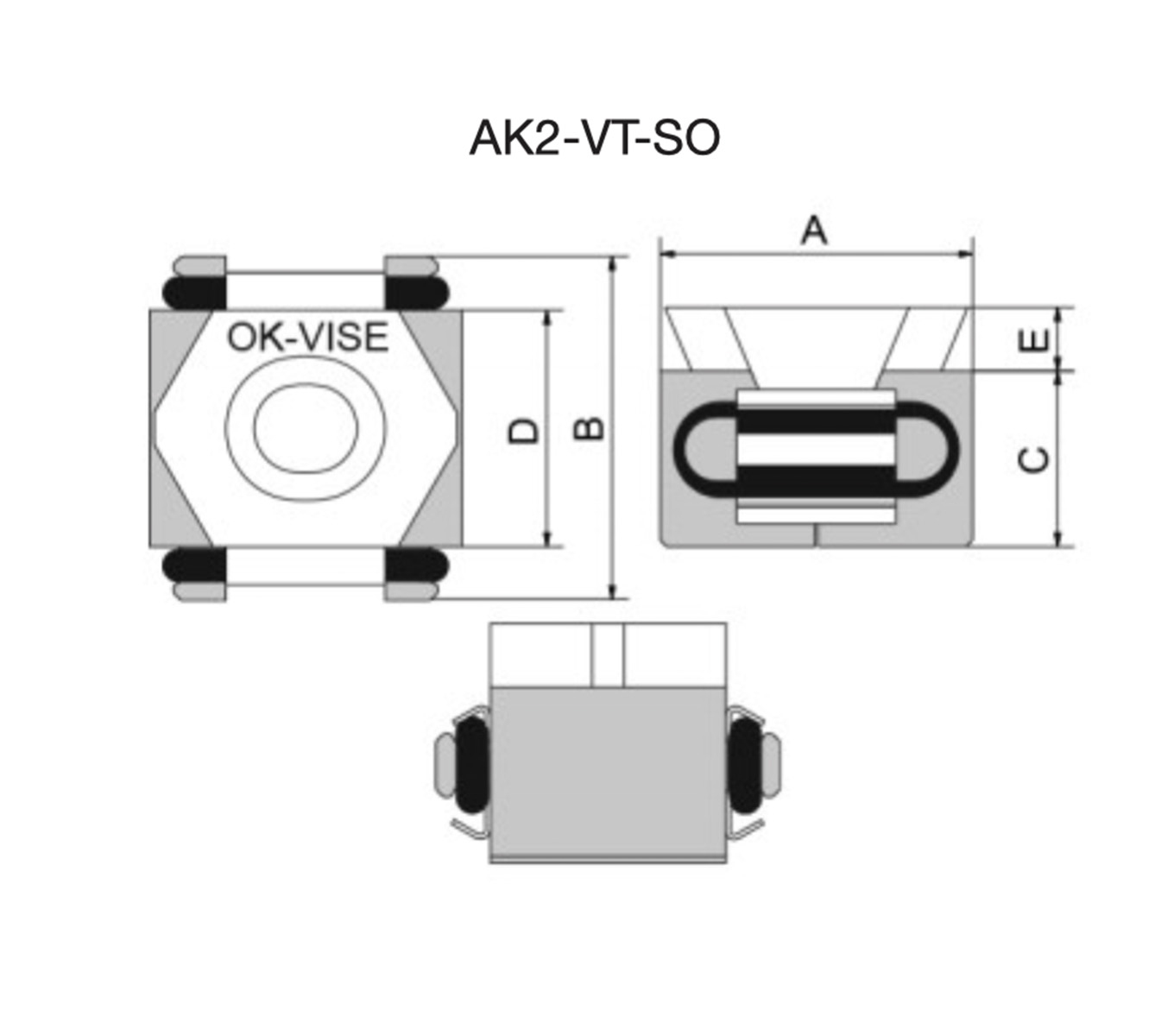

Part Number | CAD | Unit | A Minimum (mm) | A Optimum (mm) | A Maximum (mm) | B (mm) | C (mm) | D (mm) | E (mm) | Socket Head Screw DIN 912 | Jaw Clamping Force (kN) | Tightening Torque (Nm) | Hardness of Jaws HRC | Weight (lbs) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
AK2-VT-SO | Metric | 20 | 23 | 25 | 22 | 11 | 15 | 4.2 | M5x25 | 10 | 10 | 48-52 | 0.05 | |
BK2-VT-O | Metric | 27 | 29 | 31 | 29 | 15 | 21 | 2.5 | M8x20 | 15 | 25 | 48-52 | 0.12 | |
BK2-VT-SO | Metric | 27 | 29 | 31 | 29 | 15 | 21 | 2.5 | M8x20 | 15 | 25 | 48-52 | 0.12 |
