OK-Vise® Double-Wedge Pull-Down Smooth Clamps
Jergens OK-Vise® Pull-Down Clamps generate pull-down action, pressing workpieces down onto the fixture, as an alternative to applying sideways force to the jaw on the fixture base. While our OK-Vise® Single-Wedge Pull-Down Clamps keep workpieces tight in one place preventing upward and downward movement, our OK-Vise® Double-Wedge Pull-Down Clamps a pull-down effect, pressing the workpieces downwards onto the fixture base.
Features, Benefits, & Product Specifications:
-
More efficient usage of machinable area
-
Reduction in the number of tool changes
-
Extended cycle times
-
Free tool access to the workpiece
-
Less space is required compared to traditional vises
-
Pull-down action: no upward or downward movement is required
-
Machinable jaws, special models, & kits are available
Note(s):
DK2-WTI-S measurements given in inches and pounds.
OK-Vise® Double-Wedge Pull-Down Smooth Clamps
Select a part number for CAD drawings, price and stock availability.

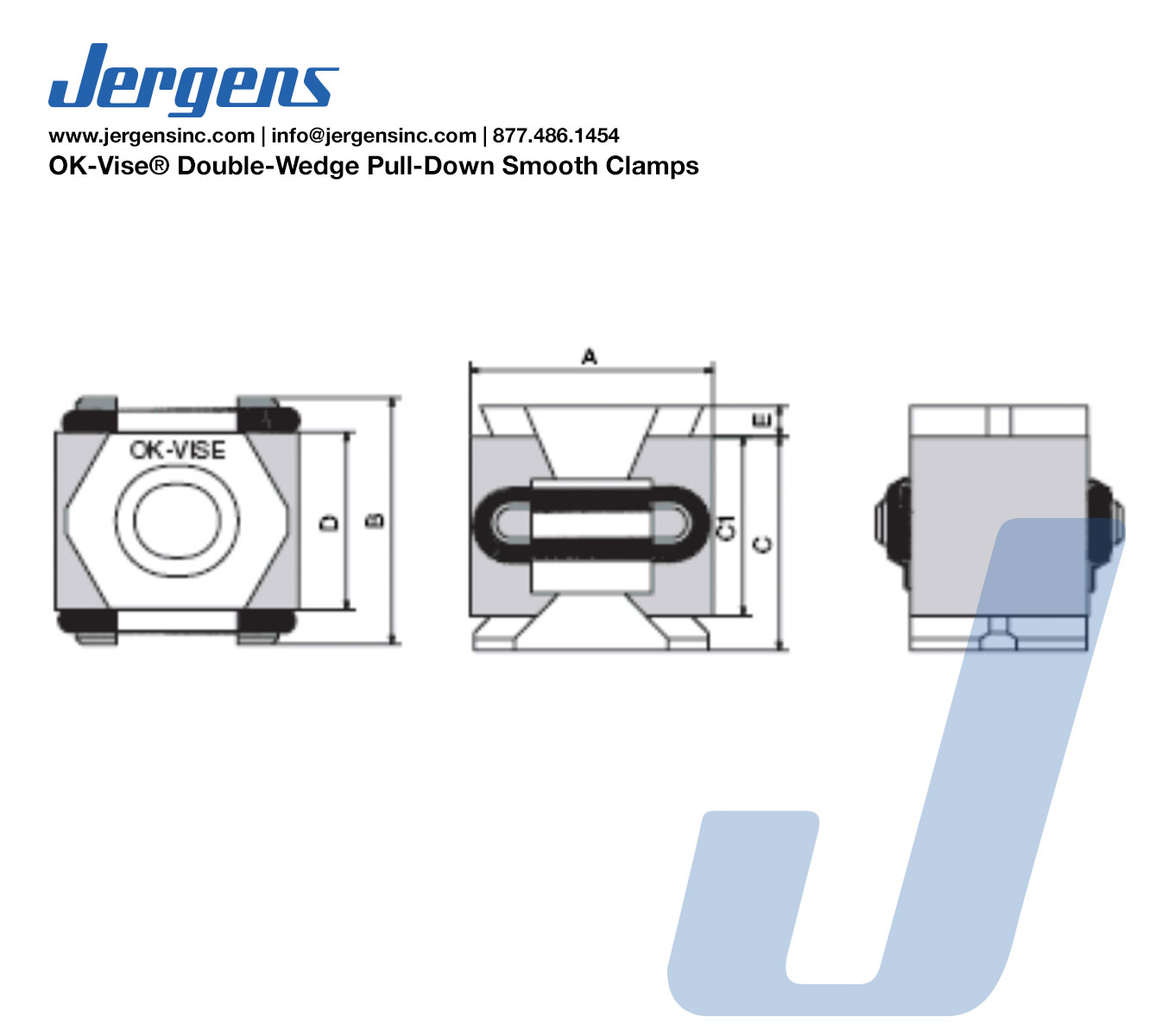

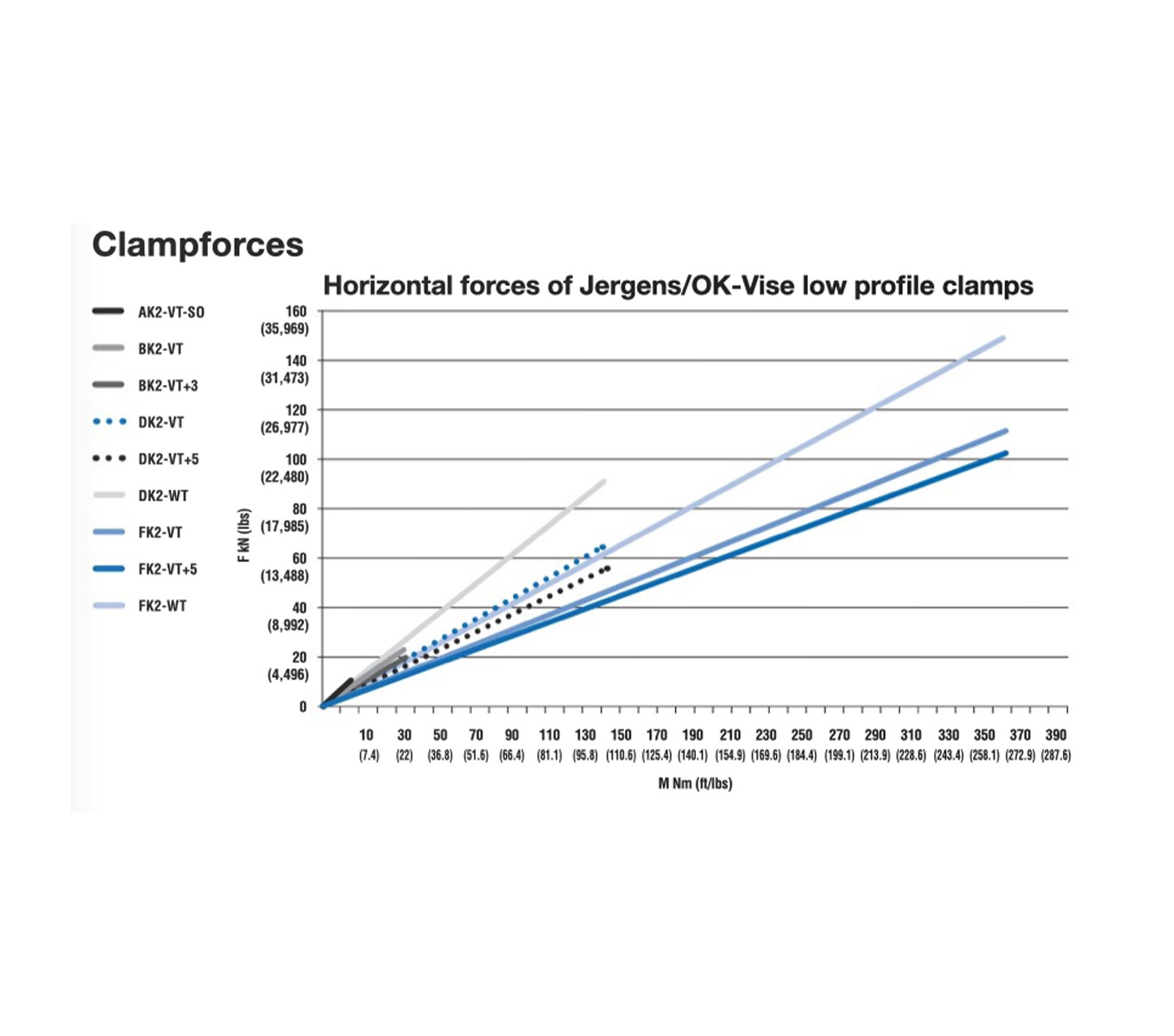

| Part Number | CAD | Unit | A Minimum (mm) | A Optimum (mm) | A Maximum (mm) | B (mm) | C (mm) | C1 (mm) | D (mm) | E (mm) | Socket Head Screw DIN 912 | Jaw Clamping Force (kN) | Tightening Torque (Nm) | Hardness of Jaws HRC | Weight (kgs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DK2-WT-S |
|
Metric | 41 | 45 | 48 | 41 | 36 | 30 | 30 | 5 | M12 x 40 | 90 | 145 | 48-52 | 0.275 |
| FK2-WT-S |
|
Metric | 58 | 61 | 66 | 56 | 50 | - | 42 | 5 | M16x60 | 150 | 360 | 48-52 | 0.730 |
| Part Number | CAD | Unit | A Minimum (In) | A Optimum (In) | A Maximum (In) | B (In) | C (In) | C1 (In) | D (In) | E (In) | Socket Head Screw DIN 912 | Jaw Clamping Force (lbs) | Tightening Torque (ft/lbs) | Hardness of Jaws HRC | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DK2-WTI-S |
|
Inch | 1.61 | 1.77 | 1.88 | 1.61 | 1.41 | 1.18 | 1.18 | 0.19 | 1/2-13 X 3/4" | 20232 | 107 | 48-52 | 0.61 |
