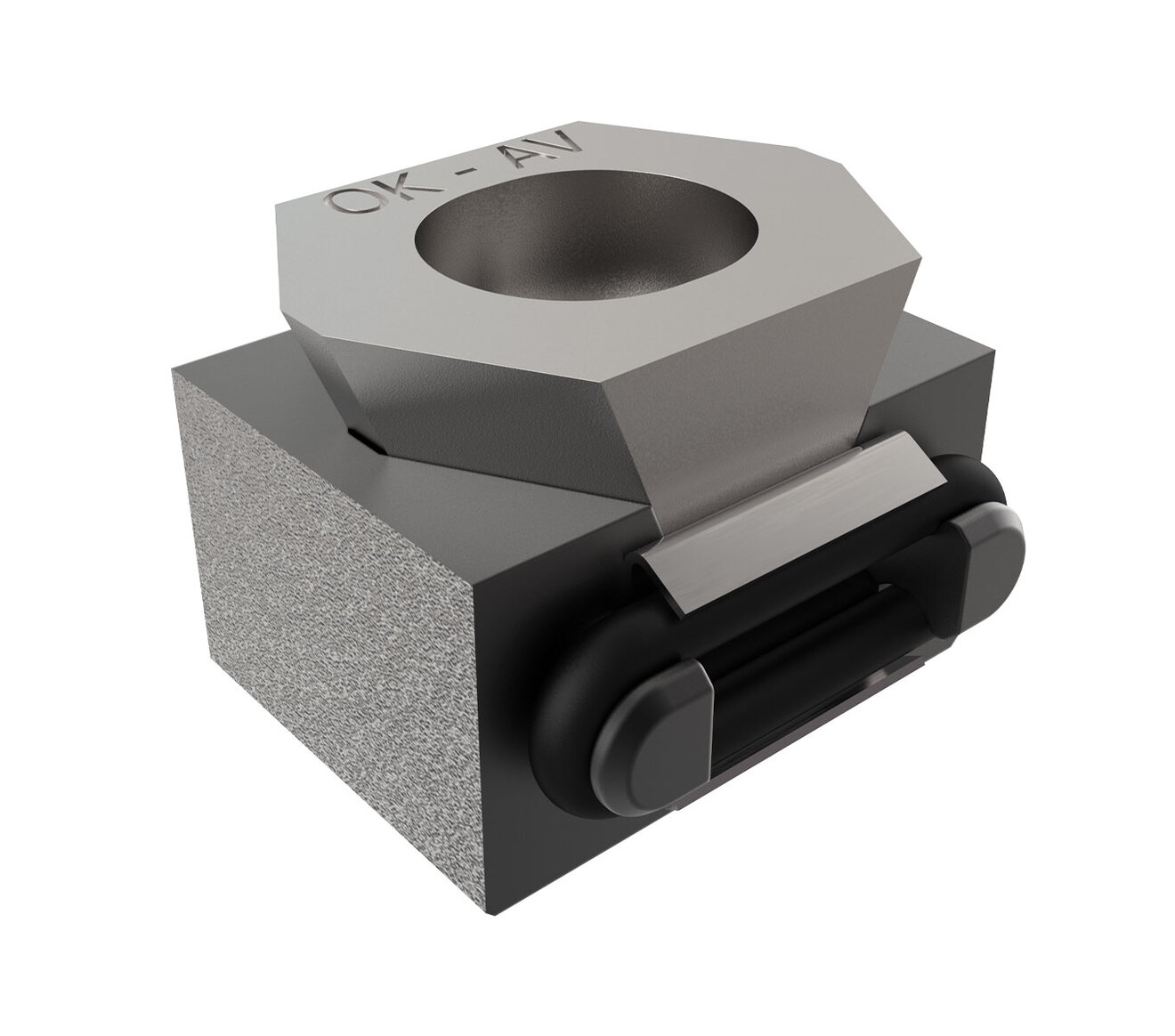

OK-Vise® Tungsten Carbide Coated Jaw Clamps
These clamps feature a high friction tungsten carbide coating on the clamping faces of the jaws. They are an ideal choice when clearly visible clamping marks are not allowed on the workpiece but high friction is still needed. High friction holding can be attained with lower clamping forces making these well suited for thin wall parts that are prone to distort under high loads. The tungsten carbide jaws are specifically engineered to securely hold your workpiece without leaving any visible marks or scratches.
Features, Benefits, & Product Specifications:
-
More efficient usage of machinable area
-
Reduction in the number of tool changes
-
Extended cycle times
-
Free tool access to the workpiece
-
Less space is required compared to traditional vises
-
Pull-down action: no upward or downward movement is required
-
Machinable jaws, special models, & kits are available
Note(s):
Part No. DK2-VTI-D measurements are given in inches & pounds
OK-Vise® Tungsten Carbide Coated Jaw Clamps

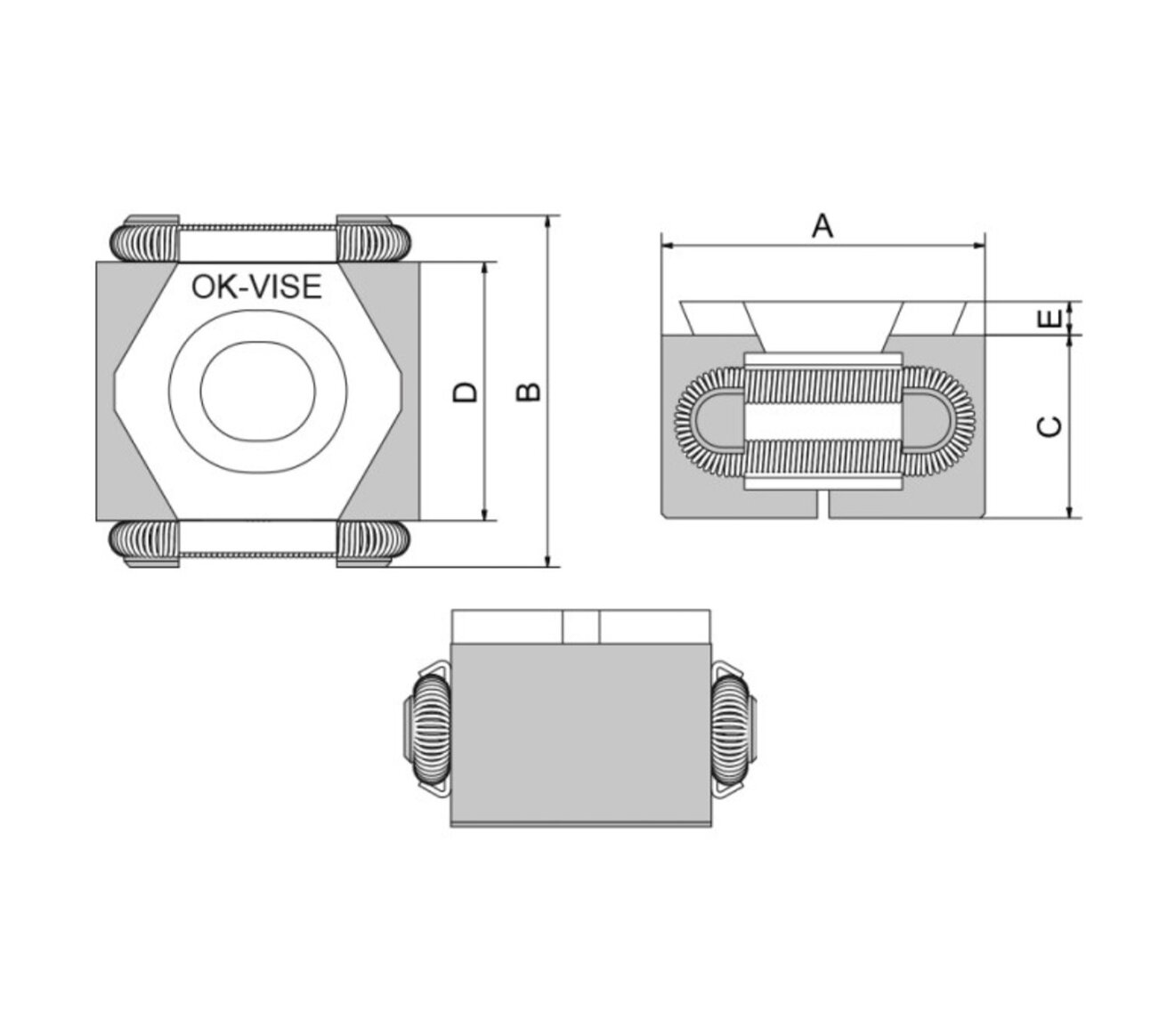

| Part Number | CAD | Unit | A Minimum (mm) | A Optimum (mm) | A Maximum (mm) | B (mm) | C (mm) | D (mm) | E (mm) | Socket Head Screw DIN 912 | Jaw Clamping Force (kN) | Tightening Torque (Nm) | Hardness of Jaws HRC | Weight (g) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AK2-VT-DO | Metric | 20 | 23 | 25 | 22 | 11 | 15 | 4.2 | M5 x 25 | 10 | 10 | 60 | 22 | ||
| BK2-VT-D | Metric | 27 | 29 | 31 | 29 | 15 | 21 | 2.5 | M8 x 20 | 25 | 44 | 60 | 55 | ||
| DK2-VT-D | Metric | 42 | 45 | 49 | 41 | 22 | 30 | 4 | M12 x 30 | 65 | 145 | 60 | 180 | ||
| FK2-VT-D | Metric | 57 | 60 | 64 | 56 | 29 | 42 | 5 | M16 x 40 | 110 | 360 | 60 | 465 |
| Part Number | CAD | Unit | A Minimum (In) | A Optimum (in) | A Maximum (in) | B (In) | C (In) | D (in) | E (in) | Socket Head Screw DIN 912 | Jaw Clamping Force (lbs) | Tightening Torque (ft/lbs) | Hardness of Jaws HRC | Weight (lbs) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DK2-VTI-D | Inch | 1.65 | 1.77 | 1.92 | 1.61 | 0.86 | 1.18 | 0.15 | 1/2-13 x 1 1/4" | 14612 | 107 | 60 | 0.4 |
