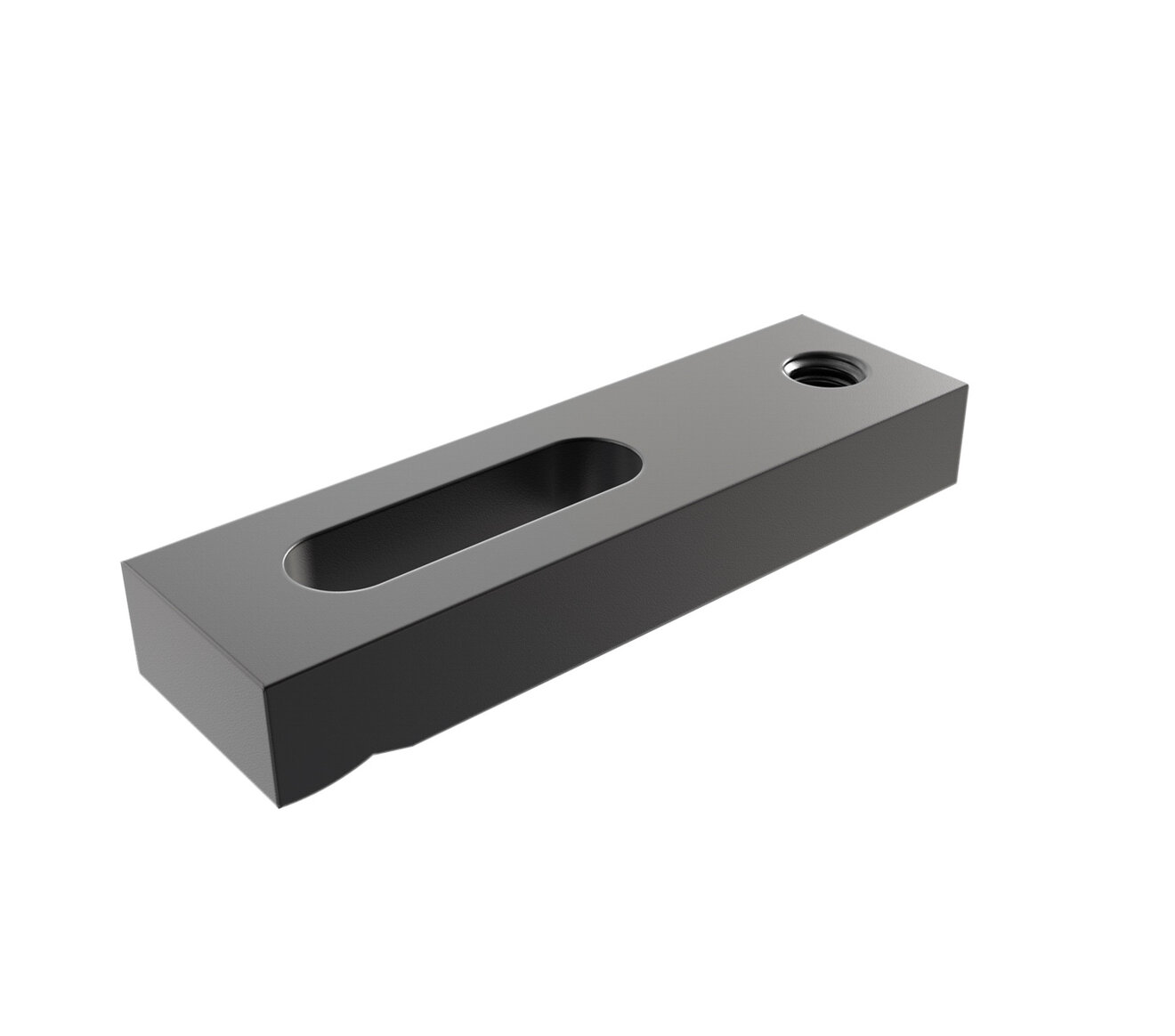

Miniature Straps - Radius
Jergens Miniature Radius Straps are light-duty straps with a specially designed radius end provides maximum pressure for extreme close-to-the-edge clamping. They feature a tapped hole in the rear for knurled head thumb screw and a long slot for lateral adjustment.
Features, Benefits, & Product Specifications:
-
Material: C-1018 Steel
-
Finish: Black Oxide
-
Heat Treat: Case Hardened Rockwell 30N Scale 59-69

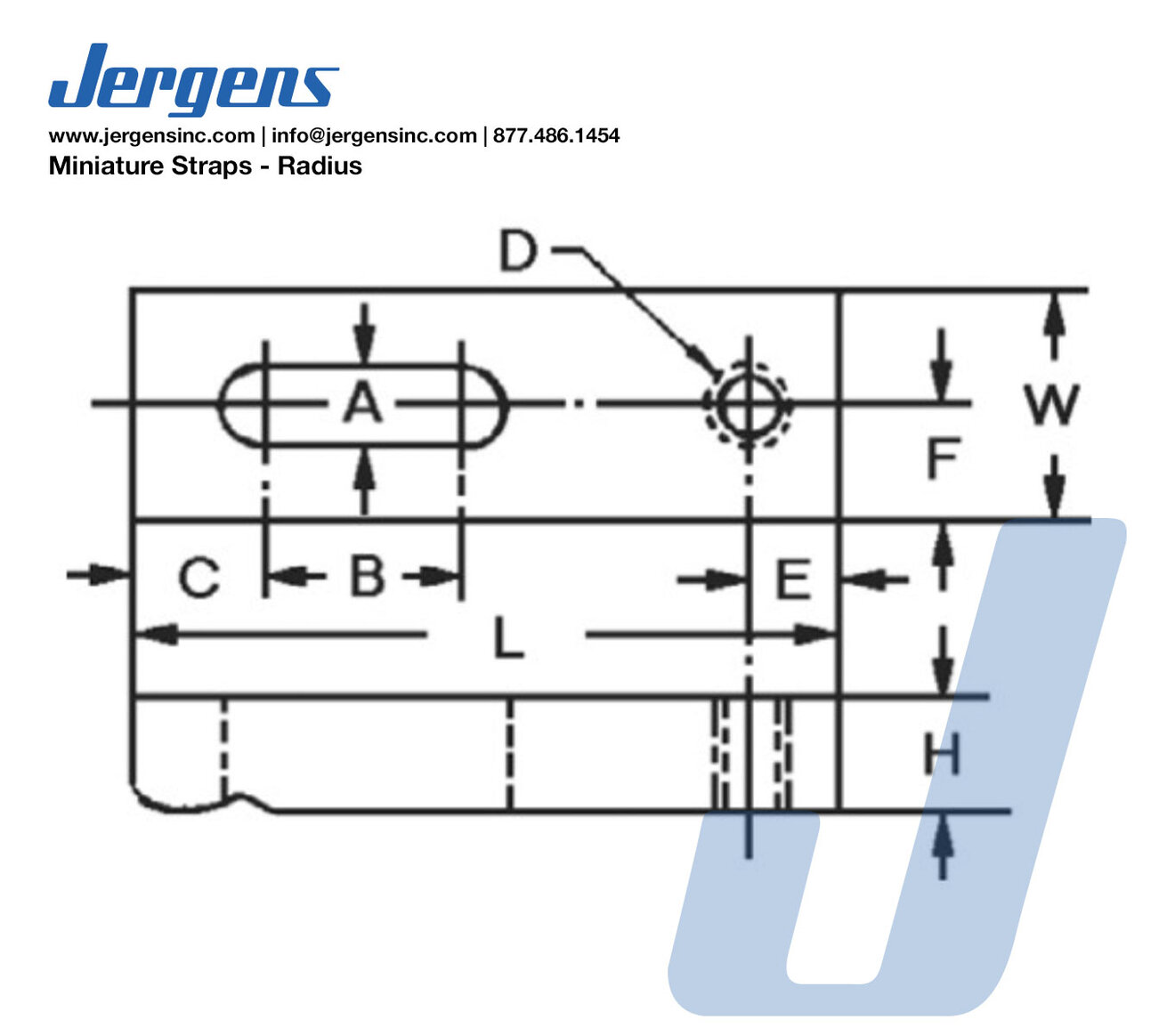

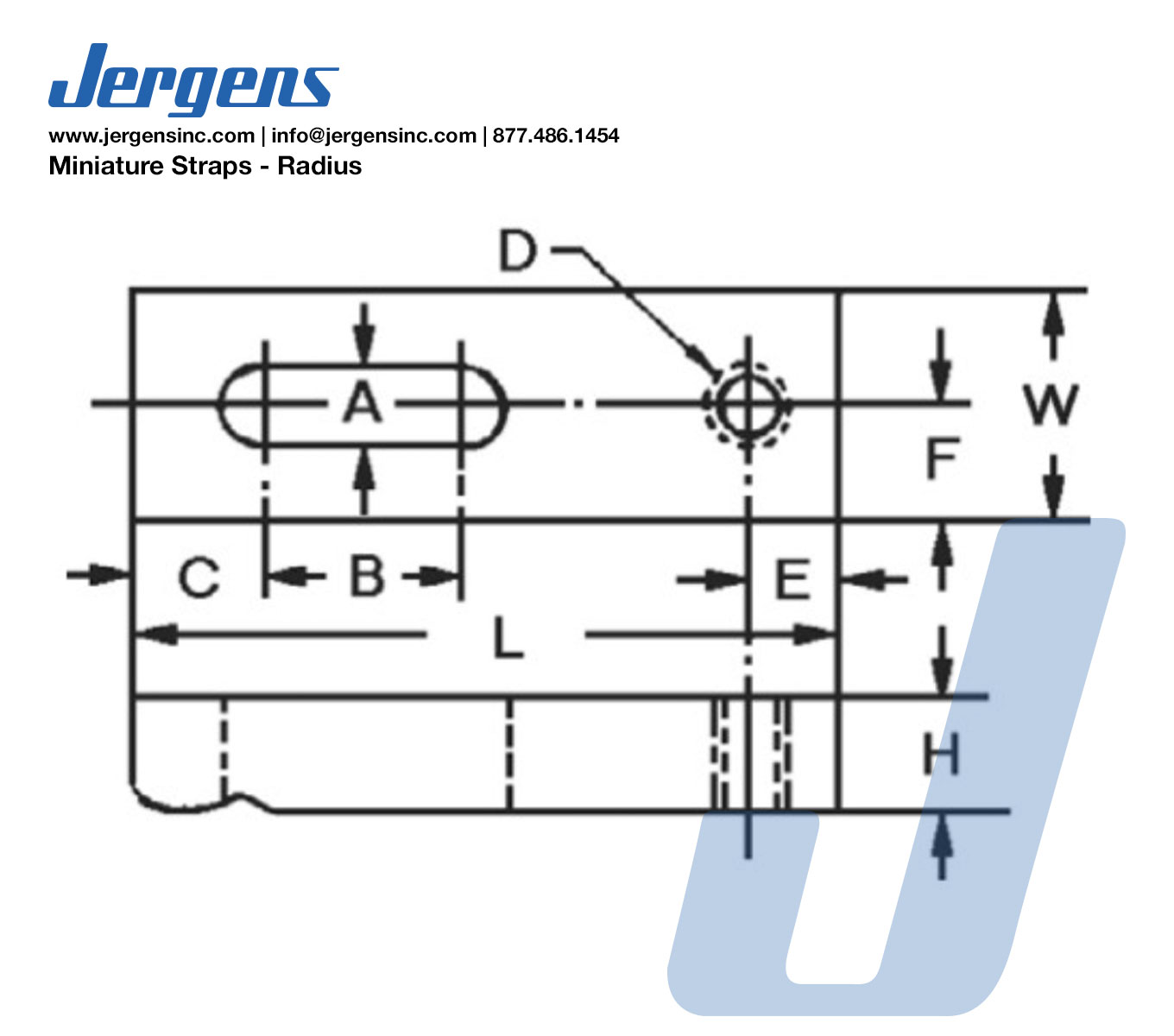

Radius Miniature Strap_LineArt
Miniature Straps - Radius
| Part Number | CAD | Unit | Bolt Size | A (In) | B (In) | C (In) | Thread Size D | E (in) | F (in) | W (in) | H (in) | L (in) | Weight 10 Pcs (lbs) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 29704 |
|
Inch | #10 or M5 | 7/32 | 7/16 | 5/16 | 10-24 | 3/16 | 1/4 | 1/2 | 1/4 | 1 1/2 | 0.44 | |
| 29705 |
|
Inch | #10 or M5 | 7/32 | 9/16 | 5/16 | 10-24 | 3/16 | 1/4 | 1/2 | 1/4 | 1 3/4 | 0.44 | |
| 29706 |
|
Inch | #10 or M5 | 7/32 | 11/16 | 5/16 | 10-24 | 3/16 | 1/4 | 1/2 | 1/4 | 2 | 0.44 |
