Miniature Straps - Flat

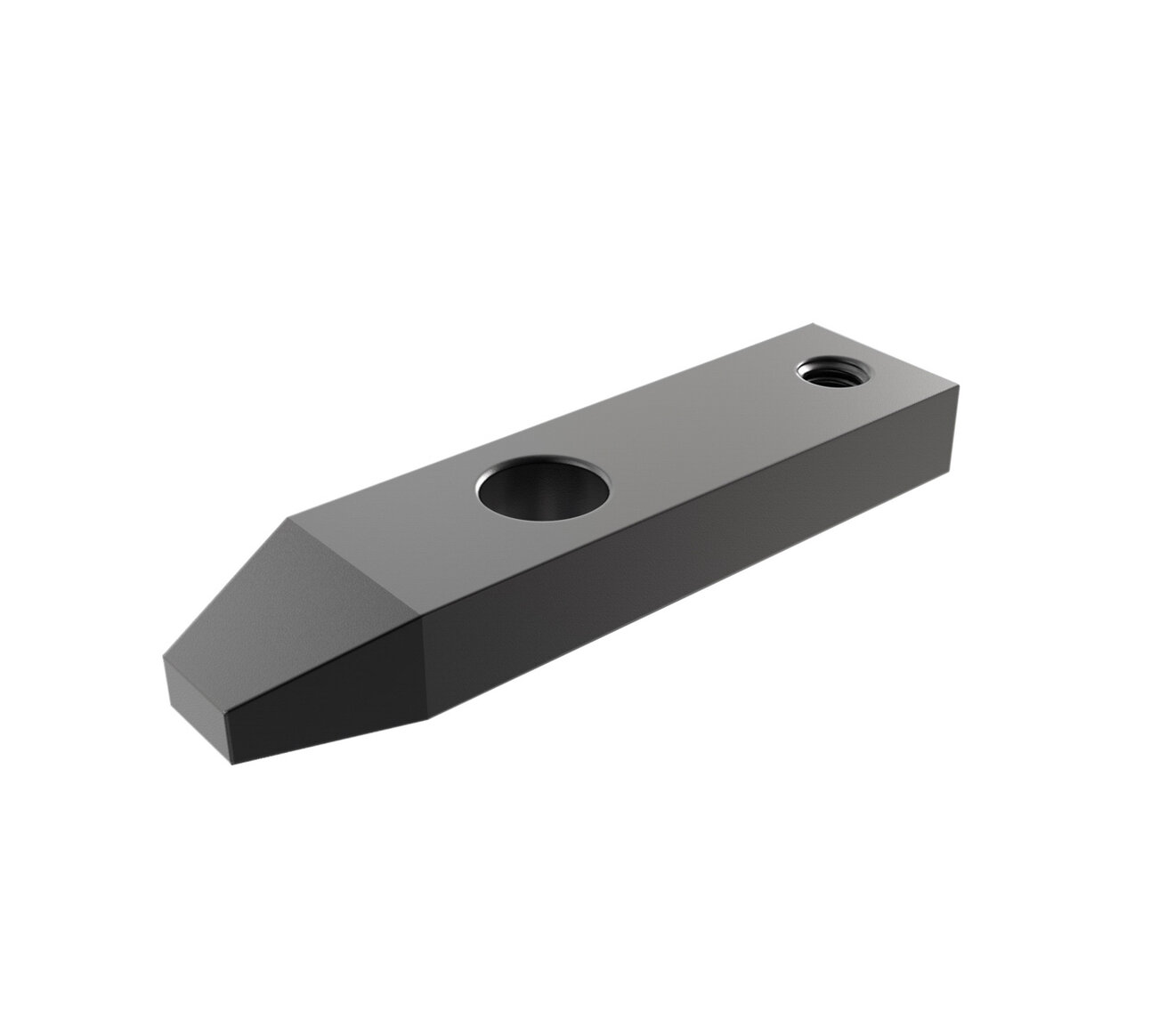

Jergens Miniature Flat Straps are “chisel nose”, flat straps for light-duty holding where clamping is restricted. They feature a tapped hole in the back for heel rest and a drilled hole for stud clearance.
Features, Benefits, & Product Specifications:
-
Material: Low Carbon Steel
-
Finish: Black Oxide
-
Heat Treat: Heat Treat: Case Hardened Rockwell 30N Scale 59-69
Miniature Straps - Flat

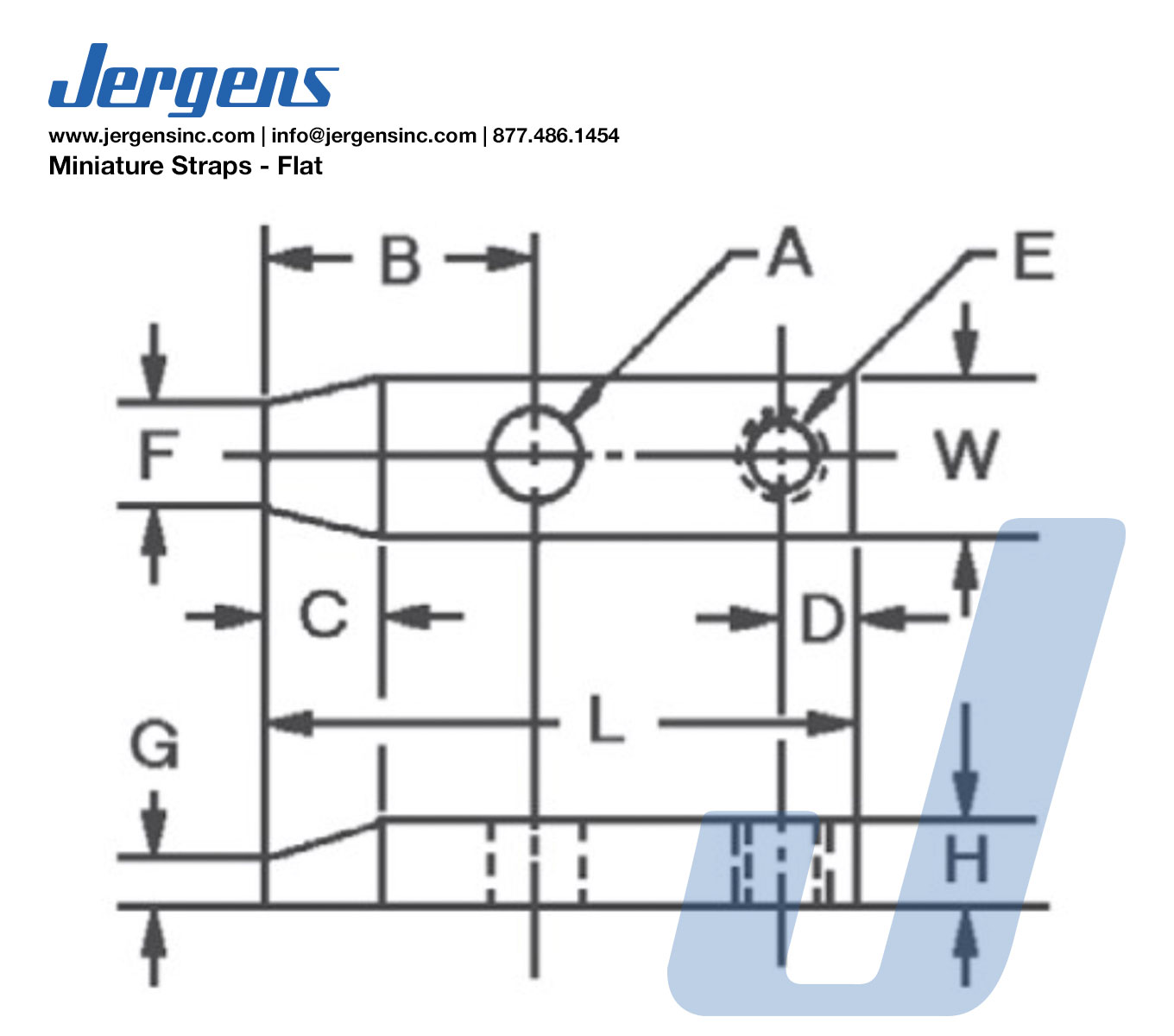

Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | A (In) | B (In) | C (In) | D (In) | Thread Size E | F (In) | G (In) | W (In) | H (In) | L (In) | Weight 10 Pcs (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 29701 |
|
Inch | 7/32 | 5/8 | 3/8 | 3/16 | 10-24 | 1/4 | 1/8 | 1/2 | 1/4 | 1 1/2 | 0.47 |
| 29702 |
|
Inch | 9/32 | 7/8 | 3/8 | 3/16 | 10-24 | 1/4 | 1/8 | 1/2 | 1/4 | 2 | 0.62 |
| 29703 |
|
Inch | 9/32 | 1 1/8 | 3/8 | 3/16 | 10-24 | 1/4 | 1/8 | 1/2 | 5/16 | 2 1/2 | 0.94 |
