Micro™ Low Profile Clamps
Jergens Micro™ Low Profile Clamps can grip low on a workpiece, have extraordinary horizontal and vertical holding force, and can be mounted below the fixture plate surface.
Features, Benefits, & Product Specifications:
-
Materials: Available in Tool Steel and Brass
-
Styles: Available in Knife Edge and Blunt Edge styles
-
Extraordinary horizontal and vertical force
-
Extremely low profile – as low as 0.075" (1.90mm)
-
Very small footprint
-
High resistance to pull-out
-
Choose among three sizes with an inch or metric screws
Micro™ Low Profile Clamps
Select a part number for CAD drawings, price and stock availability.

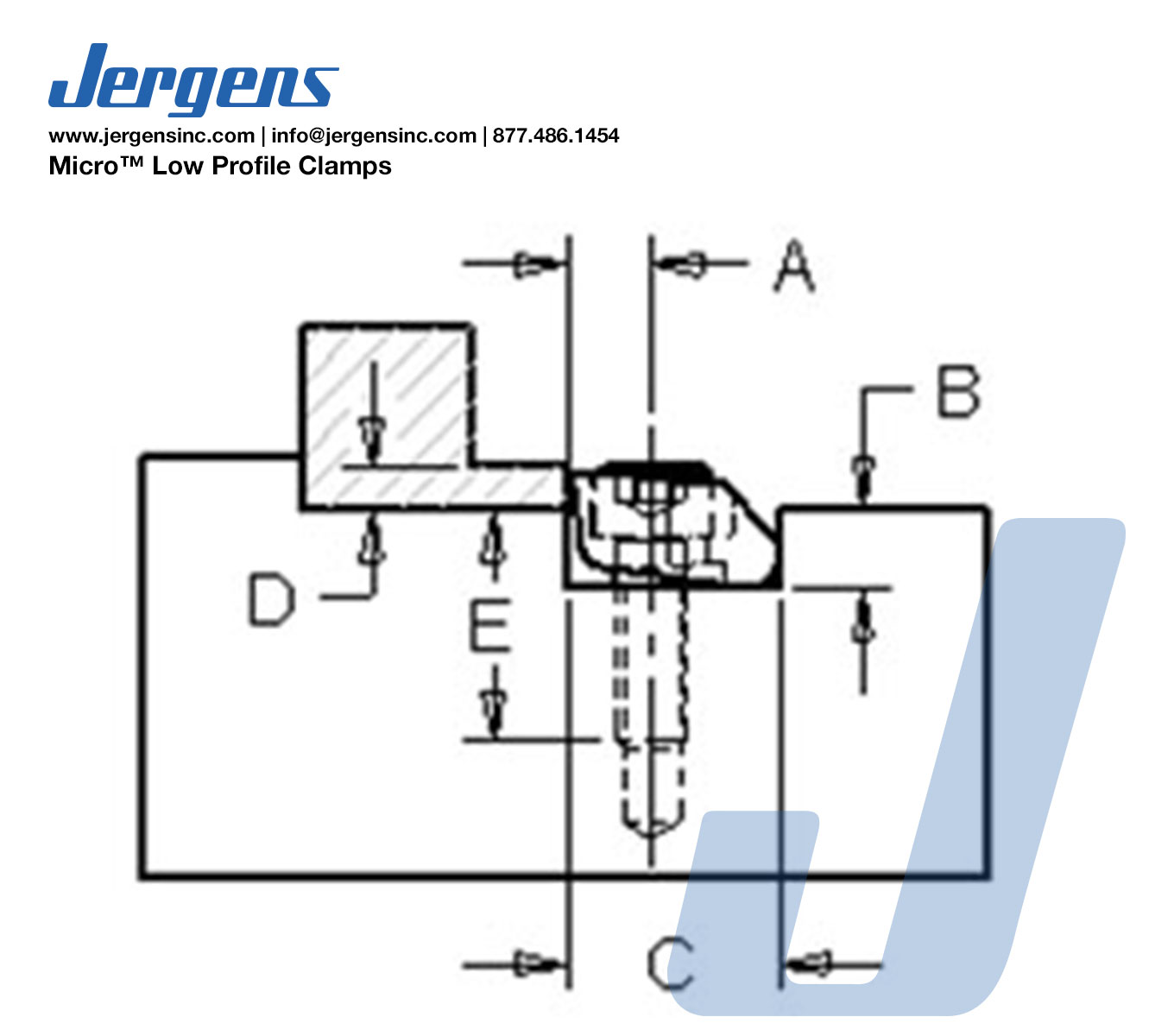

Part Number | CAD | Unit | Material | Clamp Type | A (In) | B (In) | C (In) | D (In) | E (In) | Clamp Width (In) | Screw Size | Torque (ft/lbs) | Max Holding Force (lbs) | Total Throw (In) | Clamps per Package |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
13201 | Inch | Tool Steel | Knife Edge | 0.150 | 0.140 | 0.375 | 0.075 | 0.260 | 0.375 | 4-40 | 1.30 | 650 | 0.0075 | 8 | |
13202 | Inch | Tool Steel | Blunt Edge | 0.150 | 0.140 | 0.375 | 0.075 | 0.260 | 0.375 | 4-40 | 1.30 | 650 | 0.0075 | 8 | |
13203 | Inch | Brass | Blunt Edge | 0.150 | 0.140 | 0.375 | 0.075 | 0.220 | 0.375 | 4-40 | 0.41 | 0.41 | 0.0075 | 8 | |
13211 | Inch | Tool Steel | Knife Edge | 0.200 | 0.187 | 0.500 | 0.100 | 0.390 | 0.500 | 8-32 | 3.70 | 1500 | 0.0160 | 8 | |
13212 | Inch | Tool Steel | Blunt Edge | 0.200 | 0.187 | 0.500 | 0.100 | 0.390 | 0.500 | 8-32 | 3.70 | 1500 | 0.0160 | 8 | |
13213 | Inch | Brass | Blunt Edge | 0.200 | 0.187 | 0.500 | 0.100 | 0.340 | 0.500 | 8-32 | 2.00 | 400 | 0.0160 | 8 | |
13221 | Inch | Tool Steel | Knife Edge | 0.300 | 0.280 | 0.750 | 0.150 | 0.570 | 0.750 | 1/4-20 | 14.50 | 3600 | 0.0240 | 6 | |
13222 | Inch | Tool Steel | Blunt Edge | 0.300 | 0.280 | 0.750 | 0.150 | 0.570 | 0.750 | 1/4-20 | 14.50 | 3600 | 0.0240 | 6 | |
13223 | Inch | Brass | Blunt Edge | 0.300 | 0.280 | 0.750 | 0.150 | 0.440 | 0.750 | 1/4-20 | 4.10 | 950 | 0.0240 | 6 | |
13224 | Inch | Tool Steel | Knife Edge | 0.400 | 0.450 | 1.000 | 0.250 | 0.710 | 1.000 | 3/8-16 x 1" | 30.00 | 6,000 | 0.0500 | 4 | |
13225 | Inch | Tool Steel | Blunt Edge | 0.400 | 0.450 | 1.000 | 0.250 | 0.710 | 1.000 | 3/8-16 x 1" | 30.00 | 6,000 | 0.0500 | 4 | |
13226 | Inch | Tool Steel | Knife Edge | 0.600 | 0.640 | 1.500 | 0.375 | 0.710 | 1.500 | 1/2-13 x 1 1/4" | 108.30 | 12,000 | 0.0750 | 2 | |
13227 | Inch | Tool Steel | Blunt Edge | 0.600 | 0.640 | 1.500 | 0.375 | 0.710 | 1.500 | 1/2-13 x 1 1/4" | 108.30 | 12,000 | 0.0750 | 2 |
Part Number | CAD | Unit | Material | Clamp Type | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | Clamp Width | Screw Size | Maximum Holding Force (N) | Torque (Nm) | Total Throw (mm) | Clamps per Package |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
13252 | Metric | Tool Steel | Blunt Edge | 3.81 | 3.55 | 9.52 | 1.90 | - | 9.52 | M2.5 | 2800 | 1.8 | 0.190 | 8 | |
13261 | Metric | Tool Steel | Knife Edge | 5.08 | 4.75 | 12.70 | 2.54 | - | 12.70 | M4 | 6600 | 5.6 | 0.406 | 8 | |
13262 | Metric | Tool Steel | Blunt Edge | 5.08 | 4.75 | 12.70 | 2.54 | - | 12.70 | M4 | 6600 | 5.6 | 0.406 | 8 | |
13263 | Metric | Brass | Blunt Edge | 5.08 | 4.75 | 12.70 | 2.54 | - | 12.70 | M4 | 1750 | 2.8 | 0.406 | 8 | |
13271 | Metric | Tool Steel | Knife Edge | 7.62 | 7.11 | 19.05 | 3.81 | - | 19.05 | M6 | 16000 | 22.5 | 0.610 | 6 | |
13272 | Metric | Tool Steel | Blunt Edge | 7.62 | 7.11 | 19.05 | 3.81 | - | 19.05 | M6 | 16000 | 22.5 | 0.610 | 6 | |
13273 | Metric | Brass | Blunt Edge | 7.62 | 7.11 | 19.05 | 3.81 | - | 19.05 | M6 | 4200 | 5.6 | 0.610 | 6 | |
13274 | Metric | Tool Steel | Knife Edge | 10.16 | 11.43 | 25.40 | 6.350 | 18.03 | 25.40 | M10 x 25mm | 40.6 | 26000 | 1.270 | 4 | |
13275 | Metric | Tool Steel | Blunt Edge | 10.16 | 11.43 | 25.40 | 6.350 | 18.03 | 25.40 | M10 x 25mm | 40.6 | 26000 | 1.270 | 4 | |
13276 | Metric | Tool Steel | Knife Edge | 15.24 | 16.26 | 38.10 | 9.520 | 19.56 | 38.10 | M12 x 30mm | 145.0 | 50000 | 1.900 | 2 | |
13277 | Metric | Tool Steel | Blunt Edge | 15.24 | 16.26 | 38.10 | 9.520 | 19.56 | 38.10 | M12 x 30mm | 145.0 | 50000 | 1.900 | 2 |
