Micro™ Edge Clamps
Jergens Micro™ Edge Clamps offer increased versatility through their unique elevated clamping abilities.
Features, Benefits, & Product Specifications:
-
Clamping Element Material: Hardened Steel
-
Body Material: Low Carbon Steel
-
The workpiece is elevated for milling and drilling
-
Cam action provides a positive hold-down force
-
Provides flexible set-ups for hard-to-hold parts
-
Works in plates, both with tapped hole layouts or T-slot configurations
-
Can be mounted vertically or horizontally
-
Built-in stops locate workpiece for repeat positioning
-
Larger sizes are ideal for mold shop applications
-
A tapered mounting slot prevents movement when clamping pressure is applied
Documents
Jergens WSG_Master Catalog

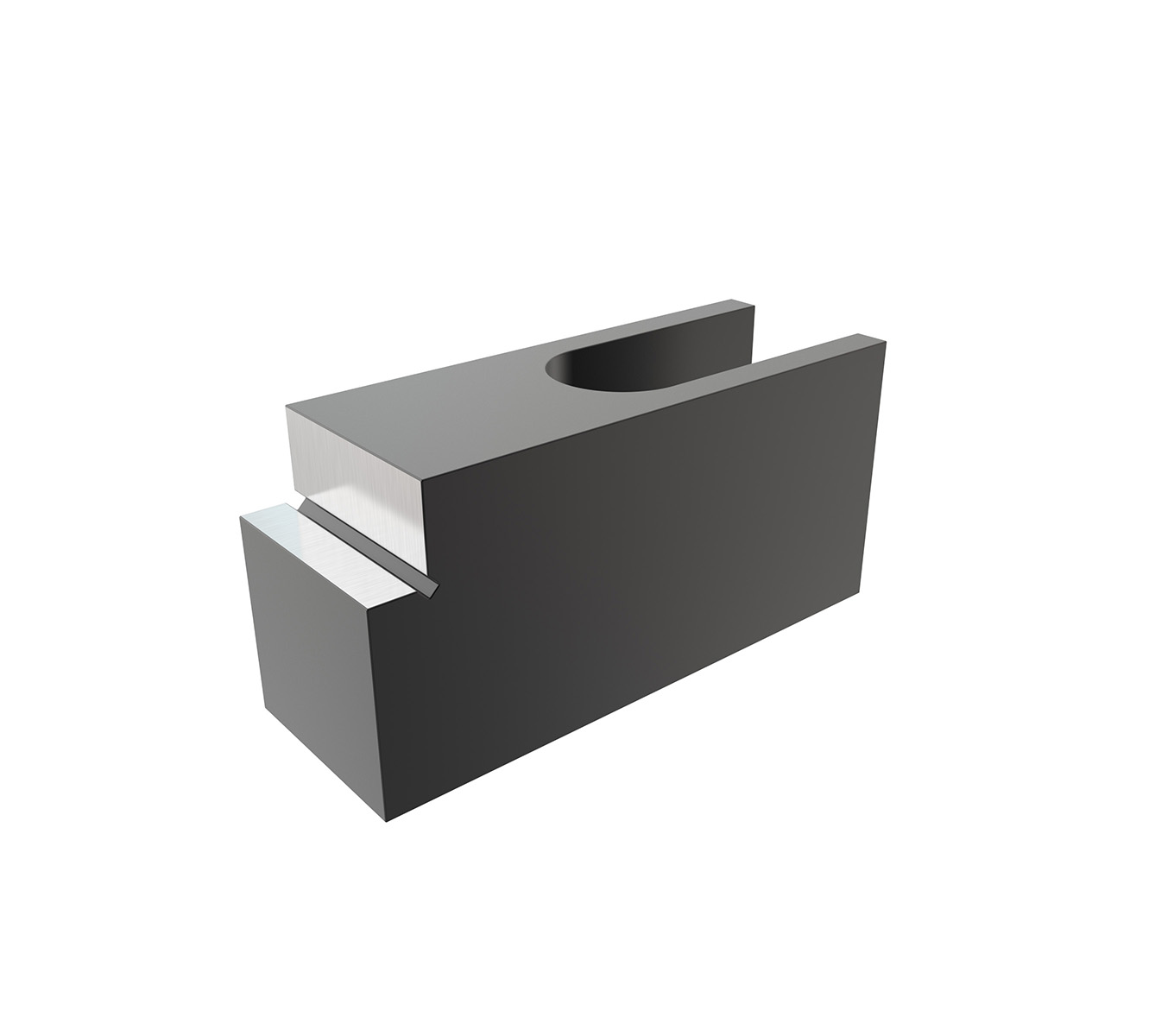

Micro™ Edge Clamps

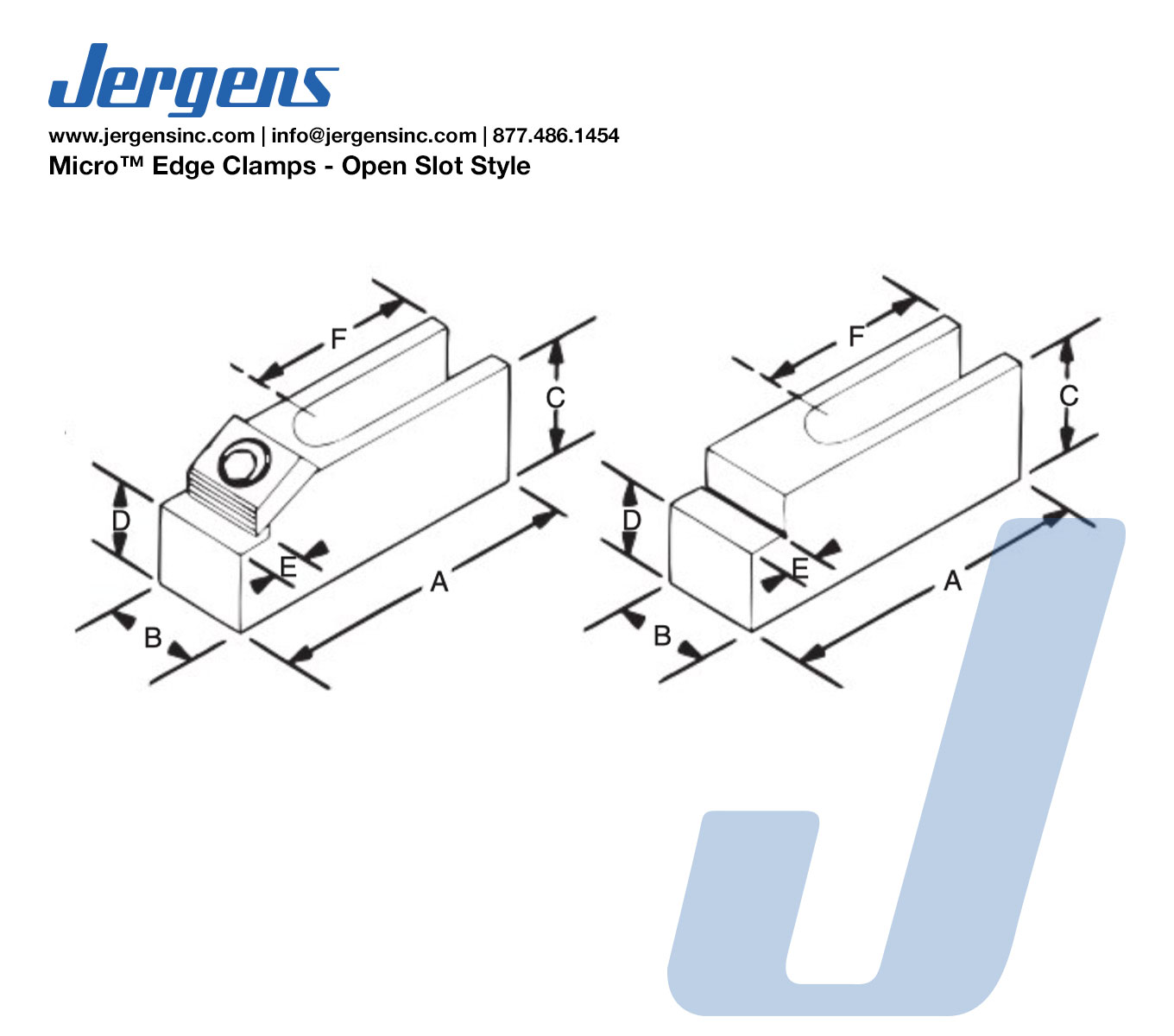

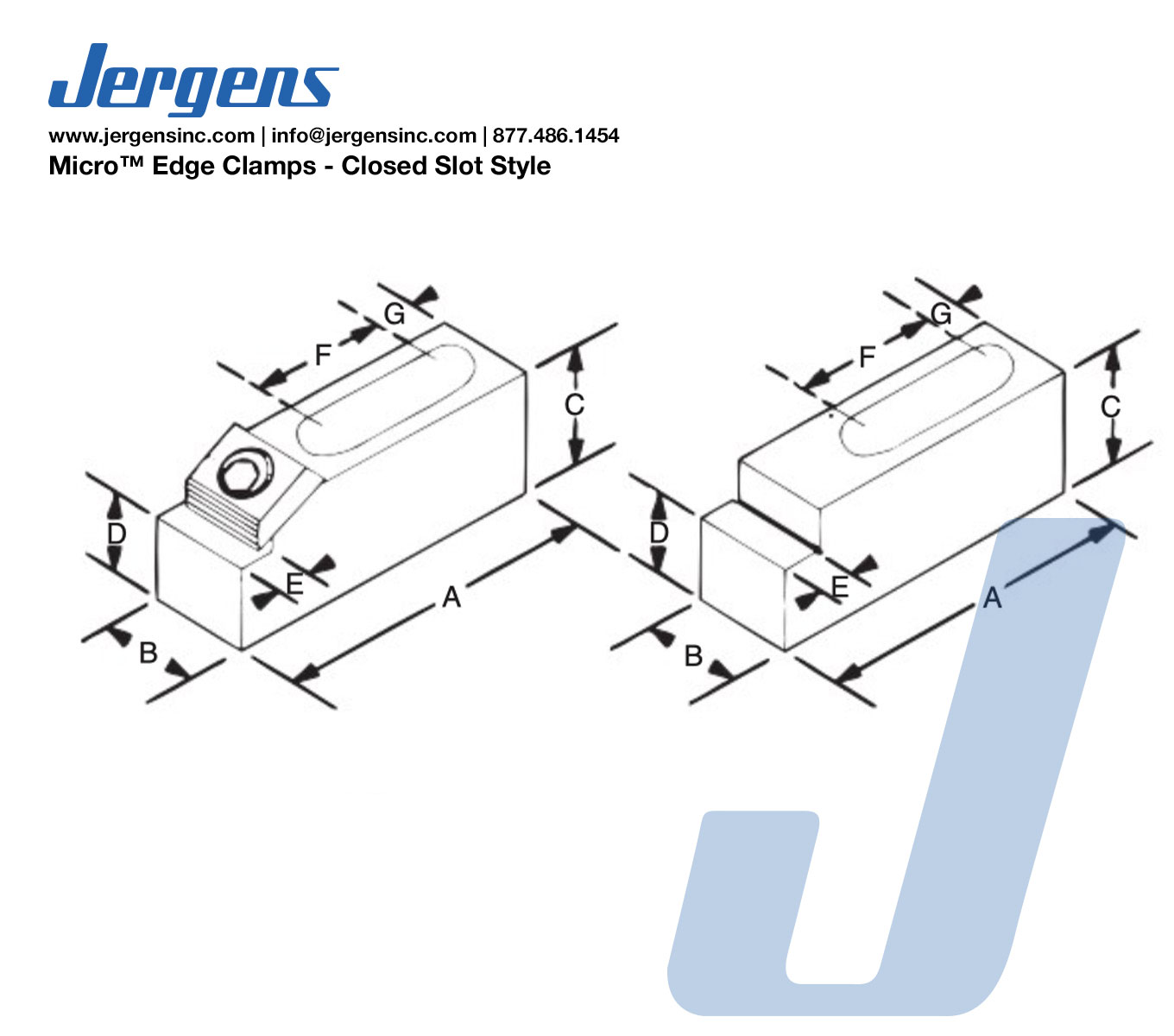

| Part Number | CAD | Unit | Item | A (In) | B (In) | C (In) | +0.0000/-0.0130 D (In) | E (in) | F (in) | G (in) | Cam Screw Part Number | Mounting Screw | Slot | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 68721 |
|
Inch | Clamp | 2.50 | 0.75 | 0.62 | 0.4600 | 0.31 | 0.83 | 0.53 | 68999 | 5/16 | Closed | |
| 68722 |
|

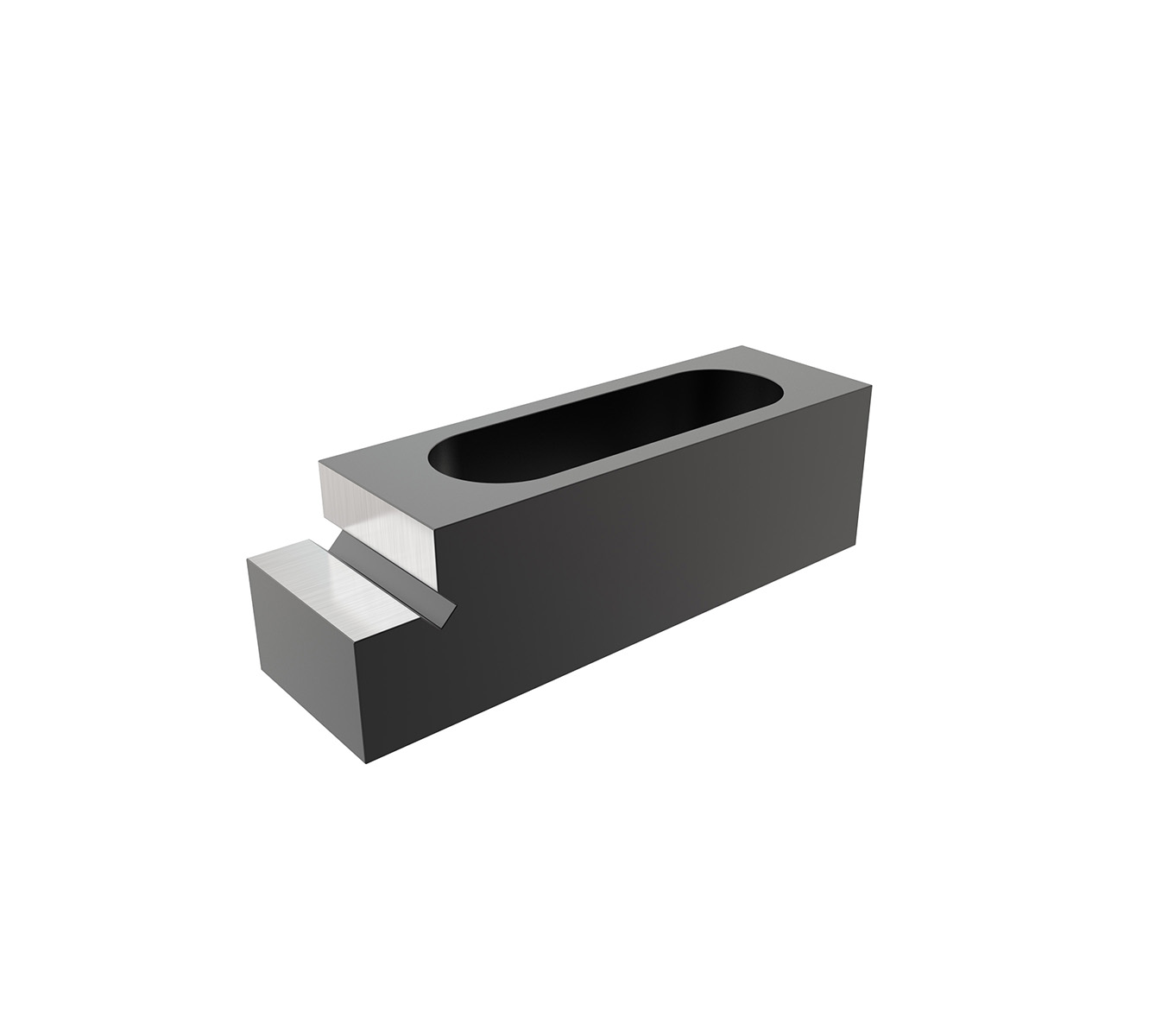

Inch | Stop | 2.50 | 0.75 | 0.75 | 0.4600 | 0.31 | 1.11 | 0.53 | - | 5/16 | Closed | |
| 68723 |
|
Inch | Clamp | 3.75 | 1.12 | 0.62 | 0.4800 | 0.37 | 1.68 | 0.5 | 68201 | 1/2 | Closed | |
| 68724 |
|
Inch | Stop | 3.75 | 1.12 | 0.87 | 0.4800 | 0.37 | 1.68 | 0.5 | - | 1/2 | Closed | |
| 68726 |
|
Inch | Stop | 4.21 | 1.50 | 2.00 | 1.3780 | 0.37 | 1.82 | - | - | 5/8 | Open |
| Part Number | CAD | Unit | Item | A (mm) | B (mm) | C (mm) | +0.0000/-0.0005 D (mm) | E (mm) | F (mm) | G (mm) | Cam Screw Part Number | Mounting Screw | Slot | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 68821 |
|
Metric | Clamp | 63.50 | 19.1 | 15.8 | 11.68 | 8.0 | 21.1 | 13.5 | 68211 | M8 | Closed | |
| 68822 |
|
Metric | Stop | 63.50 | 19.1 | 19.1 | 11.68 | 8.0 | 28.2 | 13.5 | - | M8 | Closed | |
| 68824 |
|
Metric | Stop | 93.50 | 28.5 | 22.1 | 12.19 | 9.4 | 42.7 | 12.7 | - | M12 | Closed |
