Micro™ Clamps
Jergens Micro™ Clamps feature both high hold-down forces and low profiles, which make them ideal for building fixtures on Ball Lock® fixturing plates. Two simple components make them work: a hardened steel socket cap screw with an offset head and a hexagonal washer. A half-turn tightens or loosens the workpiece.
Features, Benefits, & Product Specifications:
-
A low profile makes computer programming easier
-
Cam action provides fast, strong clamping
-
The small size allows for more parts per load
-
Requires only a tapped hole in your fixture
-
Available in stainless steel
Note(s):
-
Clockwise rotation recommended workpiece stop should be on the right of the Micro™ Clamp.
-
For the "G" dimension: Measurement is the correct location to drill and tap the hole from the edge of the workpiece.
-
Replacement Screws are available. Contact customer service for more information.
Micro™ Clamps
Select a part number for CAD drawings, price and stock availability.

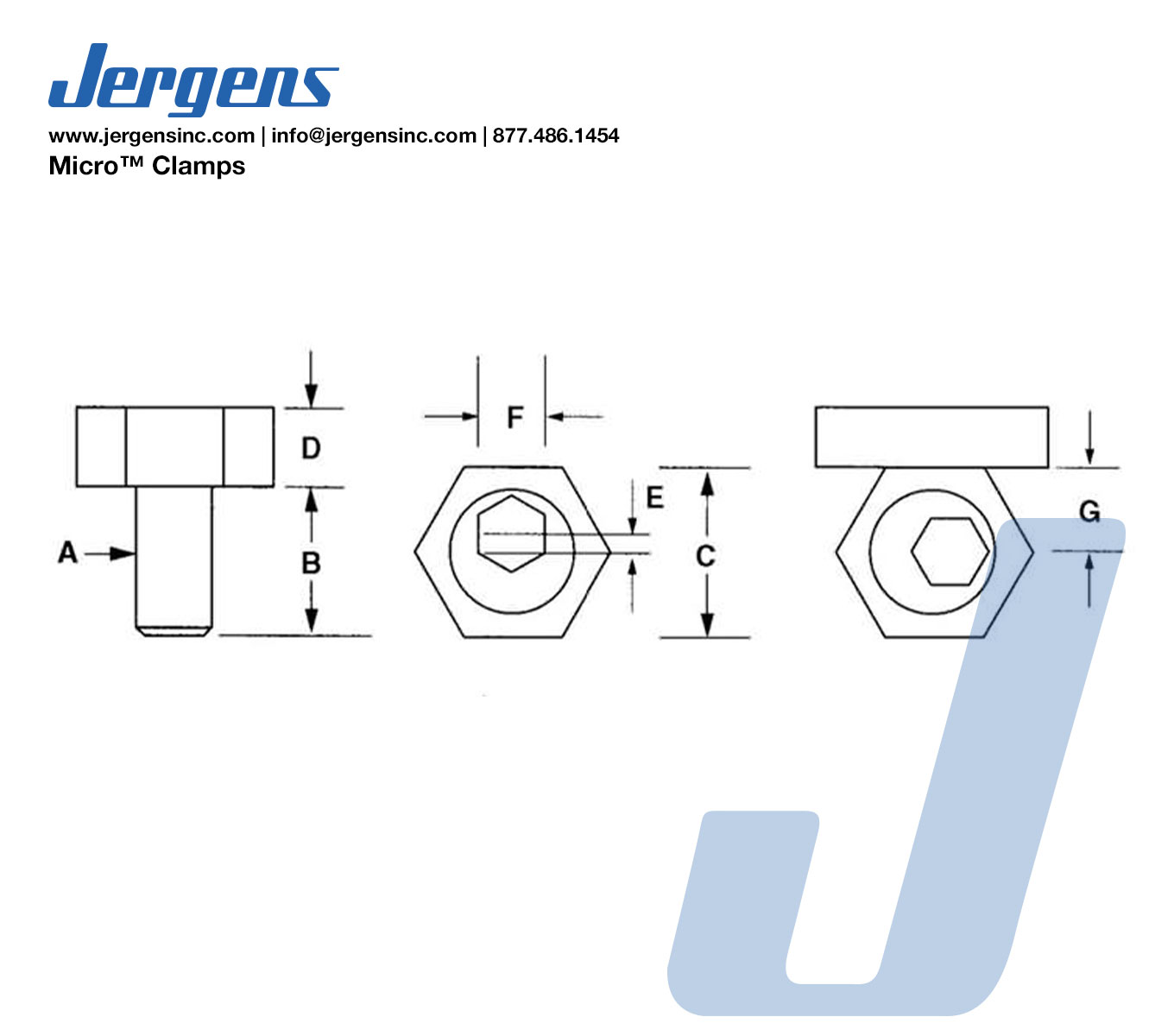

| Part Number | CAD | Unit | Material | Screw Size and Pitch A | Thread Length B (In) | Hex Size C (In) | Hex Height D (In) | Total Distance of Movement E (In) | Max Holding Force (lbs) | Key Size F | G (In) | Replacement Screw Part Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 68501 |
|
Inch | Steel | 8 - 32 | 3/8 | 5/16 | 0.110 | 0.030 | 205 | 5/64 | 0.150 | 68991 |
| 68502 |
|
Inch | Steel | 10-32 | 0.340 | 0.500 | 0.160 | 0.040 | 350 | 3/32 | 0.250 | 68992 |
| 68503 |
|
Inch | Steel | 1/4-20 | 1/2 | 5/8 | 3/16 | 0.040 | 800 | 1/8 | 0.308 | 68993 |
| 68505 |
|
Inch | Steel | 5/16-24 | 1/2 | 13/16 | 3/16 | 0.040 | 750 | 3/16 | 0.400 | 68997 |
| 68506 |
|
Inch | Steel | 5/16-18 | 1/2 | 13/16 | 3/16 | 0.040 | 750 | 3/16 | 0.400 | 68526 |
| 68507 |
|
Inch | Steel | 3/8-16 | 3/4 | 13/16 | 1/4 | 0.050 | 2000 | 3/16 | 0.400 | 68999 |
| 68509 |
|
Inch | Steel | 1/2-13 | 1 | 1 | 3/8 | 0.100 | 4000 | 5/16 | 0.500 | 68201 |
| 68511 |
|
Inch | Steel | 5/8-11 | 1 1/4 | 1 3/16 | 1/2 | 0.100 | 6000 | 3/8 | 0.590 | 68203 |
| 68513 |
|
Inch | Stainless Steel | 1/4-20 | 1/2 | 5/8 | 3/16 | 0.040 | 800 | 1/8 | 0.308 | 68998 |
| 68515 |
|
Inch | Stainless Steel | 5/16-18 | 1/2 | 13/16 | 3/16 | 0.040 | 750 | 3/16 | 0.400 | 68993 |
| Part Number | CAD | Unit | Material | A | B (mm) | C (mm) | D (mm) | Total Distance of Measurement E (mm) | Key Size F | G (mm) | Maximum Holding Force (N) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 68551 | Metric | Stainless Steel | M6 x 1.0 | 11.2 | 15.86 | 4.75 | 1.01 | 4 | 7.8 | 340 | |
| 68571 |
|
Metric | Steel | M4 x 0.7 | 9.6 | 7.93 | 2.8 | 0.76 | 3 | 3.8 | 90 |
| 68572 |
|
Metric | Steel | M6 x 1.0 | 11.2 | 15.86 | 4.75 | 1.01 | 4 | 7.8 | 340 |
| 68573 |
|
Metric | Steel | M8 x 1.25 | 15.0 | 20.61 | 4.75 | 1.01 | 5 | 10.15 | 360 |
| 68574 |
|
Metric | Steel | M10 x 1.5 | 19.0 | 20.61 | 6.35 | 1.52 | 7 | 10.15 | 900 |
| 68575 |
|
Metric | Steel | M12 x 1.75 | 22.8 | 25.38 | 9.52 | 2.03 | 8 | 12.7 | 1800 |
| 68576 |
|
Metric | Steel | M16 x 2.0 | 28.5 | 30.13 | 12.69 | 2.54 | 12 | 15.0 | 2700 |
