Metal Adjustable Handles with Stud

Jergens Metal Adjustable Handles with Stud are designed for adjustable clamping or tightening controls for limited operating angles. Adjustment of handle position occurs by pulling up on the handle, which disengages the teeth from the locking mechanism and turns to the desired position. Releasing the handle allows for tightening or loosening.
Features, Benefits, & Product Specifications:
  • Handle Material: Die-Cast Zinc
  • Handle Finish & Color: Powder-Coated, Black Satin
  • Part Materials: Available in Steel or Stainless Steel
  • Part Finishes: Black Oxidized for Steel, Bright for Stainless Steel

Documents

Metal Adjustable Handles with Stud

Metal Adjustable Handles with Stud part number 40521
  • Metal Adjustable Handles with Stud part number 40521

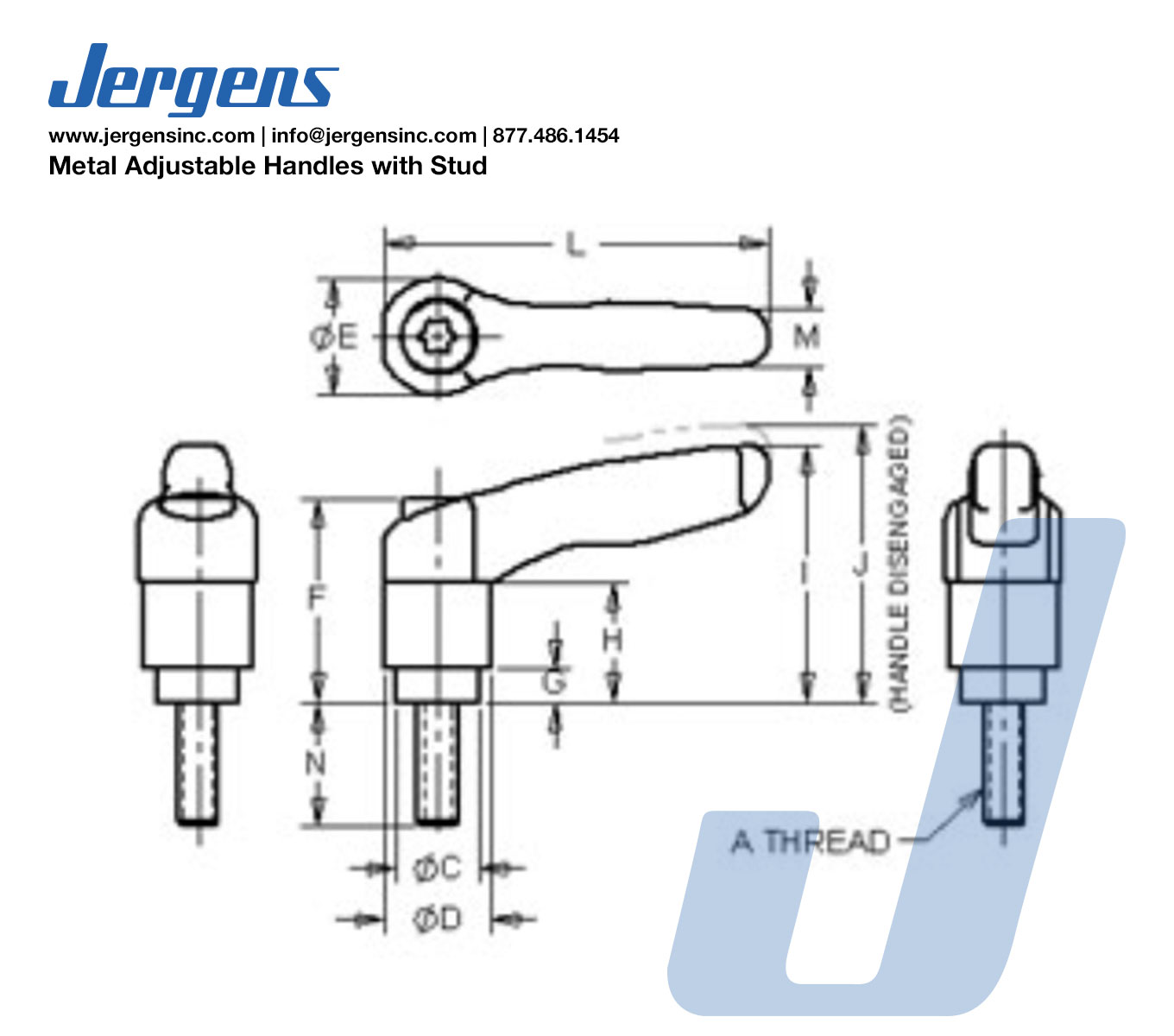

  • Line Art 40521 HANDLE, METAL ADJ, 10-24 X .59 STUD

Select a part number for CAD drawings, price and stock availability.

Part Number CAD Unit Stud Material Thread Size A Thread Length N (mm) C (mm) D (mm) E (mm) F (mm) G (mm) H (mm) I (mm) J (mm) L (mm) M (mm)
34360 Metric Steel M5 25 10 13 14 24.5 4 14.5 30 33 37 7
34361 Metric Steel M5 35 10 13 14 24.5 4 14.5 30 33 37 7
Part Number CAD Unit Stud Material Thread Size A Thread Length N (in) C (In) D (in) E (in) F (in) G (in) H (in) I (in) J (in) K (in) L (in) M (in)
40521 icon_cad Inch Steel 10-24 0.59 0.39 0.51 0.57 0.94 0.16 0.59 1.16 1.31 - 1.85 0.29
40522 icon_cad Inch Steel 10-24 0.98 0.39 0.51 0.57 0.94 0.16 0.59 1.16 1.31 - 1.85 0.29
40523 icon_cad Inch Steel 1/4-20 0.78 0.39 0.51 0.57 0.94 0.16 0.59 1.16 1.31 - 1.85 0.29
40524 icon_cad Inch Steel 1/4-20 0.98 0.39 0.51 0.57 0.94 0.16 0.59 1.16 1.31 - 1.85 0.29
40525 icon_cad Inch Steel 1/4-20 1.57 0.39 0.51 0.57 0.94 0.16 0.59 1.16 1.31 - 1.85 0.29
40526 icon_cad Inch Steel 1/4-20 0.78 0.53 0.70 0.76 1.14 0.25 0.68 1.61 1.77 - 2.95 0.37
40527 icon_cad Inch Steel 1/4-20 0.98 0.53 0.70 0.76 1.14 0.25 0.68 1.61 1.77 - 2.95 0.37
40528 icon_cad Inch Steel 1/4-20 1.57 0.53 0.70 0.76 1.14 0.25 0.68 1.61 1.77 - 2.95 0.37
40529 icon_cad Inch Steel 5/16-18 0.78 0.53 0.70 0.76 1.14 0.25 0.68 1.61 1.77 - 2.95 0.37
40530 icon_cad Inch Steel 5/16-18 0.98 0.53 0.70 0.76 1.14 0.25 0.68 1.61 1.77 - 2.95 0.37
40531 icon_cad Inch Steel 5/16-18 1.57 0.53 0.70 0.76 1.14 0.25 0.68 1.61 1.77 - 2.95 0.37
40532 icon_cad Inch Steel 3/8-16 0.98 0.70 0.84 0.90 1.47 0.39 0.94 2.08 2.24 - 3.60 0.43
40533 icon_cad Inch Steel 3/8-16 1.57 0.70 0.84 0.90 1.47 0.39 0.94 2.08 2.24 - 3.60 0.43
40534 icon_cad Inch Steel 3/8-16 1.96 0.70 0.84 0.90 1.47 0.39 0.94 2.08 2.24 - 3.60 0.43
40535 icon_cad Inch Steel 3/8-16 0.98 0.70 1.00 1.08 1.67 0.39 1.06 2.40 2.55 - 4.25 0.51
40536 icon_cad Inch Steel 3/8-16 1.57 0.70 1.00 1.08 1.67 0.39 1.06 2.40 2.55 - 4.25 0.51
40537 icon_cad Inch Steel 3/8-16 1.96 0.70 1.00 1.08 1.67 0.39 1.06 2.40 2.55 - 4.25 0.51
40538 icon_cad Inch Steel 1/2-13 0.98 0.70 1.00 1.08 1.67 0.39 1.06 2.40 2.55 - 4.25 0.51
40539 icon_cad Inch Steel 1/2-13 1.57 0.70 1.00 1.08 1.67 0.39 1.06 2.40 2.55 - 4.25 0.51
40540 icon_cad Inch Steel 1/2-13 1.96 0.70 1.00 1.08 1.67 0.39 1.06 2.40 2.55 - 4.25 0.51
40541 icon_cad Inch Steel 1/2-13 0.98 0.90 1.18 1.27 2.00 0.47 1.29 2.85 3.05 - 4.97 0.61
40542 icon_cad Inch Steel 1/2-13 1.57 0.90 1.18 1.27 2.00 0.47 1.29 2.85 3.05 - 4.97 0.61
40543 icon_cad Inch Steel 1/2-13 1.96 0.90 1.18 1.27 2.00 0.47 1.29 2.85 3.05 - 4.97 0.61
40545 icon_cad Inch Steel 5/8-11 1.77 0.90 1.18 1.27 2.00 0.47 1.29 2.85 3.05 - 4.97 0.61
40546 icon_cad Inch Steel 5/8-11 2.16 0.90 1.18 1.27 2.00 0.47 1.29 2.85 3.05 - 4.97 0.61
40621 icon_cad Inch Stainless Steel 10-24 0.59 0.39 0.51 0.57 0.94 0.15 0.59 1.16 1.31 1.57 1.85 0.29
40623 icon_cad Inch Stainless Steel 1/4-20 0.78 0.39 0.51 0.57 0.94 0.15 0.59 1.16 1.31 1.57 1.85 0.29
40625 icon_cad Inch Stainless Steel 1/4-20 1.57 0.53 0.70 0.76 1.14 0.25 0.68 1.61 1.77 2.55 2.95 0.37
40630 icon_cad Inch Stainless Steel 5/16-18 0.78 0.53 0.70 0.76 1.14 0.25 0.68 1.61 1.77 2.55 2.95 0.37
40631 icon_cad Inch Stainless Steel 5/16-18 1.57 0.53 0.70 0.76 1.14 0.25 0.68 1.61 1.77 2.55 2.95 0.37
40632 icon_cad Inch Stainless Steel 3/8-16 0.98 0.62 0.84 0.90 1.47 0.39 0.94 2.08 2.24 3.14 3.60 0.45
40634 icon_cad Inch Stainless Steel 3/8-16 1.96 0.62 0.84 0.90 1.47 0.39 0.94 2.08 2.24 3.14 3.60 0.45
40641 icon_cad Inch Stainless Steel 1/2-13 0.98 0.74 1.00 1.08 1.67 0.39 1.06 2.40 2.55 3.74 4.28 0.53
40643 Inch Stainless Steel 1/2-13 1.96 0.74 1.00 1.08 1.67 0.39 1.06 2.40 2.55 3.74 4.28 0.53
