Jergens Manual ZPS is ideal when pneumatic and hydraulic connections are not available. These modules provide locating and clamping with single bolt actuation. The indexing slots on the face of the modules allow workpieces to be indexed in 90° increments. Indexing slot plugs are available for applications where only specified slots are needed.
Features, Benefits, & Product Specifications:
- Material: Quenched & Tempered Steel
- Mechanical clamping & unclamping
- Repeatability: <0.01mm (0.0004")
- Single hex drive actuation
- Flexible mounting & placement
- Eliminates need for air or hydraulic connection
Manual ZPS

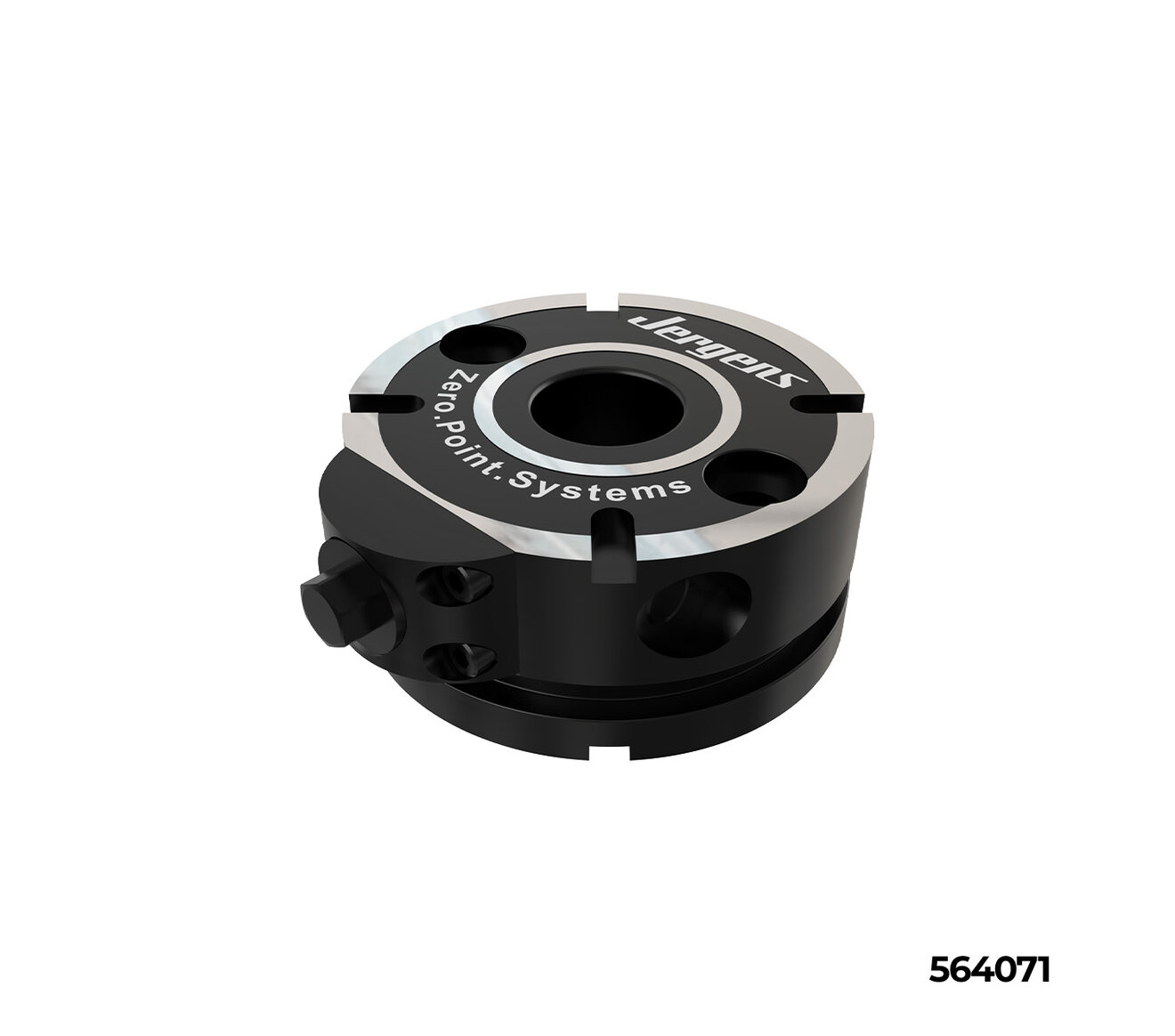

Select a part number for CAD drawings, price and stock availability.

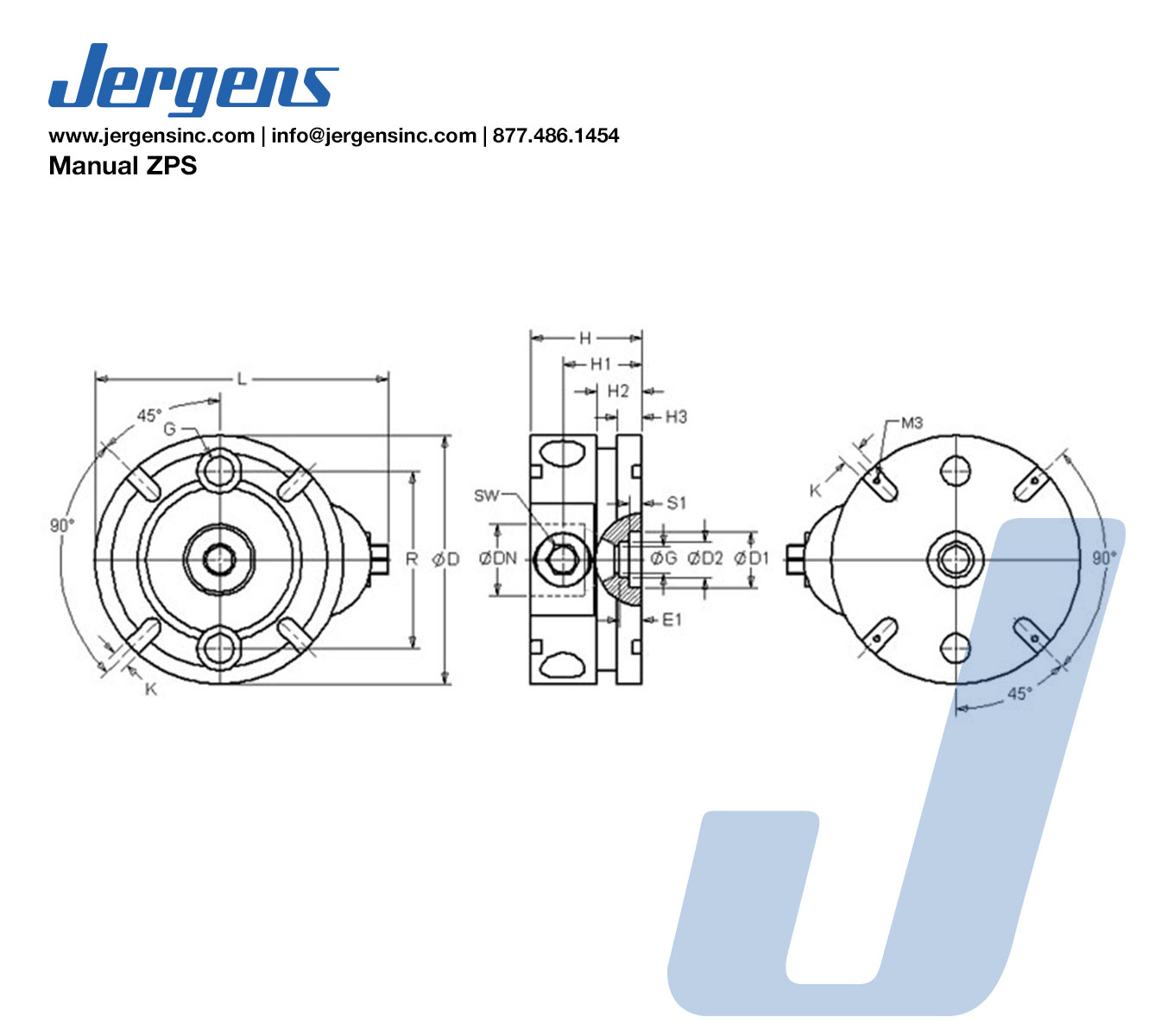

| Part Number | CAD | Unit | Size | Pull-in / Locking Force (kN) | Holding Force (kN) | Tightening Torque (Nm) | D (mm) | D1 +0.01/-0 (mm) | D2 (mm) | DN (mm) | E1 (mm) | G | H +-0.01 (mm) | H1 (mm) | H2 (mm) | H3 (mm) | K F6 (mm) | L (mm) | R (mm) | S1 (mm) | SW (mm) | Weight (kgs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 559775 |
|
Metric | K10 | 6 | 25 | 30 | 78 | 15 | - | 22 | 4.5 | M8 | 32 | 22 | - | - | 8 | 93 | 50 | - | 10 | 1.03 |
| 564071 |
|
Metric | K20 | 10 | 55 | 30 | 112 | 25 | 16 | 32 | 10.0 | M12 | 50 | 35.5 | 20 | 11 | 8 | 132 | 80 | 5.5 | 13 | 3.30 |
