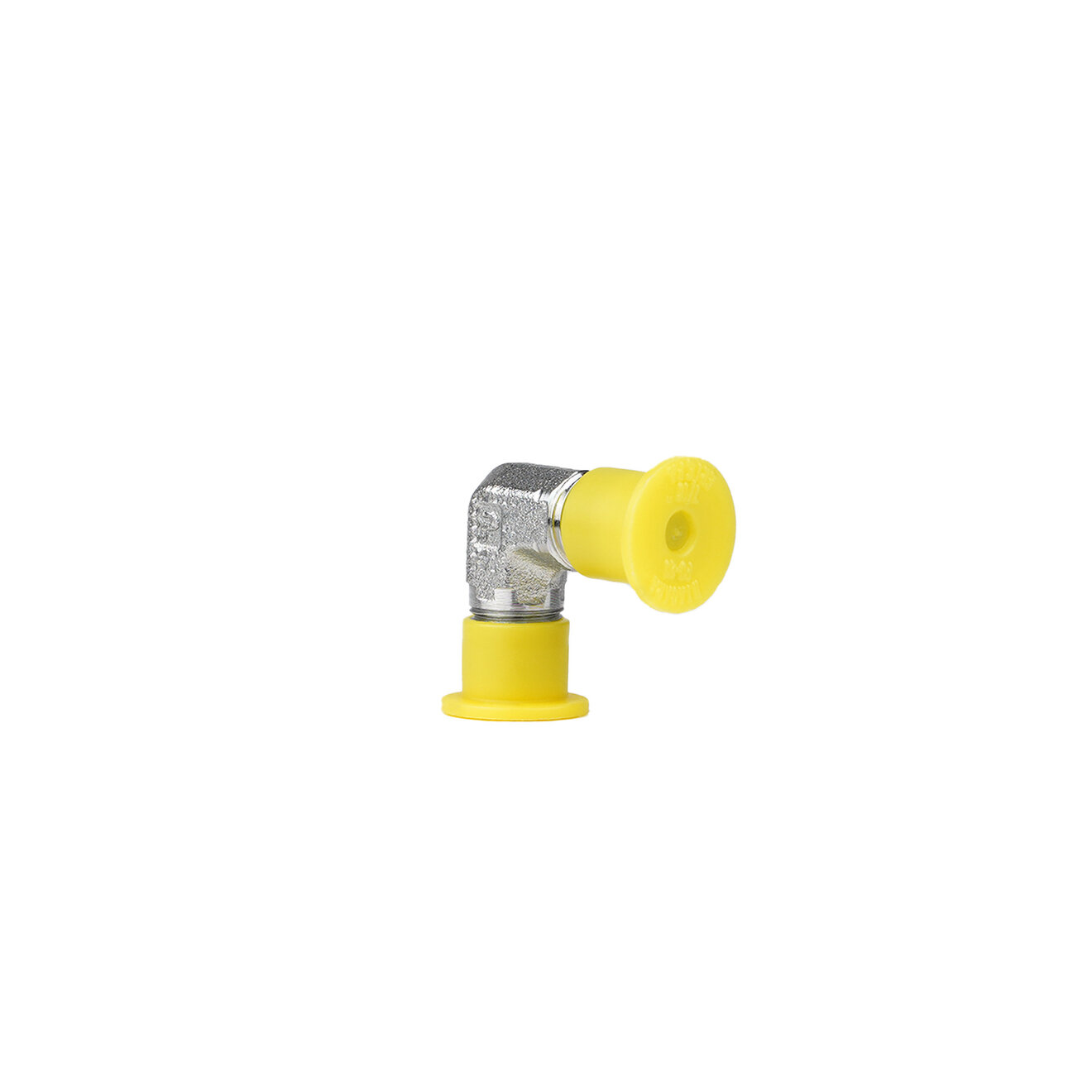

Male Elbow Fittings
Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Style | Thread x Tube |
|---|---|---|---|---|
| 61003 |
|
Inch | Pipe Thread | 1/8 NPT x 1/4 Tube |
| 61004 |
|
Inch | Pipe Thread | 1/4 NPT x 1/4 Tube |
| 61005 |
|
Inch | Straight Thread | 7/16-20 x 1/4 Tube |
| 61017 |
|
Inch | Pipe Thread | 1/4 NPT x 3/8 Tube |
| 61018 |
|
Inch | Straight Thread | 9/16-18 x 3/8 Tube |
| 61029 |
|
Inch | Straight Thread | 9/16-18 x 1/4 Tube |
| 61045 |
|
Inch | Pipe Thread | 3/8 NPT x 1/2 Tube |
| 61064 |
|
Inch | Pipe Thread | 3/8 NPT x 3/8 Tube |
| 61072 |
|
Inch | 45 Elbow | 3/8 NPT x 3/8 Tube |
