Male Branch Tee Fittings
Jergens Male Branch Tee Fittings ideal for connecting three pipes of different diameters. These fittings have a male thread on one end, which allows it to be connected to a female threaded pipe or fitting, and two other ends with tube fittings. Their design allows them to split a fluid flow in three directions, making them ideal for use in piping systems that require branching connections.
Documents
Male Branch Tee Fittings
Select a part number for CAD drawings, price and stock availability.
Part Number | CAD | Unit | Style | Thread x Tube |
---|---|---|---|---|

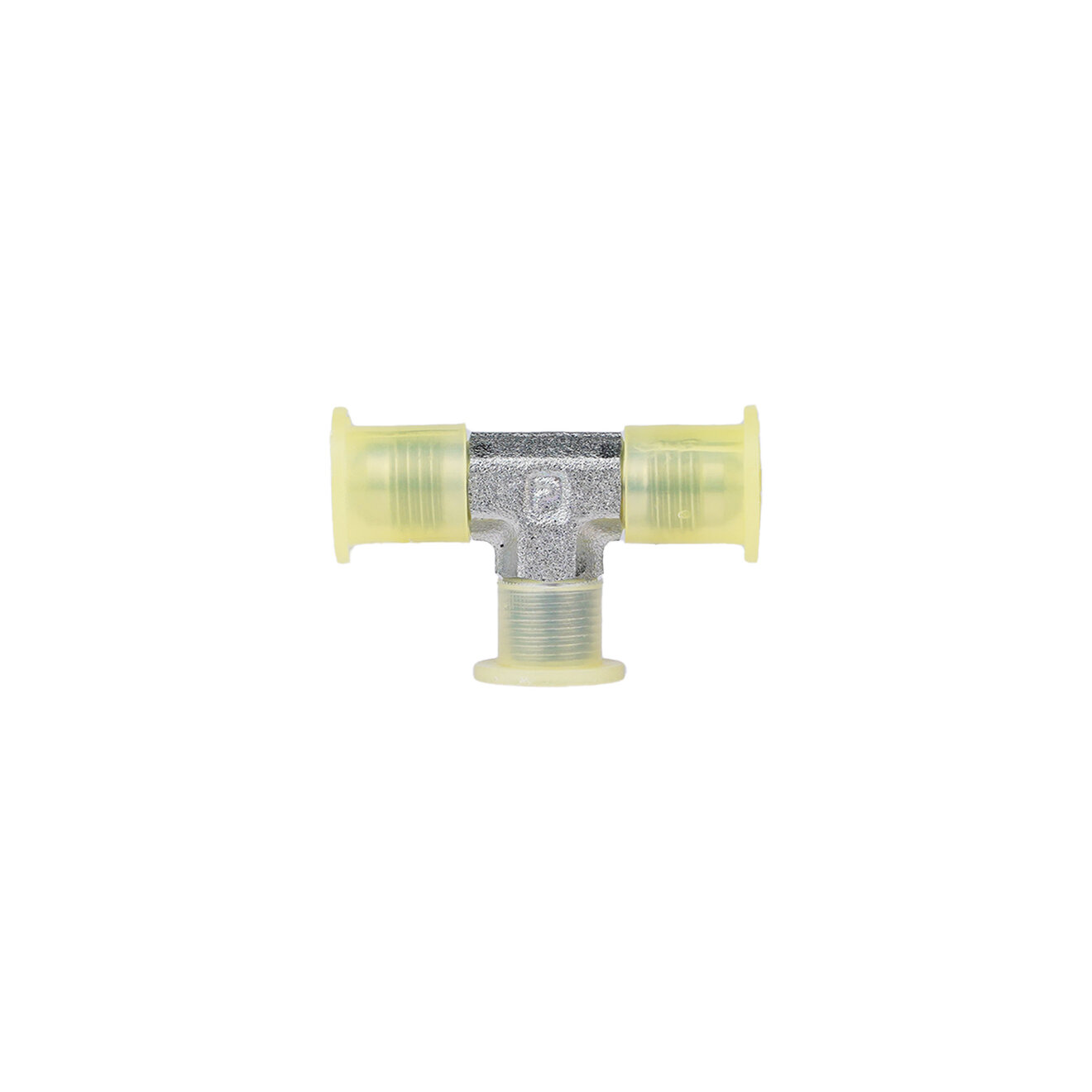

61014 | Inch | Pipe Thread | 1/8 NPT x 1/4 Tube | |
61032 | Inch | Male Run Tees | 7/16-20 x 1/4 Tube | |
61040 | Inch | Straight Thread | 7/16-20 x 1/4 Tube | |
61041 | Inch | Straight Thread | 9/16-18 x 3/8 Tube | |
61042 | Inch | Straight Thread | 3/4-16 x 1/2 Tube | |
61043 | Inch | Pipe Thread | 3/8 NPT x 1/2 Tube | |
61061 | Inch | Male Run Tees | 9/16-18 x 3/8 Tube |
